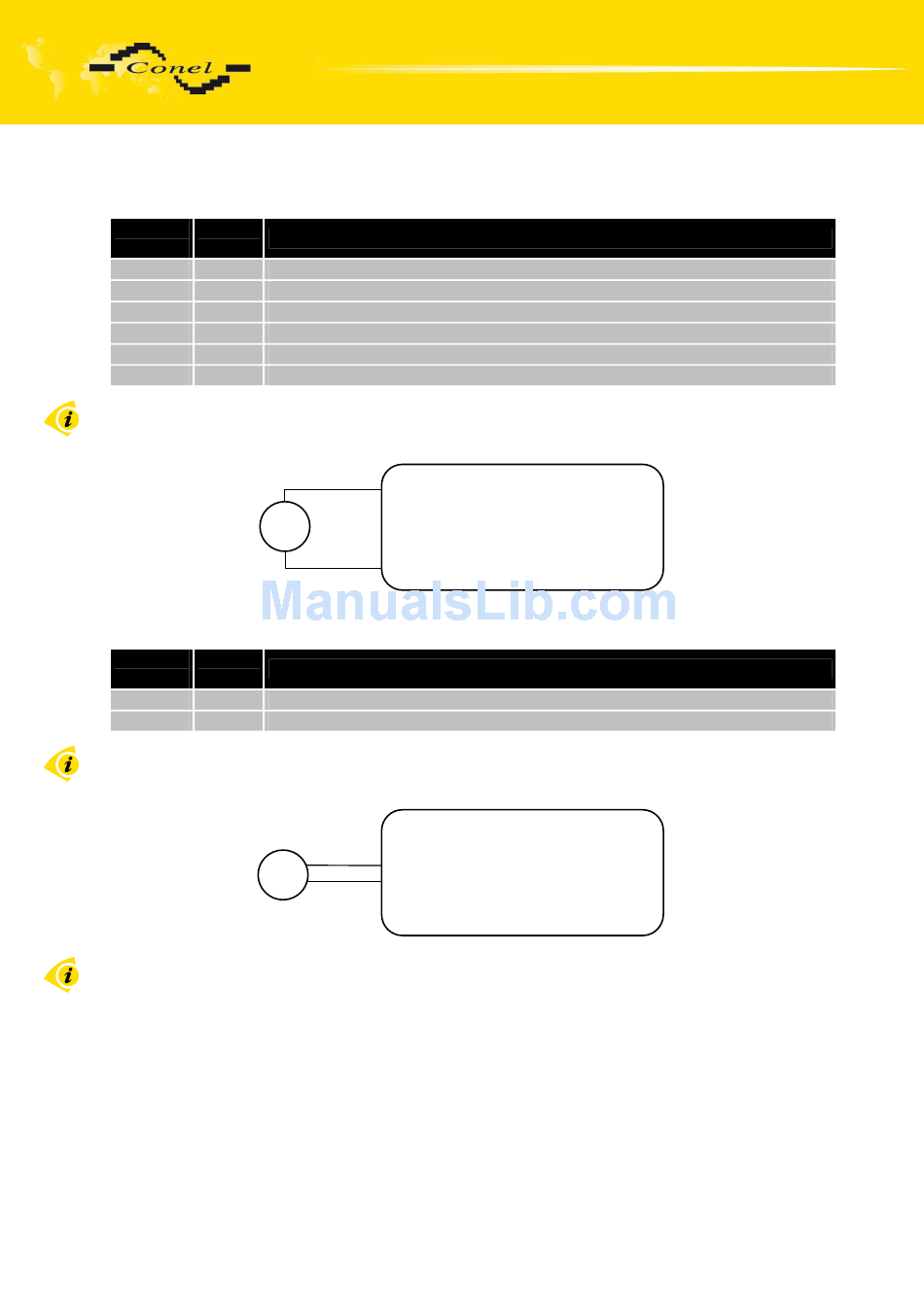

Connection of the PWR Supply Connector

•
Panel socket RJ12.
Pin Signal
number mark
1 +UN
2 NC
3 NC
4 +UN
5 GND
6 GND
Circuit example:
•
Panel socket MRT9.
Pin Signal
number mark
1 +UN
2 GND
Circuit example:
The positive pole +UN is marked by a red socket on the power supply.
13
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Positive pole of DC supply voltage (+10 to +30 VDC)
Signal not connected
Signal not connected
Positive pole of DC supply voltage (+10 to +30 VDC)
Negative pole of DC supply voltage
Negative pole of DC supply voltage
Pin 1 – +UN
Pin 2 – NC
+
Pin 3 – NC
DC
Pin 4 – +UN
Pin 5 – GND
Pin 6 – GND
Positive pole of DC supply voltage (+10 to +30 VDC)
Negative pole of DC supply voltage
+
Pin 1 – +UN
DC
Pin 2 – GND
