Gre Tunnel Configuration - Lucom ER 75i User Manual

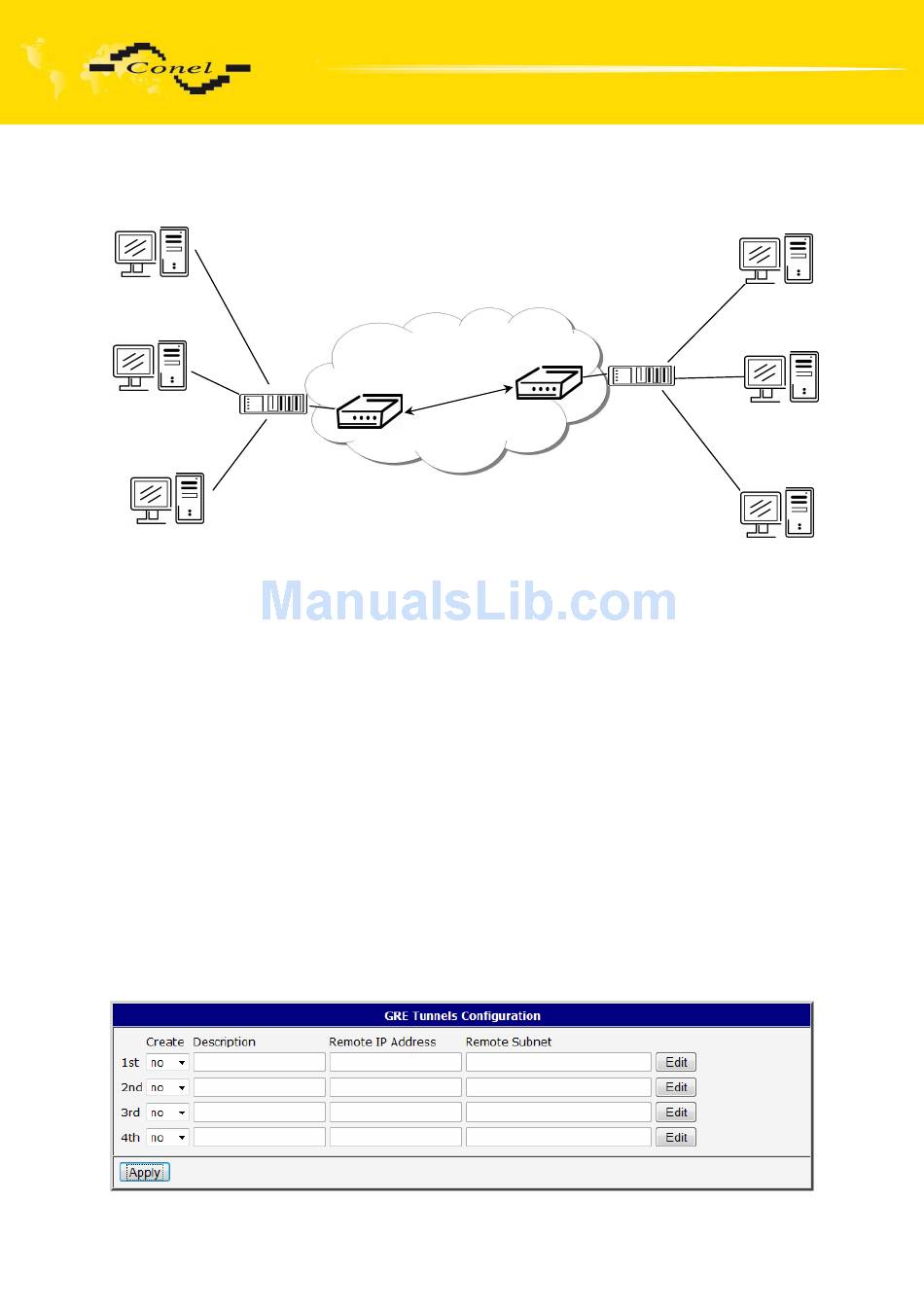

Example of the IPSec Tunnel configuration:
192.168.1.2
192.168.1.3
192.168.1.4
Default Gateway 192.168.1.1
Ipsec tunnel configuration:
Remote IP Address:
Remote Subnet:
Remote Subnet Mask:
Local Subnet:
Local Subnet Mask:
Authenticate mode:
Pre-shared key

4.14. GRE Tunnel Configuration

To enter the GRE tunnels configuration, select the GRE menu item. It is possible
configure up to four GRE tunnels. In the GRE Tunnels Configuration window are four rows,
each row for one configured GRE tunnel. The column Create switch on tunnels, other
columns contain values view set in the GRE Tunnel Configuration windows; configuration is
possible by Edit button.
55
