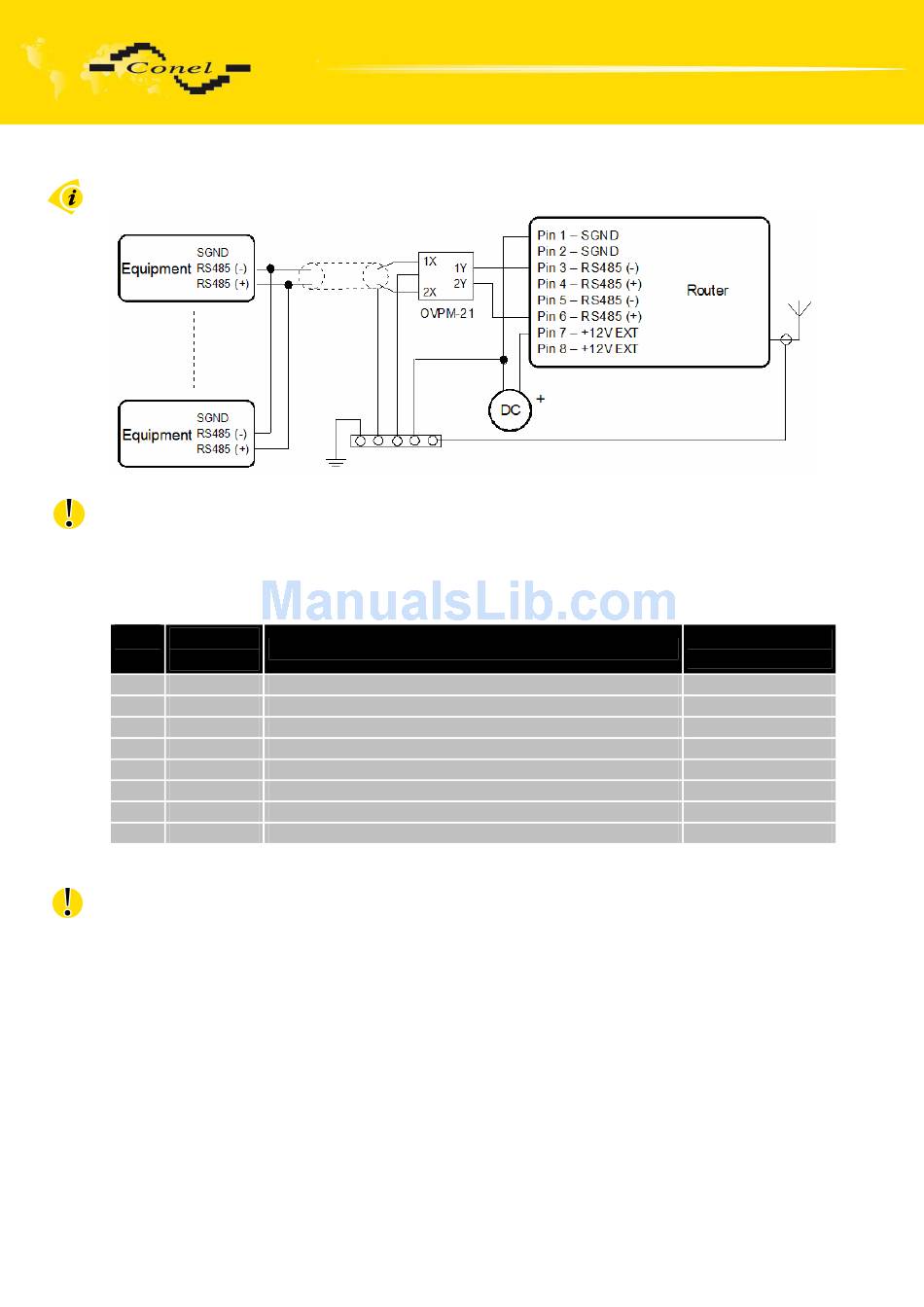

Circuit example of the equipment with a router with data length more than 10 m:
At RS485 data cable more than 10m it is need to use overvoltage protection
on the router side!
2.8.4.3.
Pin Signal
name
No.
1 SGND
2 SGND
3 RxD-
4 RxD+
5 TxD-
6 TxD+
7 +12V EXT External power supply
8 +12V EXT External power supply
ATTENTION! Power supply is selected on the expansion port RS422 by help
of a jumper, 2.9. If galvanic separation is required the converter must have an external
power supply.
17
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Expansion port RS422
Description
Signal and power supply ground
Signal and power supply ground
Receive Data (-)
Receive Data (+)
Transmit Data (-)
Transmit Data (+)
DESCRIPTION
Data flow
direction
Output
Output
Input
Input
