DESCRIPTION

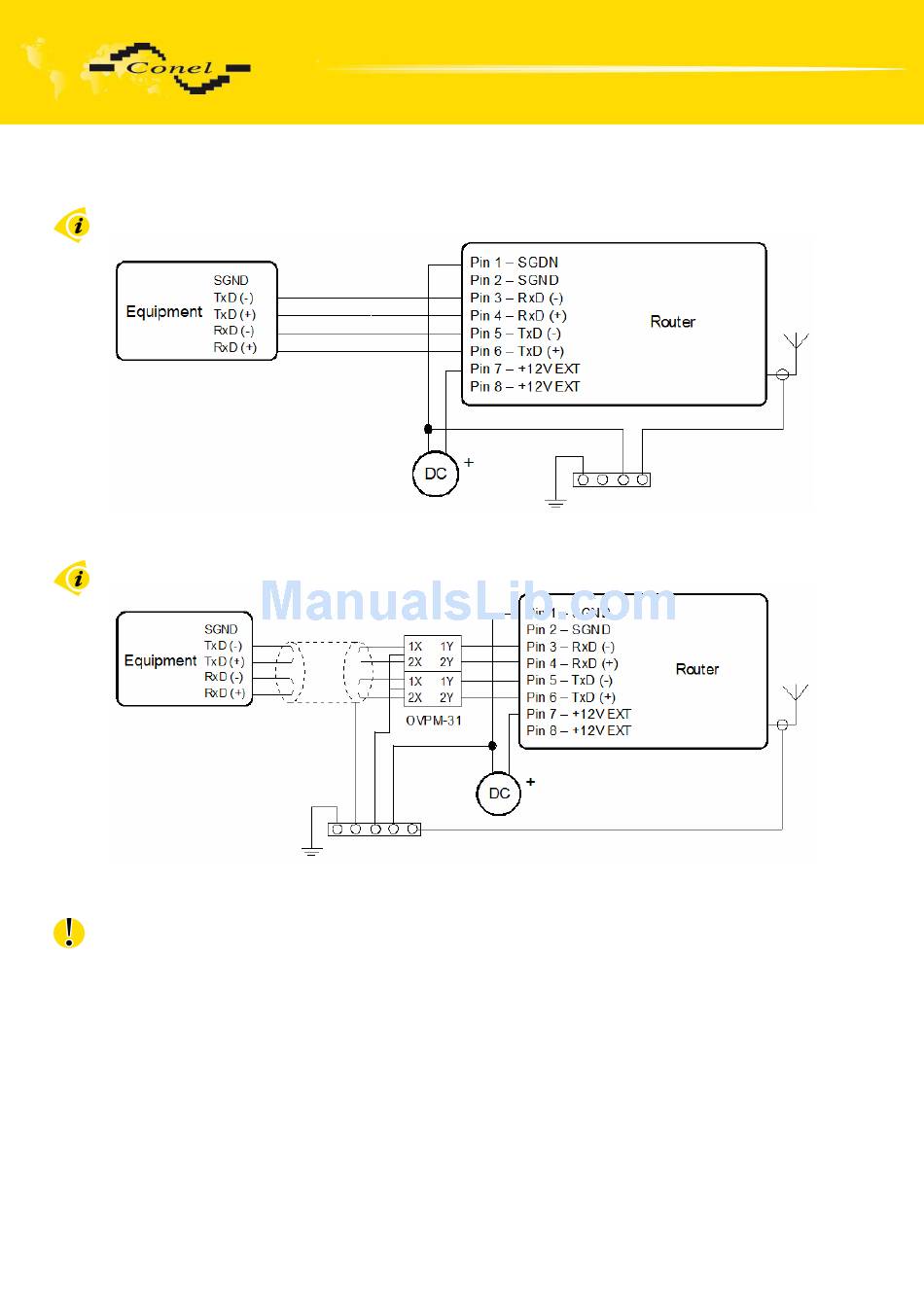

Circuit example of the equipment with router with data length less than 10 m:
Circuit example of the equipment with a router with data length more than 10 m:
At RS422 data cable more than 10m it is need to use overvoltage protection
on the router side!
