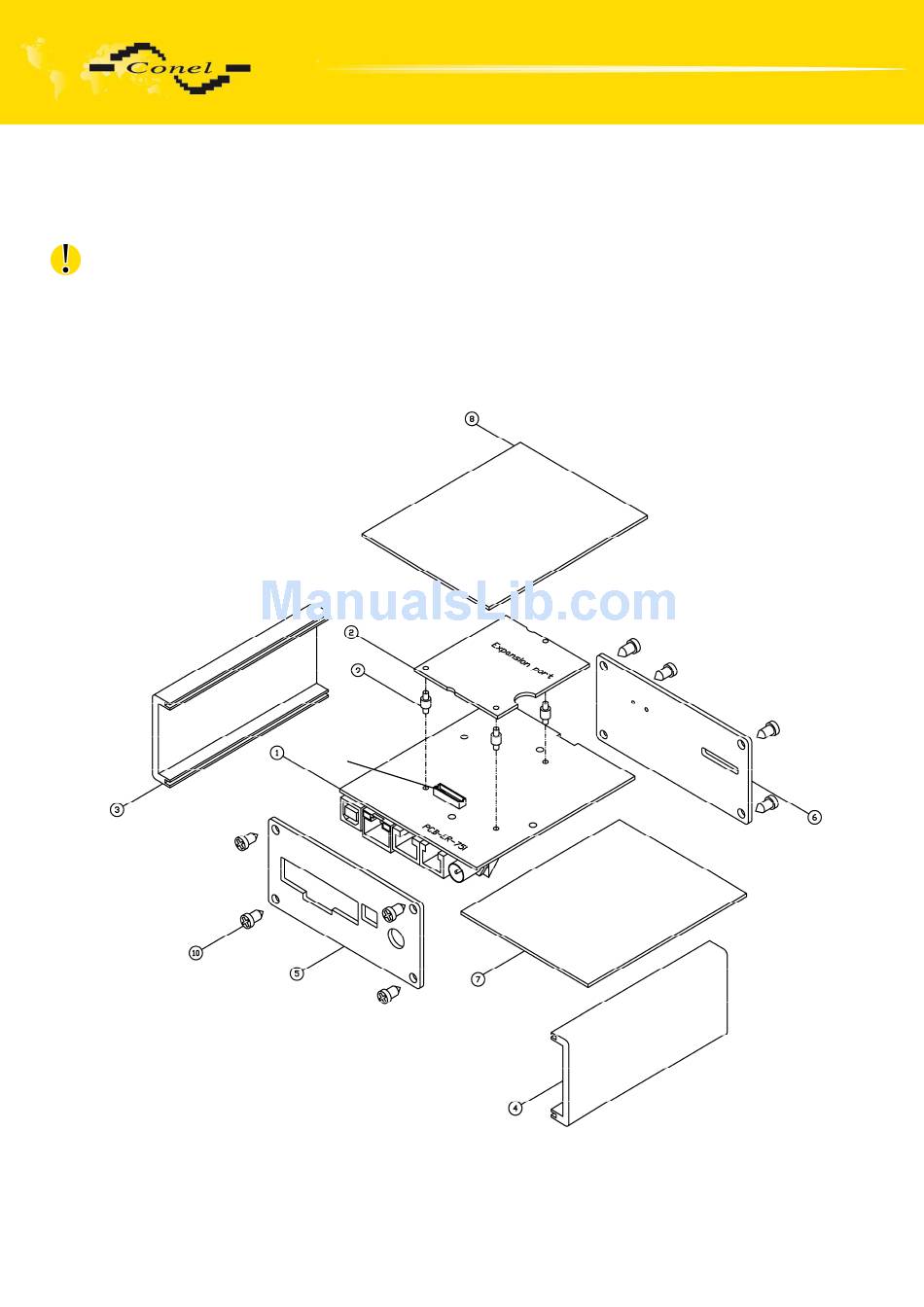

3.2. Expansion port mounting for ER 75i SL and ER 75i DUO SL router

Attention! Expansion port includes when the router is switched off.
After unscrewing four screws (position 10) on the rear panel (position 5)
and removing it is possible to take out the B-ER-75i motherboard (position 1). The expansion
port PORT1 (position 2) is connected to connector J3 (see below) of the router B-ER-75i
motherboard (position 1) from TOP side. The expansion port is mounted to the motherboard
by the help of three spacers (position 9). After mounting the expansion port the box is
screwed together by the help of four screws.
30
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
EXPANSION PORT MOUNTING
Connector J3
