Lucom ER 75i User Manual page 27

•
sufficient space must be left before individual connectors for handling of cables,
•
for correct function of the modem we recommend to use in switch - board earth-
bonding distribution frame for grounding of power supply of modem, data cables
and antenna,
•

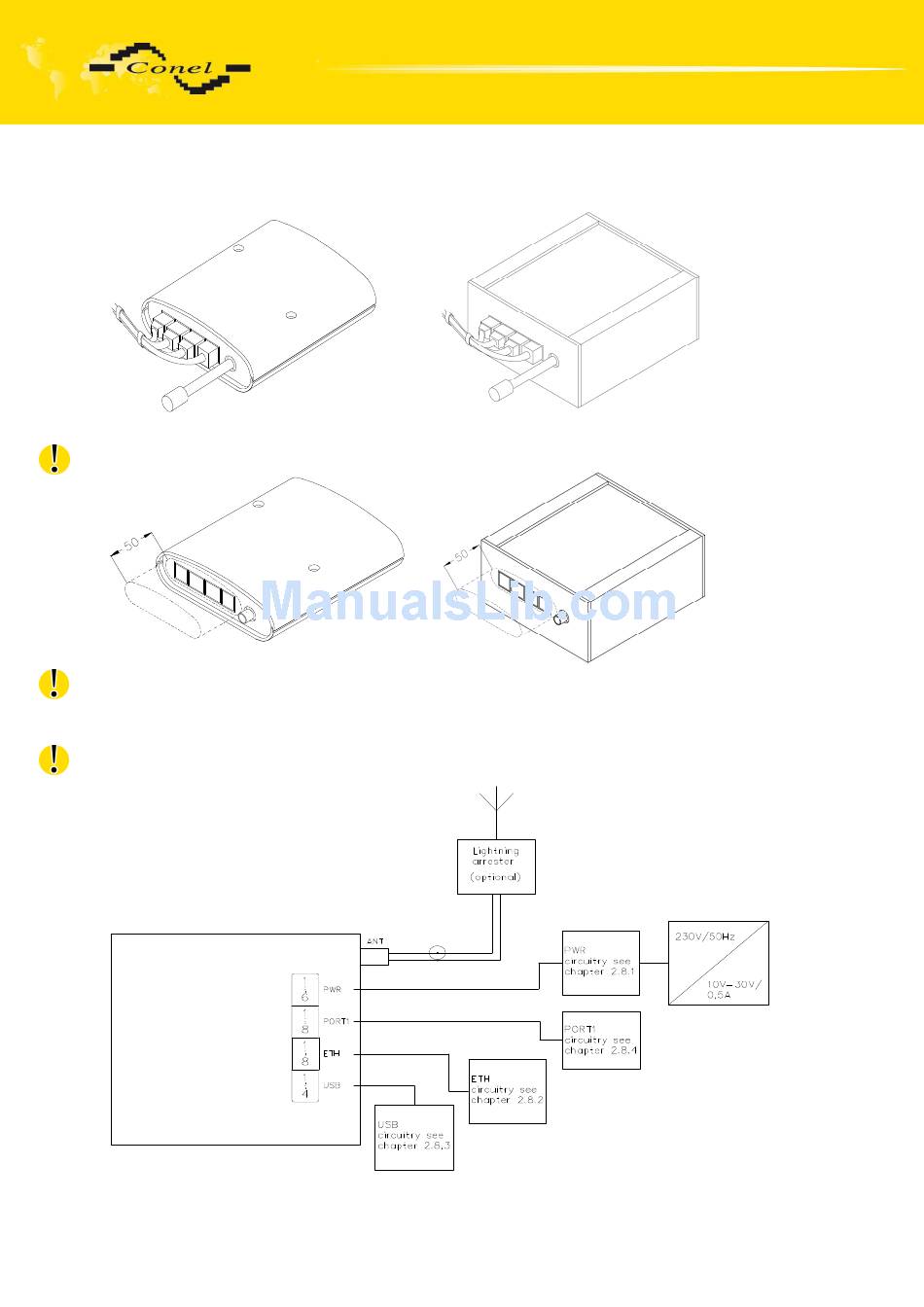

the circuit diagram of the router is on the following pictures.
