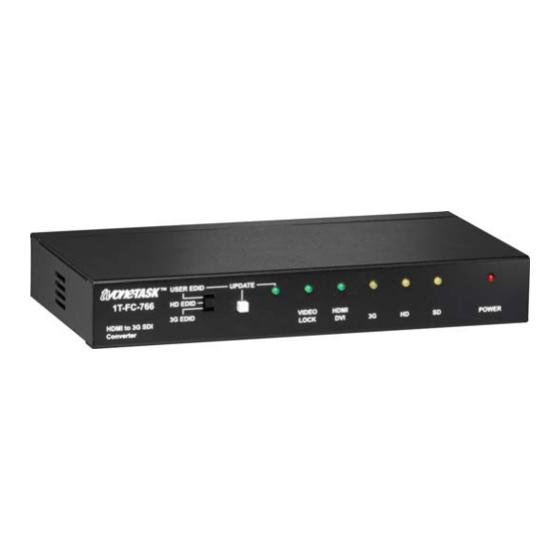

Hdmi to 3g sdi converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
1T-FC-766
HDMI to 3G SDI Converter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1T-FC-766 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV One 1T-FC-766

Summary of Contents for TV One 1T-FC-766

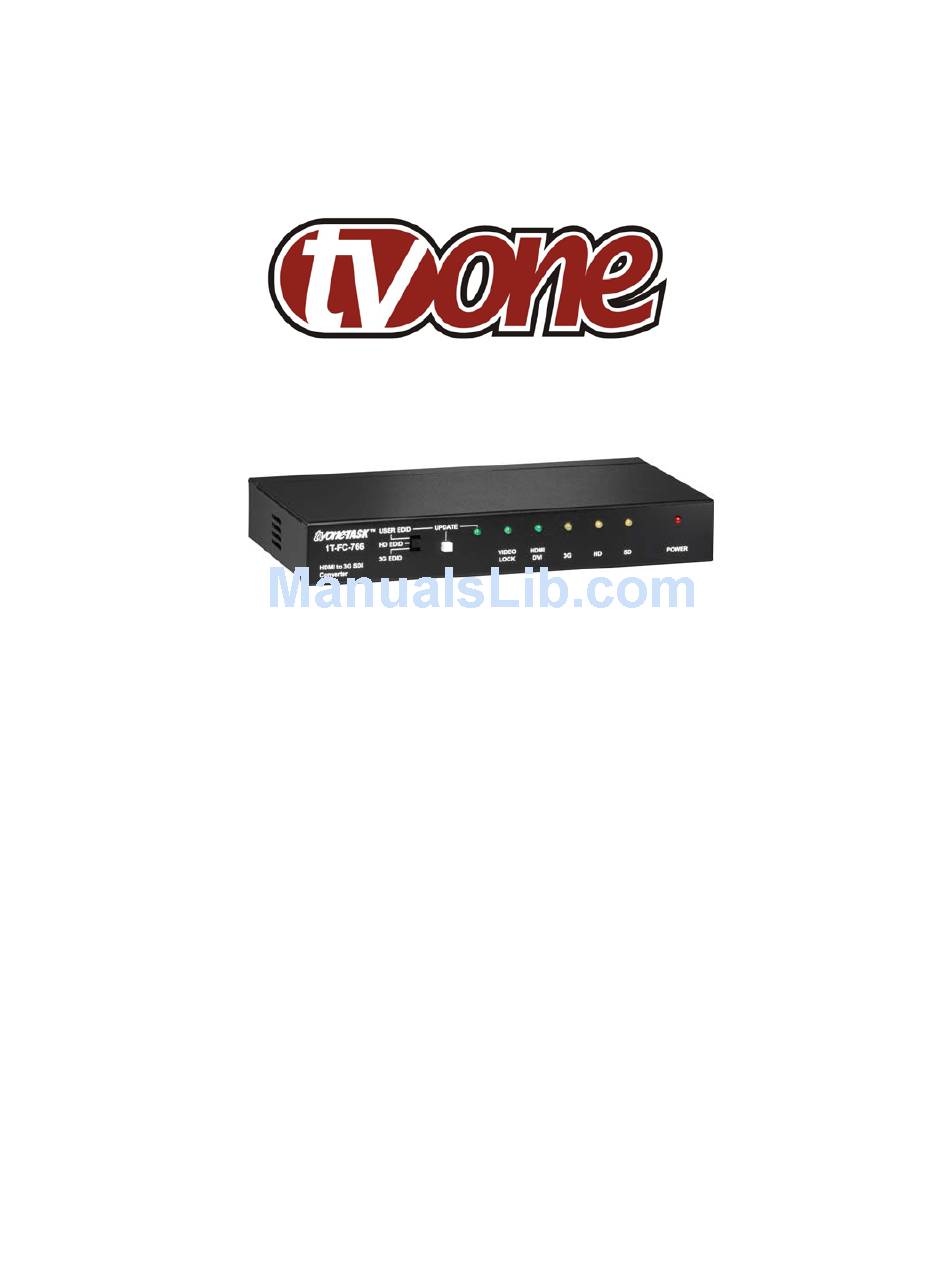

  • Page 1 Instruction Manual 1T-FC-766 HDMI to 3G SDI Converter...

  • Page 3: Table Of Contents

    Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information...

  • Page 4: Introduction

    INTRODUCTION Thanks for purchasing the 1T-FC-766 HDMI to 3G SDI Converter product from TV One. The 1T-FC-766 HDMI to 3G SDI Converter allows HDMI signals to be displayed on an SDI monitor. The high Bitrate processing of 2.970 Gbit/s ensures fast signal transmission...
  • Page 5 Features This 1T-FC-766 HDMI to 3G SDI Converter has many features that enable it to perform in a superior manner. Among these features you will find: • Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60 •...

  • Page 6: Specifications

    Mechanical (H-W-D) 1T-FC-766 (HWD) 30x200x103.5mm (1.18x7.87x4.07”) Weight 1T-FC-766 585g (1.29 lbs) Power Requirement External Power Supply 5 VDC@2A, Locking DC Accessories Included 1x Power Adapter US, UK or Euro 1x User Manual Model Numbers 1T-FC-766 1T-FC-766 HDMI to 3G SDI Converter...

  • Page 7: Checking Package Contents

    Note: The resolution capability of the remotely located display devices must be capable of displaying the output of the 1T-FC-766. Before connecting the 1T-FC-766, verify that the display device can support the output resolution.

  • Page 8: Operating The Unit

    The initial step in setting up the 1T-FC-766 is to make certain the unit’s characteristics and the normally used HDMI monitor’s characteristics are matched.
  • Page 9 If the SDI monitor does not display a signal properly, you will need to “clone” the EDID characteristics of an HDMI monitor, one that matches the resolution characteristics of the SDI monitor you intend to use, into the 1T-FC-766. To clone the HDMI monitor’s EDID information into the 1T-FC-766, perform the following steps: Set the three position switch to "User EDID"...

  • Page 10: Troubleshooting

    SDI monitor. To avoid such an event, it’s suggested that you set the source output timing to the “AUTO mode” so that the source equipment will read the 1T-FC-766 default input setting and send the proper EDID native timing.
  • Page 11 1. TV One branded products based on TV One’s CORIO technology are warranted for a period of five years from the date of purchase. This includes products with the model number prefix of C2, 1T-C2, CX, A2 or S2. 2. TV One-task branded products, other than those based on TV One’s CORIO technology mentioned above, are warranted for a period of three years from the date of purchase.

  • Page 12: Regulatory Compliance

    REGULATORY COMPLIANCE The 1T-FC-766 3G-SDI Extender/HDMI Converter has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant.
