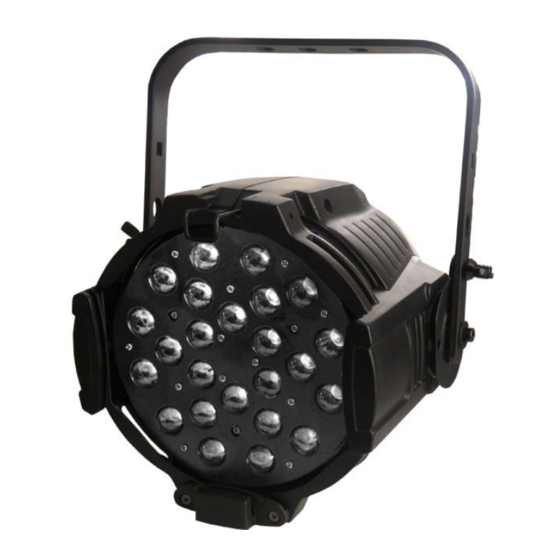

Ledj ALU ZOOM PAR 64 User Manual
Alu zoom par 64
Hide thumbs
Also See for ALU ZOOM PAR 64:
- User manual (10 pages) ,
- User manual (8 pages) ,
- User manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ledj ALU ZOOM PAR 64
Summary of Contents for Ledj ALU ZOOM PAR 64
-

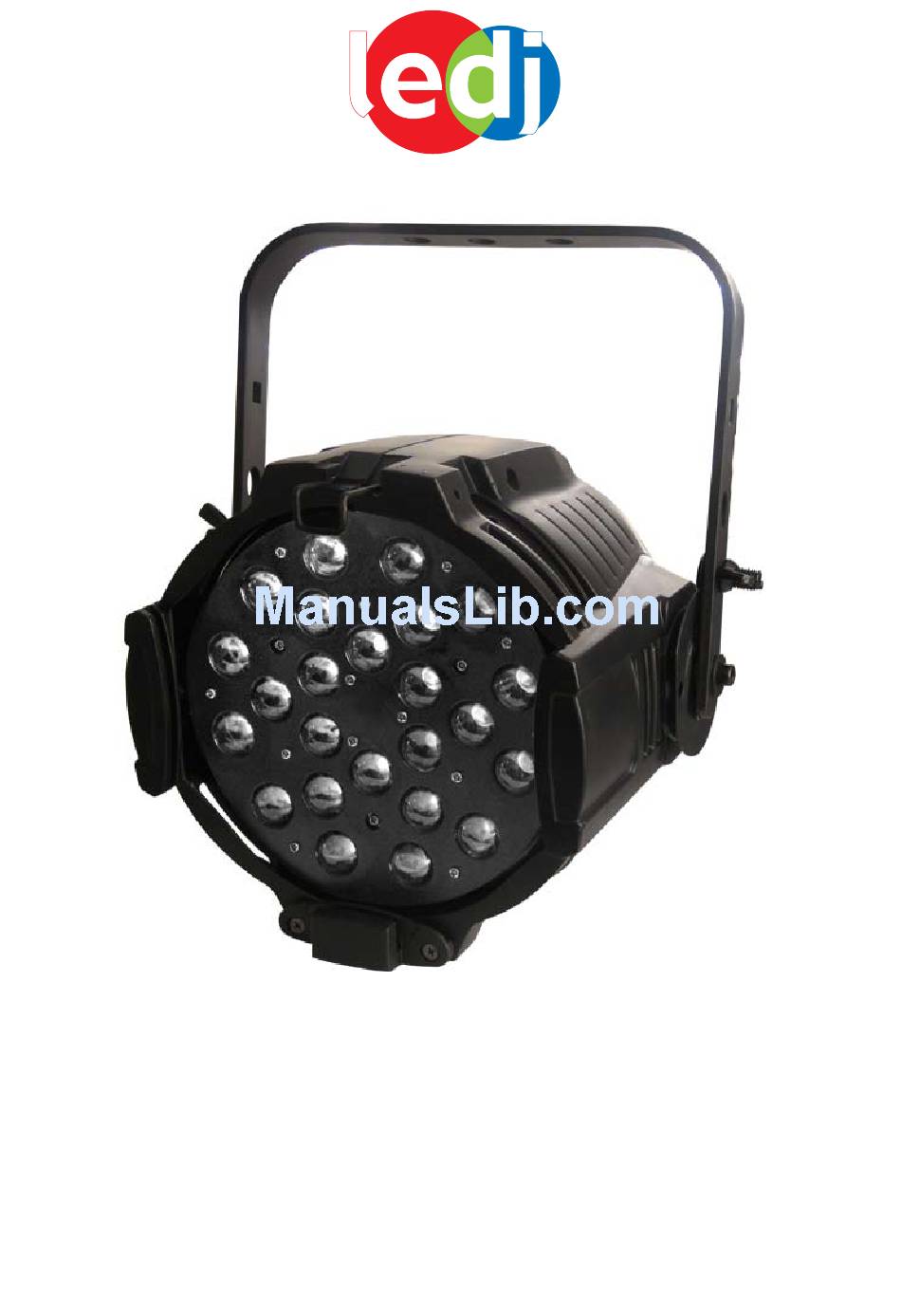

Page 1: User Manual
. p r o l i g h t . c o . u k ALU ZOOM PAR 64 Order code: LEDJ114 USER MANUAL... -
Page 2: Safety Instructions
Alu Zoom Par 64 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
Alu Zoom Par 64 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Alu Zoom Par 64 Technical specifications You should find inside the LEDJ carton the following items: 1, Alu Zoom Par 64 Unit 2, Instruction manual Technical Specifications: DMX Channels: 6 Voltage: AC 240 ~ 50Hz 24 Ultra bright 3W LEDs (R: 8 , G: 8 , B: 8 ) Power Consumption: 75W Beam Angle: 10˚...
- Page 5 Setup Operating Instructions The Alu Zoom Par 64 is a DMX-512 controllable, full RGB colour mixing Par Can made up of high efficiency and super bright 3W LED’s. There are three colour groups (red, blue and green) whose intensity can be controlled individually allowing the creation of an unlimited range of colours.
- Page 6 Alu Zoom Par 64 Operations 1, Static colour mode Mode button - By pressing the “MODE” button under the LED display, the LED display will show “CL0”, then you can select one of the 7 static colours using the “UP” and “DOWN” buttons. The...
- Page 7 Alu Zoom Par 64 Operations 9). DMX mode To access the 6 channel DMX mode, press the MODE button until the LED display shows “001 - 512” (DMX address), this unit occupies 6 DMX channels. The DMX values and functions are as follows.
- Page 8 DATA Cable (DMX cable) requirements (for DMX operation): • The Alu Zoom Par 64 can be controlled via DMX-512 protocol. The DMX address can be set on the back of the fixture. Your fixture and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 9 Alu Zoom Par 64 Specifications Technical Specifications Weight & Dimensions • Length…..........................300mm • Width............................270mm • Height………..............………...…………………………..220mm • Weight………………………………………................6.5kgs Power • AC input……………………………………...............240V, 50Hz Fuse •..………………………………………………........20mm Glass 1A Fast Blow Control & Programming • Data input…………………………………......……...Locking 3-pin XLR male socket • Data output…………………………………….......….Locking 3-pin XLR female socket •...
