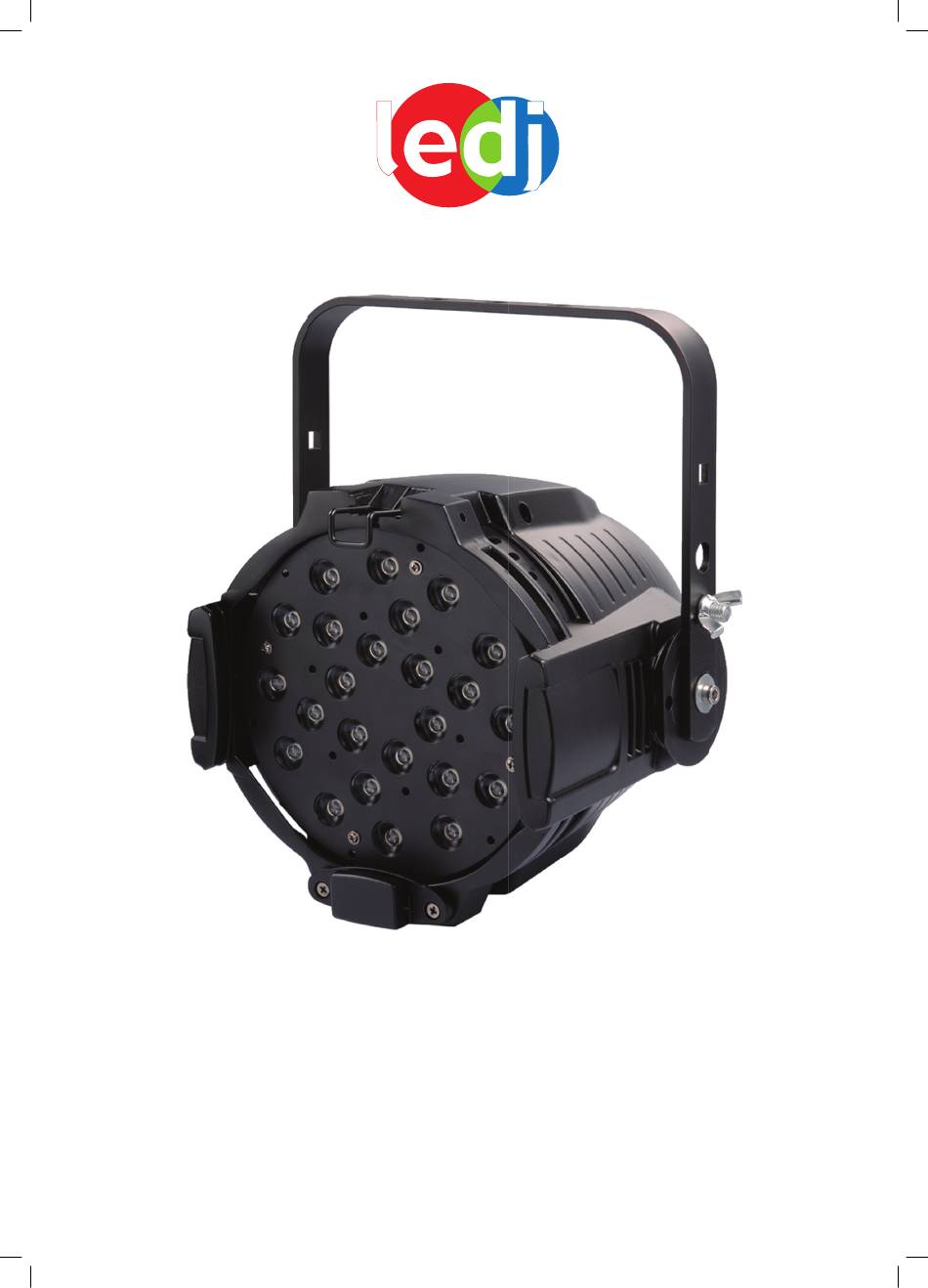

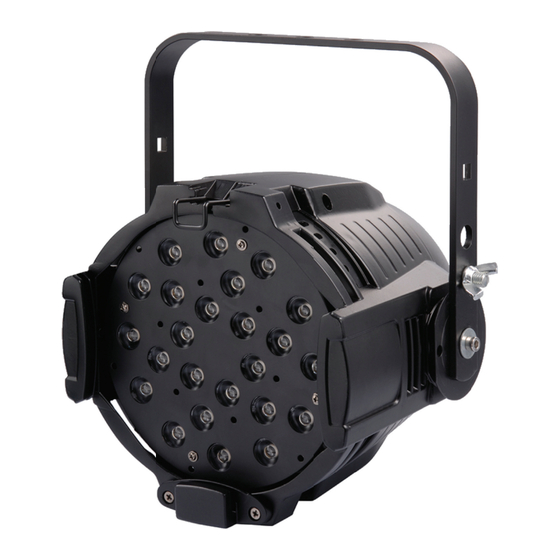

- Page 1 . p r o l i g h t . c o . u k ALU PAR 64 Order code: LEDJ110 USER MANUAL...
-
Page 2: Safety Instructions
ALU Par 64 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
ALU Par 64 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 ALU Par 64 Technical specifications You should find inside the LEDJ carton the following items: 1, ALU Par 64 Unit 2, Instruction manual Technical Specifications: DMX Channels: 5 Voltage: AC 240 ~ 50Hz 24 Ultra bright 3W LED’s (R: 8, G: 8, B: 8) Power Consumption: 80W Beam Angle: 25˚...
- Page 5 ALU Par 64 Overview Overview: 1, DMX output 2, DMX input 3, LED display 4, Power cable 5, Fuse (1A/240V) Setup Operating Instructions The Alu Par 64 is a DMX-512 controllable, full RGB colour mixing Par Can made up of high efficiency and super bright 3W LED’s.
- Page 6 ALU Par 64 Operations 1, Static colour mode Mode button - By pressing the “MODE” button under the LED display, the LED display will show “CL0”, then you can select one of the 7 static colours using the “UP” and “DOWN” buttons. The Colours range from 1 - 7 and are listed below: 1, Red 2, Green...
- Page 7 ALU Par 64 DMX setup 8). Led display ON/OFF This unit has two LED display options: 1, Once the unit is turned on, press the “MODE” button plus the “UP” button, and the led display will always stay on. 2, Once the unit is turned on press the “MODE” button plus the “DOWN” button, and if no operations are selected within 20 seconds, the led display will turn off automatically.
- Page 8 ALU Par 64 DMX setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 9 ALU Par 64 Specifications Technical Specifications Weight & Dimensions • Length…..........................300mm • Width............................270mm • Height………..............………...…………………………..220mm • Weight………………………………………................6.7kgs Power • AC input……………………………………..........AC 120V/240V, 50/60Hz Fuse • Main………………………………………………........20mm Glass 1A Fast Blow Control & Programming • Data input…………………………………......……...Locking 3-pin XLR male socket •...
