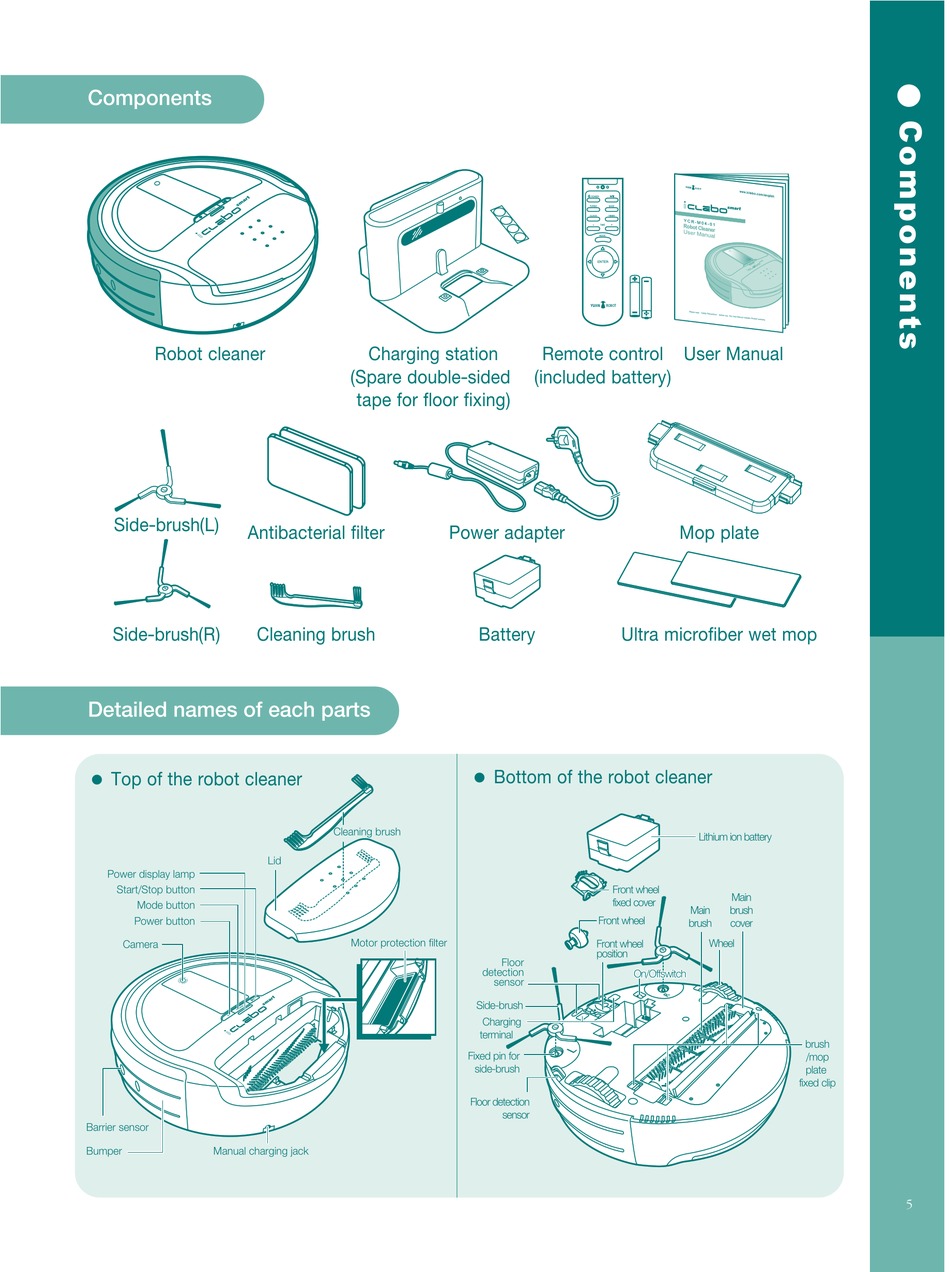

Components
Robot cleaner
Side-brush(L)
Antibacterial filter
Side-brush(R) Cleaning brush
Detailed names of each parts
● Top of the robot cleaner
Power display lamp
Start/Stop button
Mode button
Power button
Camera
Barrier sensor
Bumper Manual charging jack
Charging station
(Spare double-sided
tape for floor fixing)
Cleaning brush
Lid
Motor protection filter
Remote control
(included battery)
Power adapter
Battery Ultra microfiber wet mop
● Bottom of the robot cleaner
Front wheel
fixed cover
Front wheel
Front wheel
position
Floor
detection
sensor
Side-brush
Charging
terminal
Fixed pin for
side-brush
Floor detection
sensor
User Manual
Mop plate
Lithium ion battery
Main
Main
brush
brush
cover
Wheel
On/Offswitch On/Offswitch
brush
/mop
plate
fixed clip
