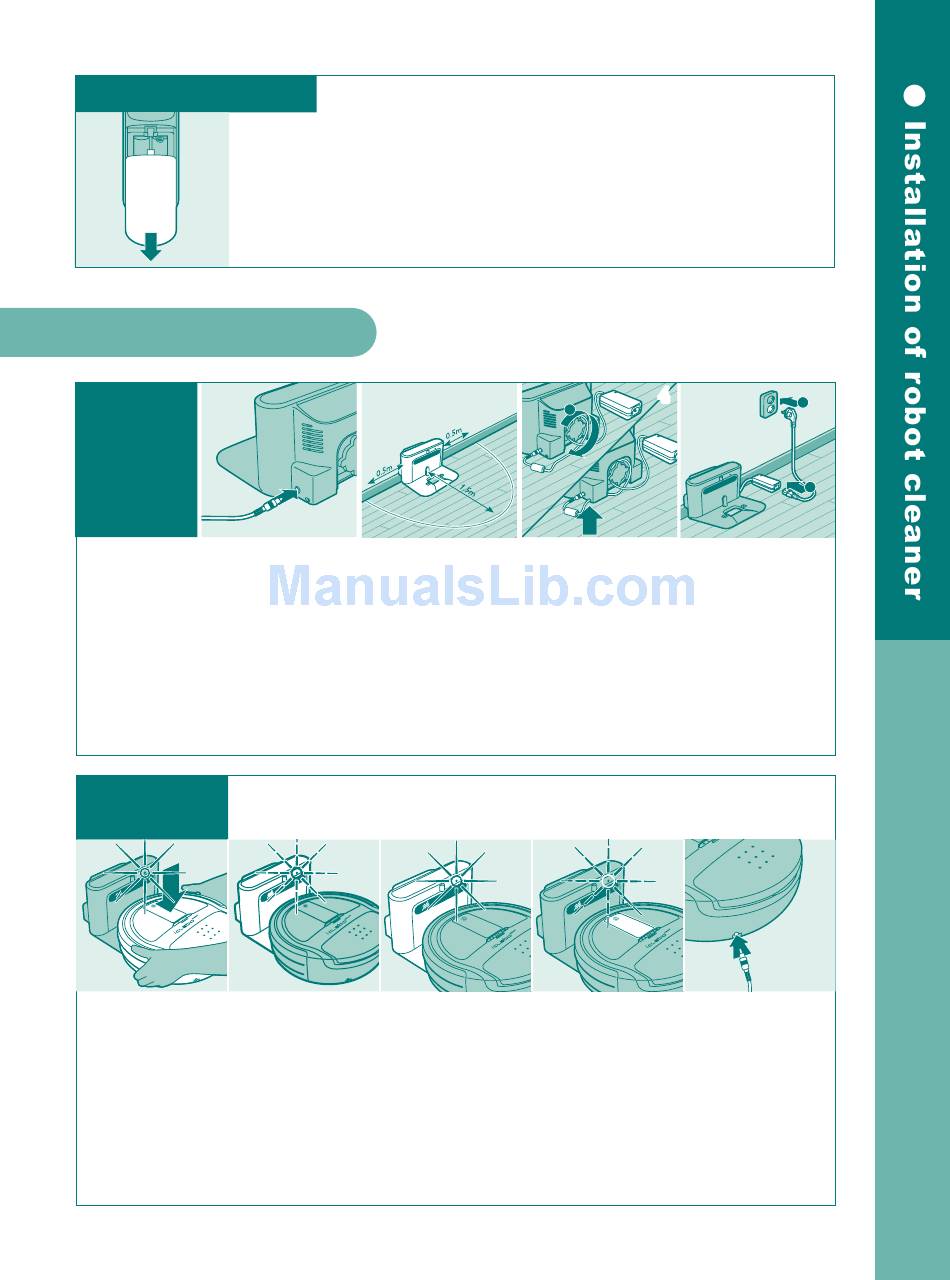

Insert remote control battery
included when you purchase this product. Insert batteries before use.
Use the same type of battery once its duration is over.
1. Open the battery cover of the remote control.
2. Check the (+) and (-) pole then push the batteries in.
3. Place the cover properly then push strong until you hear 'click' sound.
Check list before cleaning 최적의 청소를 위한 참고사항
1/2
Install
charging
station
1. Connect the adapter to the charging station.
2. Make sure to place it on a flat wall and floor.
[Note] Fix the station with the sticker on the bottom for safer use.
3. No barriers should exist within left/right 0.5meters, front 1.5meters from the charging station.
4. Wind the power cord shown as ①.
5. Connect the power cord and adapter as the picture above.
Status display lamp will appear red on the charging station.
[Note] Robot cleaner can last for maximum 70 minutes when it's fully charged.
Charging
In case the battery is not enough, it takes about two hours for re-charging.
1 2
Charging with power off
1. In case the robot cleaner was not used for a long period or the power turned off due
to battery shortage, stick the robot cleaner to the charging terminal of the charging station.
2. Once the robot cleaner is properly placed to the charging station,
the status display lamp will flash as green.
3. Status display lamp will appear green when the charging is complete.
