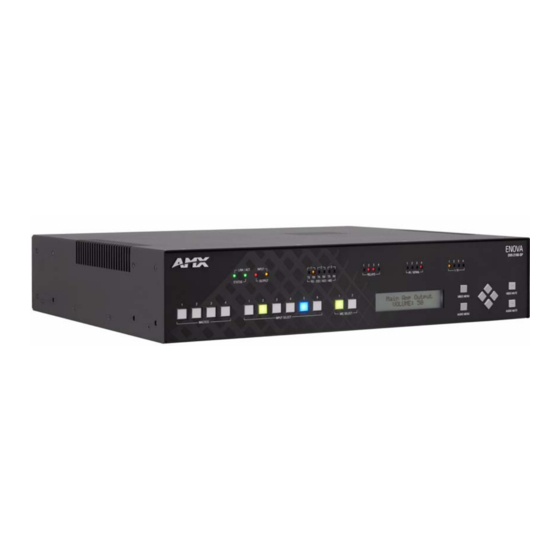

AMX Enova DVX-2100HD Operation/Reference Manual

6x2 all-in-one presentation switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AMX Enova DVX-2100HD Operation/Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enova DVX-2100HD and is the answer not in the manual?

Questions and answers

Related Manuals for AMX Enova DVX-2100HD

Summary of Contents for AMX Enova DVX-2100HD

  • Page 1 This PDF was provided by AV Ace AMX DVX-2100HD-T 75W, 70V/100V 6x2 Multi-Format Presentation Switcher Supported Video: HD resolutions up to 1080p and RGB resolutions up to 1920 x 1200 @ 60Hz Amplifier: 75W, 70V/100V mono amplifier Includes: 2 CC-NIRC, IR Emitter w/3.5mm Phoenix (FG10-000-11), 2 CC-DVIM-VGAF,...
  • Page 2 Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide Operation/Reference Guide Enova DVX-2100HD 6x2 All-in-One Presentation Switcher DVX-2100HD-SP DVX-2100HD-T A l l - I n - O n e P r e s e n t a t i o n S w i t c h e r s...
  • Page 3 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 4: Important Safety Instructions

    WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 5 Important Safety Instructions Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...

  • Page 6: Table Of Contents

    AxLink Port and LED (4-pin captive-wire) ..............19 AUDIO INPUTS (1-4)...................... 21 MIC INPUTS (1-2) ......................22 AUDIO OUTPUT: LINE (Line Level audio) ..............23 AUDIO OUTPUT: AMP (Amplified audio) ..............24 Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 7 Using a Web Browser ..................... 49 Locating the IP Address of the Presentation Switcher ..........50 Global Settings ....................... 50 Video Settings ......................51 Audio Settings ......................53 System Settings ...................... 56 Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 8 ?AUDMIC_ON ........................... 72 AUDMIC_ON ..........................72 ?AUDMIC_PREAMP_GAIN......................72 AUDMIC_PREAMP_GAIN ......................72 ?AUDMIC_STEREO ........................72 AUDMIC_STEREO........................72 ?AUDOUT_STEREO ........................72 AUDOUT_STEREO........................73 ?AUDOUT_UDM ........................73 AUDOUT_UDM.......................... 73 ?AUDOUT_VARIABLE........................ 73 AUDOUT_VARIABLE........................73 ?EQUALIZER..........................73 Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 9 VIDIN_PHASE..........................80 ?VIDIN_RES_AUTO ........................81 VIDIN_RES_AUTO ........................81 ?VIDIN_RES_REF........................81 VIDIN_RES_REF......................... 81 ?VIDIN_SATURATION ....................... 81 VIDIN_SATURATION......................... 81 ?VIDIN_STATUS ........................82 ?VIDOUT_ASPECT_RATIO......................82 VIDOUT_ASPECT_RATIO ......................82 ?VIDOUT_RES ........................... 82 ?VIDOUT_RES_AUTO........................ 82 VIDOUT_RES_AUTO........................82 Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 10 SKR............................89 ?SS ............................89 SS .............................. 89 IR SEND_COMMANDs ....................90 CAROFF............................. 90 CARON............................90 CH ............................. 90 CP.............................. 90 CTOF ............................91 CTON ............................91 IROFF ............................91 SP .............................. 91 Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 11 Available Pixel Display and Refresh Rates .............. 95 DVI and VGA Supported Input Resolutions..............95 Composite and S-Video Supported Input Resolutions........... 97 Component Video Supported Input Resolutions ............97 DVI and VGA Supported Output Resolutions..............97 viii Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...

  • Page 12: Overview

    Overview Overview The Enova DVX-2100HD-SP (FG1905-01, -04) and DVX-2100HD-T (FG1905-02, -05) All-in-One Presentation Switchers combine all of the components you need to control/automate any environment into a simple, flexible, comprehensive solution including control, multi-format inputs, audio and video switching, transcoding and scaling, local and remote distribution, plus audio mixing, and amplification - all in a single box (FIG.

  • Page 13: Dvx-2100Hd Specifications

    VIDEO MUTE Press to mute/un-mute (enable/disable) all video output displays. pushbutton: Video Mute results in a blank screen on the output displays. AUDIO MUTE Press to mute/un-mute all audio outputs. pushbutton: Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 14 1 RJ-45 connector allows the DVX-2100HD to connect to a UDM Multi-Format Receiver. The Video on this output is identical to DVI output 1. You can configure the audio to follow either the AMP or Line outputs. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 15 • 8.89cm x 43.18cm x 36.2cm Weight: • 14.7 lbs (6.67 kg) Enclosure: Metal with black matte finish Certifications: • RoHS • FCC Class B • CE • CB Scheme • UL Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 16 Included Accessories: • 2 CC-NIRC, IR Emitter w/3.5mm Phoenix (FG10-000-11) • 2 CC-DVIM-VGAF, DVI to VGA Adapter (FG10-2170-13) • 2 Front Rack Mounting Brackets (62-1905-04) • Enova DVX-2100HD All-in-One Presentation Switcher Installation Guide (93-1950-01) Optional Accessories: • CC-DVI-5BNCM DVI to 5 BNC adapter cable (FG10-2170-08) •...

  • Page 17: Mounting The Dvx-2100Hd Into An Equipment Rack

    Connect the unit only to a properly-rated supply circuit. DO NOT stand other units directly on top of the DVX-2100HD when it is rack mounted, as this will place excessive strain on the mounting brackets. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 18: Ventilation

    Reliable earthing (grounding) of rack-mounted equipment should be maintained. It is recommended that you leave 1 RU of space above the DVX-2100HD when you install it in a rack. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 19 Overview Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 20: Wiring And Device Connections

    FIG. 5 displays the rear panel of the DVX-2100HD-SP with 1 RGB Output / 1 DVI-I Output and 2x25W Amp (FG1905-01). The RGB output is only available on FG1905-01 and -02 models. RGB Output DVI-I Output FIG. 5 DVX-2100SP rear panel (FG1905-01) Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 21: Front Panel Components

    NetLinx program. You can define macros as any typical button event in NetLinx code, and assign the event to any of the four buttons on the DVX. Refer to the NetLinx Studio Operation/Reference Guide and the NetLinx Programming Language Reference Guide for information on programming macros. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 22: Input Select Pushbuttons

    Blue = Video only  Yellow = Audio only  Green = Audio/Video  Magenta = Audio/Video, but video signal cannot be displayed  Red = Video only, but input signal cannot be displayed Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 23: Mic Select Pushbuttons

    20 seconds. See the Video Settings section on page 41 for a listing of all available options and instructions on how to change the settings. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 24: Audio Menu Pushbutton

    Move down to next menu option FIG. 13 Navigation buttons The menu selection immediately defaults to selecting an input on the first screen. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 25: Video/Audio Mute Pushbuttons

    Receive data Transmit data Transmit data X (strap to pin 6) Signal ground Receive data X (strap to pin 4) Request to send Clear to send Transmit data X (strap to pin 1) Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 26: Relays (Port 4)

    I/O ports 1 - 3. The following table provides wiring requirements for the I/O port: I/O Port Wiring Specifications Signal Function +12 VDC: Input/Output Input/Output Input/Output Input/Output GND: Signal GND Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 27: Ir/Serial (Ports 5-8)

    DIP switch to normal mode, recycle power, and try again. To set the CONFIG DIP Switch: Turn off the power switch on the rear of the unit. Set the CONFIG DIP switch (refer to FIG. 20). Turn on the power switch. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 28: Program Port (Type-B Usb)

    Before using the USB port on the DVX-2100HD you must install the appropriate FTDI driver. A link to this driver can be found on the Product web page at www.amx.com. Connect your PC's USB port to the USB Configuration Port on the DVX-21010HD. Either allow Windows to install the driver automatically (internet connection required), or point the installer to the location where you have previously saved the driver.

  • Page 29: Lan (Rj-45)

    L/A - Activity LED (yellow) SPD - Link LED (green) lights when lights when receiving or the LAN cables are connected transmitting LAN and terminated correctly. data packets ETHERNET FIG. 25 LAN connector / LEDs Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 30: Axlink Port And Led (4-Pin Captive-Wire)

    Wiring and Device Connections AxLink Port and LED (4-pin captive-wire) The AxLink port (FIG. 26) allows the DVX-2100HD to support AMX AxLink devices. FIG. 26 AxLink Port and LED The (green) AxLink LED indicates AxLink data activity:  Off - No power, or the controller is not functioning properly.
  • Page 31 Make sure to connect only the GND wire on the AxLink/PWR connector when using a separate 12 VDC power supply. Do not connect the PWR wire to the AxLink connector’s PWR (+) opening. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 32: Audio Inputs (1-4)

    More than one option can be used in the same system. DVX-2100HD source device Balanced wiring Unbalanced wiring FIG. 30 Stereo 5-terminal wiring Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 33: Mic Inputs (1-2)

    RCA Stereo audio source wiring MIC INPUTS (1-2) Two 3.5mm 3-pin captive-wire MIC INPUT connectors (FIG. 32) allow up to two mono microphones to be connected to the DVX-2100HD. FIG. 32 MIC INPUTS Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 34: Audio Output: Line (Line Level Audio)

    Destination devices require either balanced (differential) or unbalanced (single-ended) connections. FIG. 35 illustrates options for wiring between output connectors and the destinations. destination device DVX-2100HD Balanced wiring Unbalanced wiring FIG. 35 Stereo 5-terminal wiring Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 35: Audio Output: Amp (Amplified Audio)

    On the DVX-2100HD-T, connect a speaker to either the 70V or 100V terminals as displayed in FIG. 38. FIG. 38 Connecting speakers to the Amplified Audio output (DVX-2100HD-T) Connect a speaker to either the 70V or 100V terminals, but not both simultaneously. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 36: Video Inputs (1-4)

    DVI-A Male to Triple RCA Male Cable section on page 36  DVI-A Male to S-Video Male Cable section on page 38  DVI-A Male to HD15 (VGA) Male Adapter section on page 39 Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 37: Udm Inputs (5-6)

    Wiring and Device Connections The DVX-2100HD and the adapter cables listed above utilize industry-standard pinouts. The only adapter cable that is unique to AMX is the CC-DVI-SVID (DVI-to-S-Video) cable. The others are generally available to purchase from other vendors, assuming that they also utilize industry standard (or equivalent) pinouts.
  • Page 38 No Video 2 NONE No Pb NONE No GREEN LIT NONE NONE The recommended maximum distance for cable runs on the UDM INPUT ports is 50m / 165’ for all resolutions and formats. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 39: Video Outputs (1-2) And Udm Output

    Video Output 2 is independent of Video Output 1 and can display a different video source at a different resolution and refresh rate. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 40: Video Output Connector (2)

    11 12 13 14 15 BAGND Blue analog ground +5VDC SAGND Synchronization analog ground Monitor ID bit 0 DDC_SDA Monitor ID bit 1 HSYNC Horizontal synchronization signal VSYNC Vertical synchronization signal DDC_SDL Monitor ID bit 3 Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 41: Udm Output

    In particular, lower resolutions (640 x 480, 720 x 480 and 800 x 600) can often be delivered significantly further than what is indicated in the table. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 42: Power Connector/Switch/Fuse

    Using more than one source of power to the Controller can result in damage to the internal components and a possible burn out. Apply power to the unit only after installation is complete. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 43: Example Configuration

    DVX-2100HD.  One RGB output with an RGB adapter cable is routed to an AMX touch panel through an Audio/Video breakout box. One DVI or RGB output drives a local PC monitor near the rack or a projector. Alternately, the UDM output can be run to the projector and connected to an appropriate UDM receiver module like the UDM-RX02N.

  • Page 44: Cable Details And Pinout Information

    Five UL1589 (28AWG) for DDC_CLK, DDC_DATA, Hot_Plug_Detect, +5VDC, and GROUND  The above bundles jacketed together in aluminum foil shield and 85% (minimum) braid  EMI shield metal can on both DVI connectors and connected to braid Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 45: Dvi-To-Dvi Cable Pinout Information

    C4 ANALOG HSYNC C4 ANALOG HSYNC Pin not populated in DVI-D connector C5 ANALOG C5 ANALOG Pin populated in DVI-D connector, GROUND GROUND but not connected for this cable BACKSHELL SHIELD SHIELD BACKSHELL Outer braid Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 46: Dvi-A Male To 5-Bnc Male Cable

    Pin not populated in DVI-A connector TMDS CLOCK P Pin populated in DVI-A connector, but not connected for this cable TMDS CLOCK N Pin populated in DVI-A connector, but not connected for this cable Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 47: Dvi-A Male To Triple Rca Male Cable

    Pin not populated in DVI-A connector TMDS SHIELD 1/3 Pin not populated in DVI-A connector TMDS DATA 3 N Pin not populated in DVI-A connector TMDS DATA 3 P Pin not populated in DVI-A connector Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 48 C5 ANALOG Pr, Y, Pb / Red/Green/Blue RCA GROUND CVBS Returns connector shields (shields) BACKSHELL SHIELD Pin populated in DVI-A connector, but not connected for this cable Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 49: Dvi-A Male To S-Video Male Cable

    TMDS CLOCK N Pin populated in DVI-A connector, but not connected for this cable C1 ANALOG Pin populated in DVI-A connector, but not connected for this cable Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 50: Dvi-A Male To Hd15 (Vga) Male Adapter

    TMDS DATA 3 N Pin not populated in DVI-A connector TMDS DATA 3 P Pin not populated in DVI-A connector +5VDC +5VDC 28AWG GROUND GND, HS Return 28AWG HOT PLUG +5VDC 28AWG DETECT Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 51 6, 7, 8, 10, 11 Red, Green, Blue mini-coax returns; GROUND VSync/DDC VSync/DDC return; NC used as GND Returns BACKSHELL Braided Shield Braided Shield BACKSHELL Outer braid, tied to 6, 7, 8, 10, 11 Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 52: Audio/Video Configuration

    Use the left and right navigational buttons to manually select the correct resolution and refresh rate of the selected output. For a complete list of output resolutions, see the DVI and VGA Supported Output Resolutions section on page 97. The default setting is Auto. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 53 You can set the phase adjustment from 0-32. The default setting is 0. Revert to Default Use the left and right navigational buttons to indicate that you want to return all video options to their default settings. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 54: Changing The Video Output Resolution

    Use the left and right navigational buttons to adjust the 5KHz level on the equalizer of the selected audio input. You can set the equalizer from -20 to +20dB in 1dB increments. The default value is 0. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 55 Select Single Stereo when connecting a single stereo source. Microphone input 1 will be mixed only onto the left channel and Microphone input 2 will be mixed only onto the right channel. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 56 You can set the Limiter to On or Off. The default setting is Off. Revert to Default Use the left and right navigational buttons to indicate that you want to return all audio options to their default settings. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 57: Tools Menu

    Use the left and right navigational buttons to adjust the backlight intensity of the front panel buttons. You can set the LED Intensity between 0 and 100. The default setting is 50. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 58: Dvx-2100Hd Webconsole

    Click to access the three main sections of the WebConsole (initial view = WebControl) Select this option to show/hide the Online Device Tree (showing all devices currently connected to this Master) FIG. 50 Master Configuration Manager - WebControl Page (initial view) Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 59: Master Controller Configuration Options

    NetLinx System. Master Configuration Manager - Additional Documentation For a full description of all Master Configuration pages, refer to the NI Series WebConsole & Programming Guide, available at www.amx.com. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 60: Using A Web Browser

    Audio/Video Configuration Using a Web Browser You can access the configuration settings for the presentation switcher by using a web browser. (AMX supports Internet Explorer 7.0 for Windows and Mozilla Firefox 3.6 users.) The system configuration pages are available by entering the IP address of the NetLinx master into the location bar of your web browser.

  • Page 61: Locating The Ip Address Of The Presentation Switcher

    The WebConsole Configuration page contains settings that appear on each tab and apply globally. FIG. 53 indicates the global options available on this page. Global volume and Mute Refresh Restore Factory Defaults FIG. 53 WebConsole Configuration page Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 62: Video Settings

    3 - Video Format: Use the drop-down menus to select the video format for each video input. The selection should indicate the type of connection used to connect the video source to the switcher. You can choose from DVI, VGA, Component, S-Video, and Composite. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 63 2. There is a separate group of aspect ratio settings for each output. You can choose from Full, Zoom, Stretch, and Anamorphic. Your video configuration is not affected by a power loss, restarting the unit, or upgrading the firmware. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 64: Audio Settings

    Stereo/Mono options are available only with the DVX-2100HD-SP. Click to indicate whether the outgoing audio signal is a stereo or mono signal. FIG. 55 WebConsole Configuration page - Audio tab (DVX-2100HD-SP only) Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 65 6 - Enable: Click the checkbox to activate the microphone. 7 - Limiter: Click the checkbox to activate the limiter function which suppresses loud noise bursts from dropping the mic and helps avoid feedback noise. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 66 15 - Gain: Use the sliders to set the gain level for the line level output. You can set the line level output gain between -20 and 20 dB in 1 dB steps. Your audio configuration is not affected by a power loss, restarting the unit, or upgrading the firmware. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 67: System Settings

    • IP Hostname • Device Firmware Version • IP Address • DSP Firmware Version • IP Subnet Mask • FPGA Firmware Version • IP Gateway • Diagnostic Codes This information is read-only. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 68: Dvx-2100Hd Audio Processing Functional Block Diagram

    72 for more information. F - Mic1 Input Gain Adjust the input gain setting for AUDMIC_GAIN-<value>, Level 5, or Mic 1. Ramping Channels 140 and 141. See AUDMIC_GAIN on page 71 for more information. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 69 R - Amp Out Mono/ Put the Amplified output in AUDOUT_STEREO-<ENABLE|DISABLE>. Stereo Select Mono or Stereo mode. This See AUDOUT_STEREO on page 73 for option is for -SP model more information. devices only. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 70 If in Variable mode, see Step S. If in Fixed Gain Control selected audio input to Fixed mode, set the output gain of the line-level or Variable output by using Level 1. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 71 Audio/Video Configuration Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 72: Netlinx Firmware Upgrades

    Verify you have the latest version of NetLinx Studio on your PC. Use the Web Update option in NetLinx Studio’s Help menu to obtain the latest version. Alternatively, go to www.amx.com and login as a Dealer to download the latest version.
  • Page 73 Assuming that the specified target directory contains one or more KIT files, the KIT files in the selected directory are displayed in the Files list box, with the file's last modified date and time (FIG. 61). Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 74 If for any reason your Kit file transfer should fail, continue to retry the transfer until you are successful. DO NOT reboot the DVX-2100HD, or change connections until the transfer is complete. Failure to complete this operation successfully may require a factory repair of the DVX-2100HD. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 75: Additional Documentation

    NetLinx Firmware Upgrades Additional Documentation For additional information on using NetLinx Studio, refer to the NetLinx Studio online help and Operation/Reference Guide (available at www.amx.com). Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 76: Amxmeetingroom

    Load Master/Panel  Once the TKN and TP4 files have been downloaded from www.amx.com, you can load the files from NetLinx Studio. Select File Transfer from the Tools menu, click Add, and select the "Other" tab. Here you will select the appropriate file types and browse to the AMXmeetingroom file locations.

  • Page 77: License Key/Demo Mode

    Use the AMXmeetingroom Web Assistant to determine whether AMXmeetingroom is a match for your project specifications located at http://www.amx.com/meetingroom/webAssistant/ Training Learn important installation, configuration and programming techniques in the AMX University course Getting Started with AMXmeetingroom (available online at www.amx.com/training). Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 78: Programming

    Discrete Function Channel: Gain mute is on while channel is active Momentary Function Channel: Cycle gain mute when channel is activated Discrete Function Channel: Volume mute is on while channel is active Video Mute is ON/ENABLED when channel is activated Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 79: Netlinx Levels

    Mic #1 Input Mixer Level, range is 0-255 Mic #2 Input Mixer Level, range is 0-255 NetLinx Protocol Please consult the WebConsole & Programming Guide for NetLinx Integrated Controllers for more details on NetLinx controller commands. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 80: Send_Commands

    AUDIO/VIDEO input #2, AUDIO/VIDEO output #2 05002:3:0 AUDIO/VIDEO input #3 AUDIO/VIDEO input #4 05002:4:0 AUDIO/VIDEO input #5 05002:5:0 AUDIO/VIDEO input #6 05002:6:0 AUDIO MIC #1 input 05002:7:0 AUDIO MIC #2 input 05002:8:0 MACRO button/channel input 05002:9:0 Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 81: Audio Send_Commands

    D:P:S. If enabled, the stereo setting is on. If disabled, then the stereo setting is Sets the stereo setting on off, which means it is mono. the input port. Syntax: SEND_COMMAND <DEV>,"'AUDIN_STEREO-<ENABLE|DISABLE>'" Example: SEND_COMMAND AUDIO_INPUT_1,"'AUDIN_STEREO-ENABLE'" Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 82: Audio_Mute

    Enables or Disables whether the microphone addressed by D:P:S has the Limiter functionality turned on. Turns on or turns off the limiter function on the Syntax: microphone. SEND_COMMAND <DEV>,"'AUDMIC_LIMITER-<ENABLE|DISABLE>'" Example: SEND_COMMAND MIC_1,"'AUDMIC_LIMITER-ENABLE'" Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 83: Audmic_On

    SEND_COMMAND <DEV>,"'AUDMIC_STEREO-<ENABLE|DISABLE>'" Example: SEND_COMMAND <DEV>,"'AUDMIC_STEREO-ENABLE'" ?AUDOUT_STEREO Device responds with "'AUDOUTSTEREO-<setting>'" where setting is "ENABLED" or "DISABLED". Request if audio amp output is in stereo Syntax: SEND_COMMAND <device>, "'?AUDOUT_STEREO'" Example: SEND_COMMAND dxDev, "'?AUDOUT_STEREO'" Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 84: Audout_Stereo

    Queries the equalizer setting of band <band> on the output audio port addressed by the D:P:S. Requests the equalizer band on the audio output port. Syntax: SEND_COMMAND <DEV>, "'?EQUALIZER-<band>'" Example: SEND_COMMAND AUDIO_OUTPUT_1,"'?EQUALIZER-1'" Returns a COMMAND string of the form: EQUALIZER-<band>=<value>. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 85: Equalizer

    Queries to see if the microphone addressed by the D:P:S is being provided phantom power. Requests the phantom power status on the Syntax: microphone. SEND_COMMAND <DEV>, "'?PHANTOM_PWR'" Example: SEND_COMMAND MIC_1,"'?PHANTOM_PWR'" Returns a COMMAND string of the form: PHANTOM_PWR-<ENABLED|DISABLED>. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 86: Phantom_Pwr

    = 1..2 ### 1 is for the AMP output, 2 is for the LINEOUT output. Example: SEND_COMMAND AUDIO_OUTPUT_2,"'XPOINT-75,3,2'" Sets the mix level of audio input 3's contribution to the audio LINEOUT (2) output to 75. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 87: Video Send_Commands

    Switches video input (port #1) to video output ports #1 and #2. Switches audio input (port #1) to audio output port #1. Since audio has only one output port, the multiple output port specification is ignored. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 88: Input

    Returns a COMMAND string of the form: SWITCH-L<AUDIO|VIDEO>I<input>O<output>. ?VIDEO_MUTE Device responds with "'VIDEO_MUTE-<setting>'" where setting is "ENABLED" or "DISABLED". Request if all-port video output is muted. Syntax: SEND_COMMAND <DEV>, "'?VIDEO_MUTE'" Example: SEND_COMMAND dxDev, "'?VIDEO_MUTE'" Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 89: Video_Mute

    Queries to see if the video port addressed by the D:P:S has the COLOR setting enabled or disabled. Requests the status of the color setting on the video Syntax: port. SEND_COMMAND <DEV>, "'?VIDIN_COLOR'" Example: SEND_COMMAND SWITCHER,"'?VIDIN_COLOR'" Returns a COMMAND string of the form: VIDIN_COLOR-<ENABLED|DISABLED> Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 90: Vidin_Color

    Sets the horizontal shifting SEND_COMMAND <DEV>, "'VIDIN_HSHIFT-<value>'" of the VGA video input port. Variables: value = -127..127 Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_HSHIFT-5'" Sets the horizontal shift of video input port (#1 based on D:P:S) to 5. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 91: Vidin_Hue

    Sets the input phase of the Syntax: video port. SEND_COMMAND <DEV>, "'VIDIN_PHASE-<value>'" Variables: value = 0..32 Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_PHASE-23'" Sets the phase of video input port (#1 based on D:P:S) to 23. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 92: Vidin_Res_Auto

    Sets the saturation level of Syntax: the video input port. SEND_COMMAND <DEV>, "'VIDIN_SATURATION-<value>'" Variables: value = 0..100 Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_SATURATION-50'" Sets the saturation of video input port (#1 based on D:P:S) to 50. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 93: Vidin_Status

    Enables or disables whether the video output port addressed by D:P:S is supposed to have its resolution auto detected. Sets the status of the auto resolution setting on the Syntax: video output port. SEND_COMMAND <DEV>,"'VIDOUT_RES_AUTO-<ENABLE|DISABLE>'" Example: SEND_COMMAND VIDEO_OUTPUT_1,"'VIDOUT_RES_AUTO-ENABLE'" Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 94: Vidout_Res_Ref

    = The video output port number to switch to. Restricted to the values of 1 or 2. Example: SEND_COMMAND SWITCHER,"'VI2O1'" Switch video input port #2 to video output #1. SEND_COMMAND SWITCHER,"'VI3O1,2'" Switch video input port #3 to video output ports #1 (DVI) and #2 (RGB). Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 95: Front Panel Send_Commands

    Queries the intensity setting of the LCD screen on the Front Panel. Query LCD display light Syntax: intensity SEND_COMMAND <DEV>, "'?INTENSITY_LCD'" Example: SEND_COMMAND SWITCHER,"'?INTENSITY_LCD'" Returns a COMMAND string of the form: INTENSITY_LCD-<value>. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 96: System Send_Commands

    Example: SEND_COMMAND SWITCHER,"'?FPGA_FWVERSION'" Returns a COMMAND string of the form: FPGA_FWVERSION-<version>. ?FWVERSION Syntax: Query for the device SEND_COMMAND <DEV>,"'?FWVERSION'" firmware version. Example: SEND_COMMAND dvDev,"'?FWVERSION'" Returns a COMMAND string of the form: FWVERSION-<version>. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 97: Utp Input Send_Commands

    Syntax: Request the video-type SEND_COMMAND <DEVICE>,?WPVIDEO coming in from a wallplate. Example: SEND_COMMAND dxDev,?WPVIDEO Device responds with WPVIDEO-<videotype> where videotype is one of the following: Disconnected, Component, Composite, RGB For example, WPVIDEO-Component. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 98: Udm-Connected Device Netlinx Commands

    The Rx can support a number of different remotes which are mapped through to button pushes. Query for the protocol used by the IR remote. Syntax: SEND_COMMAND <DEV>, "'?RP'" Example: SEND_COMMAND dvRX, "'RPAMX'" Configures the Rx to use an AMX remote. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 99: Skb

    Sets the blue skew value to 4 (adds 8nS delay to blue video). ?SKG Syntax: Requests the skew on the SEND_COMMAND <DEV>,?SKG green video channel. Example: SEND_COMMAND dvRX1,?SKG The device would respond with "SKG-<greenskew>". For example, the device might respond with "SKG-7". Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 100: Skg

    For example, device might respond with "SS-17". Syntax: Sets the sharpness of the SEND_COMMAND <DEV>,"SS<S#>'" signals delivered to a Variables: connected display. S# = sharpness (0-255 = sharpness value) Example: SEND_COMMAND dvRX1,"'SS24'" Sets the sharpness to 24. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 101: Ir Send_Commands

    IR commands. Syntax: SEND_COMMAND <DEV>,"'CP',<code>" Variables: code = IR port's channel value 0 - 252 (253 - 255 reserved). Example: SEND_COMMAND dvRXIR,"'CP',2" Clears the active/buffered commands and pulses IR port's channel 2. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 102: Ctof

    Transmit the selected channel IR codes in the format/pattern set by the 'XCHM' send command. Transmit IR codes. Syntax: SEND_COMMAND <DEV>,"'XCH <channel>'" Variables: channel = 0 - 999. Example: For detailed usage examples, refer to the 'XCHM' command. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 103: Xchm

    Transmits the IR code as 3-4. SEND_COMMAND dvRXIR,"'XCH 343'" Transmits the IR code as 100-100-100-4-3. Mode 4 Example: Mode 4 sends the same sequences as the 'CH' command. Only use Mode 4 with channels 0 - 199. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 104: Serial Send_Commands

    This option is disabled by default. Disable the transmission of Syntax: incoming received SEND_COMMAND <DEV>,"'RXOFF'" characters to the Master. Example: SEND_COMMAND dvRXRS232,"'RXOFF'" Stops the Rx serial device from transmitting received characters to the Master. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 105: Rxon

    Stop and clear all characters waiting in the transmit out buffer and stops transmission. Clear transmit out buffer. Syntax: SEND_COMMAND <DEV>,"'TXCLR'" Example: SEND_COMMAND dxRXRS232,"'TXCLR'" Clears and stops all characters waiting in the Rx serial port transmit buffer. Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 106: Appendix A

      1280x720p@100 1280 720p CEA 861   1280x720p@120 1280 720p CEA 861   1280x768@59 1280 VESA nCVT   1280x768@60 1280 VESA DMT   1280x768@74 1280 VESA DMT Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 107  1920x1080p@50 1920 1080 1080p CEA 861  1920x1080@60 1920 1080 VGA only VESA CVT   1920x1080p@60 1920 1080 1080p CEA 861   1920x1200@60 1920 1200 Reduced VESA CVT Blanking Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 108: Composite And S-Video Supported Input Resolutions

    DVI and VGA Supported Output Resolutions DVI and VGA Supported Output Resolutions Resolution Horizontal Vertical Refresh Comments Video Name Active Pixels Active (Hz) Standard Pixels 640x480@60 VESA DMT 640x480@72 VESA DMT 640x480@75 VESA DMT 800x600@60 VESA DMT Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 109 1440 VESA CVT 1600x1200@60 1600 1200 VESA DMT 1680x1050@60 1680 1050 VESA CVT 1920x1080@60 1920 1080 1080 VESA CVT 1920x1080p@60 1920 1080 1080p CEA 861 1920x1200@60 1920 1200 Reduced VESA CVT-R Blanking Enova DVX-2100HD 6x2 All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 110 Appendix A Enova DVX-2100HD 6x2 All-In-One Presentation Switcher Operation/Reference Guide...
  • Page 111 - Schedules and registration for any AMX University course - Travel and hotel information - Your individual certification requirements and progress 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
