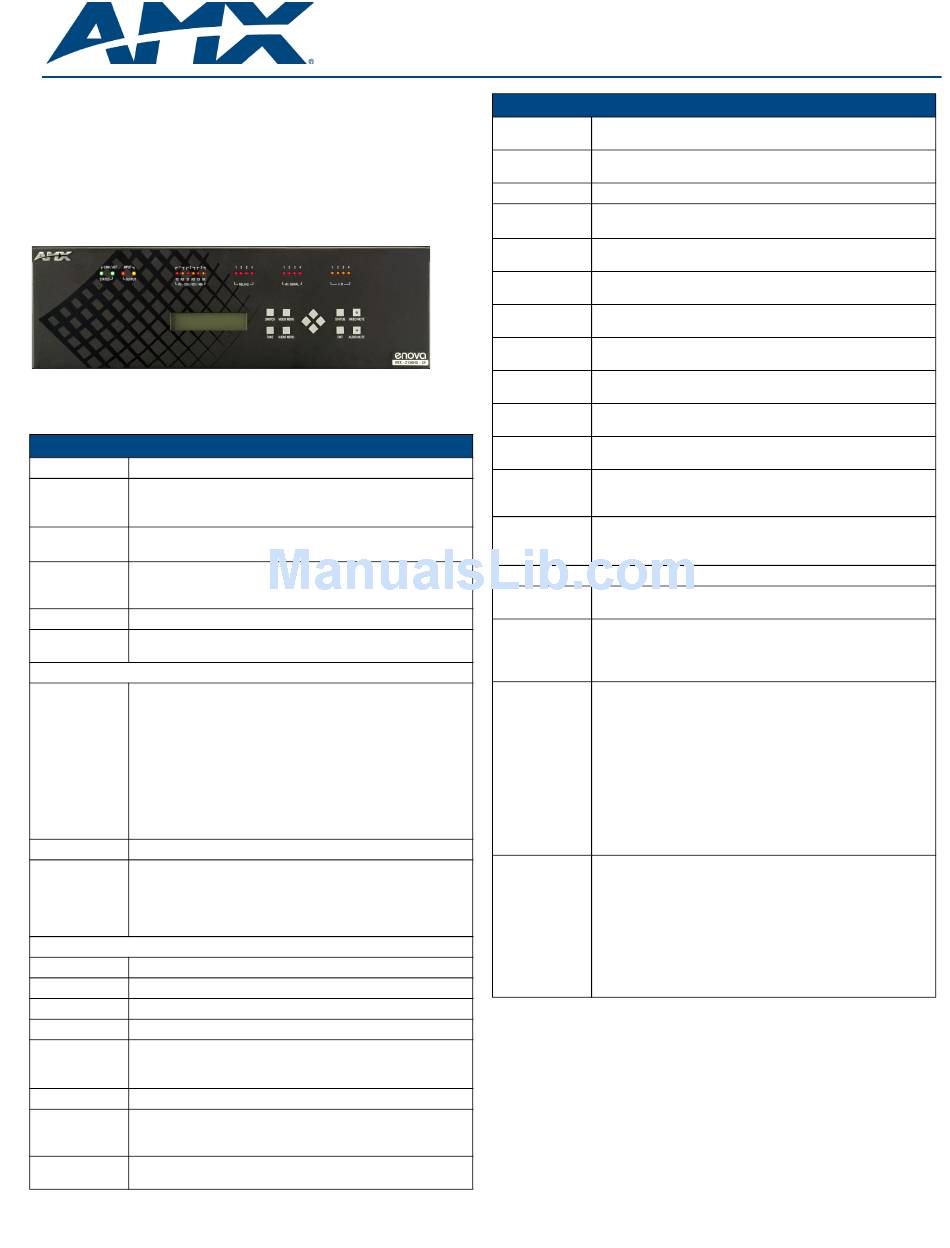

AMX Enova DVX-2110HD-SP Quick Start Manual

Overview

The DVX-2110HD-SP (FG1905-07) and DVX-2110HD-T (FG1905-09) are four input,
two output, multi-format matrix switchers with built-in video scalers, microphone mixer,
amplifier, and device controller. These presentation-style switchers incorporate the
following:
• A NetLinx controller (equivalent of a NetLinx 3101-SIG central controller)
• Integrated Multi-format and UTP audio / video switcher
• Video scaler
• Audio processor with mic mixing
• Volume controller and audio amplifier
FIG. 1

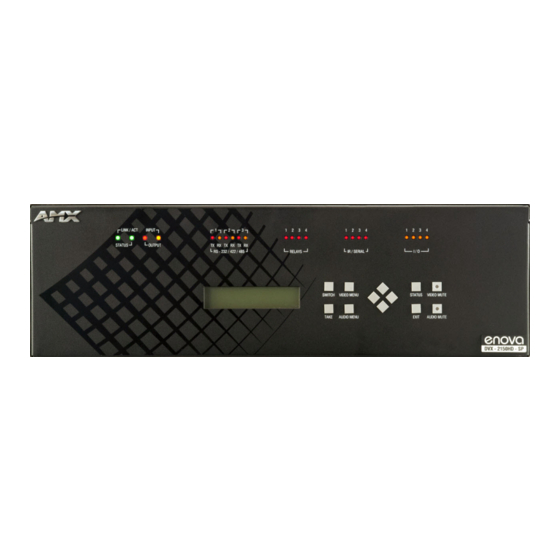

Enova DVX-2110HD-SP 4x2 All-In-One Presentation Switcher (front panel)
The following table lists the specifications for the Enova DVX-2110HD 4x2 All-In-One
Presentation Switcher:

Enova DVX-2110HD Specifications

Power: 100-240V, 47/63 Hz AC supply
Power • 80 Watts typical without amplifier
Consumption:
• 85 to 90 Watts typical average with amplifier
• 30 Watts typical in low-power mode
Memory: • 256 MB SDRAM
• 4 GB Flash
Amplifier: • 2 x 25W into 8 Ohms Class D stereo amplifier (capable of driving
loads in the range of 2-8 ohms) (-SP models only)
• 70V or 100V at 75W amplified variable mono audio (-T models only)
Enclosure: Metal with black matte finish
Integrated Equivalent of a NetLinx 3101-SIG central controller on-board.
Controller:

Front Panel Components:

LEDs: • LINK/ACT (green) - blinks when receiving Ethernet data packets.
• STATUS (green) - blinks when the system is communicating
properly.
• INPUT (yellow) - blinks when the Controller is receiving data.
• OUTPUT (red) - blinks when the Controller is transmitting data.
• RS-232/422/485 (red/yellow) - indicate ports are transmitting or
receiving data.
• RELAYS (red) - indicate whether relay channels are active (closed).
• IR/SERIAL (red) - indicate whether IR/Serial channels are
transmitting control data.
• I/O (yellow) - indicate whether I/O channels are active.
LCD display: Displays volume level and Video, Audio, and Status menu options.
Front panel • Switch
pushbuttons:
• Video Menu
• Status
• Video Mute
• Navigational buttons

Rear Panel Components:

RS-232/422/485 3 DB9 (male) connectors for serial control
RELAYS: 1 8-pin 3.5 mm captive-wire connector for Relay control
IR/SERIAL: 8 2-pin 3.5 mm captive-wire connectors for IR/Serial control
I/O: 1 4-channel binary I/O port for contact closure and voltage sensing.
AUDIO INPUTS: 4 analog audio inputs:
• 2 female 1/8" stereo mini-phono jacks for unbalanced audio
• 2 3.5mm 5-pin captive-wire connector for line level audio
MIC INPUTS: 2 3.5mm 3-pin captive-wire connectors for up to 2 mono microphones
AMP OUT: • 1 5mm 4-pin captive wire connector (-SP models only).
• Two 5mm 2-position captive wire connectors for 70V or 100V mono
amplified audio output (-T models only).
AUDIO 2 3.5mm 5-pin captive-wire connectors for line level audio
OUTPUTS:
Enova DVX-2110HD 4x2 All-In-One Presentation Switcher
• 1 MB Non-volatile (NVRAM)
• Take
• Audio Menu
• Exit
• Audio Mute
Enova DVX-2110HD Specifications (Cont.)
S/PDIF 1 Coaxial RCA connector for digital S/PDIF audio output
OUTPUT:
MULTI-FORMAT 2 DVI-I input connectors (1-2)
VIDEO INPUTS:
HDMI INPUTS: 2 HDMI inputs (3-4)
VIDEO • 2 HDMI Output connectors (1-2)
OUTPUTS:
• 1 DXLink output (1) mirrors HDMI output 1
CONFIG DIP 8-position Master configuration DIP switch
Switch:
PROGRAM DB9 connector (male) for serial communication.
Port:
ID Pushbutton: Black ID pushbutton sets the NetLinx Device ID assignments of the
Internal Control Device.
LAN 10/100 RJ-45 connector provides TCP/IP communication.
Port:
AxLink Port: 1 3.5 mm 4-pin captive-wire connector provides data and power to
external control devices.
Power IEC Power cord connector: 100-240V AC, 50-60Hz, 3.3A
Connector:
Twisted Pair Cable Shielded Cat6, Cat6A, Cat7*
Type:
Twisted Pair Cable Up to 328 ft. (100 m)*
Length:
Important: DXLink twisted pair cable runs for DXLink equipment shall
only be run within a common building.**
Operating Storage temperature: -10º C to 70º C (14º F to 158º F)
Environment:
Operating Temperature: 0º C to 40º C (32º F to 104º F)
Operating Relative Humidity: 5% to 85% non-condensing
Weight: 18.2 lb (8.26 kg)
Dimensions 5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm)
(HWD):
Certifications: • FCC Part 15 Class A
• IC CISPR 22 Class A
• LVD EN 60950-1
• cULus UL 60950-1
Included • 1 Power Cord, Universal
Accessories:
• 2 Connector, Phoenix2, M, TH, R/A, BLACK, 5.08mm
• 4 Connector, Phoenix5, F, BLACK
• 2 Connector, Phoenix3, F, BLACK
• 1 Connector, Phoenix4, F, TH, BLACK, 3.5mm
• 2 Connector, Phoenix, 8-pin, FEM, BLACK
• 1 Connector, Phoenix, 6-pin, FEM, BLACK
• 2 Front Rack Mounting Brackets
• 2 CC-NIRC, IR Emitter with 3.5mm Phoenix Connector
(FG10-000-11)
• 1 CC-DVIM-VGAF, DVI to HD-15 Female Adapter (FG10-2170-13)
• 1 Commoning Strip, Cypher, 8 Pos., 3.5 mm, Phoenix Connector
Optional • CC-DVI-5BNCM DVI to 5 BNC adapter cable (FG10-2170-08)
Accessories:
• CC-DVI-RCA3M DVI to 3 Male RCA adapter cable (FG10-2170-09)
• CC-DVI-SVID DVI to S-Video adapter cable (FG10-2170-10)
• CC-DVIM-VGAF DVI to HD15 female adapter (FG10-2170-13)
• CC-3.5ST5-RCA2F 5-Pin Phoenix Cable to 2 RCA Female
(FG10-003-20)
• AVB-RX-DXLINK-HDMI DXLink™ HDMI Receiver Module
(FG1010-500)
• CBL-HDMI-FL HDMI High Speed Flat Cable with RedMere®
Technology (FG10-2180-16)
* For more details and helpful cabling information, reference the white paper titled
"Cabling for Success with DXLink" available at www.amx.com or contact your AMX
representative.
** "Common building" is defined as: Where the walls of the structure(s) are physically
connected and the structure(s) share a single ground reference.

Quick Start Guide

• C-Tick CISPR 22 Class A
• IEC 60950-1
• CE EN 55022 Class A and EN
55024
