6x3 All-In-One Presentation Switchers (Multi-
Format, HDMI Inputs)
DVX-2150HD-SP (FG1905-11) 2x25W 8-Ohm
DVX-2150HD-T (FG1905-13) 75W 70/100V
Overview

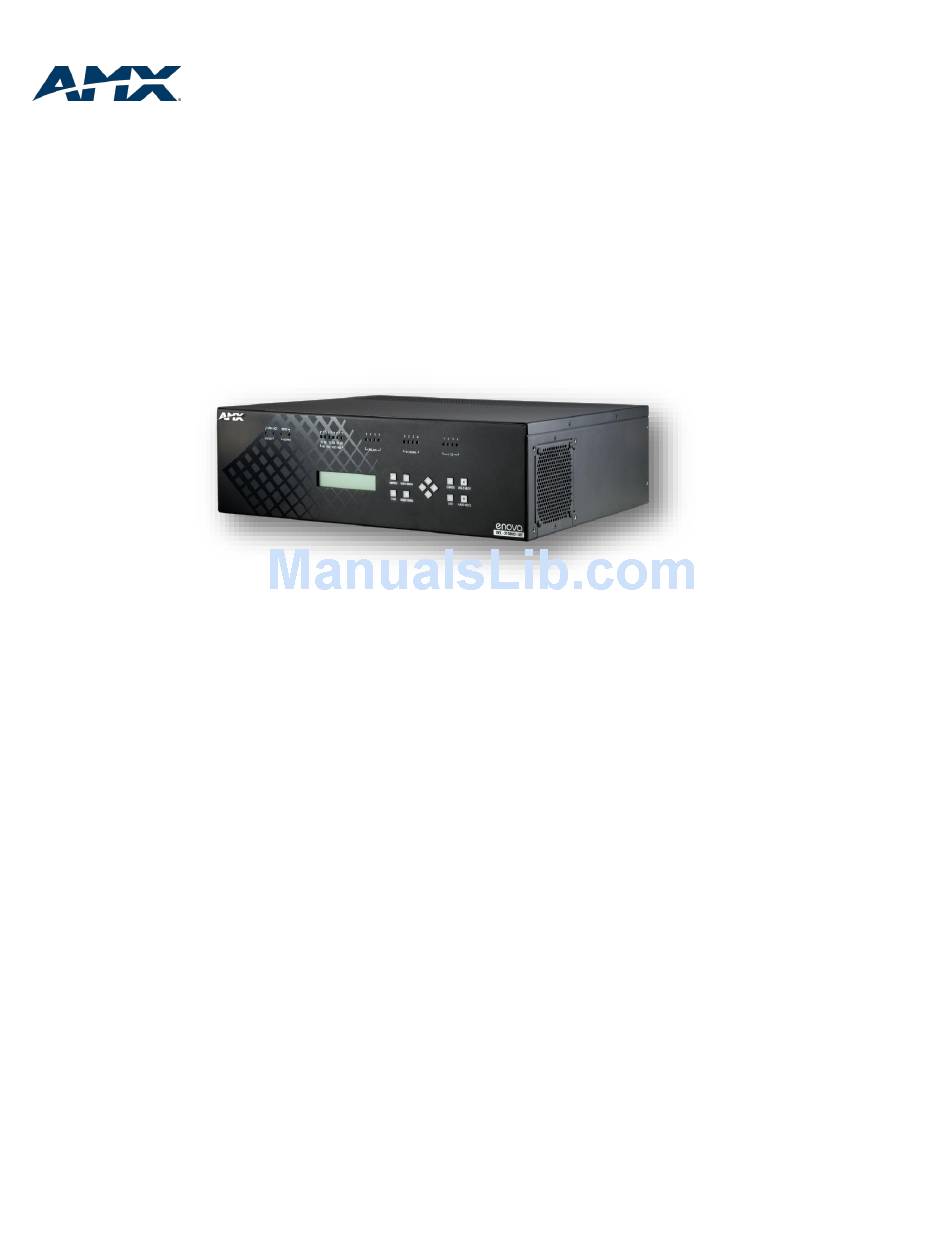

The Enova® DVX-2150HD is an all-in-one controller, AV matrix switcher, scaler,
analog to digital signal converter, twisted pair transmitter and amplifier with built-
in professional grade audio processing. Easily integrate HDCP into system designs
and enjoy hassle free plug-and-play operation. No tools, no delays, and no key
constraints - it just works with AMX's exclusive InstaGate Pro® Technology.
Designed to simplify system design and provide a future proof solution, the DVX-
2150HD's multi-format video inputs support analog and digital signals including
HDMI with HDCP sources - all in the same connector. The state-of-the-art
professional grade audio DSP delivers quality audio throughout a room. Built-in
SmartScale® Technology outputs video that is perfectly scaled for each connected
display, eliminating the integration challenges that can occur when sources and
displays have different optimal resolutions - making the DVX-2150HD easy to
specify, easy to install and easy to use.
Common Applications
Ideal All-In-One Presentation Switcher designed to dramatically simplify AV control and distribution in small to
medium conference rooms, classrooms and auditoriums. The flexible DVX-2150HD is perfect for any room with a
mix of analog and digital sources, multiple displays, or rooms that require support for video conferencing.
Features
All-In-One Presentation Switcher in a 3RU Box – Controller, matrix switcher, scaler, analog to digital
converter, amplifier, plus twisted pair distribution and professional-grade audio DSP
© 2014 AMX. All rights reserved.
DATA SHEET
Advertisement
Table of Contents
Related Manuals for AMX Enova DVX-2150HD-SP (FG1905-11)
Summary of Contents for AMX Enova DVX-2150HD-SP (FG1905-11)
- Page 1 Easily integrate HDCP into system designs and enjoy hassle free plug-and-play operation. No tools, no delays, and no key constraints - it just works with AMX's exclusive InstaGate Pro® Technology. Designed to simplify system design and provide a future proof solution, the DVX- 2150HD's multi-format video inputs support analog and digital signals including HDMI with HDCP sources - all in the same connector.
- Page 2 Twisted Pair Output - Send audio, video, bi-directional control, Ethernet and power to remote destinations up to 100m away over one twisted pair cable – for details and helpful cabling information, reference the white paper titled Cabling for Success with DXLink, or contact your AMX representative ...
-
Page 3: Specifications
Specifications GENERAL Enclosure Metal with black matte finish Dimensions (HWD) 5 3/16" x 17" x 14" (13.2 cm x 43.2 cm x 35.6 cm) Weight 18.3 lb. (8.31 Kg) Certifications RoHS/WEEE compliant FCC Part 15 Class A IC CISPR 22 Class A C-Tick CISPR 22 Class A CE EN 55022, EN 55024 and EN 60065 LVD EN 60950-1... -
Page 4: Integrated Amplifier
47-63 Hz Voltage AC (Typical) 110-240V, 47/63 Hz AC supply Power Factor Correction (PFC) Supported, complies with N60555-2 and EN61000-3-2 ENVIRONMENTAL Temperature (Operating) 0° C to 40° C (32° F to 104° F) Temperature (Storage) -10° C to 70° C (14° F to 158° F) Humidity (Operating) 5% to 85% RH Heat Dissipation (Typical) - Page 5 CONTROL PORTS & INDICATORS AxLink Port (1) AxLink Port: 1 3.5 mm captive-wire connector provides data and power to external control devices AxLink Indicator (1) AxLink LED (green) indicates the state of the AxLink port I/O Channels (1) 6-Pin 3.5 mm (female) captive-wire connector 4-channel binary I/O port for contact closure with each input being capable of voltage sensing NetLinx Port 9...
- Page 6 HDCP Support Yes, full matrix HDCP support (includes any input to any or all outputs) Key Management System AMX HDCP InstaGate Pro Technology Key support up to 16 sinks per output, independent of source device EDID Management A preferred EDID can be selected for each input or any...
- Page 7 DVX-2150HD-T (FG1905-13): (1) Amplified audio output; 2-position captive wire connectors; supports 70 V or 100 V mono audio – connect a speaker to either but not both simultaneously (2) Line level audio output; supports balanced or unbalanced mono or stereo (1) S/PDIF output;...
- Page 8 RGBHV WITH DVI-I Supported Video RGBHV, RGBS, RGsB Input Level 1 Vp-p nominal Input Impedance 75 Ohms, nominal Sync Input Level 2 to 5 Vp-p Sync Input Impedance 2.5 pf Typical, 10pF Maximum Note Requires DVI to HD-15 Adapter or DVI-I to 5 BNC Adapter DVI WITH DVI-I Supported Video...
-
Page 9: Analog Audio
For more details and helpful cabling information, reference the white paper titled Cabling for Success with DXLink, or contact your AMX representative Note Supports full matrix switching, video processing and scaling of 8 bit per color standard Input video... -
Page 10: Microphone Audio
connect a speaker to either but not both simultaneously (2) Line level audio output; supports balanced or unbalanced mono or stereo Volume Control -100dB to +0dB in 1dB steps Balance Control 20 steps each left and right Output Level (Maximum) +17 dBu (line level) Output Impedance 200 Ohms (line level) -
Page 11: S/Pdif Digital Audio
Hold Off: 0 to 2000 ms Threshold: -60 to 0 dB Microphone Limiter Independent Limiting per Microphone Attack: 1 to 2000 ms Release: 10 to 5000 ms Threshold: -60 to 0 dB Microphone Ducking Independent Ducking per each of 3 audio paths Attack: 1 to 2000 ms Release: 10 to 5000 ms Attenuation: 0 to 20 dB... - Page 12 AMX hardware and software solutions simplify the implementation, maintenance, and use of technology to create effective environments. With the increasing number of technologies and operating platforms at work and home, AMX solves the complexity of managing this technology with reliable, consistent and scalable systems. Our award-winning products span control and automation, system-wide switching and audio/video signal distribution, digital signage and technology management.
