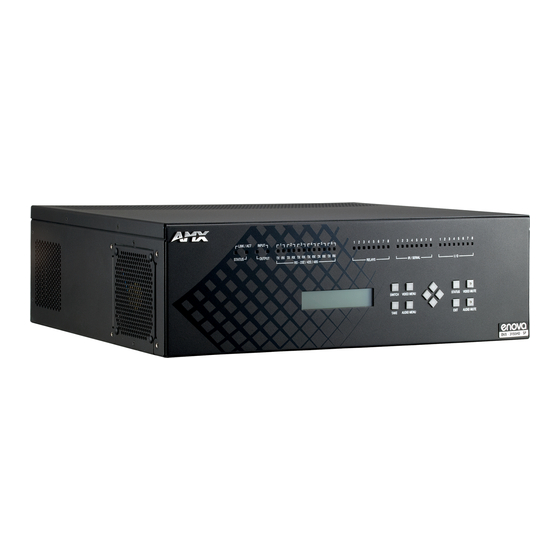

AMX Enova DVX-3150HD Operation/Reference Manual

Enova dvx-3150hd/3155hd series 10x4 all-in-one presentation switcher
Hide thumbs Also See for Enova DVX-3150HD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
AMX Enova DVX-3150HD Operation/Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enova DVX-3150HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX Enova DVX-3150HD

Summary of Contents for AMX Enova DVX-3150HD

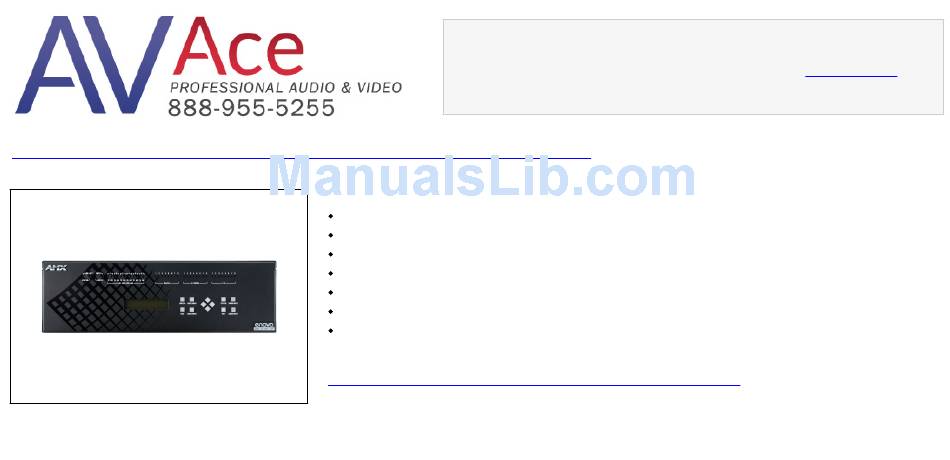

  • Page 1 This PDF was provided by AV Ace AMX DVX-3150HD-SP 10x4 Multi-Format Presentation Switcher 8-Ohm Amplifier: 2 x 25W into 8 Ohms Class D stereo amplifier (4-ohm stable) SUPPORTED VIDEO RESOLUTIONS: Up to 1920 x 1200 @ 60Hz 3D and Surround Sound Support HDCP Compliant DIMENSIONS: (HWD) 5 3/16"...
  • Page 2 Enova DVX-3150HD/3155HD 10x4 All-In-One Presentation Switcher Operation/Reference Guide Operation/Reference Guide Enova DVX-3150HD/3155HD 10x4 All-in-One Presentation Switcher DVX-3150HD-SP DVX-3150HD-T DVX-3155HD-SP DVX-3155HD-T L a t e s t R e l e a s e : 0 9 / 1 3 / 2 0 1 2...
  • Page 3 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 4: Important Safety Instructions

    The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulating, dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 5 Important Safety Instructions Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 6: Table Of Contents

    MULTI-FORMAT VIDEO INPUTS (1-4)................20 HDMI INPUTS (5-10)...................... 22 DXLink INPUTS (9-10)....................23 VIDEO OUTPUTS (1-4)....................24 Twisted Pair Cable Pinouts.................... 25 Important Cable Recommendations ................25 Rear Panel Control and Power ................26 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 7 Selecting a Video Test Pattern ..................48 Audio Settings....................... 49 Microphone Settings ..................... 50 Selecting an Audio Test Tone..................51 Switch Menu........................51 Status Menu ........................52 DVX WebConsole ....................53 Accessing the WebConsole ................... 53 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 8 AUDIO SEND_COMMANDs ..................76 AI<input>O<output> ........................ 76 ?AUDIN_COMPRESSION......................76 AUDIN_COMPRESSION ......................76 ?AUDIN_COMPRESSION_ATTACK.................... 76 AUDIN_COMPRESSION_ATTACK ..................... 76 ?AUDIN_COMPRESSION_RATIO....................77 AUDIN_COMPRESSION_RATIO....................77 ?AUDIN_COMPRESSION_RELEASE................... 77 AUDIN_COMPRESSION_RELEASE .................... 77 ?AUDIN_COMPRESSION_THRESH .................... 77 AUDIN_COMPRESSION_THRESH....................78 ?AUDIN_GAIN ........................... 78 AUDIN_GAIN..........................78 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 9 AUDMIC_LIMITER_ATTACK ...................... 85 AUDMIC_LIMITER_RELEASE ..................... 85 AUDMIC_LIMITER_THRESH ...................... 85 ?AUDMIC_ON ........................... 85 AUDMIC_ON..........................86 ?AUDMIC_PHANTOM_PWR...................... 86 AUDMIC_PHANTOM_PWR ....................... 86 ?AUDMIC_PREAMP_GAIN ......................86 AUDMIC_PREAMP_GAIN......................86 ?AUDMIC_STEREO ........................86 AUDMIC_STEREO ........................87 ?AUDOUT_BALANCE........................ 87 AUDOUT_BALANCE ......................... 87 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 10 HDMIOUT_AUDIO ........................94 ?HDMIOUT_EQ ......................... 94 HDMIOUT_EQ ........................... 94 ?INPUTEQ ..........................94 INPUTEQ ........................... 94 ?PHANTOM_PWR........................94 PHANTOM_PWR ........................94 ?SPDIFOUT_AUDIO........................94 SPDIFOUT_AUDIO........................94 ?VOLUME ..........................95 VOLUME............................ 95 ?XPOINT............................ 95 XPOINT ............................. 95 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 11 VIDIN_PREF_EDID........................102 ?VIDIN_RES_AUTO ......................... 102 VIDIN_RES_AUTO ........................102 ?VIDIN_RES_REF........................102 VIDIN_RES_REF........................102 ?VIDIN_SATURATION ......................103 VIDIN_SATURATION....................... 103 ?VIDIN_STATUS ........................103 ?VIDIN_VSHIFT ........................103 VIDIN_VSHIFT ......................... 103 ?VIDOUT_ASPECT_RATIO....................... 103 VIDOUT_ASPECT_RATIO ......................104 ?VIDOUT_BLANK........................104 viii Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 12 ?FP_LOCKTYPE ........................110 FP_LOCKTYPE ......................... 110 ?VIDOUT_ZOOM ........................110 VIDOUT_ZOOM........................110 ?INTENSITY_LCD........................111 INTENSITY_LCD ........................111 ?INTENSITY_LEDS ........................111 INTENSITY_LEDS........................111 System SEND_COMMANDs ..................112 DXLINK_ETH ........................... 112 DXLINK_IN_ETH ........................112 ?FAN_SPEED ........................... 112 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 13 Composite and S-Video Supported Input Resolutions..........115 Component Video Supported Input Resolutions ............115 Appendix B - Output Resolutions ..............117 Available Pixel Display and Refresh Rates ............117 DVI and HDMI Supported Output Resolutions............117 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 14: Overview

    Overview Overview The Enova DVX-3150HD-SP (FG1905-15), DVX-3150HD-T (FG1905-17), DVX-3155HD-SP (FG1905-16), and DVX-3155HD-T (FG1905-18) All-In-One Presentation Switcher combines all of the components you need to control/automate any environment into a simple, flexible, comprehensive solution including control, analog and digital audio/video inputs, audio and video switching, video scaling, local and remote distribution, plus audio mixing, and amplification - all in a single box (FIG.

  • Page 15: Dvx-3150Hd/Dvx-3155Hd Specifications

    Press to exit the current menu and return to the default menu page, Main Amp Output/Volume. VIDEO MUTE Press to mute/un-mute (enable/disable) all video output displays. pushbutton: Video Mute results in a blank screen on the output displays. AUDIO MUTE Press to mute/un-mute all audio outputs. pushbutton: Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 16 • 4 HDMI Output connectors (1-4) each provide HDMI digital audio and video output. • 2 DXLink RJ-45 outputs (1, 3) mirror HDMI outputs 1 and 3. See the VIDEO OUTPUTS (1-4) section on page 24 for more information and important cable recommendations. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 17 • FCC Part 15 Class A • IC CISPR 22 Class A • C-Tick CISPR 22 Class A • CE EN 55022 Class A and EN 55024 • LVD EN 60950-1 • IEC 60950-1 • cULus UL 60950-1 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 18 • CC-3.5ST5-RCA2F 2 RCA Female to 5-Pin Phoenix Cable (FG10-003-20) • AVB-RX-DXLINK-HDMI DXLink™ HDMI Receiver Module (FG1010-500) • AVB-TX-HDMI-DXLINK DXLink HDMI Transmitter Module (FG1010-300) • AVB-TX-MULTI-DXLINK DXLink Multi-Format Transmitters (FG1010-310) • AVB-WP-TX-MULTI-DXLINK DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH) Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 19: Mounting The Dvx Into An Equipment Rack

    Connect the unit only to a properly-rated supply circuit. DO NOT stand other units directly on top of the DVX when it is rack mounted, as this will place excessive strain on the mounting brackets. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 20: Ventilation

    Reliable earthing (grounding) of rack-mounted equipment should be maintained. The DVX should not be installed in enclosed spaces. It is recommended that you leave 1 RU of space above the DVX when you install it in a rack. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 21 Overview Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 22: Wiring And Device Connections

    Relay LEDs IR/Serial LEDs OUTPUT LED STATUS LED LINK/ACT LED SWITCH pushbutton VIDEO MUTE TAKE pushbutton AUDIO MUTE AUDIO MENU EXIT pushbutton LCD display VIDEO MENU STATUS pushbutton Navigational pushbuttons FIG. 3 DVX-3150HD-SP front panel Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 23 The DVX-3155HD-SP features the same options on the rear panel as the DVX-3150HD-SP with the exception that two DXLink inputs appear in place of two of the HDMI inputs. FIG. 5 displays the rear panel of the DVX-3150HD-T: DXLINK INPUTS FIG. 5 DVX-3155HD-SP rear panel Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 24: Front Panel Controls And Indicators

    Output, Audio Input, and Mic Input), SWITCH menu, and STATUS menu selections (see the Audio/Video Configuration section on page 45 for more information), and indicates current status of any adjustments made to settings within these menus. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 25: Switch Pushbutton

    The menu exits automatically after no user interaction on the front panel for 30 seconds. See the Video Settings section on page 46 for a listing of all available options and instructions on how to change the settings. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 26: Audio Menu Pushbutton

    Move up to previous configuration parameter Decrease value, or change the Increase value, or change the state of the selected parameter state of the selected parameter Move down to next configuration parameter FIG. 12 Navigation buttons Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 27: Status Pushbutton

    Press to toggle mute (blank) video all display outputs Press to toggle mute audio on all audio outputs FIG. 15 VIDEO/AUDIO MUTE pushbuttons The pushbuttons light (red) to indicate that Video and/or Audio muting is active. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 28: Rear Panel Audio Inputs And Outputs

    Nominal input level: +4 dBu (1.228 Vrms) balanced or -10 dBu (0.3162 Vrms) unbalanced  Maximum input level: 2 Vrms  Input impedance: >12k ohms unbalanced, >12k ohms balanced, DC coupled FIG. 17 AUDIO INPUTS connectors Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 29 Female to 5-Pin Phoenix Cable (FG10-003-20) for this type of connection. source device FIG. 19 RCA Stereo audio source wiring Do not connect the negative terminals to the source connector. Doing so can cause damage to your device. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 30: Mic Inputs (1-2)

    FIG. 20 MIC INPUTS FIG. 21 illustrates wiring connections between the DVX and a mono RCA output and an XLR output. RCA output XLR output FIG. 21 RCA (mono) and XLR output wiring Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 31: Amp Out

    Connecting speakers to the Amplified Audio output (-SP models) On -T models, connect a speaker to either the 70V or 100V terminals as displayed in FIG. 24. FIG. 24 Connecting speakers to the Amplified Audio output (-T models) Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 32: Audio Outputs

    Do not connect the negative terminals to the source connector. Doing so can cause damage to your device. S/PDIF OUTPUT The S/PDIF OUTPUT provides digital S/PDIF audio output that can mirror any of the 4 analog audio outputs or 4 HDMI outputs. FIG. 27 S/PDIF Output Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 33: Rear Panel Video Inputs And Outputs

    If a DVI source is attached before setting the input to DVI, you may need to reboot the source for it to recognize the DVI input description information required by the DVI standard. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 34 HDMI Male to DVI-D Male Cable section on page 43 The DVX and the adapter cables listed above utilize industry-standard pinouts. The only adapter cable that is unique to AMX is the CC-DVI-SVID (DVI-to-S-Video) cable. The others are generally available to purchase from other vendors, assuming that they also utilize industry standard (or equivalent) pinouts.

  • Page 35: Hdmi Inputs (5-10)

    DDC/CEC/HEC Ground TMDS Data 0 Shield +5V Power (max 50mA) TMDS Data 0- Hot Plug Detect, HEC Data+ TMDS Clock+ FIG. 30 displays the pin locations for the HDMI INPUTS: FIG. 30 HDMI pinouts Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 36: Dxlink Inputs (9-10)

    Both inputs support HDCP. These connectors are only available on the DVX-3155HD. FIG. 31 DXLINK INPUTS (9-10) See the Important Cable Recommendations section on page 25 for information about cable requirements for these ports. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 37: Video Outputs (1-4)

    FIG. 32 VIDEO OUTPUTS All video output ports support HDCP. FIG. 33 displays male and female RJ-45 connectors. You can connect the to the DXLink receivers via Category cabling. FIG. 33 RJ-45 Pinouts Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 38: Twisted Pair Cable Pinouts

    Wiring and Device Connections Twisted Pair Cable Pinouts AMX supports both the T568A and T568B pinout specifications for termination of the twisted pair cable used between the DVX and the DXLink receiver. FIG. 34 Twisted pair cable pinouts for T568A (recommended) and T568B specifications...

  • Page 39: Rear Panel Control And Power

    When wiring the connections, do not use pre-made 9-wire cable or connect the wire in the cable to any connection that will not be used by the DB9 serial port. Only use wiring that connects the necessary pins. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 40: Relays (Port 8)

    The GND connector is a common ground and is shared by all I/O ports.  The input format is software selectable with interactive power sensing for IR ports.  Channel range = 1-8  One 10-pin 3.5mm mini-Phoenix (female) connector provides I/O connection Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 41: Ir/Serial (Ports 9-16)

    Signal GND Signal 5 (+) IR/Serial data GND (-) Signal GND Signal 6 (+) IR/Serial data GND (-) Signal GND Signal 7 (+) IR/Serial data GND (-) Signal GND Signal 8 (+) IR/Serial data Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 42: Config Dip Switch

    To set the CONFIG DIP Switch: Turn off the power switch on the rear of the unit. Set the CONFIG DIP switch (refer to FIG. 40). Turn on the power switch. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 43: Program Port

    The following table shows the rear panel Program Port connector (male), pinouts, and signals. Program Port, Pinouts, and Signals Program Port Connector Signal The PROGRAM port is not recommended for firmware updates or large file transfers. Any large data-intensive operations are better handled via LAN. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 44: Id Pushbutton

    L/A - Activity LED (green) SPD - Link LED (amber) lights when lights when receiving or the LAN cables are connected transmitting LAN and terminated correctly. data packets ETHERNET FIG. 45 LAN connector / LEDs Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 45: Axlink Port And Led (4-Pin Captive-Wire)

    Wiring and Device Connections AxLink Port and LED (4-pin captive-wire) The AxLink port (FIG. 46) allows the DVX to support AMX AxLink devices. FIG. 46 AxLink Port and LED The (green) AxLink LED indicates AxLink data activity:  Off - No power, or the controller is not functioning properly.

  • Page 46: Power Connector/Switch/Fuse

    Using more than one source of power to the Controller can result in damage to the internal components and a possible burn out. Apply power to the unit only after installation is complete. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 47 Wiring and Device Connections Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 48: Cable Details And Pinout Information

    When used for composite inputs, connect the green plug on the adapter cable to the composite video output jack on the source device. CC-DVI-SVID DVI-to-S-Video 9’ (2.743m) FG10-2170-10 CC-DVIM-VGAF DVI-to-VGA (up to 1920x1200) 6’ (1.828m) FG10-2170-13 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 49: Dvi-D Male To Dvi-D Male Single-Link Cable

    C4 ANALOG HSYNC C4 ANALOG HSYNC Pin not populated in DVI-D connector C5 ANALOG C5 ANALOG Pin populated in DVI-D connector, GROUND GROUND but not connected for this cable BACKSHELL SHIELD SHIELD BACKSHELL Outer braid Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 50: Dvi-A Male To 5-Bnc Male Cable

    Pin not populated in DVI-A connector TMDS CLOCK P Pin populated in DVI-A connector, but not connected for this cable TMDS CLOCK N Pin populated in DVI-A connector, but not connected for this cable Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 51: Dvi-A Male To Triple Rca Male Cable

    Pin not populated in DVI-A connector TMDS SHIELD 1/3 Pin not populated in DVI-A connector TMDS DATA 3 N Pin not populated in DVI-A connector TMDS DATA 3 P Pin not populated in DVI-A connector Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 52 C5 ANALOG Pr, Y, Pb / Red/Green/Blue RCA GROUND CVBS Returns connector shields (shields) BACKSHELL SHIELD Pin populated in DVI-A connector, but not connected for this cable Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 53: Dvi-A Male To S-Video Male Cable

    TMDS CLOCK N Pin populated in DVI-A connector, but not connected for this cable C1 ANALOG Pin populated in DVI-A connector, but not connected for this cable Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 54: Dvi-A Male To Hd15 (Vga) Male Adapter

    TMDS DATA 3 N Pin not populated in DVI-A connector TMDS DATA 3 P Pin not populated in DVI-A connector +5VDC +5VDC 28AWG GROUND GND, HS Return 28AWG HOT PLUG +5VDC 28AWG DETECT Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 55 6, 7, 8, 10, 11 Red, Green, Blue mini-coax returns; GROUND VSync/DDC VSync/DDC return; NC used as GND Returns BACKSHELL Braided Shield Braided Shield BACKSHELL Outer braid, tied to 6, 7, 8, 10, 11 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 56: Hdmi Male To Dvi-D Male Cable

    TMDS Data Shield TMDS Data 1- TMDS Data 0+ TMDS Data 0 Shield TMDS Data 0- TMDS Clock+ TMDS Clock Shield TMDS Clock- N.C. N.C. Reserved N.C. N.C. DDC/CEC Ground +5V Power Hot Plug Detect Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 57 Cable Details and Pinout Information Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 58: Audio/Video Configuration

    Move up to previous menu configuration parameters Decrease value, or toggle the Increase value, or toggle the state of the selected parameter state of the selected parameter Move down to next menu configuration parameters FIG. 52 Navigation buttons Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 59: Video Settings

    Use the left and right navigational buttons to move the location of the video output from left to right. You can set the shift from -127 to 127. The default setting is 0. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 60 You can set the brightness level from 0-100. The default setting is Contrast Use the left and right navigational buttons to alter the contrast level adjustment applied to the selected input. You can set the contrast level from 0-100. The default setting is 50. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 61: Setting The Video Type For A Video Input

    Press the left and right navigation buttons to select the output on which to display the test pattern (ALL, 1, 2, 3, or 4). Press the down navigational button until the Logo/Test option appears. Use the left and right navigational buttons to select the appropriate output test pattern. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 62: Audio Settings

    1. You can set the threshold level from 0 to -60. Revert to Default Use the left and right navigational buttons to indicate that you want to return all audio output options to their default settings. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 63: Microphone Settings

    You can set the Phantom Power to On or Off. The default setting is Off. Revert to Default Use the left and right navigational buttons to indicate that you want to return all microphone options to their default settings. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 64: Selecting An Audio Test Tone

    Audio on the Switch Level option. Select Audio Output Use the SWITCH button to cycle through the available audio outputs. This option is only available if you select Audio on the Switch Level option. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 65: Status Menu

    LED Brightness: Use the left and right navigational buttons to adjust the backlight intensity of the front panel buttons. You can set the LED Intensity between 0 and 100. The default setting is 50. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 66: Dvx Webconsole

    Click to access the three main sections of the WebConsole (initial view = WebControl) Select this option to show/hide the Online Device Tree (showing all devices currently connected to this Master) FIG. 53 Master Configuration Manager - WebControl Page (initial view) Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 67: Master Controller Configuration Options

    All NI-Series NetLinx Masters (including the NI-3101-SIG that is internal to the DVX-3150HD) share a common WebConsole, as described in the NetLinx Integrated Controllers WebConsole & Programming Guide (available at www.amx.com). WebConsole - Master Configuration Manager The DVX (and all other NetLinx Masters) features a built-in WebConsole that allows you to make various configuration settings via a web browser on any PC that has access to the Master.

  • Page 68: Using A Web Browser

    You can access the configuration settings for the All-In-One Presentation Switcher by using a web browser. (AMX supports any industry-standard web browser running Adobe Flash Player 10 or better.) The system configuration pages are available by entering the IP address of the NetLinx master into the location bar of your web browser.

  • Page 69: Locating The Ip Address Of The Dvx

    Turns off the audio for the device. Amp Volume Sets the output volume. Refresh Click to reload all settings. Reset to Defaults Click to reset the current page’s settings to its factory default. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 70: Video Settings

    6 - Video Mute: Click to toggle whether the video is muted (blanked) on the video output. Freeze: Click the check box to freeze the current image so that it remains on the screen. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 71: Uploading An Image File

    Video Out tab. Images must be 24-bit color bitmap files at least 36x36 pixels in size. Large images can cause a slowdown in performance. Though images up to 1920x1200 are supported, AMX recommends using an image size no greater than 640x480. Perform these steps to upload an image file: Open a web browser.

  • Page 72: Video In

    Manual to manually select the video resolution for the selected input signal. After clicking the Manual option button, select a resolution from the corresponding drop-down menu.The Auto option is selected by default. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 73: Audio Settings

    Any changes you make reflect instantaneously on your source input and output devices. Audio Out FIG. 59 displays the Audio Out page for the DVX. FIG. 59 WebConsole Configuration page - Audio Out tab Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 74 10 - Mix: Use the sliders to set the mix levels for the audio input and the two microphones. Each device has its own mix level slider. You can set each level from 0 to 100dB. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 75: Audio In/Microphone

    48V of phantom power for each mic input. Note: Enabling Phantom Power could damage some devices connected to the microphone input if the devices are not designed to accept it. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 76 Hold Off: Sets the gating hold off time. You can set a value between 0.25 and 4 seconds in 0.25 increments. Enabled: Click to enable or disable the equalizer settings. Your audio configuration is not affected by a power loss, restarting the unit, or upgrading the firmware. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 77: Setting Up Surround Audio

    To send the same analog audio to the S/PDIF output, select the same Analog output used in step 4 above in the S/PDIF Output Audio Source options menu (see item 4 in the Audio Out section on page 60 for more information). Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 78: Mixing Microphones Onto Analog And Hdmi Outputs

    To hear the microphone on an HDMI output, follow the instructions for Embedding Audio on an HDMI Output section on page 64 and select an analog output that has been mixed to receive microphone audio in step 6 above. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 79: System Settings

    Note: Due to the way many browsers manage file upload requests while in an authenticated session, it is not possible to load a DVX setup (.xdv) file with any web browser AMX has tested, except Microsoft Internet Explorer when HTTP Security is enabled on the DVX Master.

  • Page 80: Netlinx Firmware Upgrades

    Verify you have the latest version of NetLinx Studio on your PC. Use the Web Update option in NetLinx Studio’s Help menu to obtain the latest version. Alternatively, go to www.amx.com and login as a Dealer to download the latest version.
  • Page 81 Click the Browse (...) button to navigate to the target directory in the Browse For Folder dialog (FIG. 63). FIG. 63 Browse For Folder dialog (NetLinx Studio)  The selected directory path is displayed in the Send To NetLinx Device dialog (Location text box). Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 82 Upgrading the Master or device firmware can take several minutes. If you are unsure of the progress of the upgrade, you can see the status of the upgrade on the LCD display on the front panel of the All-In-One Presentation Switcher. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 83: Additional Documentation

    Failure to complete this operation successfully may require a factory repair of the DVX. Additional Documentation For additional information on using NetLinx Studio, refer to the NetLinx Studio online help and Operation/Reference Guide (available at www.amx.com). Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 84: Programming

    ?AUDIO_MUTE ?AUDOUT_MUTE INPUTEQ AUDMIC_EQ ?INPUTEQ ?AUDMIC_EQ PHANTOM_PWR AUDMIC_PHANTOM_PWR ?PHANTOM_PWR ?AUDMIC_PHANTOM_PWR VIDOUT_OSD ?OSD ?VIDOUT_OSD VIDEO_MUTE VIDOUT_MUTE ?VIDEO_MUTE ?VIDOUT_MUTE VIDEO_TESTPATTERN VIDOUT_TESTPAT ?VIDEO_TESTPATTERN ?VIDOUT_TESTPAT VIDEO_RES_AUTO VIDOUT_SCALE ?VIDEO_RES_AUTO ?VIDOUT_SCALE VIDIN_COLOR VIDIN_BW ?VIDIN_COLOR ?VIDIN_BW VOLUME AUDOUT_VOLUME ?VOLUME ?AUDOUT_VOLUME Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 85: Netlinx Channels And Levels

    Video In V-Shift Ramp Up 1-10 Video In V-Shift Ramp Down 1-10 Video In H-Shift Ramp Up 1-10 Video In H-Shift Ramp Down 1-14 Gain Up 1-14 Gain Down 1-10 Black and White State Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 86: Standby Mode

    DVX exits Standby Mode.  All audio and video signals are restored in less than 10 seconds after exiting Standby Mode.  The DVX exits Standby Mode on any power cycle or reboot. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 87: Netlinx Levels

    Changing the value of this level will result in an audio switch. 0-65 Audio Mic PreAmp Gain (-24)-(24) Audio Mic Gain (-12)-(12) Mic EQ Band 1 (-12)-(12) Mic EQ Band 2 (-12)-(12) Mic EQ Band 3 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 88: Send_Commands

    Mic In 2 05002:2:0 Audio Output 1 (Amplified) 05002:1:0 Audio Output 2 05002:2:0 Audio Output 3 05002:3:0 Audio Output 4 05002:4:0 Audio/Video Output1 05002:1:0 Audio/Video Output2 05002:2:0 Audio/Video Output3 05002:3:0 Audio/Video Output4 05002:4:0 Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 89: Audio Send_Commands

    SEND_COMMAND <DEV>, "'AUDIN_COMPRESSION_ATTACK-<attack>'" audio port. Variable: attack = 1 to 2000 Example: SEND_COMMAND AUDIO_INPUT_1, "'AUDIN_COMPRESSION_ATTACK- 200'" Sets the compression attack for the audio port (#1 based on the D:P:S) to 200. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 90: Audin_Compression_Ratio

    Sets the compression release for the audio port (#1 based on the D:P:S) to 200. ?AUDIN_COMPRESSION Requests the compression's threshold. _THRESH Syntax: Requests the compression SEND_COMMAND <DEV>, "'?AUDIN_COMPRESSION_THRESH'" threshold for the audio port. Example: SEND_COMMAND AUDIO_INPUT_1, "'?AUDIN_COMPRESSION_THRESH'" Returns a COMMAND string of the form: AUDIN_COMPRESSION_THRESH- <threshold>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 91: Audin_Compression_Thresh

    Syntax: SEND_COMMAND <DEV>,"'AUDIN_STEREO-<setting>'" Variable: setting = stereo or mono Example: SEND_COMMAND AUDIO_INPUT_1,"'AUDIN_STEREO-stereo'" ?AUDIO_MUTE See the ?AUDOUT_MUTE section on page 92. AUDIO_MUTE See the AUDOUT_MUTE section on page 92. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 92: Audmic_Compression

    SEND_COMMAND <DEV>, "'AUDMIC_COMPRESSION_RELEASE- port. <release>'" Variable: release = 1 to 5000 Example: SEND_COMMAND MICROPHONE_1, "'AUDMIC_COMPRESSION_RELEASE- 200'" Sets the compression release for the microphone port (#1 based on the D:P:S) to 200. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 93: Audmic_Duck_Attack

    Sets the ducking release for Syntax: the microphone port. SEND_COMMAND <DEV>, "'AUDMIC_DUCK_RELEASE-<release>'" Variable: release = 10 to 5000 Example: SEND_COMMAND MICROPHONE_1, "'AUDMIC_DUCK_RELEASE-200'" Sets the ducking release for the microphone port (#1 based on the D:P:S) to 200. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 94: Audmic_Eq

    D:P:S. Requests the filter type of the first band of the equal- Syntax: izer for the microphone port. SEND_COMMAND <DEV>, "'?AUDMIC_EQ_FT-1'" Example: SEND_COMMAND AUDIO_OUTPUT_1,"'?AUDMIC_EQ_FT-1'" Returns a COMMAND string of the form: EQUALIZER-<band>=<value>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 95: Audmic_Eq_Ft

    Variable: factor = 0.1 to 20. Example: SEND_COMMAND MICROPHONE_1, "'AUDMIC_Q-1=1'" Sets the quality factor for the first band of the equalizer for the selected microphone port (#1 based on D:P:S) to 1. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 96: Audmic_Gain

    Sets the gating attack for the Syntax: microphone port. SEND_COMMAND <DEV>, "'AUDMIC_GATING_ATTACK-<attack>'" Variable: attack = 1 to 2000 Example: SEND_COMMAND MICROPHONE_1, "'AUDMIC_GATING_ATTACK-200'" Sets the gating attack for the microphone port (#1 based on the D:P:S) to 200. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 97: Audmic_Gating_Attack

    -20. ?AUDMIC_LIMITER Requests the setting of the limiter of a microphone. Requests the limiter setting Syntax: for a microphone. SEND_COMMAND <DEV>, "'?AUDMIC_LIMITER'" Example: SEND_COMMAND MIC_1,"'?AUDMIC_LIMITER'" Returns a COMMAND string of the form: AUDMIC_LIMITER-<setting> Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 98: Audmic_Limiter

    Requests the status of the microphone port addressed by the D:P:S. Requests the status of the Syntax: microphone port. SEND_COMMAND <DEV>, "'?AUDMIC_ON'" Example: SEND_COMMAND MICROPHONE_1, "'?AUDMIC_ON'" Returns a COMMAND string of the form: AUDMIC_ON-<setting>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 99: Audmic_On

    Sets the pre-amplifier gain for the microphone port (#1 based on D:P:S) to 50%. ?AUDMIC_STEREO Requests the microphone port(s) that is/are in use. Requests which Syntax: microphones are in use. SEND_COMMAND <DEV>, "'?AUDMIC_STEREO'" Example: SEND_COMMAND MICROPHONE_1, "'?AUDMIC_STEREO'" Returns a COMMAND string of the form: AUDMIC_STEREO-<option>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 100: Audmic_Stereo

    Sets the ducking attack for the output port. Syntax: SEND_COMMAND <DEV>, "'AUDOUT_DUCK_ATTACK-<attack>'" Variable: attack = 1 to 2000 Example: SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_ATTACK-200'" Sets the ducking attack for the output port (#1 based on the D:P:S) to 200. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 101: Audout_Duck_Hold

    Syntax: the audio port. SEND_COMMAND <DEV>, "'AUDOUT_DUCK_THRESH-<mic1_thresh>'" Variables: mic1_thresh = -60 to 0 Example: SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_DUCK_THRESH--12'" Sets the two microphone thresholds for the audio output port (#1 based on D:P:S) to -12. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 102: Audout_Ducking

    D:P:S. Requests the filter type on the specified equalizer band Syntax: on the audio output port. SEND_COMMAND <DEV>, "'?AUDOUT_EQ_FT-<band>'" Example: SEND_COMMAND AUDIO_OUTPUT_1,"'?AUDOUT_EQ_FT-1'" Returns a COMMAND string of the form: AUDOUT_EQ_FT-<band>,<filter>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 103: Audout_Eq_Ft

    SEND_COMMAND <DEV>, "'AUDOUT_EQ_MODE-<mode>'" Variables: mode = off, voice, music, movie Example: SEND_COMMAND AUDIO_OUTPUT_1, "'AUDOUT_EQ_MODE-movie'" Sets the equalizer to favor the sounds of a movie for the audio output port (#1 based on D:P:S). Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 104: Audout_Eq_Q

    Requests the current minimum volume for the audio port addressed by the D:P:S. Requests the minimum volume for the audio port. Syntax: SEND_COMMAND <DEV>, "'?AUDOUT_MINVOL'" Example: SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_MINVOL'" Returns a COMMAND string of the form: AUDOUT_MINVOL-<minimum>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 105: Audout_Minvol

    Requests the current frequency of test tone for the audio port addressed by the D:P:S. Requests the frequency of the test tone for the audio Syntax: port. SEND_COMMAND <DEV>, "'?AUDOUT_TESTTONE'" Example: SEND_COMMAND AUDIO_OUTPUT_1, "'?AUDOUT_TESTTONE'" Returns a COMMAND string of the form: AUDOUT_TESTTONE-<frequency>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 106: Audout_Testtone

    Requests which HDMI output port is currently used by the audio port addressed by the D:P:S. Requests the HDMI output port used by the audio port. Syntax: SEND_COMMAND <DEV>, "'?HDMIOUT_AUDIO'" Example: SEND_COMMAND AUDIO_OUTPUT_1, "'?HDMIOUT_AUDIO'" Returns a COMMAND string of the form: HDMIOUT_AUDIO-<option>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 107: Hdmiout_Audio

    2, analog out 3, analog out 4 Example: SEND_COMMAND AUDIO_OUTPUT_1, "'SPDIFOUT_AUDIO-HDMI out 1'" Sets the audio of HDMI out 1 to play through the audio output port (#1 based on D:P:S). Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 108: Volume

    = 1..4 where 1 is for the AMP output and 2, 3, and 4 are for the LINEOUT 2-4 outputs. Example: SEND_COMMAND AUDIO_OUTPUT_2,"'XPOINT--75,LINE,2'" Sets the mix level of the selected input’s contribution to the audio LINEOUT (2) output to -75. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 109: Video Send_Commands

    SEND_COMMAND SWITCHER,"'?INPUT-AUDIO,1'" Think of it as asking: Which audio input port is connected to output port #1? Returns a COMMAND string of the form: SWITCH-L<AUDIO|VIDEO>I<input>O<output>. ?OSD See the ?VIDOUT_OSD section on page 106. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 110: Output

    Sets the input brightness of the video port addressed by the D:P:S to <value>. Sets the input brightness of Syntax: the video port. SEND_COMMAND <DEV>, "'VIDIN_BRIGHTNESS-<value>'" Variables: value = 0..100 Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_BRIGHTNESS-50'" Sets the brightness of video input port (#1 based on D:P:S) to 50. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 111: Vidin_Bw

    Sets the EDID source to Syntax: mirror the video input. SEND_COMMAND <DEV>,"'VIDIN_EDID-<source>'" Variables: source = All Resolutions, Wide-screen, Full-screen, Mirror Out 1, Mirror Out 2, Mirror Out 3, Mirror Out 4 Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_EDID-MIRROR OUT 2'" Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 112: Vidin_Edid_Auto

    Queries the video input HDCP compliance setting of the video input port addressed by the D:P:S. Requests the HDCP Compliance setting of the Syntax: video port. SEND_COMMAND <DEV>,"'?VIDIN_HDCP'" Example: SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_HDCP'" Returns a string of the form: VIDIN_STATUS-<ENABLE|DISABLE>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 113: Vidin_Hdcp

    Requests the input hue of the video port addressed by the D:P:S. Requests the input hue Syntax: value of the video port. SEND_COMMAND <DEV>, "'?VIDIN_HUE'" Example: SEND_COMMAND VIDEO_INPUT_1,"'?VIDIN_HUE'" Returns a COMMAND string of the form: VIDIN_HUE-<value>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 114: Vidin_Hue

    VGA. Sets the input phase of the video port. Syntax: SEND_COMMAND <DEV>, "'VIDIN_PHASE-<value>'" Variables: value = 0..31 Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_PHASE-23'" Sets the phase of video input port (#1 based on D:P:S) to 23. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 115: Vidin_Pref_Edid

    'i' or 'p'. refresh-rate = An integer value representing the refresh rate. Example: SEND_COMMAND VIDEO_INPUT_1,"'VIDIN_RES_REF-1440x480i,59'" For a list of supported resolutions, see the Appendix A - Input Resolutions section on page 113. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 116: Vidin_Saturation

    Requests the aspect ratio of Syntax: the video output port. SEND_COMMAND <DEV>, "'?VIDOUT_ASPECT_RATIO'" Example: SEND_COMMAND VIDEO_OUTPUT_1,"'?VIDOUT_ASPECT_RATIO'" Returns a COMMAND string of the form: VIDOUT_ASPECT_RATIO-<ratio>. See the VIDOUT_ASPECT_RATIO command for the list of aspect ratios. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 117: Vidout_Aspect_Ratio

    Requests the input contrast of the video port addressed by the D:P:S. Requests the input contrast Syntax: value of the video port. SEND_COMMAND <DEV>, "'?VIDOUT_CONTRAST'" Example: SEND_COMMAND VIDEO_OUTPUT_1,"'?VIDOUT_CONTRAST'" Returns a COMMAND string of the form: VIDOUT_CONTRAST-<value>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 118: Vidout_Contrast

    Requests the horizontal size of the video port addressed by the D:P:S. Requests the horizontal size Syntax: value of the image displayed SEND_COMMAND <DEV>, "'?VIDOUT_HSIZE'" on the video output port. Example: SEND_COMMAND VIDEO_OUTPUT_1,"'?VIDOUT_HSIZE'" Returns a COMMAND string of the form: VIDOUT_HSIZE-<value>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 119: Vidout_Hsize

    D:P:S. If enabled, then the OSD setting is on. If disabled, then Enables the OSD for the the OSD setting is off. video port. Syntax: SEND_COMMAND <DEV>," VIDOUT_'OSD-<ENABLE|DISABLE>'" Example: SEND_COMMAND VIDEO_OUTPUT_1,"' VIDOUT_OSD-ENABLE'" Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 120: Vidout_Osd_Color

    SEND_COMMAND <DEV>, "'?VIDOUT_RES'" Example: SEND_COMMAND VIDEO_OUTPUT_1,"'?VIDOUT_RES'" Returns a COMMAND string of the form: VIDOUT_RES-<h>x<v>,<rate>. ?VIDOUT_RES_AUTO See the ?VIDOUT_SCALE section on page 108. VIDOUT_RES_AUTO See the VIDOUT_SCALE section on page 108. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 121: Vidout_Res_Ref

    Requests the test pattern Syntax: setting for the video output SEND_COMMAND <DEV>, "'?VIDOUT_TESTPAT'" port. Example: SEND_COMMAND VIDEO_OUTPUT_1,"'?VIDOUT_TESTPAT'" Returns a COMMAND string of the form: VIDOUT_TESTPAT-<pattern>. See the VIDOUT_TESTPAT command for the list of test patterns. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 122: Vidout_Testpat

    Sets the vertical size of the image displayed on the Syntax: video output port. SEND_COMMAND <DEV>, "'VIDOUT_VSIZE-<value>'" Variables: value = 25..800 Example: SEND_COMMAND VIDEO_OUTPUT_1,"'VIDOUT_VSIZE-100'" Sets the vertical size of video output port (#1 based on D:P:S) to 100. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 123: Front Panel Send_Commands

    Value = 1: lock out all menus; 2: reserved; 3: lockout configure menu only FP_LOCKTYPE Syntax: Sets the lockout type for SEND_COMMAND <DEV>, "'FP_LOCKTYPE-<value>'" front panel. Variable: value = 1: lock out all menus; 2: reserved; 3: lockout configure menu only Example: SEND_COMMAND SWITCHER,"FP_LOCKTYPE-1'" Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 124: Intensity_Lcd

    = An integer value in the range of 0-100 with 0 being no illumination and 100 being maximum illumination. Example: SEND_COMMAND SWITCHER,"'INTENSITY_LEDS-50'" Sets the intensity of the LED buttons on the Front Panel to 50. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 125: System Send_Commands

    Requests the temperature detected inside the controller. The temperature value returned is in Celsius. Requests the temperature inside the controller. Syntax: SEND_COMMAND <DEV>,"'?TEMP'" Example: SEND_COMMAND dvDev,"'?TEMP'" Returns a COMMAND string of the form: TEMP-<temp value in C>. Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 126: Appendix A - Input Resolutions

      1280x720p@60 1280 720p CEA 861   1280x720p@100 1280 720p CEA 861   1280x720p@120 1280 720p CEA 861   1280x768@59 1280 VESA CVT   1280x768@60 1280 VESA DMT Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 127   1920x1080p@50 1920 1080 1080p CEA 861  1920x1080@60 1920 1080 VGA only VESA CVT   1920x1080p@60 1920 1080 1080p CEA 861   1920x1200@60 1920 1200 Reduced VESA CVT Blanking Enova DVX-3150HD-3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 128: Composite And S-Video Supported Input Resolutions

    SMPTE 274M 1920x1080is@50 1920 1080i_S295M SMPTE 295M 1920x1080i@60 1920 59.9 1080i SMPTE 274M CEA 770.3 1920x1080p@50 1920 1080 1080p50 SMPTE 274M 1920x1080ps@50 1920 1080 1080p_S295M SMPTE 295M 1920x1080p@60 1920 1080 59.9 1080p SMPTE 274M Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 129 Appendix A - Input Resolutions Enova DVX-3150HD-3155HD All-in-One Presentation Switcher Operation/Reference Guide...

  • Page 130: Appendix B - Output Resolutions

    1440x900@60 1440 VESA CVT 1600x1200@60 1600 1200 VESA DMT 1680x1050@60 1680 1050 VESA CVT 1920x1080@60 1920 1080 1080 VESA CVT 1920x1080p@60 1920 1080 1080p CEA 861 1920x1200@60 1920 1200 Reduced VESA CVT-R Blanking Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 131 Appendix B - Output Resolutions Enova DVX-3150HD-3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 132 Appendix B - Output Resolutions Enova DVX-3150HD/3155HD All-in-One Presentation Switcher Operation/Reference Guide...
  • Page 133 - Schedules and registration for any AMX University course - Travel and hotel information - Your individual certification requirements and progress 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
