Introduction

About this Guide

This user guide describes the installation, operation, and specifications of the Extron
DVI DA4 Plus, DVI DA6 Plus, and DVI DA8 Plus Distribution Amplifiers.
Unless stated otherwise, all references to the "distribution amplifier," "DA," or "DVI DA Plus
Series" in this guide refer to the features or operation of all three models.

About the DVI DA Plus Series

These Digital Visual Interface (DVI) Distribution Amplifiers accept one single link DVI-D input
and distribute four (DVI DA4 Plus), six (DVI DA6 Plus), or eight (DVI DA8 Plus) single link
DVI-D output signals.
All three models use the Extron EDID Minder
(Extended Display Identification Data) communication with the attached source.
The EDID Lock feature allows EDID information to be retained, even after cycling power to
the unit or changing the output displays.
The DVI DA4 Plus is 1U high and half a rack wide. The DVI DA6 Plus and DVI DA8 Plus are
both 1U high and a full rack wide. All three models offer a variety of mounting options.
Extron
DVI DA8 Plus
Distribution Ampli er

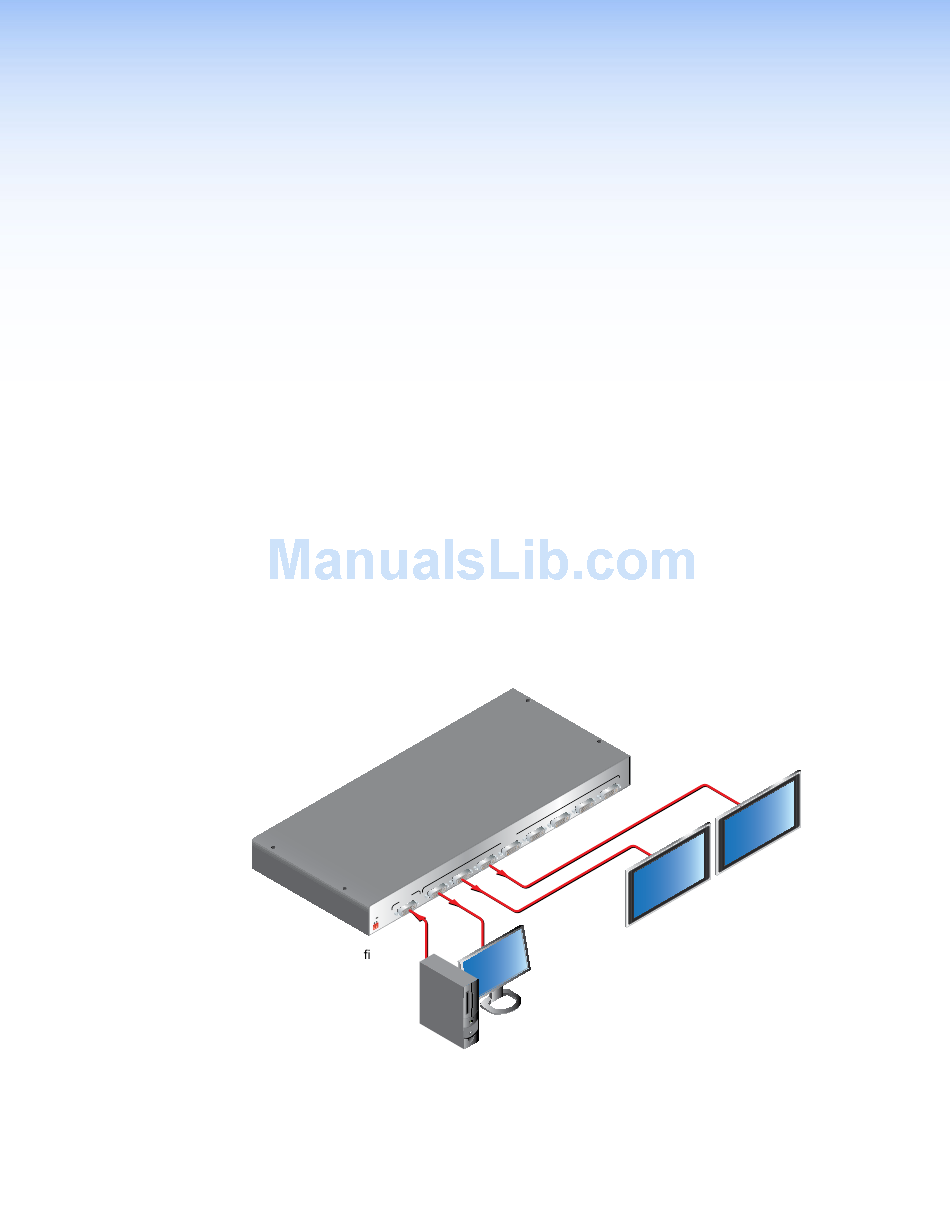

Figure 1.
D V
3
2
1
T
P U
IN
I- D
D V
R
W E
P O
V M A X
12
0. 4A
Computer
with
DVI Output
Typical Application for the DVI DA8 Plus
® feature to maintain continuous EDID
s
P lu
A 8
I D
D V
8
7
6
5
U T
T P
O U
I- D
4
Display
with
DVI Input
Local
Monitor
DVI DA Plus Series • Introduction
®
Display
with
DVI Input
1
