Rear Panel Features

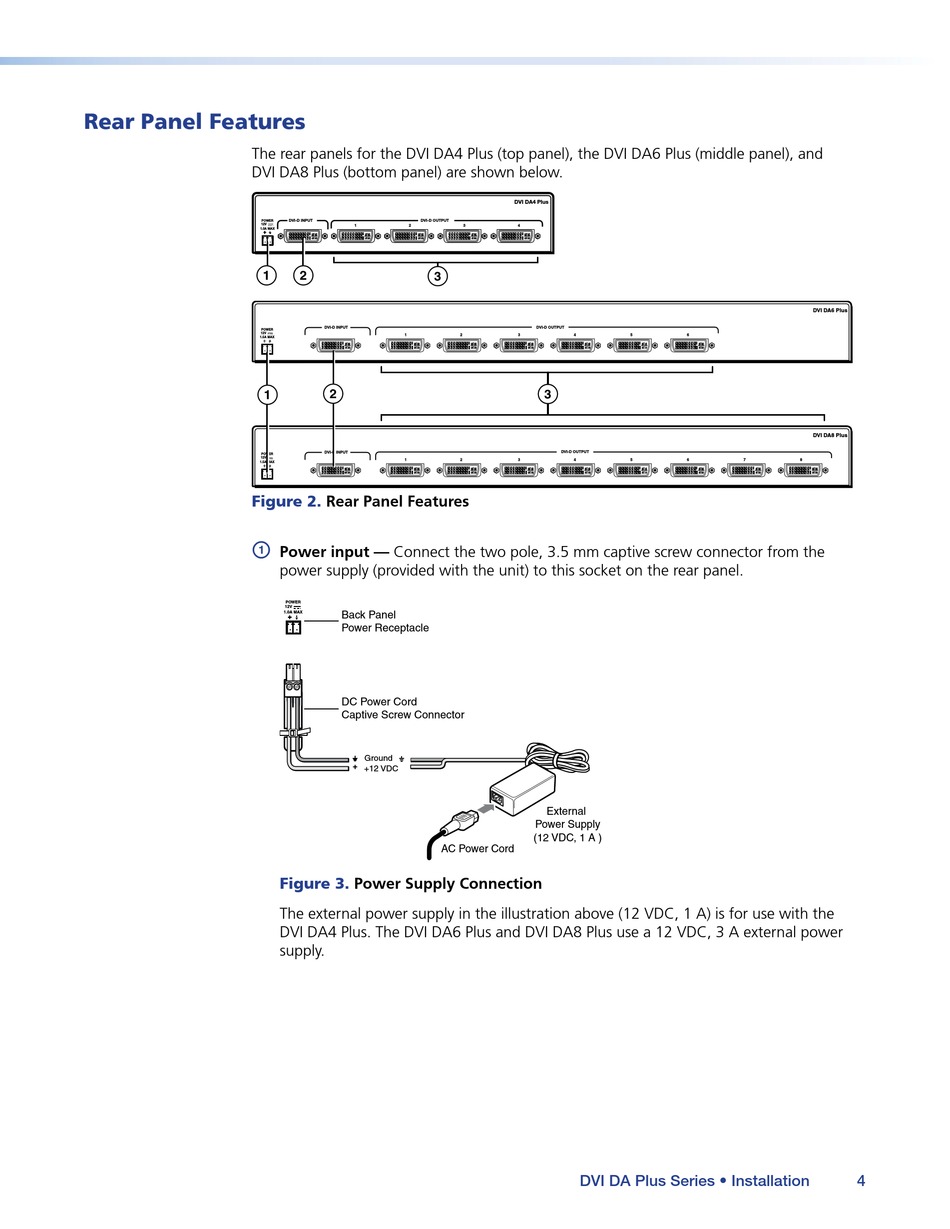

The rear panels for the DVI DA4 Plus (top panel), the DVI DA6 Plus (middle panel), and
DVI DA8 Plus (bottom panel) are shown below.
POWER
12V
1.0A MAX
1
POWER
12V
1.5A MAX
POWER
12V
1.5A MAX
Figure 2.
a
DVI-D INPUT DVI-D OUTPUT
1 2
2
3
DVI-D INPUT
1
2
1
DVI-D INPUT
1
Rear Panel Features
Power input — Connect the two pole, 3.5 mm captive screw connector from the
power supply (provided with the unit) to this socket on the rear panel.
POWER
12V
Back Panel
1.0A MAX
Power Receptacle
DC Power Cord
Captive Screw Connector
Ground
+12 VDC
AC Power Cord
Figure 3. Power Supply Connection
The external power supply in the illustration above (12 VDC, 1 A) is for use with the
DVI DA4 Plus. The DVI DA6 Plus and DVI DA8 Plus use a 12 VDC, 3 A external power
supply.
DVI DA4 Plus
3 4
DVI-D OUTPUT
2 3 4 5
3
DVI-D OUTPUT
2 3 4 5
External
Power Supply
(12 VDC, 1 A )
DVI DA Plus Series • Installation
DVI DA6 Plus
6
DVI DA8 Plus
6 7 8
4
