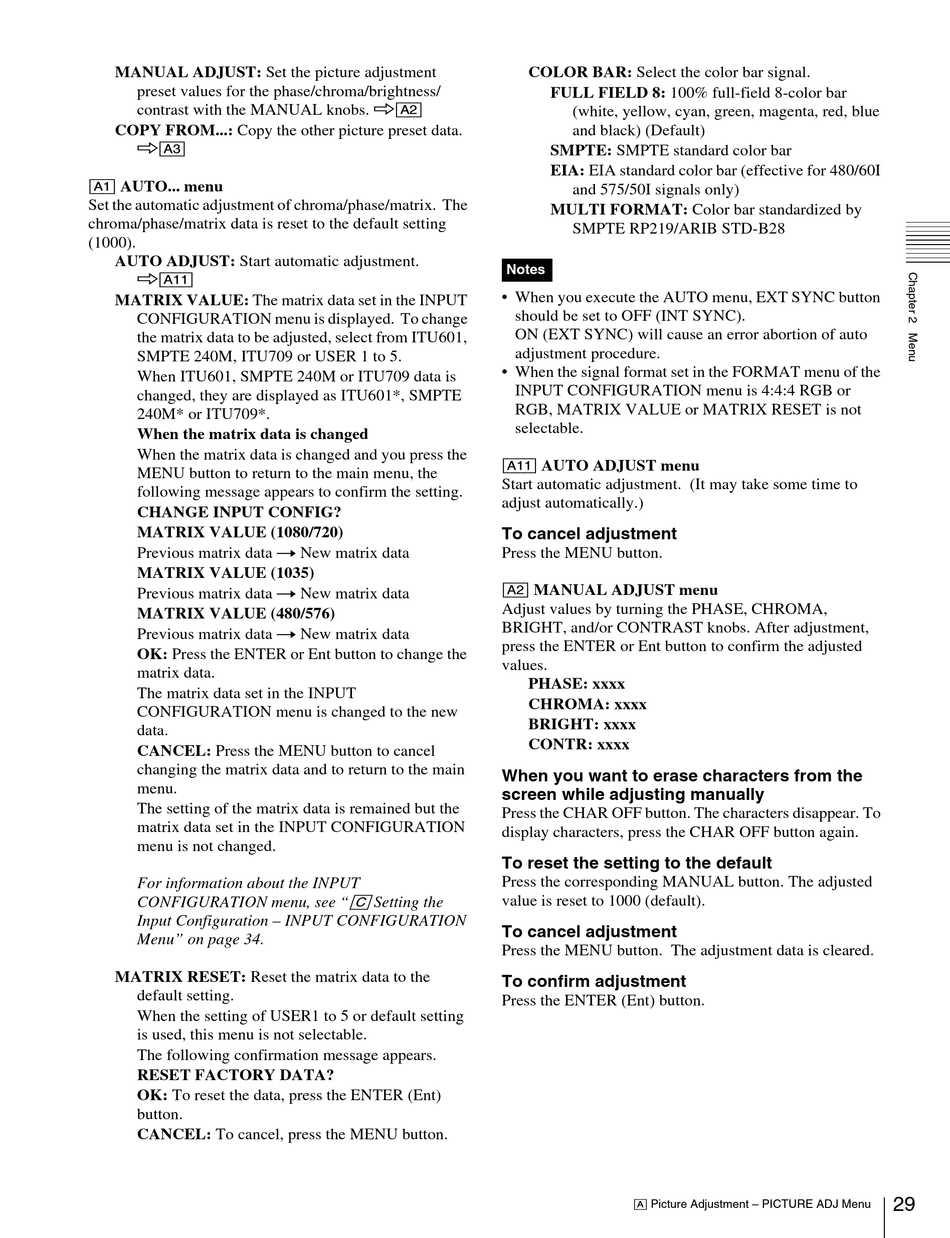

MANUAL ADJUST: Set the picture adjustment
preset values for the phase/chroma/brightness/
contrast with the MANUAL knobs. k[A2]
COPY FROM...: Copy the other picture preset data.
k[A3]
[A1] AUTO... menu
Set the automatic adjustment of chroma/phase/matrix. The
chroma/phase/matrix data is reset to the default setting
(1000).
AUTO ADJUST: Start automatic adjustment.
k[A11]
MATRIX VALUE: The matrix data set in the INPUT
CONFIGURATION menu is displayed. To change
the matrix data to be adjusted, select from ITU601,
SMPTE 240M, ITU709 or USER 1 to 5.
When ITU601, SMPTE 240M or ITU709 data is
changed, they are displayed as ITU601*, SMPTE
240M* or ITU709*.
When the matrix data is changed
When the matrix data is changed and you press the
MENU button to return to the main menu, the
following message appears to confirm the setting.
CHANGE INPUT CONFIG?
MATRIX VALUE (1080/720)
Previous matrix data t New matrix data
MATRIX VALUE (1035)
Previous matrix data t New matrix data
MATRIX VALUE (480/576)
Previous matrix data t New matrix data
OK: Press the ENTER or Ent button to change the
matrix data.
The matrix data set in the INPUT
CONFIGURATION menu is changed to the new
data.
CANCEL: Press the MENU button to cancel
changing the matrix data and to return to the main
menu.
The setting of the matrix data is remained but the
matrix data set in the INPUT CONFIGURATION
menu is not changed.
For information about the INPUT
CONFIGURATION menu, see "
Input Configuration – INPUT CONFIGURATION
Menu" on page 34.
MATRIX RESET: Reset the matrix data to the
default setting.
When the setting of USER1 to 5 or default setting
is used, this menu is not selectable.
The following confirmation message appears.
RESET FACTORY DATA?
OK: To reset the data, press the ENTER (Ent)
button.
CANCEL: To cancel, press the MENU button.
COLOR BAR: Select the color bar signal.
Notes
• When you execute the AUTO menu, EXT SYNC button
should be set to OFF (INT SYNC).
ON (EXT SYNC) will cause an error abortion of auto
adjustment procedure.
• When the signal format set in the FORMAT menu of the
INPUT CONFIGURATION menu is 4:4:4 RGB or
RGB, MATRIX VALUE or MATRIX RESET is not
selectable.
[A11] AUTO ADJUST menu
Start automatic adjustment. (It may take some time to
adjust automatically.)
To cancel adjustment
Press the MENU button.
[A2] MANUAL ADJUST menu
Adjust values by turning the PHASE, CHROMA,
BRIGHT, and/or CONTRAST knobs. After adjustment,
press the ENTER or Ent button to confirm the adjusted
values.
PHASE: xxxx
CHROMA: xxxx
BRIGHT: xxxx
CONTR: xxxx
When you want to erase characters from the
screen while adjusting manually
Press the CHAR OFF button. The characters disappear. To
display characters, press the CHAR OFF button again.
To reset the setting to the default
Press the corresponding MANUAL button. The adjusted
[C] value is reset to 1000 (default).
Setting the
To cancel adjustment
Press the MENU button. The adjustment data is cleared.
To confirm adjustment
Press the ENTER (Ent) button.
FULL FIELD 8: 100% full-field 8-color bar
(white, yellow, cyan, green, magenta, red, blue
and black) (Default)
SMPTE: SMPTE standard color bar
EIA: EIA standard color bar (effective for 480/60I
and 575/50I signals only)
MULTI FORMAT: Color bar standardized by
SMPTE RP219/ARIB STD-B28
[A] Picture Adjustment – PICTURE ADJ Menu
29
