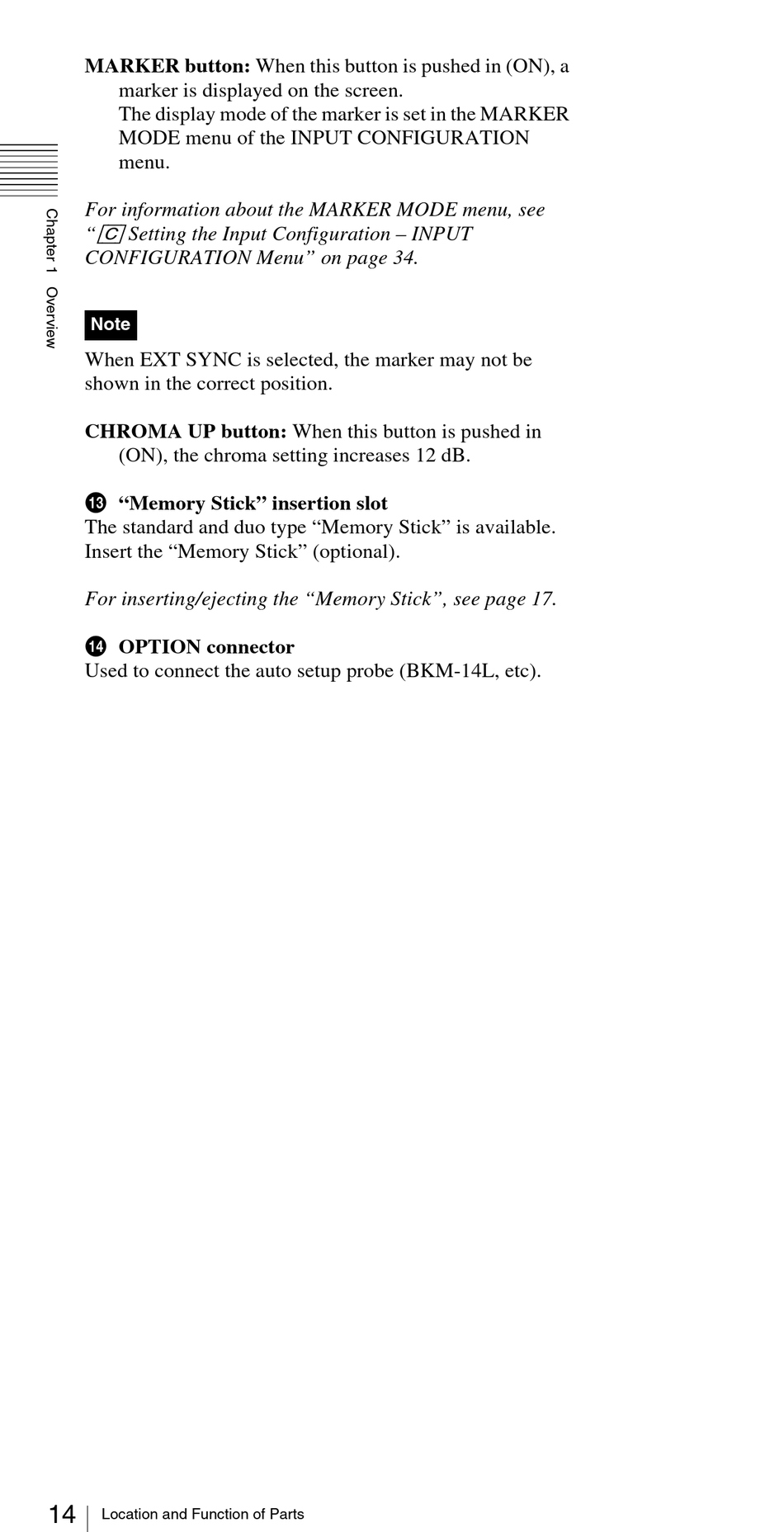

MARKER button: When this button is pushed in (ON), a
marker is displayed on the screen.
The display mode of the marker is set in the MARKER
MODE menu of the INPUT CONFIGURATION
menu.
For information about the MARKER MODE menu, see
[C]
"
Setting the Input Configuration – INPUT
CONFIGURATION Menu" on page 34.
Note
When EXT SYNC is selected, the marker may not be
shown in the correct position.
CHROMA UP button: When this button is pushed in
(ON), the chroma setting increases 12 dB.
m "Memory Stick" insertion slot
The standard and duo type "Memory Stick" is available.
Insert the "Memory Stick" (optional).
For inserting/ejecting the "Memory Stick", see page 17.
n OPTION connector
Used to connect the auto setup probe (BKM-14L, etc).
