For information about the PARALLEL REMOTE menu,
[D]
see " System Configuration – SYSTEM
CONFIGURATION Menu" on page 39.
To switch each function between on and off or between
enable and disable, change pin connections in the
following way.
ON or enabled: Short each pin and pin 9 together.
OFF or disabled: Leave each pin open.
f SERVICE terminal (male, D-sub 9-pin)
This connector is for use by service personnel only.

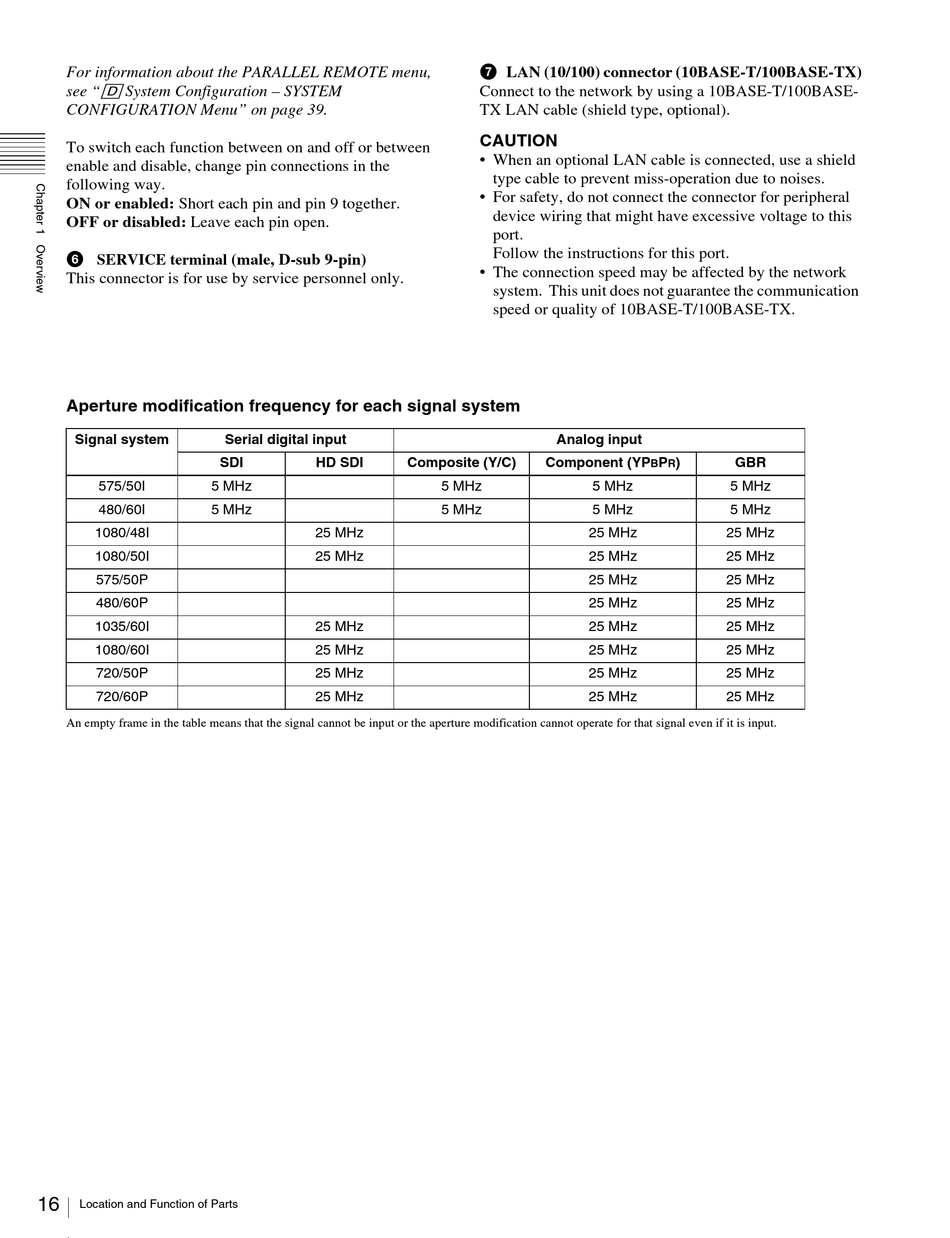

Aperture modification frequency for each signal system
Signal system
575/50I 5 MHz
480/60I 5 MHz
1080/48I
1080/50I
575/50P
480/60P
1035/60I
1080/60I
720/50P
720/60P
An empty frame in the table means that the signal cannot be input or the aperture modification cannot operate for that signal even if it is input.
16
Location and Function of Parts
Serial digital input
SDI HD SDI
25 MHz
25 MHz
25 MHz
25 MHz
25 MHz
25 MHz
g LAN (10/100) connector (10BASE-T/100BASE-TX)
Connect to the network by using a 10BASE-T/100BASE-
TX LAN cable (shield type, optional).
CAUTION
• When an optional LAN cable is connected, use a shield
type cable to prevent miss-operation due to noises.
• For safety, do not connect the connector for peripheral
device wiring that might have excessive voltage to this
port.
Follow the instructions for this port.
• The connection speed may be affected by the network
system. This unit does not guarantee the communication
speed or quality of 10BASE-T/100BASE-TX.
Analog input
Composite (Y/C) Component (YP
5 MHz
5 MHz
P ) GBR
B R
5 MHz 5 MHz
5 MHz 5 MHz
25 MHz 25 MHz
25 MHz 25 MHz
25 MHz 25 MHz
25 MHz 25 MHz
25 MHz 25 MHz
25 MHz 25 MHz
25 MHz 25 MHz
25 MHz 25 MHz
