Repeat steps 2 and 3 until the desired menu is
displayed.
For more information about setting and adjustments,
see below.
[R] indicates that
the menu
continues onto
next page.
[r] indicates that
the menu is
continued from
INPUT CON FIGURATIO N
previous page.
C H01
APERTURE
OF F
VALUE
0 00
YC SEP
- --
Selects from
NTSC COMB FILTER
-- -
MARKER DISPLAY
O FF
various options.
MODE...
Enters
H PHASE
0 00
CHANNEL NAME...
numerical
values.
COPY FROM...
Indicates that
this item has
sub-list. You
can go to the
lower level.
To abort menu operation
Press the MENU button. The menu of the upper level is
displayed.
The setting or adjustment being performed is canceled, and
data loading or saving is aborted.
If “NG” or “ERROR” appears during menu
operation
Press the MENU button to return to the menu in use.

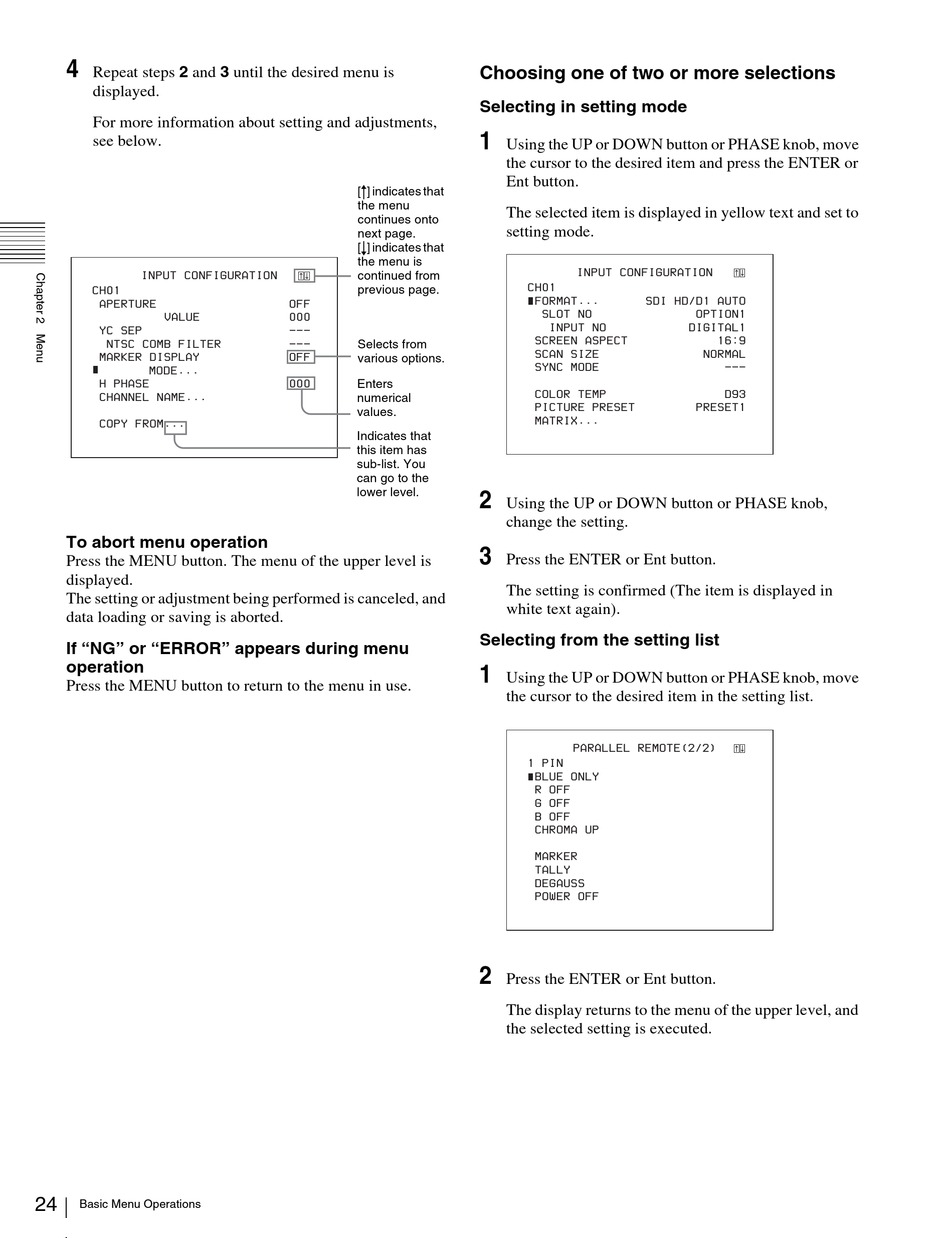

Basic Menu Operations
Choosing one of two or more selections
Selecting in setting mode
1
Using the UP or DOWN button or PHASE knob, move
the cursor to the desired item and press the ENTER or
Ent button.
The selected item is displayed in yellow text and set to
setting mode.
INP UT CONFIGU RATION
CH01
FORMAT.. .
SDI HD/ D1 AUTO
SLOT NO
OPTION1
INPUT NO
DIGITAL1
SCREEN A SPECT
16 :9
SCAN SIZ E
NORMAL
SYNC MOD E
- --
COLOR TE MP
D9 3
PICTURE PRESET
PRESE T1
MATRIX.. .
2
Using the UP or DOWN button or PHASE knob,
change the setting.
3
Press the ENTER or Ent button.
The setting is confirmed (The item is displayed in
white text again).
Selecting from the setting list
1
Using the UP or DOWN button or PHASE knob, move
the cursor to the desired item in the setting list.
PARA LLEL REMO TE(2/2)
1 PIN
BLUE ONL Y
R OFF
G OFF
B OFF
CHROMA U P
MARKER
TALLY
DEGAUSS
POWER OF F
2
Press the ENTER or Ent button.
The display returns to the menu of the upper level, and
the selected setting is executed.
