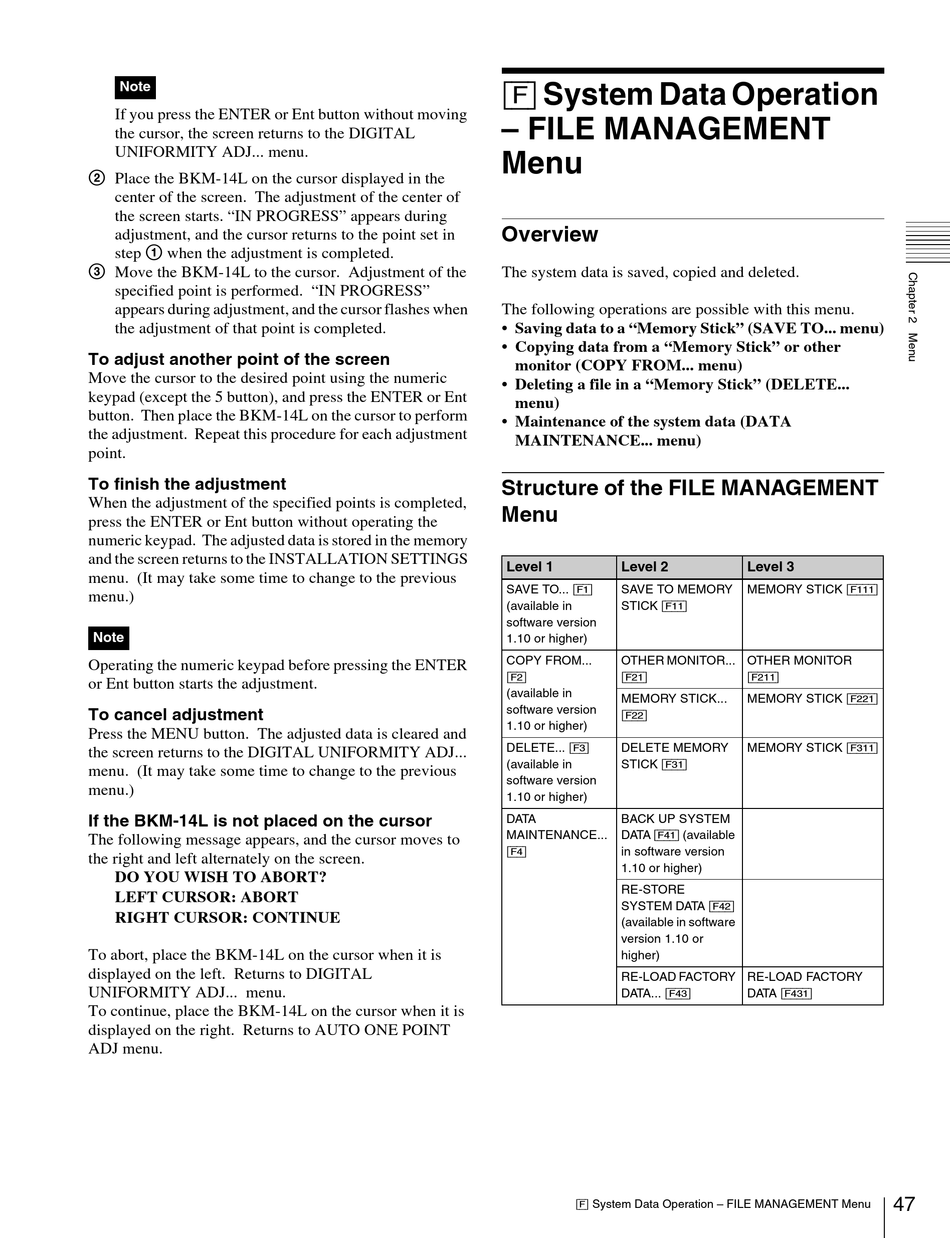

Note
If you press the ENTER or Ent button without moving
the cursor, the screen returns to the DIGITAL
UNIFORMITY ADJ... menu.
2 Place the BKM-14L on the cursor displayed in the
center of the screen. The adjustment of the center of
the screen starts. “IN PROGRESS” appears during
adjustment, and the cursor returns to the point set in
step 1 when the adjustment is completed.
3 Move the BKM-14L to the cursor. Adjustment of the
specified point is performed. “IN PROGRESS”
appears during adjustment, and the cursor flashes when
the adjustment of that point is completed.
To adjust another point of the screen
Move the cursor to the desired point using the numeric
keypad (except the 5 button), and press the ENTER or Ent
button. Then place the BKM-14L on the cursor to perform
the adjustment. Repeat this procedure for each adjustment
point.
To finish the adjustment
When the adjustment of the specified points is completed,
press the ENTER or Ent button without operating the
numeric keypad. The adjusted data is stored in the memory
and the screen returns to the INSTALLATION SETTINGS
menu. (It may take some time to change to the previous
menu.)
Note
Operating the numeric keypad before pressing the ENTER
or Ent button starts the adjustment.
To cancel adjustment
Press the MENU button. The adjusted data is cleared and
the screen returns to the DIGITAL UNIFORMITY ADJ...
menu. (It may take some time to change to the previous
menu.)
If the BKM-14L is not placed on the cursor
The following message appears, and the cursor moves to
the right and left alternately on the screen.
DO YOU WISH TO ABORT?
LEFT CURSOR: ABORT
RIGHT CURSOR: CONTINUE
To abort, place the BKM-14L on the cursor when it is
displayed on the left. Returns to DIGITAL
UNIFORMITY ADJ... menu.
To continue, place the BKM-14L on the cursor when it is
displayed on the right. Returns to AUTO ONE POINT
ADJ menu.
[F] System Data Operation
– FILE MANAGEMENT
Menu
Overview
The system data is saved, copied and deleted.
The following operations are possible with this menu.
• Saving data to a “Memory Stick” (SAVE TO... menu)
• Copying data from a “Memory Stick” or other
monitor (COPY FROM... menu)
• Deleting a file in a “Memory Stick” (DELETE...
menu)
• Maintenance of the system data (DATA
MAINTENANCE... menu)
Structure of the FILE MANAGEMENT
Menu
Level 1
Level 2
Level 3
SAVE TO... [F1]
MEMORY STICK [F111]
SAVE TO MEMORY
STICK [F11]
(available in
software version
1.10 or higher)
COPY FROM...
OTHER MONITOR...
OTHER MONITOR
[F2]
[F21]
[F211]
(available in
MEMORY STICK [F221]
MEMORY STICK...
software version
[F22]
1.10 or higher)
DELETE... [F3]
MEMORY STICK [F311]
DELETE MEMORY
STICK [F31]
(available in
software version
1.10 or higher)
DATA
BACK UP SYSTEM
DATA [F41] (available
MAINTENANCE...
[F4]
in software version
1.10 or higher)
RE-STORE
SYSTEM DATA [F42]
(available in software
version 1.10 or
higher)
RE-LOAD FACTORY
RE-LOAD FACTORY
DATA... [F43]
DATA [F431]
Page 47
[F] System Data Operation – FILE MANAGEMENT Menu
