CONNECTIONS AND MAINTENANCE

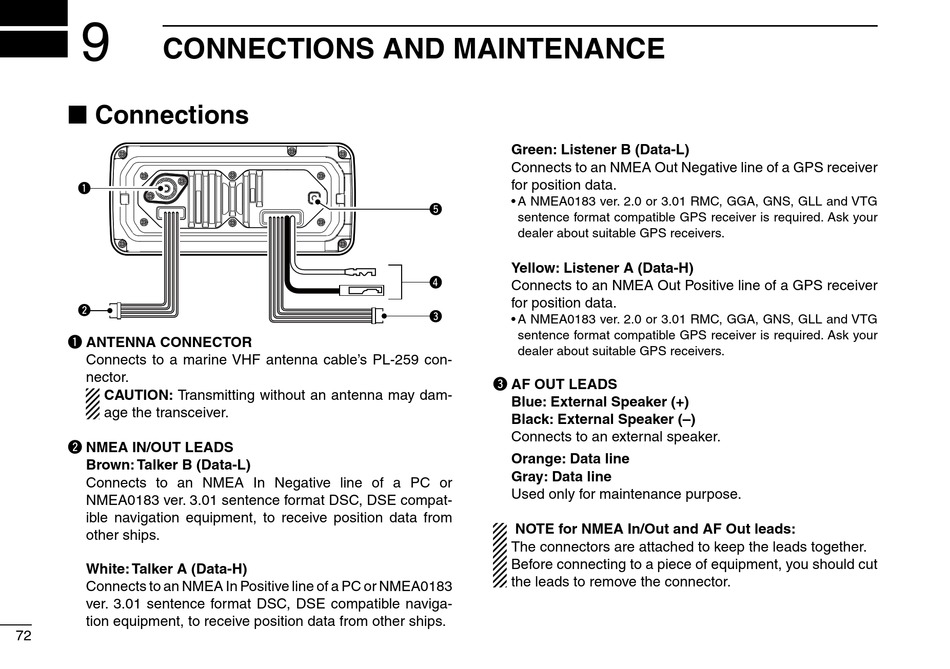

Connections

■
q
w
q ANTENNA CONNECTOR
Connects to a marine VHF antenna cable's PL-259 con-
nector.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
w NMEA IN/OUT LEADS
Brown: Talker B (Data-L)
Connects to an NMEA In Negative line of a PC or
NMEA0183 ver. 3.01 sentence format DSC, DSE compat-
ible navigation equipment, to receive position data from
other ships.
White: Talker A (Data-H)
Connects to an NMEA In Positive line of a PC or NMEA0183
ver. 3.01 sentence format DSC, DSE compatible naviga-
tion equipment, to receive position data from other ships.
72
Green: Listener B (Data-L)
Connects to an NMEA Out Negative line of a GPS receiver
for position data.
• A NMEA0183 ver. 2.0 or 3.01 RMC, GGA, GNS, GLL and VTG
t
sentence format compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
Yellow: Listener A (Data-H)
r
Connects to an NMEA Out Positive line of a GPS receiver
for position data.
e
• A NMEA0183 ver. 2.0 or 3.01 RMC, GGA, GNS, GLL and VTG
sentence format compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
e AF OUT LEADS
Blue: External Speaker (+)
Black: External Speaker (–)
Connects to an external speaker.
Orange: Data line
Gray: Data line
Used only for maintenance purpose.
NOTE for NMEA In/Out and AF Out leads:
The connectors are attached to keep the leads together.
Before connecting to a piece of equipment, you should cut
the leads to remove the connector.
