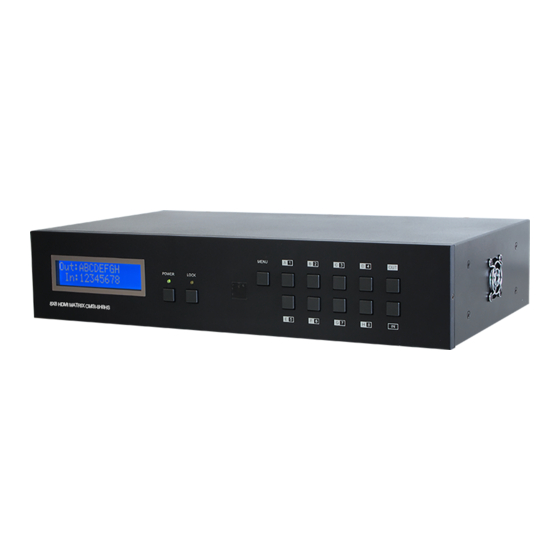

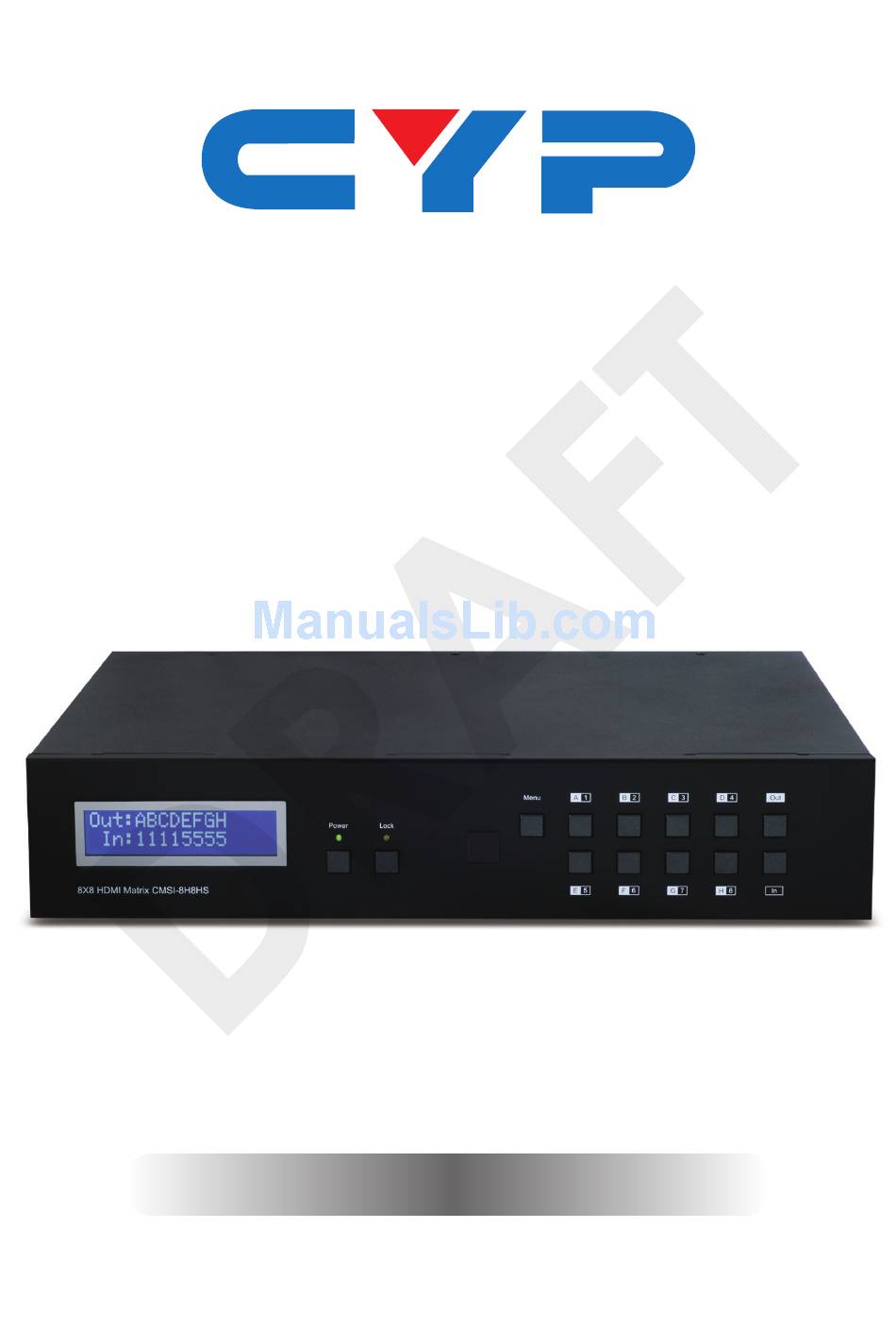

- Page 1 CMSI-8H8HS 8 x 8 HDMI Matrix Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 RS-232 Pin Assignment .....6 6.6 RS-232 Commands ......7... -
Page 6: Introduction
1. INTRODUCTION The 8×8 HDMI Matrix supports the transmission of Video (up to 1080p Full HD/1920×1200@60 Hz) with multichannel digital audio from up to eight high definition sources to up to eight HDMI outputs and allows the display of any source device on any output display. Also, the unit can be controlled via IR, RS-232 or the front panel button controls. -
Page 7: Features
5. FEATURES • HDMI, HDCP1.1 and DVI compliant • Supports HDMI v1.4 features including 3D • Supports audio sampling rate up to 192 kHz • Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings • Supports 3D signal display dependent upon the output display's EDID settings •... -
Page 8: Operation Controls And Functions
6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX CMSI-8H8HS Displays the source device input setting (1~8)of each of the HDMI outputs (A~H). POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out DC 24V HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In LAN: Reserved. RS-232: Connect to a PC or laptop with D-Sub 9-pin female cable for the transmission of RS-232 commands. -
Page 10: Side Panel
6.3 Side Panel VENTILATOR: These are fan ventilator areas, DO NOT block these areas or cover them with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to 'Standby' mode. -
Page 11: Rs-232 Pin Assignment
6.5 RS-232 Pin Assignment CMSI-8H8HS Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 12: Rs-232 Commands
6.6 RS-232 Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Displays HDMI Outputs 8x8 HDMI HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out HDMI Out RS-232 Equipped Matrix PC or Notebook DC 24V HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In HDMI In... -
Page 14: Specifications
8. SPECIFICATIONS Video Bandwidth 6.75 Gbps Input Ports 8×HDMI, 1×RS-232, 1×IR Out, 1×Mini USB B Type (Firmware update only), 1×RJ-45 (LAN) Output Ports 8×HDMI ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/ FCC/UL certified) Dimensions 438 mm (W)×255 mm (D)×93 mm (H) -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Liquid Crystal Display Universal Serial Bus WUXGA Widescreen Ultra Extended Graphics Array Video Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
