primary harness (H1) wire connection guide

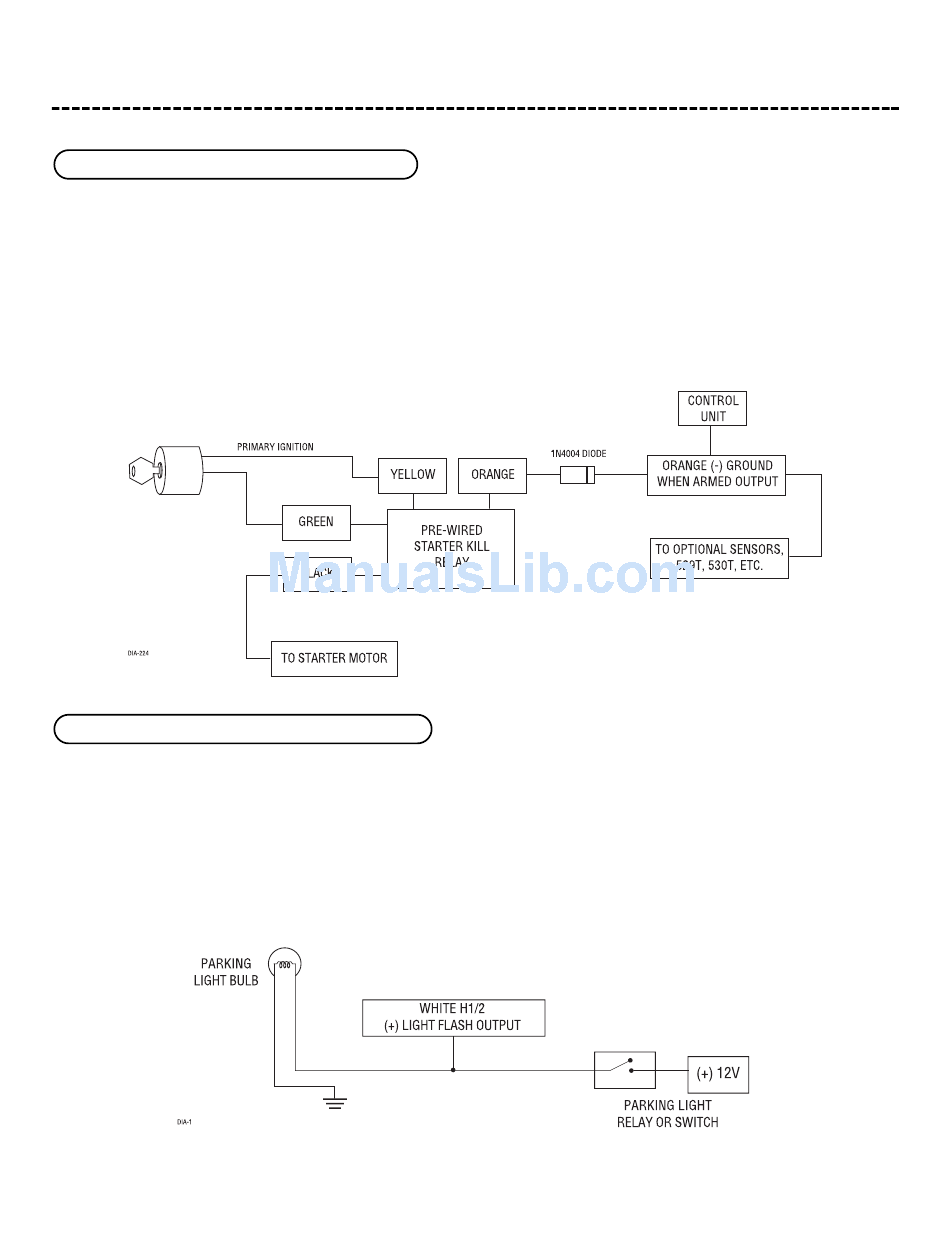

H1/1 ORANGE (-) ground-when-armed output
This wire supplies a (-) 500 mA ground as long as the system is armed. This output ceases as soon as the system
is disarmed. The orange wire is pre-wired to control the 8618 starter kill relay.
NOTE: If connecting the orange wire to control another module, such as a 529T or 530T window
controller, a 1 amp diode (type 1N4004) will be required. Insert the diode as shown below.
IMPORTANT! Never interrupt any wire other than the starter wire.
H1/2 WHITE (+/-) selectable light flash output
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper is moved
to the opposite position (see Internal Programming Jumpers section), this wire supplies a (-)200 mA output. This
is available for driving (-) light control wires in Toyota, Lexus, BMW, some Mitsubishi, some Mazda, and various
other models.
© 2000 Directed Electronics, Inc. Vista, CA
(+) Positive Light Flash Output
9
