plug-in LED and valet/program switch

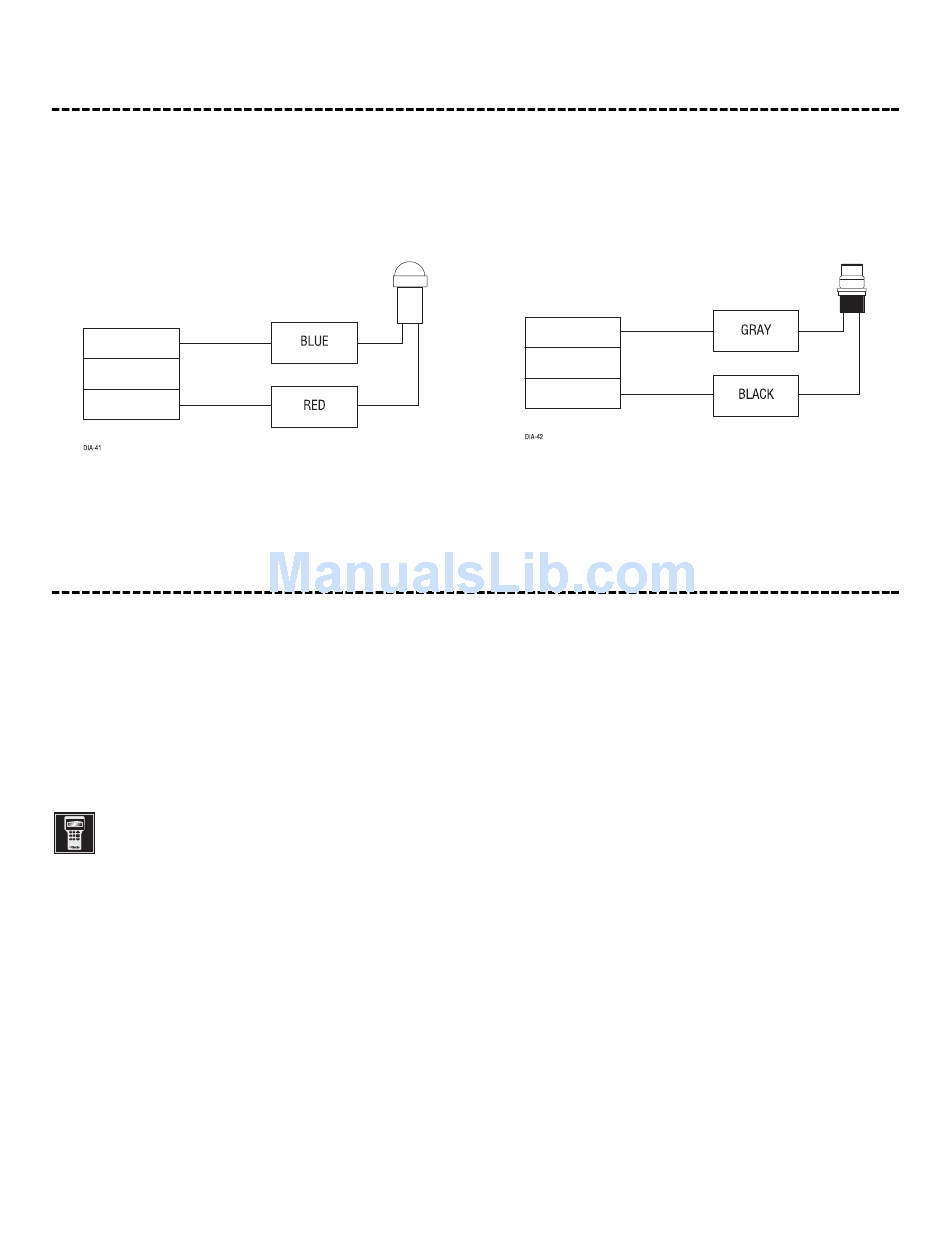

These plug into the module. The status LED plugs into the small two-pin socket, while the Valet®/Program switch
should be plugged into the larger blue two-pin connector. The status LED fits in a
Status LED
programmer interface, 3-pin port
The black 3-pin port is provided for personal computer programming of the unit. The unit can also be programmed
using the Bitwriter (p/n 998T). When using the optional PC Interface module, or hand-held programmer, it is
possible to configure any and all of the programmable functions as well as lock the Transmitter/Receiver and
System Features Learn Routines so that unauthorized users cannot change the configuration or program trans-
mitters to the unit.
When the learn routines have previously been programmed using an optional hand-held system programmer
(p/n 998T) or PC Interface module, they may have been locked. Before proceeding with reprogramming
the learn routines, they must be unlocked with either the 998T or the PC Interface module - this cannot be done
manually with the Valet switch.
© 2000 Directed Electronics, Inc. Vista, CA
