primary harness (H1) wire connection guide

H1/1 ORANGE (-) ground-when-armed output
This wire supplies a (-)500 mA ground as long as the system is armed. This output ceases as soon as the system
is disarmed. The orange wire may be wired to an optional Directed Electronics, Inc. 8618 starter kill relay.
H1/2 WHITE (+/-) selectable light flash output
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper is moved
to the opposite position (see Internal Programming Jumpers section), this wire supplies a (-)200 mA output. This
is available for driving (-) light control wires in Toyota, Lexus, BMW, some Mitsubishi, some Mazda, and various
other models.
NOTE: For parking light circuits that draw 10 amps or more, the internal jumper must be switched
to a (-) light flash output. (See the Internal Programming Jumper section of this guide.) P/N 8617
or a standard automotive SPDT relay must be used on the H1/2 light flash output harness wire.
© 2003 Directed Electronics, Inc. Vista, CA

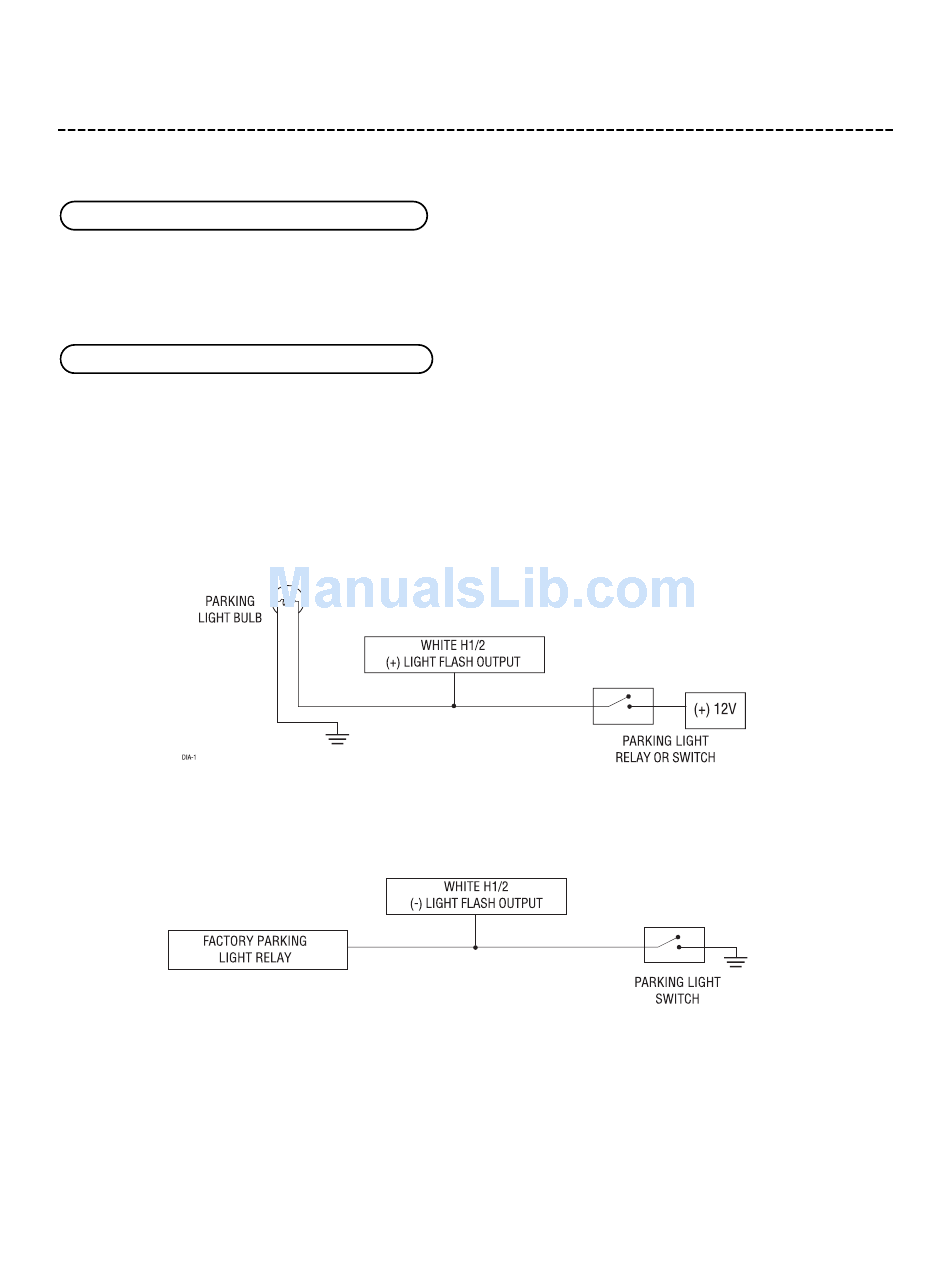

(+) Positive Light Flash Output
(-) Light Flash Output
13
