NOTE: For parking light circuits that draw 10 amps or more, the internal jumper must be switched
to a (-) light flash output. (See the Internal Programming Jumper section of this guide.) P/N 8617
or a standard automotive SPDT relay must be used on the H1/2 light flash output harness wire.
H1/3 WHITE/BLUE (-) activation input
Sending a negative pulse to this wire will initiate the remote start sequence. This wire can be wired to an optional
momentary switch to activate the remote start system.
H1/4 BLACK /WHITE (-) 200 mA domelight supervision output

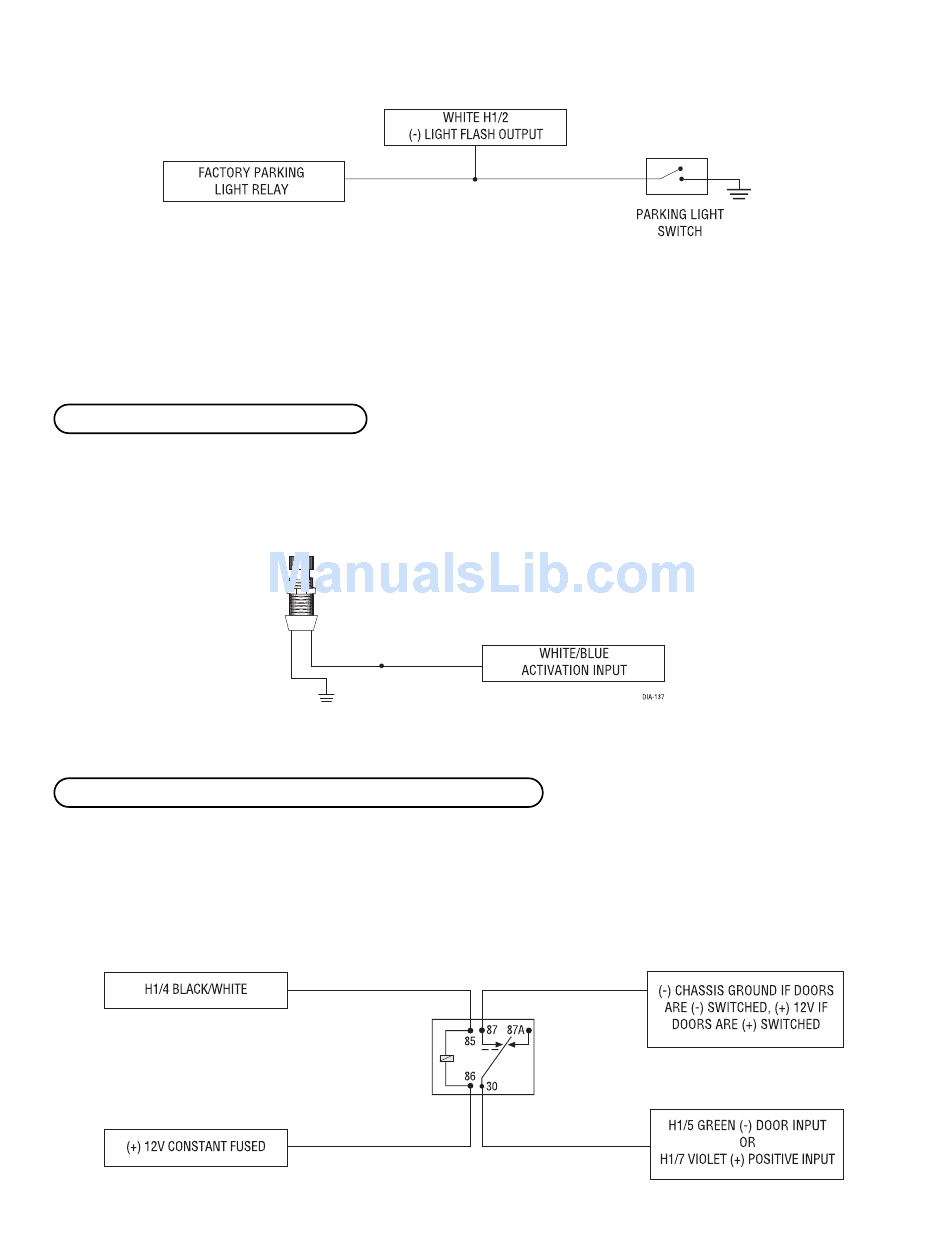

Connect this wire to the optional domelight supervision relay as shown below:
IMPORTANT! This output is only intended to drive a relay. It cannot be connected directly to the
domelight circuit because the output cannot support the current draw of one or more light bulbs.
