plug-in LED and valet/program switch

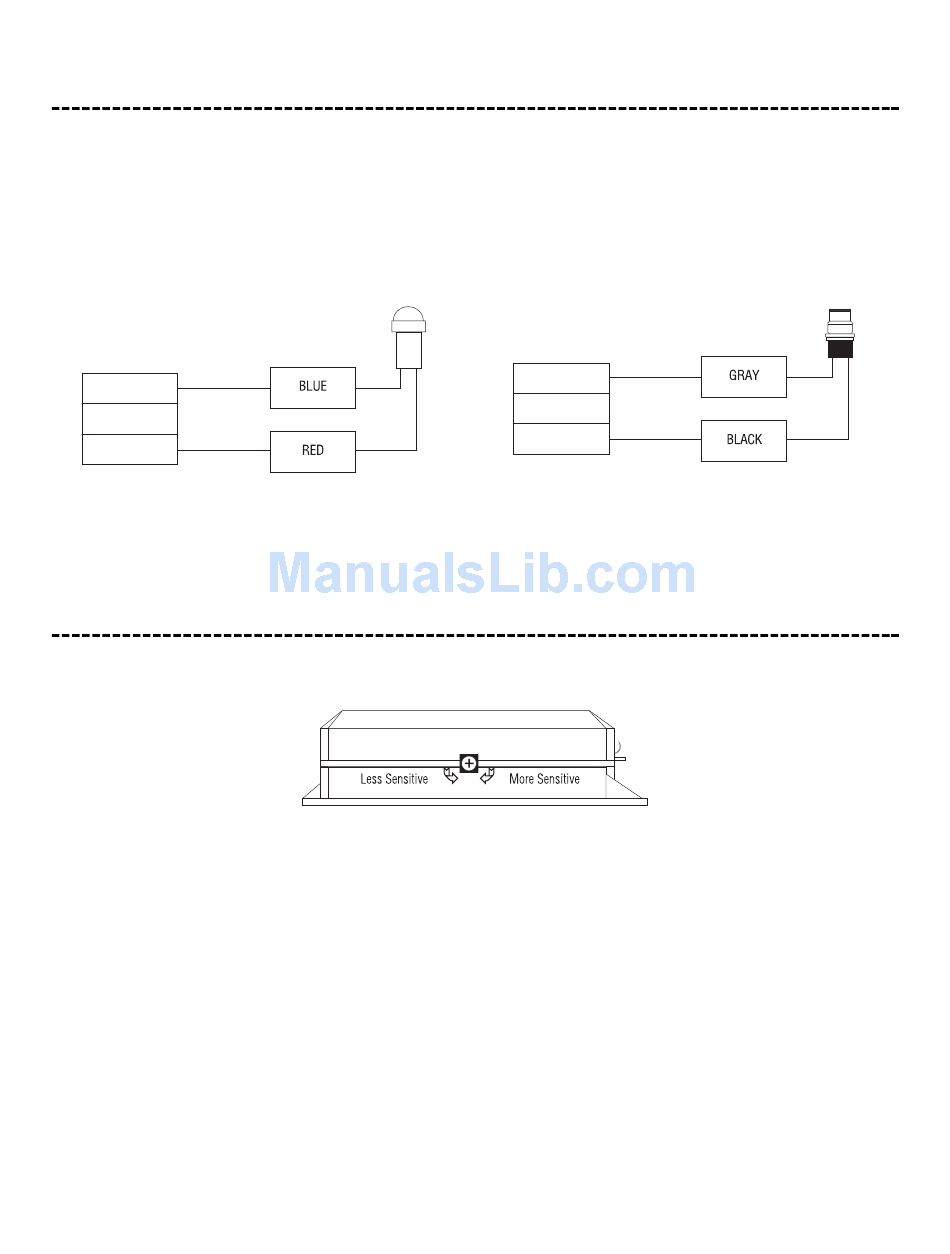

These plug into the module. The Status LED plugs into the white two-pin socket, while the Valet®/Program switch
should be plugged into the blue two-pin socket. The Status LED and the Valet/Program switch each fit into a
9 / -inch hole.
32

on-board doubleguard shock sensor

There is a Doubleguard ®
cated above. Since the shock sensor does not work well when mounted firmly to metal, we recommend against
screwing down the control module. The full trigger of the on-board shock sensor reports zone 2. (See Table of
Zones section of this guide.)
NOTE: When adjusting the sensor, it must be in the same mounting location that it will be after
the installation is completed. Adjusting the sensor and then relocating the module requires read-
justment.
NOTE: For watercraft, we recommend turning off the shock sensor whenever the craft is in the water
to avoid false triggers. For instructions on how to bypass the shock sensor, refer the Multi-Level
Security Arming section of this guide.
