eXact PipeCut 280E System Operating Instructions Manual

System
Hide thumbs Also See for PipeCut 280E System:
Table of Contents

Advertisement

Quick Links

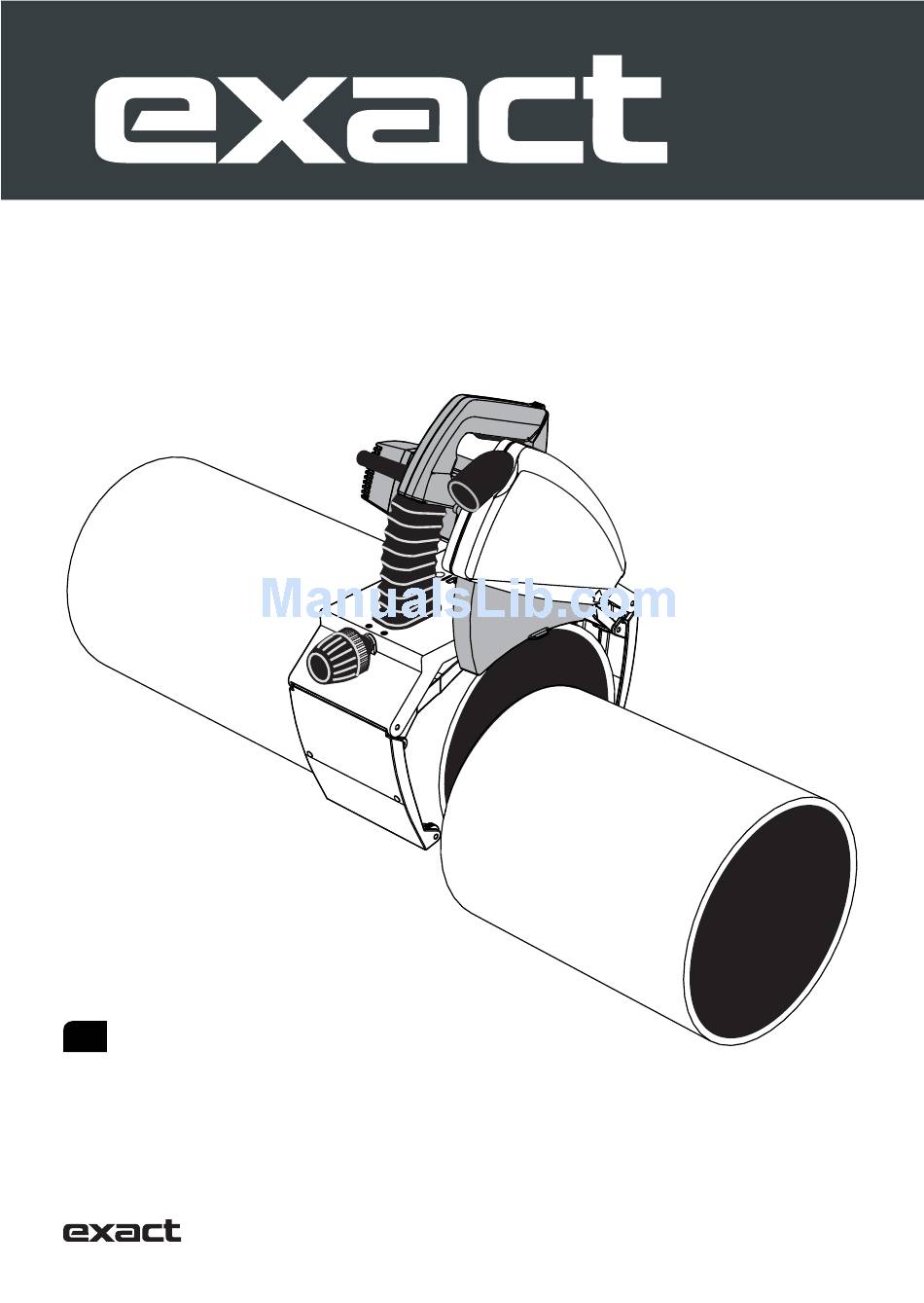

PipeCut 280E
System
Operating Instructions
EN
patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PipeCut 280E System and is the answer not in the manual?

Questions and answers

Related Manuals for eXact PipeCut 280E System

Summary of Contents for eXact PipeCut 280E System

  • Page 1 PipeCut 280E System Operating Instructions patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
  • Page 2 Exact PipeCut 280 System Blade information for Exact PipeCut saws TCT (tungsten carbide tip) saw blades are for cutting steel, copper, aluminium and all kind of plastics. TCT blades can be sharpened. Cermet (ceramic alloy tip) saw blades are for cutting stainless steel, acid proof materials, steel, copper, aluminium and all kind of plastics.

  • Page 4: Declaration Of Conformity

    Declaration of Conformity We declare under our sole responsibility that the pipe cutting machine, Exact PipeCut280E described under “Technical Data” are in conformity with the following standards or standardization documents: EN60745 according to the provisions of the directives 2004/108/EC, 2006/42/EC.

  • Page 5: Table Of Contents

    Information english The original language of this manual is english Contents Technical data Package contents Safety Safety instructions Operation 10. Functional description 10. Product features 11. Before operating the tool 11. Connection to the mains power supply 11. Precise setting of the cutting point 11.

  • Page 6: Technical Data

    Also store this instruction book somewhere accessible to everyone using the pipe saw. In addition to these instructions, always follow the offi cial work, health and safety regulations. The Exact PipeCut is meant for professional use only. Technical data...

  • Page 7: Package Contents

    Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Exact PipeCut 280E pipecutting system, Package contents: Please check the package contains the following items:...

  • Page 8: Work Area Safety

    Information english General power tool safety of inattention while operating power tools may result in serious personal injury. warnings b) Use personal protective equipment. Always wear eye protection. Protective equipment WARNING: Read all safety warnings such as dust mask, non-skid safety shoes, hard and all instructions.

  • Page 9: Operation

    Information english d) Store idle power tools out of the reach of g) When blade is binding, or when children and do not allow persons unfamiliar interrupting a cut for any reason, release operate the power tool. Power tools are the trigger and hold the saw motionless dangerous in the hands of untrained users.

  • Page 10: Functional Description

    Information english s) Secure the workpiece. A workpiece Functional Description supported by pipe holders is held more secure than by hand. Read all safety warnings and all instructions. Failure to follow the t) Always wait until the machine has come warnings and instructions may result in to a complete stop before placing it down.

  • Page 11: Before Operating The Tool

    Information english Exact PipeCut 280E Fig B open pipecutting system closed operating instructions Before operating the tool Ensure that the motor unit is in the upright position. The yellow mark of the UNLOCK button is visible. Check that the blade is correctly fi tted, in...

  • Page 12: Attaching The Pipe Saw To The Pipe

    Information english Attaching the pipe saw to the pipe Fig F Open the pipe saw’s gripper unit enough to suit the diameter of the pipe by rotating the adjustment handle located at the rear of the saw (Fig. F/1). Position the pipe saw on top of the pipe so that the edge of the lower blade guard is at the cutting mark.

  • Page 13: Overload Protection And Rotation Speed Control

    Information english When the pipe is cut off, push the UNLOCK Fig J button forward until the yellow mark is visible and the locking is released (Fig L/1). Now raise the motor unit to starting position (Fig L/2). Release the power switch (Fig L/3). When the blade has stopped, open the gripper safety mechanism (Fig L/4) and disengage the pipe saw from the pipe by loosening the gripper...

  • Page 14: Installing And Changing The Saw Blade

    Information english To adjust the wheel, loosen the locking screw Fig N (Fig N/1) and turn the wheel centre clockwise or counter clockwise to the desired position (Fig N/2), and lock the wheel again (Fig N/3). If the blade has wandered too much to the left, adjust wheel centre clockwise (- sign).
  • Page 15 Guarantee Blade guard When you have sawn plastic pipes and then If the Exact PipeCut pipe saw becomes intend to start sawing metal pipes always clean unusable due to material or manufacturing faults the inside of the blade guards. Hot particles...
  • Page 16 Information english Tips for using Exact Factors that affect the lifetime of the saw blade: PipeCut saws • material of the pipe • correct blade type for material being cut Diamond blade should only be used for cutting • correct motor speed setting cast iron pipe.
