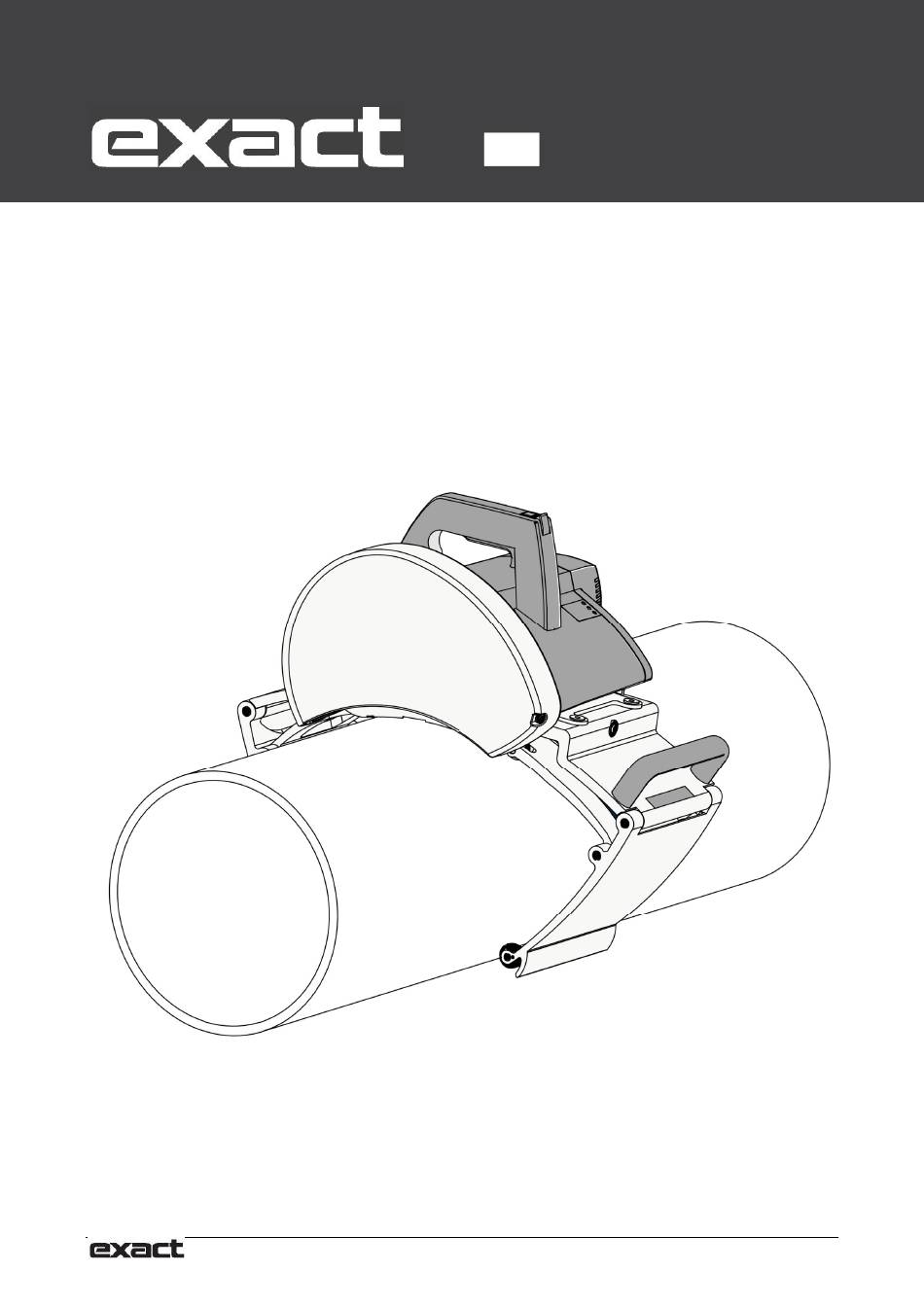

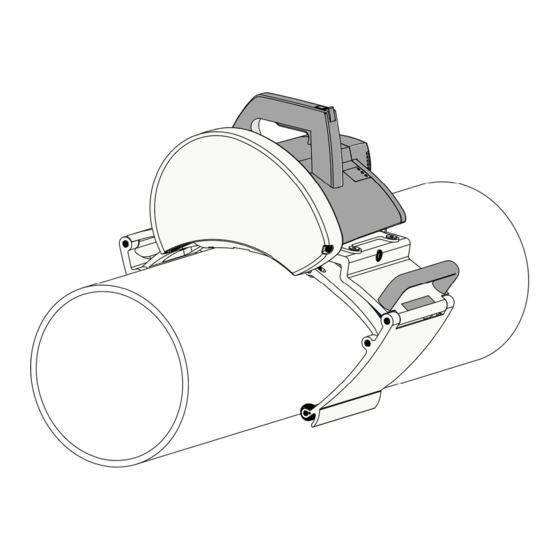

- Page 1 English Operating Instructions PipeCut 280/360/460 Pro Series All instructions are available on website: exacttools.com/manuals Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
-
Page 2: Table Of Contents
Declaration of Conformity We declare under our sole responsibility that the pipe cutting machines Exact PipeCut 280 Pro Series / 360 Pro Series / 460 Pro Series Described under” Technical Data” are in conformity with the following standards or standardization... - Page 3 English FIGURE A Unlocking switch Power switch Power switch locking lever (in front of the switch) Blade guard cover Overload indicator light Moving blade-guard Adjusting screws Laser pointer box Adjusting wheel 10 Handle 11 Blade guard screw 12 Lock pin 13 Plate 14 Motor unit 15 Blade RPM speed control...
- Page 4 Operating, safety and service WARNING: instructions If Pipecut Exact PipeCut 280 Pro Series/ 360 Pro Series/ 460Pro Series tool is used with generator or Read these operating, safety and service extension cords, their minimum requirements are as...
-
Page 5: Information
Information English Exact PipeCut 280 Pro Series / 360 Pro Series /460 Pro Series pipe saws models Voltage 220 V– 240 V / 50–60 Hz or 100 V–120 V 50–60Hz Power 2500 W– 220 V– 240 V or 15 А-100 V– 120 V... -
Page 6: Safety
Safety English General power tool safety warnings 3 Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do WARNING: Read all safety warnings, not use a power tool while you are tired or under illustrations and specifications provided with this power tool. - Page 7 Safety English d) Always observe that the lower guard is covering 4 Cutting procedures the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the DANGER: Keep hands away from cutting saw to walk backwards, cutting whatever is in its path. area and the blade.
-
Page 8: Safety Instructions
The power switch is faulty. PipeCut 280 Pro Series / 360 Pro Series / 460 Pro The power cable is faulty. Series pipe saw is intended for use as a pipe fitter’s The blade is bent. -
Page 9: Operation
Operation English Exact PipeCut 280 Pro Series / 360 Pro Series / 460 Pro Series pipe cutting system operation instructions Before operation the tool Ensure that motor unit is in the upright position. FIGURE B1 Check that the disc is correctly fitted, in good condition and suitable for the material to be cut. -
Page 10: Piercing The Pipe Wall
Operation English Piercing the pipe wall FIGURE Grip the gripper firmly with your right hand and place your left foot on top of the pipe approximately 50 cm from the pipe saw. Turn the saw until it leans slightly forward (Figure F). When starting the motor, first of all release the power-switch locking lever (Fig D/1) and push the power switch all the way down (Fig D/2). -
Page 11: Explanation If Indicator Lights
Operation English Overload protector and blade RPM speed control FIGURE The saw has a two-speed blade RPM speed control (Fig A / 15). When cutting stainless or acid-proof steel use the lower RPM setting l. When cutting other materials use the faster RPM setting ll. The saw also has an overload protector which displays electric motor loading with three indicator lights (Fig A / 5). - Page 12 Operation English Cutting result adjustment for models 280 Pro Series / 360 Pro Series / 460 Pro Series FIGURE Within the gripping devices of these models there are eight control wheels. One of them is the adjustment wheel (FIGURE A / 9). Please note that adjustment by...
-
Page 13: Installing And Changing The Blade
Operation English Installing and changing the saw blade Maintenance and servicing instructions Remove the power plug from the socket before WARNING: To reduce the risk of injury, turn the servicing or cleaning the pipe saw. All maintenance unit off and disconnect it from the power source before operations carried out on the pipe saw's electrical installing and removing accessories, before adjusting components must be carried out by an approved... - Page 14 Warranty interruption. The pipecut will overheat and metal parts Term, at our discretion we will repair the Exact PipeCut can become very hot. In this case, the motor and blade Saw or supply an entirely new or factory reconditioned may become damaged.
- Page 15 Factors influencing blade lifespan: Blade suitability Pipe material Blade suitability for the pipe material Exact TCT: Suitable for cutting steel and all kinds of Correct motor speed setting plastic pipe material. Exact TCT saw blades can be Pipe wall thickness sharpened.
-
Page 16: Särkiniementie 5 B 64
[mm] [mm] Max. pipe wall thicknesses in different pipe materials, which can be cut by Exact 280 Pro Series, Exact 360 Pro Series and Exact 460 Pro Series machines European model 230V / 2500W Steel pipes Max.pipe wall thickness 20 mm / 0.78”...
