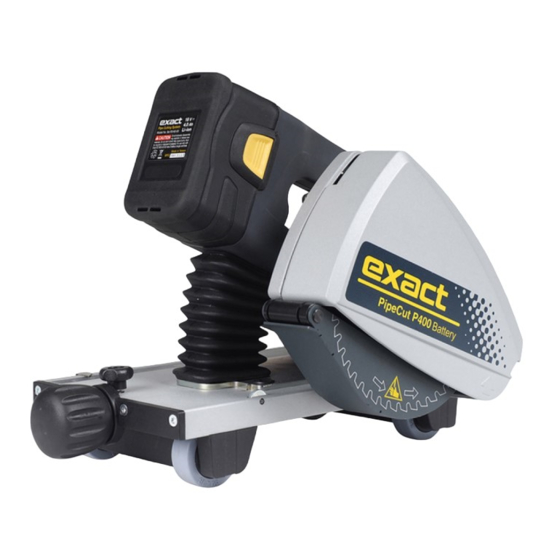

- Page 1 Operating Instructions PipeCut P400 Battery These are the original instructions. All instructions are available on web-site: exacttools.com/manuals Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
- Page 2 Figure A1 Battery charger features 1. Exact Battery pack 4. Air cooling vents 2. Exact Battery Charger 5. Red LED indicator 3. Battery pack connectors 6. Green LED indicator Updated 12.01.2023...
- Page 3 Figure A2. Pipecut features 1. Battery release button 12. Moving blade-guard 2. Battery indicator 13. Operating handle / Motor unit Unlock button 14. Battery pack 4. Power switch 15. Battery pack rating plate 5. Power-switch locking lever 16. Spindle-lock button 6.
-
Page 4: Table Of Contents
EN55014-1, EN 55014-2, EN61000-3-2, EN61000-3-3 according to the provisions of the directives 2004/108/EC, 2006/42/EC. For more information, please contact Exact Tools at the following address. The technical file is available at the address underneath. The person authorized to compile the technical file: Marko Törrönen, R&D Manager (marko.torronen@exacttools.com) -
Page 5: Technical Data
Blade information for Exact PipeCut P400 Battery There are two types of blades for Exact PipeCut P400 Battery pipe saw: TCT P150 blade is designed for cutting plastic pipes with P400 pipe saw. TCT blades can be resharpened few times. -
Page 6: Safety
1 Work area safety instructions official work, health and safety rules a) Keep work area clean and well lit. Cluttered or must be followed. Exact PipeCut is for dark areas invite accidents. professional use only. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. - Page 7 Safety eng lish 2 Electrical safety h) Do not let familiarity gained from frequent use of tools allow you to become complacent and a) Power tool plugs must match the outlet. Never ignore tool safety principles. A careless action modify the plug in any way. Do not use any can cause severe injury within a fraction of a adapter plugs with earthed (grounded) power second.
- Page 8 Safety eng lish may cause burns or a fire. Blades that do not match the mounting hardware of d) Under abusive conditions, liquid may be the saw will run off-centre, causing loss of control. ejected from the battery; avoid contact. If h) Never use damaged or incorrect blade contact accidentally occurs, flush with water.
- Page 9 The gripper unit is not properly tightened around The Exact PipeCut P400 Battery is designed to be the pipe or if it is warped. used only for plastic pipes with dimensions The blade guard cover or moving blade guard 50 mm (2”) - 400 mm (16”).
-
Page 10: Charger Information
Charger – Information eng lish Operating, safety, and servicing instructions WARNING: DO NOT attempt to operate the tool until you have read and understood all instructions and safety rules contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury. -
Page 11: Charger Safety Instructions
Charger – Safety Instructions eng lish General safety rules Use only recommended attachments. Use of an attachment not recommended or sold by the WARNING!! Read and Understand All battery charger or battery pack manufacturer may Instructions. result in a risk of fire, electric shock or personal Failure to follow all instructions listed below may injury. -
Page 12: Charger Operation
(5). Slide battery initial battery charging may take longer forward onto charger until it stops. Charge only Exact than 60 minutes. BAT18Vxx series batteries. NOTE: After normal use, the battery pack... - Page 13 Separate collection. This product must not be the charger. disposed of with normal household waste. When your Exact charger is worn out, do not dispose of it Servicing at the closest Authorized Service Center is with normal household waste. This product must be required to avoid damage to static sensitive internal recycled separately.
-
Page 14: Before Operating The Tool
Mounting the battery rotating the adjustment knob on the back of the NOTE: Use only Exact BAT18Vxx series Exact P400 Battery (Fig. E2). The scale on the saw batteries. is approximate. User can fine tune the length of the bevel with the adjustment knob. Please notice that... -
Page 15: Piercing The Pipe Wall
Pull the lever on the moving bladeguard towards you. (Fig. F and A/5) Place the Exact P400 Battery horizontally on top of the pipe so that a suitable setting mark for the blade that is in the machine is positioned at the cutting point (Fig F). -
Page 16: Heat Indicator And Feeding Speed
Select the feeding speed as per the material and the thickness of the wall. Too high speed can damage the blade, overload the Exact P400 and give a poor sawing result. Especially when using the Cut Bevel blade, the feed rate should be fairly slow to ensure good quality bevel finish. -
Page 17: Installing And Changing The Saw Blade
(Fig. O). There is a feature in the steering device of the Exact P400 Battery (Fig. A/11) which, if needed, can improve the sawing result and facilitate to reach the placement of the initial cut. - Page 18 WARNING: Since accessories, other than source before installing and those offered by Exact Tools, have not been removing accessories, before adjusting or when tested with this product, use of such making repairs. An accidental start-up can cause accessories with this tool could be hazardous.
- Page 19 • wall thickness of the pipe instructions provide in the manual. • feeding speed 5.) The Exact PipeCut Saw has been delivered to an • smoothness of the pipe Authorized Warranty Repair Center within the term • user’s general skills of the warranty.
- Page 20 Exact Tools Oy Särkiniementie 5 B 64 FI-00210 Helsinki Finland Tel +358 9 4366750 exact@exacttools.com www.exacttools.com...
