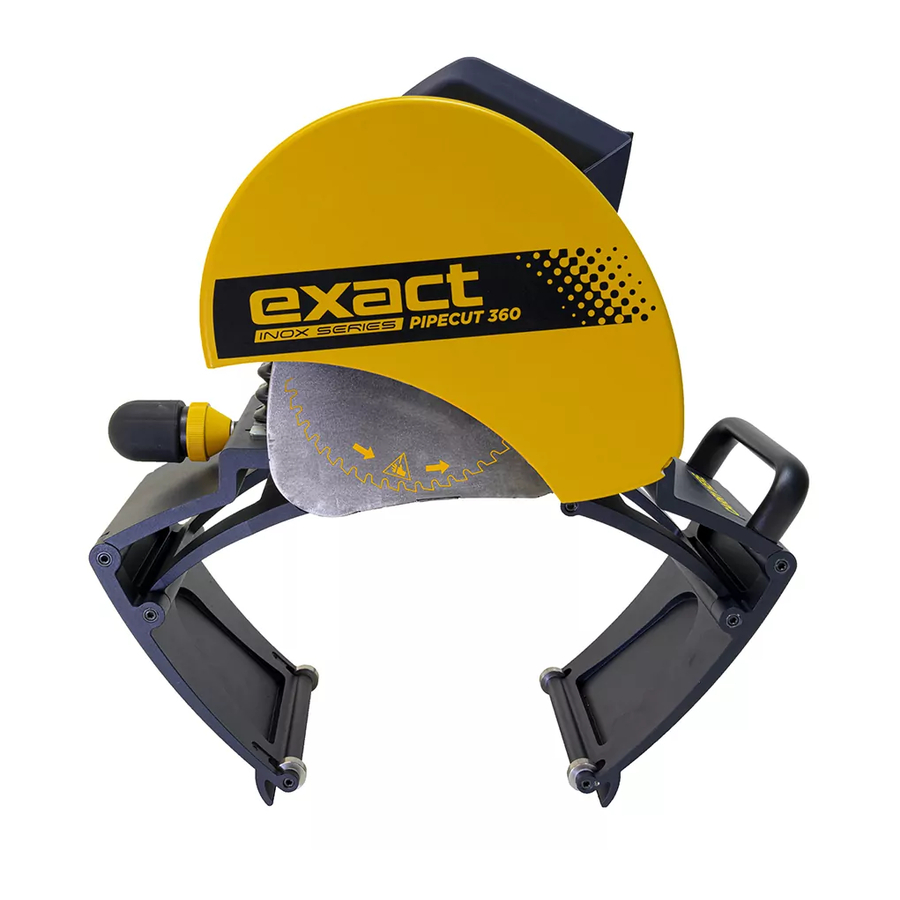

Operating Instructions
Pipecut 360 INOX Series
460 INOX Series
These instructions are translation of the original instructions written in Finnish language.
All instructions are available on web-site: exacttools.com/manuals
Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for eXact Pipecut 360 INOX Series
Summary of Contents for eXact Pipecut 360 INOX Series
- Page 1 English Operating Instructions Pipecut 360 INOX Series 460 INOX Series These instructions are translation of the original instructions written in Finnish language. All instructions are available on web-site: exacttools.com/manuals Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
-
Page 2: Table Of Contents
2006/42/EC These instructions are translation of the original instructions written in Finnish For more information, please contact Exact Tools at the following address: The technical file is available at the address underneath: The person authorized to compile the technical file: Seppo Makkonen, chairman of the board (seppo.makkonen@exacttools.com) - Page 3 English FIGURE A Unlocking switch Power switch Power switch locking lever (in front of the switch) Blade guard cover Overload indicator light Moving blade-guard Adjusting screws Laser pointer box 10 Handle 11 Blade guard screw 12 Lock pin 13 Plate 14 Motor unit 15 Blade RPM speed control 16 Adjustment arrow...
- Page 4 Operating, safety and service WARNING: instructions If Pipecut Exact PipeCut 360 INOX Series/ 460 INOX Series tool is used with generator or extension cords, Read these operating, safety and service their minimum requirements are as follows: instructions carefully before operating the pipe saw.
-
Page 5: Information
Information English Exact PipeCut 360 INOX Series /460 INOX Series pipe saws models Voltage 220 V– 240 V / 50–60 Hz or 100 V–120 V 50–60Hz Power 2500 W– 220 V– 240 V or 15 А-100 V– 120 V No-load speed... -
Page 6: Safety
Safety English General power tool safety warnings 3 Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do WARNING: Read all safety warnings, not use a power tool while you are tired or under illustrations and specifications provided with this power tool. - Page 7 Safety English d) Always observe that the lower guard is covering 4 Cutting procedures the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the DANGER: Keep hands away from cutting saw to walk backwards, cutting whatever is in its path. area and the blade.
-
Page 8: Safety Instructions
There is water or another liquid, explosive gases or poisonous chemicals inside the pipe to be cut. PipeCut 360 INOX Series / 460 INOX Series pipe The power switch is faulty. saw is intended for use as a pipe fitter’s tool at the The power cable is faulty. -
Page 9: Operation
Operation English Exact PipeCut 360 INOX Series / 460 INOX Series pipe cutting system operation instructions Before operation the tool Ensure that motor unit is in the upright position. FIGURE B1 Check that the disc is correctly fitted, in good condition and suitable for the material to be cut. -
Page 10: Piercing The Pipe Wall
Operation English Piercing the pipe wall FIGURE Grip the gripper firmly with your right hand and place your left foot on top of the pipe approximately 50 cm from the pipe saw. Turn the saw until it leans slightly forward (Figure F). When starting the motor, first of all release the power-switch locking lever (Fig D/1) and push the power switch all the way down (Fig D/2). -
Page 11: Explanation If Indicator Lights
Operation English Overload protector and blade RPM speed control FIGURE The saw has a two-speed blade RPM speed control (Fig A / 15). When cutting stainless or acid-proof steel use the lower RPM setting l. When cutting other materials use the faster RPM setting ll. The saw also has an overload protector which displays electric motor loading with three indicator lights (Fig A / 5). -
Page 12: Improving Possible Misalignment Of The Cut
If the cutting line goes from left to right (FIGURE K/b), turn the bodyplate counterclockwise. CAUTION! The adjustment indicator located in the back of the adjustment plate does not give the exact measurement to adjust. The indicator shows only the direction of adjustment and the category of magnitude. -
Page 13: Installing And Changing The Blade
Operation English Installing and changing the saw blade Maintenance and servicing instructions Remove the power plug from the socket before WARNING: To reduce the risk of injury, turn the servicing or cleaning the pipe saw. All maintenance unit off and disconnect it from the power source before operations carried out on the pipe saw's electrical installing and removing accessories, before adjusting components must be carried out by an approved... - Page 14 Warranty interruption. The pipecut will overheat and metal parts Term, at our discretion we will repair the Exact PipeCut can become very hot. In this case, the motor and blade Saw or supply an entirely new or factory reconditioned may become damaged.
- Page 15 Factors influencing blade lifespan: Blade suitability Pipe material Blade suitability for the pipe material Exact TCT: Suitable for cutting steel and all kinds of Correct motor speed setting plastic pipe material. Exact TCT saw blades can be Pipe wall thickness sharpened.
-
Page 16: Särkiniementie 5 B
Blade [mm] [mm] Max. pipe wall thicknesses in different pipe materials, which can be cut by Exact 360 INOX Series and Exact 460 INOX Series machines European model 230V / 2500W Steel pipes Max.pipe wall thickness 20 mm / 0.78”...
