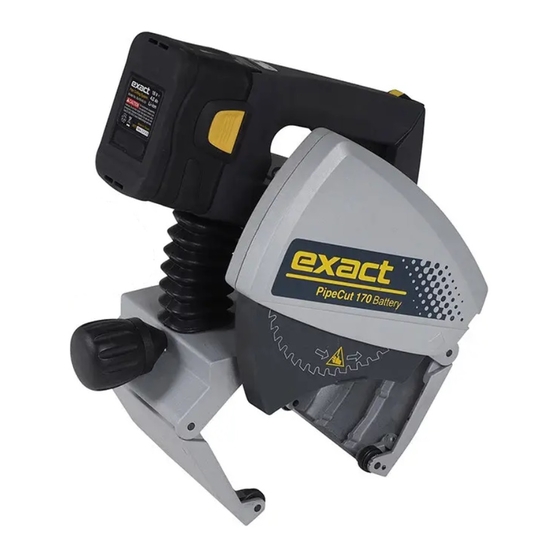

eXact PipeCut 170 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. eXact Manuals
  4. Saw
  5. PipeCut 170
  6. Operating instructions manual

eXact PipeCut 170 Operating Instructions Manual

Hide thumbs Also See for PipeCut 170:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Operating Instructions
PipeCut 170
Battery
These are the original instructions.
All instructions are available on web-site: exacttools.com/manuals
Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PipeCut 170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eXact PipeCut 170

Summary of Contents for eXact PipeCut 170

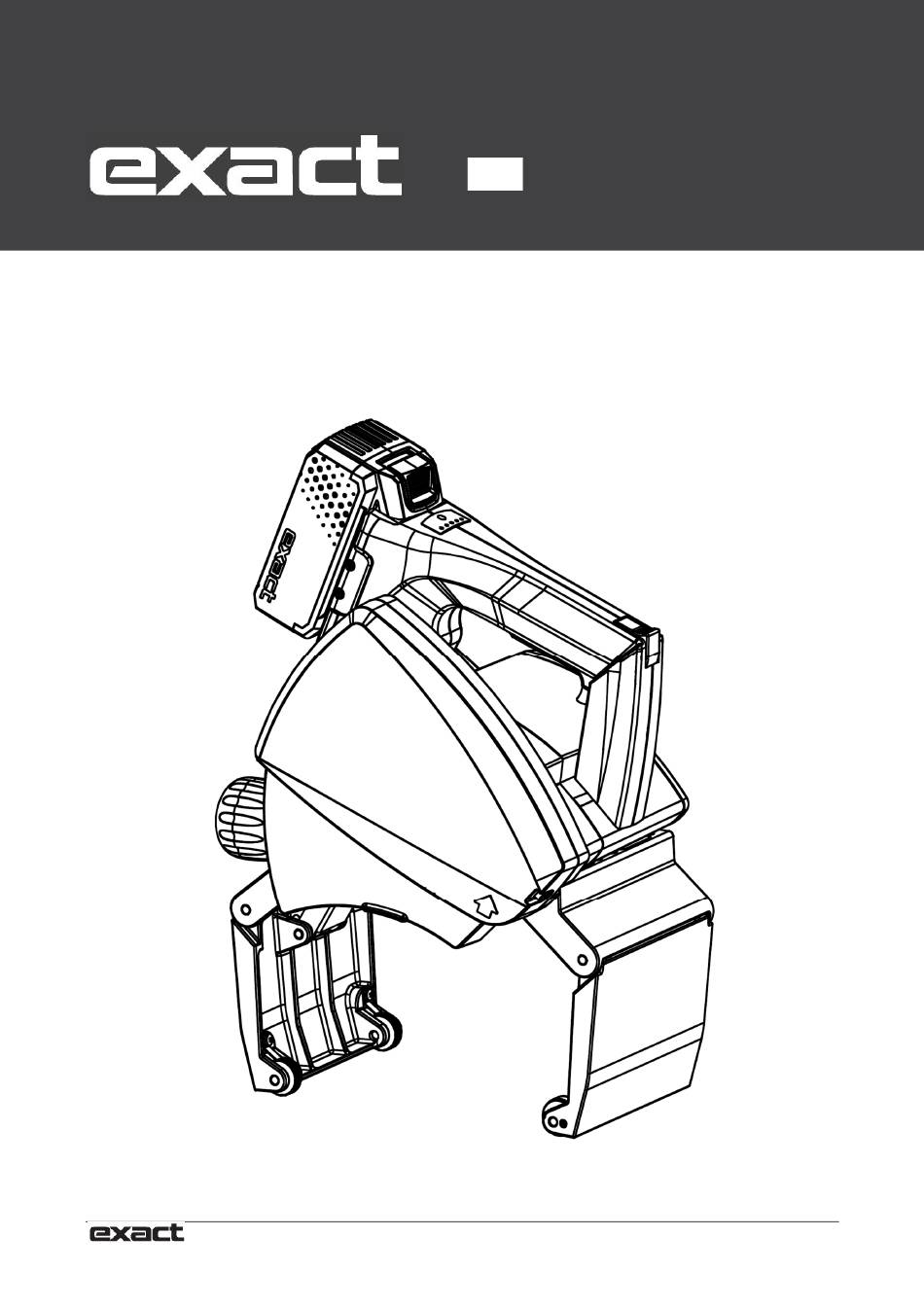

  • Page 1 Operating Instructions PipeCut 170 Battery These are the original instructions. All instructions are available on web-site: exacttools.com/manuals Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
  • Page 2 Figure A1 Battery charger features 1. Exact Battery pack 4. Air cooling vents 2. Exact Battery Charger 5. Red LED indicator 3. Battery pack connectors 6. Green LED indicator Updated 9.12.2022...
  • Page 3 Figure A2. Pipecut features 1. Battery 2. Battery release button 3. Battery indicator 4. Blade-guard screw 5. UNLOCK button 6. Power switch 7. Power-switch locking lever 8. Blade-guard cover 9. Moving blade-guard 10. Edge of moving blade-guard 11. Ratchet wheels 12.

  • Page 4: Table Of Contents

    EN55014-1, EN 55014-2, EN61000-3-2, EN61000-3-3 according to the provisions of the directives 2004/108/EC, 2006/42/EC. For more information, please contact Exact Tools at the following address. The technical file is available at the address underneath. The person authorized to compile the technical file: Marko Törrönen, R&D Manager (marko.torronen@exacttools.com)

  • Page 5: Technical Data

    Blade information for Exact PipeCut 170 Battery It is recommended to use only Exact PipeCut Blade type Cermet 140 Thin with Exact PipeCut 170 Battery saw when cutting metal pipes. Other blades of diameter 140mm can be used for other materials.

  • Page 6: Safety

    1 Work area safety instructions official work, health and safety rules a) Keep work area clean and well lit. Cluttered or must be followed. Exact PipeCut is for dark areas invite accidents. professional use only. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 7 Safety eng lish 2 Electrical safety h) Do not let familiarity gained from frequent use of tools allow you to become complacent and a) Power tool plugs must match the outlet. Never ignore tool safety principles. A careless action modify the plug in any way. Do not use any can cause severe injury within a fraction of a adapter plugs with earthed (grounded) power second.
  • Page 8 Safety eng lish may cause burns or a fire. Blades that do not match the mounting hardware of d) Under abusive conditions, liquid may be the saw will run off-centre, causing loss of control. ejected from the battery; avoid contact. If h) Never use damaged or incorrect blade contact accidentally occurs, flush with water.
  • Page 9 PipeCut 170 Battery pipe saw is intended for short, intermittent use. The machine may be loaded for 1,5 minutes during a 10-minute period (S3 15 %). PipeCut 170 Battery pipe saw is not intended for use in industrial production. When using PipeCut 170 Battery, remember that it is not as powerful as the corded PipeCut 170 model.

  • Page 10: Charger Information

    Charger – Information eng lish Operating, safety, and servicing instructions WARNING: DO NOT attempt to operate the tool until you have read and understood all instructions and safety rules contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury.

  • Page 11: Charger Safety Instructions

    Charger – Safety Instructions eng lish General safety rules Use only recommended attachments. Use of an attachment not recommended or sold by the WARNING!! Read and Understand All battery charger or battery pack manufacturer may Instructions. result in a risk of fire, electric shock or personal Failure to follow all instructions listed below may injury.

  • Page 12: Charger Operation

    (5). Slide battery than 60 minutes. forward onto charger until it stops. Charge only Exact BAT18Vxx series batteries. NOTE: After normal use, the battery pack will require 60 minutes of charging before it And the red light (2) will go out and green light will be fully charged.
  • Page 13 When Servicing at the closest Authorized Service Center is your Exact charger is worn out, do not dispose of it required to avoid damage to static sensitive internal with normal household waste. This product must be components.

  • Page 14: Before Operating The Tool

    20 mm Cutting mark Mounting the battery Cutting point NOTE: Use only Exact BAT18Vxx series batteries. Precise setting of the cutting point Put a fully loaded battery to the battery rails of the When you mark the cutting point on the pipe to be saw.
  • Page 15 Operation Instructions eng lish Attaching the pipe saw to the pipe Fig E Open the pipe saw's gripper unit enough to suit the diameter of the pipe by rotating the adjustment handle located at the rear of the saw (Fig. E/1). Position the pipe saw on top of the pipe so that the edge of the lower blade guard is at the cutting mark.
  • Page 16 Operation Instructions eng lish When the pipe is cut off, push the UNLOCK Fig J button forward until the yellow mark is visible and the locking is released (Fig L/1). Now raise the motor unit to starting position (Fig L/2). Release the power switch (Fig L/3).
  • Page 17 Operation Instructions eng lish For this reason, the result may vary, and the cut may turn to left or right (misalignment of the cut's starting Fig N and ending point) (Fig M). The pipe saw gripper has one adjustable wheel (Fig A/12) which be used for improving the quality of the cut and for reducing the misalignment.
  • Page 18 WARNING: Since accessories, other than source before installing and those offered by Exact Tools, have not been removing accessories, before adjusting or when tested with this product, use of such making repairs. An accidental start-up can cause accessories with this tool could be hazardous.
  • Page 19 • correct blade type for material being cut instructions provide in the manual. • wall thickness of the pipe 5.) The Exact PipeCut Saw has been delivered to an • feeding speed Authorized Warranty Repair Center within the term • smoothness of the pipe of the warranty.
  • Page 20 Exact Tools Oy Särkiniementie 5 B 64 FI-00210 Helsinki Finland Tel +358 9 4366750 exact@exacttools.com www.exacttools.com...
