Summary of Contents for NTI ST-C5HDMI-150

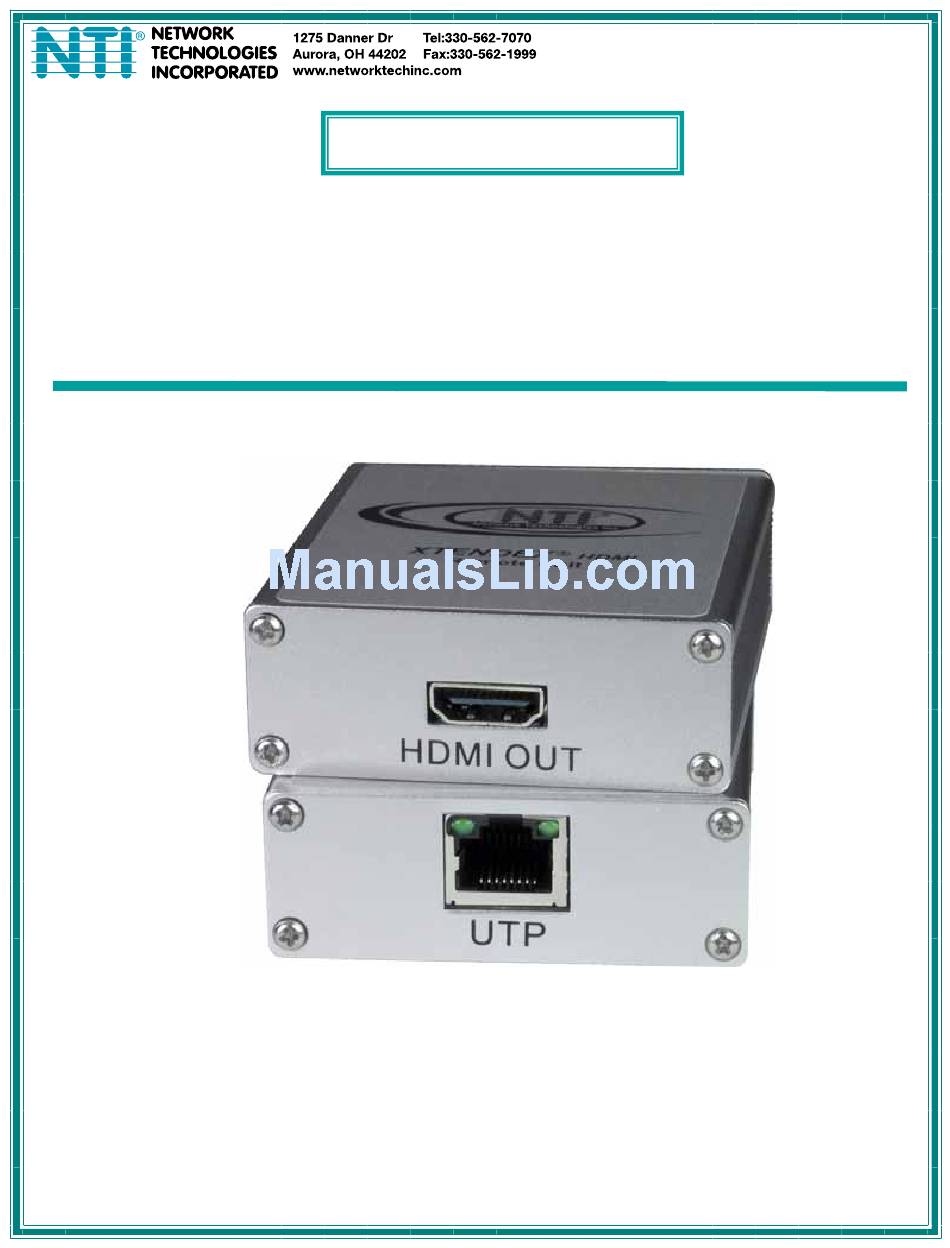

- Page 1 ® XTENDEX Series ST-C5HDMI-150 HDMI Digital Video and Audio Extender Installation and Operation Manual MAN116 Rev Date 9/14/2009...
- Page 2 Note: CAT6 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................3 Features and Functions..............................4 Cable Connections ................................7 Daisy-Chaining ................................9 Interconnection Cable Wiring Method ........................... 10 LED Indications ................................10 Technical Specifications..............................11 Troubleshooting................................12 Warranty Information..............................13 TABLE OF FIGURES Figure 1- Connect the Remote to the Local with CAT6 cable ...................... -
Page 4: Introduction
• Supports embedded digital audio through HDMI compatible TVs or audio receivers. • Auto gain, auto skew, and auto EQ for plug-and-play setup and zero maintenance. ST-C5HDMI-150 Local Unit (Transmitter) • One female HDMI-A port for source connection. • One female RJ45 port for sending high definition video/audio signals and DDC signal. - Page 5 NTI XTENDEX HDMI Extenders Optional ST-C5HDMI-RD3-150 Three-Output Daisy-Chain Remote Unit (Receiver) • Enables a daisy chain of five receivers at 1080p / eight receivers at 1080i/720p. • Each receiver supports three displays for a total of fifteen displays at 1080p and 24 displays at 1080i.
-
Page 6: Materials
HDMI-A-Male HDMI-A-Male HDMI-xx-MM Male Male (3,6,14,20 and 30 foot cables available) Also available from NTI are DVI-HDMI-x-MM DVI-D Single link male to HDMI male cables (where x- 3, 6, 10, and 15 feet) HDMI Type A DVI-D-Male DVI-D-Male HDMI-A-Male DVI-HDMI-xx-MM... -
Page 7: Features And Functions
NTI XTENDEX HDMI Extenders FEATURES AND FUNCTIONS Top View of ST-C5HDMI-150 Remote Unit Top View of ST-C5HDMI-150 Local Unit Network Technologies Inc Network Technologies Inc XTENDEX XTENDEX HDMI HDMI Remote Unit Local Unit HDMI OUT Front View of ST-C5HDMI-150 Remote Unit... - Page 8 NTI XTENDEX HDMI Extenders Top View of ST-C5HDMI-RD-150 Remote Unit Network Technologies Inc XTENDEX HDMI Remote Unit RJ45 In 12VDC RJ45 Out Front View of ST-C5HDMI-RD-150 Remote Unit HDMI OUT AUX Port Rear View of ST-C5HDMI-RD-150 Remote Unit 5. RJ45 In- RJ45 female connector- for connection of Unshielded Twisted Pair CAT6 cable from a Local Unit or an upstream Remote Unit (Remote Unit closer in the daisy-chain to the Local Unit) 6.
- Page 9 NTI XTENDEX HDMI Extenders Top View of ST-C5HDMI-RD3-150 HDMI-OUT1 HDMI-OUT2 HDMI-OUT3 Front View of ST-C5HDMI-RD3-150 12VDC UTP-IN UTP-OUT Rear View of ST-C5HDMI-RD3-150 8. UTP In- RJ45 female connector- for connection of Unshielded Twisted Pair CAT6 cable from a Local Unit or an upstream Remote Unit (Remote Unit closer in the daisy-chain to the Local Unit) 9.
-
Page 10: Cable Connections
CABLE CONNECTIONS 1. Connect a CAT6 UTP cable (up to 150 feet) from the “UTP” port on the Local Unit to the “UTP” port on the Remote Unit. Front View of ST-C5HDMI-150 Local Unit Rear View of ST-C5HDMI-150 RemoteUnit CAT6 cable... -
Page 11: Figure 4- Connect The Local Unit To A Video Source
NTI XTENDEX HDMI Extenders 4. Connect an HDMI-xx-MM cable between the “HDMI IN” port on the Local Unit and the HDMI output of a video source. Rear View of ST-C5HDMI-150 Local Unit Cable Box W/ HDMI Output 12VDC HDMI IN... -
Page 12: Daisy-Chaining
NTI XTENDEX HDMI Extenders DAISY-CHAINING The NTI ST-C5HDMI-RD-150 and ST-C5HDMI-RD3-150 can be connected to a single monitor as described in the previous section and provides the option of connecting additional extenders. The ST-C5HDMI-RD3-150 remote unit can have up to 3 monitors connected in addition to daisy-chained extenders. -
Page 13: Interconnection Cable Wiring Method
Figure 6- View looking into RJ45 female LED INDICATIONS The two LED’s on the RJ45 connectors in this manual have the following meanings: ST-C5HDMI-150 Transmitter: Left = Power ON, Right = Transmitting ST-C5HDMI-150 Receiver: Right = Power ON, Left = Receiving HDMI signals ST-C5HDMI-RD-150 Receiver: “RJ45-In”... -
Page 14: Technical Specifications
Local unit: 6W; Remote unit: powered from local unit Size (In.) WxDxH ST-C5HDMI-150 2.5x2.8x0.9 (local and remote unit) ST-C5HDMI-RD-150 3.9x3.2x1.4 ST-C5HDMI-RD3-150 5x4.7x1.4 Approvals RoHS, CE, FCC Resolutions supported by Model ST-C5HDMI-150 Cable Distance Max. HDTV Resolution Standard Resolution 1920x1200 CAT6-550MHz 150ft 1080p 1920x1200... -
Page 15: Troubleshooting
NTI XTENDEX HDMI Extenders TROUBLESHOOTING Each and every piece of every product sold by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the information below to see if it can answer any questions that arise. -
Page 16: Warranty Information
NTI XTENDEX HDMI Extenders WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
