NTI ST-C5USBV Installation And Operation Manual
Xtendex series usb kvm extender
Hide thumbs
Also See for ST-C5USBV:
- Installation and operation manual (16 pages) ,
- Installation and operation manual (20 pages) ,
- Installation and operation manual (28 pages)
Related Manuals for NTI ST-C5USBV
Summary of Contents for NTI ST-C5USBV
- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED www.nti1.com XTENDEX Series ST-C5USBV USB KVM EXTENDER Installation and Operation Manual MAN013 Rev 11/2/05...
-
Page 2: Warranty Information
A return authorization number is required for all repairs/returns. COPYRIGHT Copyright © 2005 by Network Technologies Inc, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. -
Page 3: Table Of Contents
Figure 7- Video Adjustment Screen ..............................9 Figure 8- Port Configuration Screen ..............................10 Figure 9- Examples of common applications for the ST-C5USBV USB KVM Extender..............12 Figure 10- Pin positions in female RJ45 connector.......................... 13 Figure 11- Keyboard Layouts................................15... -
Page 4: Introduction
INTRODUCTION The ST-C5USBV USB Extender is designed to enable the relocation of a monitor, USB keyboard, and USB mouse from a USB CPU or NTI USB KVM switch by as much as 1000 feet via CAT5 cable in addition to having a monitor, USB keyboard, and USB mouse connected locally. -
Page 5: St-C5Usbv
PS/2 devices can be connected to the ST-C5USBV USB Extender through an NTI USB-PS/2 adapter, however the translation keys described on page 12 will not function in this application. • The ST-C5USBV USB Extender can be used between a cascadable NTI switch and a CPU although the cascading features will not function. MATERIALS... -

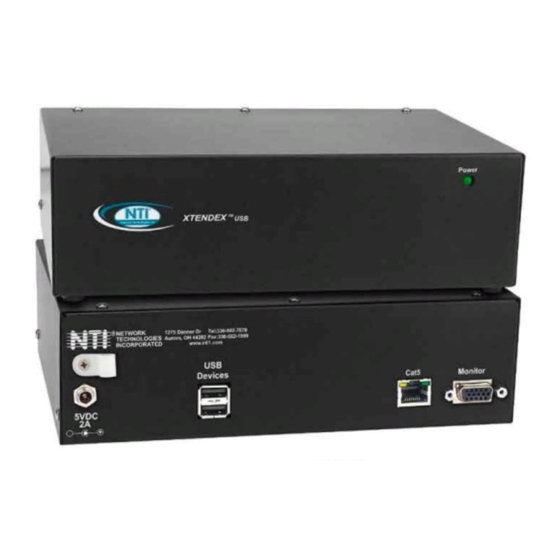

Page 6: Features And Functions
ST-C5USBV (Remote Unit) (Front View) (Rear View) POWER 1275 DANNER DR., AURORA OH. 44202 TEL. 330-562-7070 www.nti1.com XTENDEX Network Technologies Inc DEVICES 5VDC CAT5 VIDEO FEATURES AND FUNCTIONS Power LED- for visual indication of power to Remote Unit VIDEO- 15HD female for connection of video cable from remote monitor... -
Page 7: Preparation For Installation
PREPARATION FOR INSTALLATION • A location should be chosen for the monitor, mouse, and keyboard that also has space to mount the Remote Unit within the distance provided by the cables from the monitor, mouse, and keyboard. If extension cables are needed, contact NTI for the cables required. -
Page 8: Installation
NTI #13W3M-15HDF (SUN video port-to-VGA adapter) to the video port on the CPU first, and then connect the video cable to the adapter. Sun 13W3 Video Connector USB Type A male Network Technologies Inc XTENDEX (Front View) Type A... -
Page 9: Connect The Local Devices
If desired, connect the local user devices to the Local Unit as shown in Fig. 2. Connect a USB keyboard and mouse to the USB type A female connectors on the Local Unit. Connect a monitor to the 15HD female connector on the Local Unit. ST-C5USBV (Local Unit) (Rear View) (Front View) -
Page 10: The Remote Unit
RJ45 wall outlet. ) When properly inserted the CAT5 cable end should snap into place. WARNING: Never connect the ST-C5USBV Extender to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result. -
Page 11: Plug-In And Boot Up
This may also occur if the CAT5 USB KVM Extender senses a loss of or weak signal connection in the CAT5 cable. (Front View) 5 VDC Network Technologies Inc ADAPTER XTENDEX Barrel Power Connector 5VDC @ 2.0A OUTPUT (Outside... -
Page 12: Setup Menu
SETUP MENU The Setup Menu is an On Screen Display (OSD) menu that allows users to change the configuration of the ST-C5USBV USB Extender. The following configuration changes can be made: • Video Adjustments- for adjusting video resolution based on varying cable lengths •... -
Page 13: Port Configuration Screen
Save changes and exit Port Configuration Press <Enter> Exit Port Configuration without saving Press <Esc> The corresponding check-box will reflect the port configuration. After setting, the configuration is stored in memory and will be retrieved whenever the ST-C5USBV Extender is powered ON. -
Page 14: Ddc Update
Local and Remote Units must be powered in order to update the DDC information. Pressing D from the Setup Menu (page 9) will instruct the ST-C5USBV USB KVM Extender to read the DDC information from the monitor and store it in memory. A progress bar will show the status of the update operation. The OSD will return to the Setup Menu once the update is complete. -
Page 15: Common Applications
COMMON APPLICATIONS Figure 9 (below) illustrates three common applications for the ST-C5USBV USB KVM Extender. USBVEXT-xx-MM Existing Local Unit Cable Existing Local Unit Cable NTI USB Multi-Scan Multi-Scan ST-C5USBV ST-C5USBV Monitor Monitor LOCAL UNIT LOCAL UNIT SWITCH (UNIMUX-xU) Existing Local Unit Cable... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Maximum Resolution w/ CAT5 UTP 1024 X 768 @ 60Hz- up to 1000 feet (refresh frequency 60Hz) 1280 x 1024 @ 60Hz- up to 700 feet 1600 x 1200 @ 60Hz- up to 500 feet 1920 x 1440 @ 60 Hz- up to 300 feet Maximum Resolution w/ CAT5 STP 1024 x 768 @ 60Hz- up to 600 feet (refresh frequency 60Hz) -
Page 17: Keyboard Translation
KEYBOARD TRANSLATION Key Equivalents Using the chart below, find the character needed to be typed on the CPU being accessed, then follow the row across for the equivalent on the keyboard being used. (See Fig. 11 on page 14 for reference.) USB 101 WINxx (Apple USB) -
Page 18: Figure 11- Keyboard Layouts
Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Typical 101 Keyboard Print Scroll Screen Pause Lock SysRq Break Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Windows Logo Key Application Key Windows Logo Key Windows USB Keyboard CD Eject lock delete... -
Page 19: Troubleshooting
TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
