Figure 1-3: Mi-110 Rear I/O Layout; Table 1-3: Mi-110 Board Layout Legend - ADLINK Technology MI-110 User Manual

AAFP1 Front Panel Audio pin
header
ATXPWR1 ATX Power connector
CHA_FAN System Fan connector
CLRTC Clear CMOS jumper
COM3/4 Serial Port pin headers
F_PANEL1 System Panel pin header SODIMMA1
IDE1 IDE connector
JAMP1 Audio Amplifier connector SPI_JP1
JBLK1 LCD Inverter pin header
PS/2
KB/MS
Introduction

Table 1-3: MI-110 Board Layout Legend

COM
COM

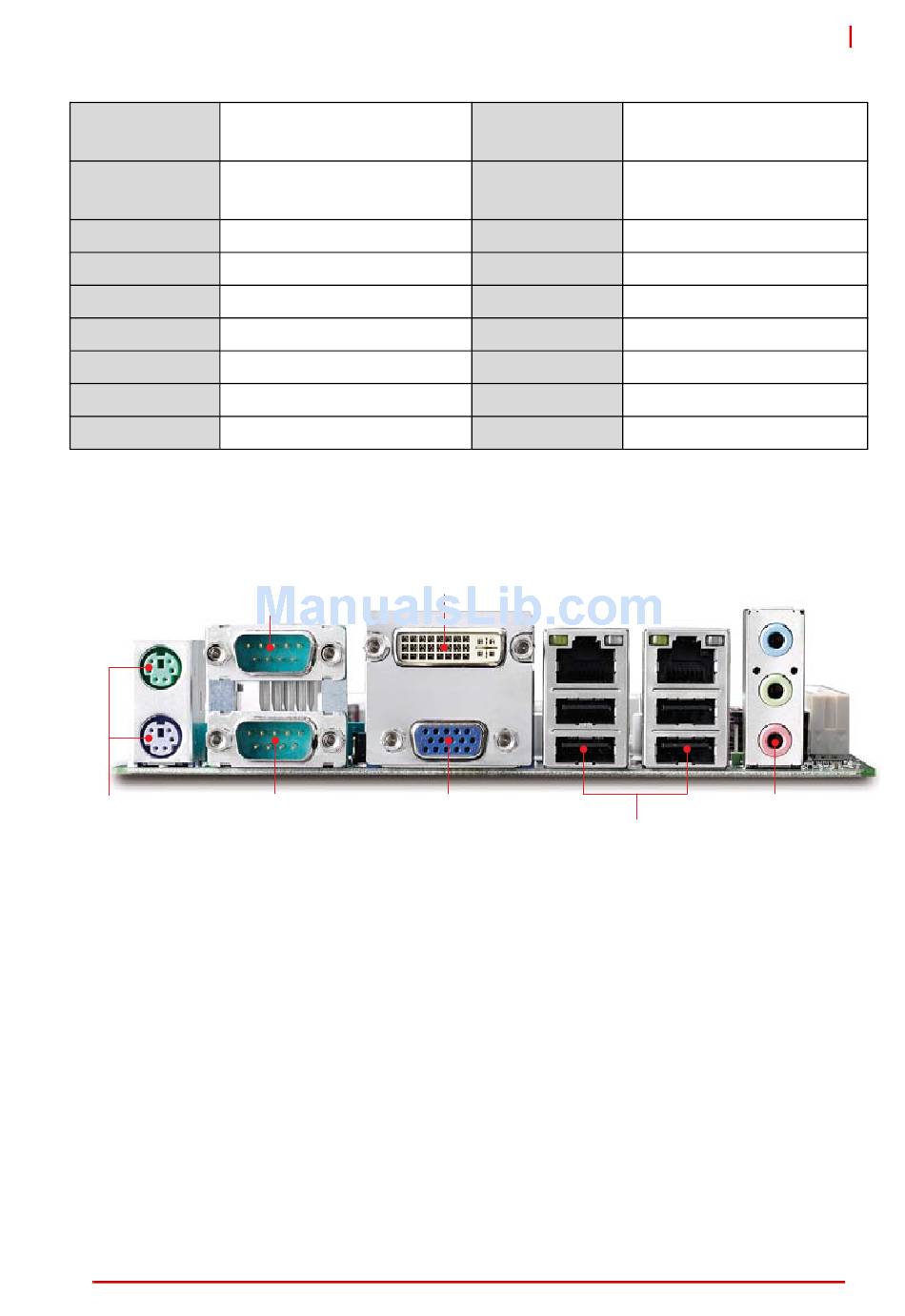

Figure 1-3: MI-110 Rear I/O Layout

JCOMPWR1/2 COM1/2 RI, +12V and
JCOMPWR3/4
JDIO
JLVDS1
SATA1/2
SPDIF_OUT
USB45
DVI
VGA
RJ-45 + USB
MI-110
+5V power select jumper
COM3/4 RI, +12V and
+5V power select jumper
Digital IO pin header
LVDS connector
SATA1/2 connectors
SO-DIMM socket
S/PDIF pin header
SPI pin header
USB4/5 pin header
Audio
11
