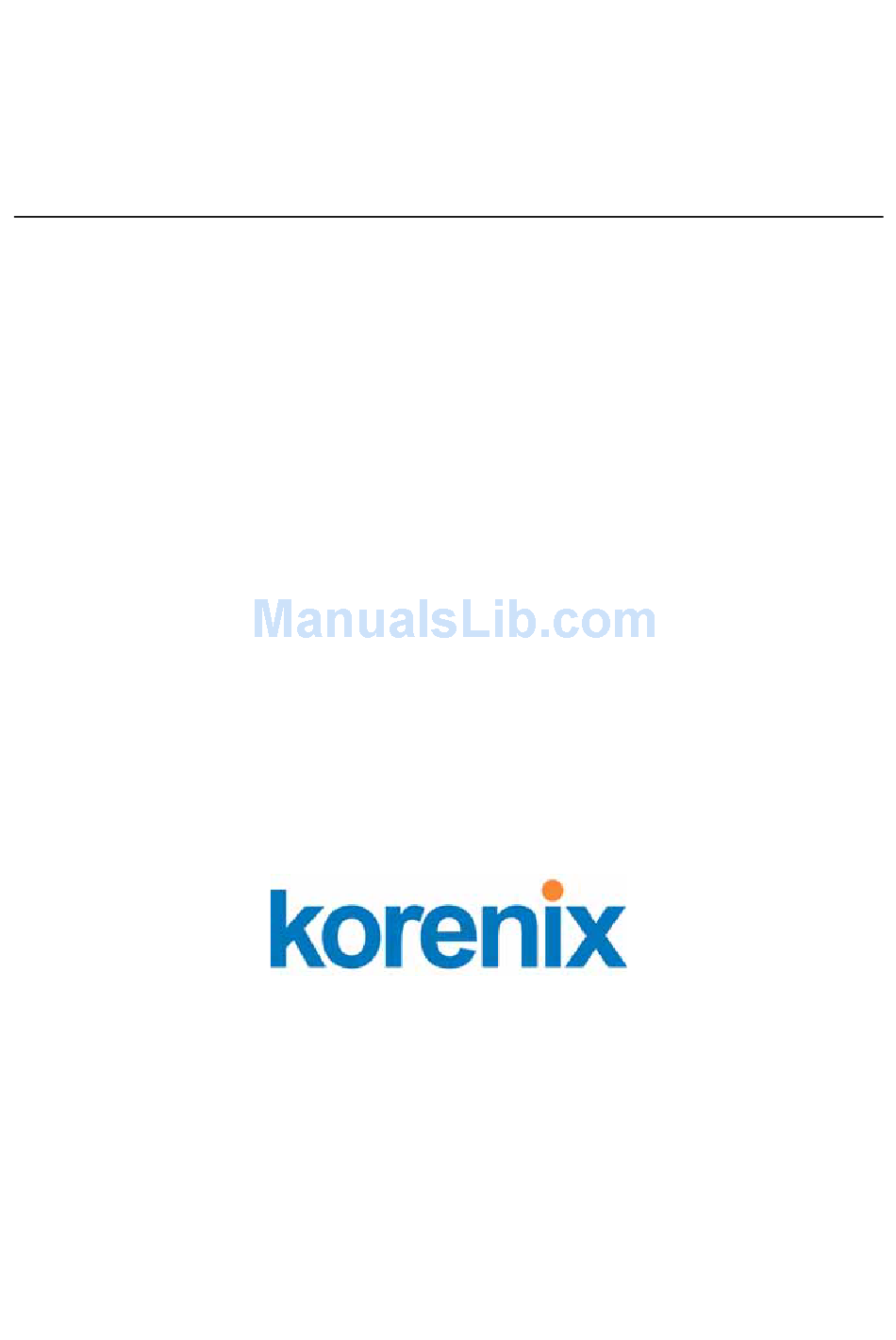

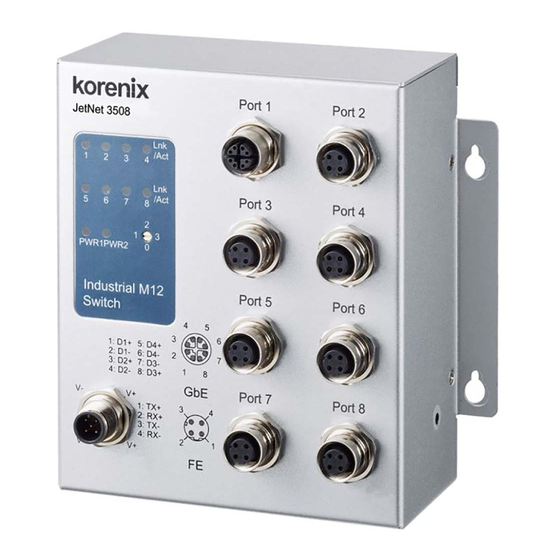

- Page 1 Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual First Edition, July 2005 www.korenix.com...
- Page 2 Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual Copyright Notice Copyright © 2005 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction .....................1-1 Overview......................1-2 Product Features ....................1-2 Package Checklist .................... 1-2 Chapter 2 Hardware Installation ................2-1 Introduction....................... 2-2 Panel Layouts ..................... 2-2 Dimensions ......................2-3 Reset Button ....................... 2-3 DIP Switch......................2-3 LED Indicators..................... 2-4 Wiring the Power Inputs ................... -
Page 5: Chapter 1 Introduction
Chapter 1 Welcome to Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch. JetNet 3500 Series includes 2 models: JetNet 3505, and JetNet 3508. JetNet 3500 Series is an unmanaged redundant rail switch that is specially designed for industrial applications. -
Page 6: Overview
To survive harsh industrial environments, Korenix provides you with JetNet 3500 Series, an Industrial 5-/8-port Unmanaged Redundant Ethernet Rail Switch. In addition to robust... -
Page 7: Chapter 2 Hardware Installation
Hardware Installation Chapter 2 This chapter includes information of installation and configuration. The following topics are covered in this chapter: Introduction Panel Layouts Dimensions Reset Button DIP Switches LED Indicators Wiring the Power Inputs Wiring the Ethernet Ports Wiring the Relay Output Cabling DIN-Rail Mounting Installation Wall-Mounting Installation... -
Page 8: Introduction
JetNet 3505 Front View 1 LED indicators 2 RJ45 Ethernet ports 3 DIP Switch JetNet 3508 Front View 1 LED indicators 2 RJ45 Ethernet ports 3 DIP Switch Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual... -
Page 9: Dimensions
FAULT LED will light up. Disable the switch to be the ring master in the Super Ring topology. Enable the switch to be the ring master in the Super Ring topology. Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual... -
Page 10: Led Indicators
TX device. No device is attached. Wiring the Power Inputs 1. Insert the positive and negative wires into the V+ and V- contact on the terminal block connector. Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual... -
Page 11: Wiring The Ethernet Ports
Straight-through Cabling Schematic Cross-over Cabling Schematic All ports of JetNet 3505/3508 support auto-MDI/MDI-X function. When you use an Ethernet cable to connect other devices, such as computers, switches or hubs, pin 1, 2, 3, and 6 of the 8-pin RJ45 connector are used to communicate with the connected devices. Pin1, 2, 3, and 6’s signals are converted by the MDI-X function, as shown in the table below. -
Page 12: Cabling
2. Tighten the wire-clamp screws to prevent the wires from being loosened. Cabling The cable connection between the JetNet 3505/3508 and the attached devices (switches, hubs, workstations, etc.) must be less than 100 meters (328 ft.) long. DIN-Rail Mounting Installation The DIN-Rail clip is already attached to the JetNet 3500 Series products when packaged. -
Page 13: Wall-Mounting Installation
4. Use the hook holes at the corners of the wall mounting plate to hang the JetNet onto the wall. 5. To remove the wall mounting plate, reverse the steps above. Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual... -
Page 14: Setting Up Super Ring
Super Ring is using the last two UTP ports of JetNet 3505/3508 for setting a Super Ring topology. For JetNet 3505, port 4 and 5 will be used to set up a Super Ring topology, and for JetNet 3508, port 7 and 8 will be used to set up s Super Ring topology. -
Page 15: Installation And Testing
Super Ring topology, these 5/8 ports serve as Ethernet ports. But, when you set up a group of JetNet 3500s in a Super Ring topology by using port 4/5 of JetNet 3505 or port 7/8 of JetNet 3508, the JetNet 3500s will auto-detect the Super Ring setup. You don’t have to do anything to enable or disable Super Ring function. - Page 16 “ping –t 192.168.1.1” command to see if it will respond. 15. The parameter ”t” allows you to continue to ping the network device, as shown in the figure below. 2-10 Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual...
- Page 17 19. Enter Telnet program in Computer A, type in the IP address of one of the converters, and configure the serial port’s communication parameters. Follow this procedure to set up the Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s 2-11...
-
Page 18: Upgrading Firmware
2. Set the DIP Switches to the settings as follows: For JetNet 3505: RM = On, P4 = On, P2 =On, P5 = OFF, P3 = OFF, P1 = OFF. For JetNet 3508: RM = On, P8 = Off, P7 = Off, P5 = Off, P4 =On, P3 = OFF, P2 = On, P1 = OFF. -
Page 19: Chapter 3 Troubleshooting
Troubleshooting Chapter 3 This chapter includes the information on general troubleshooting. Make sure you are using the correct VDC power suppliers (12 to 48 VDC) or power adapters. Do not use power adapters with DC output over 48V. It will damage devices. Select Ethernet cables with specifications suitable for your applications to set up your systems. -
Page 21: Appendix A Specifications
EIA/TIA-568 100-ohm (100m) JetNet 3505: 1.0 Gbps Back plane JetNet 3508: 1.6 Gbps JetNet 3505: 0.74 Mpps @ 64 bytes (5TX) Throughput JetNet 3508: 1.19 Mpps @ 64 bytes (8TX) 12 to 48 VDC, redundant dual DC power inputs with reverse polarity... - Page 22 54 mm (W) x 135 mm (H) x 105mm (D) FCC Class A CE EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11 Safety UL, cUL, CE/EN60950 IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), Stability IEC60068-2-6 (Vibration) Korenix JetNet 3500 Series Industrial Unmanaged Redundant Ethernet Rail Switch User’s Manual...
