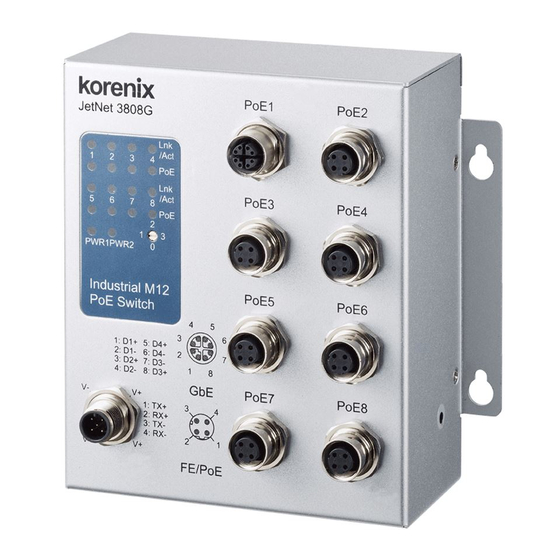

Korenix JetNet 3808G Series
JetNet 3808G-M12/ 3908G-M12
Industrial Power over Ethernet GbE Switch
User's Manual
Version: 1.0
www.korenix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetNet 3808G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Korenix JetNet 3808G Series

Summary of Contents for Korenix JetNet 3808G Series

  • Page 1 Korenix JetNet 3808G Series JetNet 3808G-M12/ 3908G-M12 Industrial Power over Ethernet GbE Switch User’s Manual Version: 1.0 www.korenix.com...
  • Page 2 Korenix JetNet 3808G Series JetNet 3808G-M12/ 3908G-M12 Industrial Power over Ethernet GbE Switch Copyright Notice Copyright © 2018 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited. Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 3: Table Of Contents

    LED Indicators ....................10 2.2 Wiring the Power Inputs ................10 2.4 Wiring Earth Ground ..................11 2.5 Rotary Switches (Ignition Function) ............... 11 3. Appendix ........................14 3.1 Product Specification ..................14 3.2 Revision History ....................16 Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 4: Introduction

    1. Introduction Korenix JetNet 3808G-M12 Series is a power over Ethernet rail switch that is specially designed for industrial or commercial applications. The following topics are covered in this chapter: 1.1 Overview 1.2 Product Features Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 5: Overview

    PoE applications with standard DC 48V power supply unavailable. To ensure the high quality of video data transmission, JetNet 3808G series not only provides Gigabit bandwidth uplink for large image traffic, but also support CoS to adjust the priority of data transmission.

  • Page 6: Product Features

    1.2 Product Features Korenix JetNet 3808G-M12/ 3910G-M12 have the following features: JetNet JetNet 3808G-M12 3908G-M12 Features Highlight 10/100 TX PoE port 10/100/1000 TX PoE port PoE Standard compliant: IEEE802.3af/at PoE PoE Power per port Total PoE Power Budget 120W* 120W*...

  • Page 7: Hardware Installation

    2. Hardware Installation 2.1 Hardware Introduction Dimensions JetNet 3808G-M12 dimensions: 116(H) x 146(W) x 58(D) Korenix JetNet 3808G-M12/ JetNet 3908G-M12...
  • Page 8 JetNet 3908G-M12 dimensions: 116(H) x 146(W) x 58(D) Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 9: Front Panel

    Front Panel JetNet 3808G-M12/ 3908G-M12 include system power LED x1, PoE LED x8; and 8 LEDs for the port operating status. JetNet 3808G-M12 / JetNet 3908G-M12 Lnk/Act LED PoE LED PWR LED Power Ignition Ignition Input Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 10: Connector Definition

    Connector definition Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 11: Led Indicators

    The port is transmitting or receiving packets. The port’s link is inactive 2.2 Wiring the Power Inputs JetNet 3808G-M12/ 3908G-M12 power input is 9~36VDC and boosts to 48V DC output for 802.3af/at standard PoE devices. Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 12: Wiring Earth Ground

    2.5 Rotary Switches (Ignition Function) 4-Pin rotary switch is one of components to trigger delay off into standby mode function, the detail show in table 1, how does ignition function work. It is showed in diagram 1. Korenix JetNet 3808G-M12/ JetNet 3908G-M12...
  • Page 13 (Table 1) Korenix JetNet 3808G-M12/ JetNet 3908G-M12...
  • Page 14 (Diagram 1) Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 15: Appendix

    14,880 pps @10Mbps 148,800 pps @100Mbps 1,488,100 pps @1000Mbps Class of Service Default Enabled Compliance with IEEE802.1p class of service with Tag Based Priority rule. Each switch port provides 4 priority queues as following - 8 Korenix JetNet 3808G-M12/ JetNet 3908G-M12...
  • Page 16 ( Green Blinking) Power Requirement System Power Input voltage: DC 12V or DC 24V, variation range DC 9- 36 V Power consumption 6 Watts @ DC 24V without PD loading 120 Watts @ DC 24V max. Korenix JetNet 3808G-M12/ JetNet 3908G-M12...

  • Page 17: Revision History

    EMS:EN50121-3-2/EN50121-1, IEC/EN61000-6-2 IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-9 Variation/Shock IEC 61373 Free Fall IEC 60068-2-32 with package Note-1 MTBF (hrs) 379,940 Warranty 5 Years 3.2 Revision History Edition Date Modifications V0.1 09/04/2018 New edition Korenix JetNet 3808G-M12/ JetNet 3908G-M12...
