- Page 1 Korenix JetNet 3210GP-2C Industrial Power over Ethernet GbE Switch User’s Manual Version: 1.0 www.korenix.com...
- Page 2 Korenix JetNet 3210GP-2C Industrial Power over Ethernet GbE Switch User’s Manual Copyright Notice Copyright © 2015 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited. Korenix JetNet 3210GP-2C...
-
Page 3: Table Of Contents
2.6 Wiring the Ethernet Ports ................11 2.7 Wiring the Fiber Ports ..................12 2.8 Connecting Powered Device (PD) ..............13 2.9 DIN-Rail Mounting Installation............... 13 3. Appendix ........................14 Product Specification ................14 3.2 Revision History ....................16 Korenix JetNet 3210GP-2C... -
Page 4: Introduction
1. Introduction Korenix JetNet 3210GP-2C is a power over Ethernet switch that is specially designed for industrial or commercial applications. The following topics are covered in this chapter: 1.1 Overview 1.2 Product Features Korenix JetNet 3210GP-2C... -
Page 5: Overview
To ensure the high quality of video data transmission, JetNet 3210GP-2C not only provide Gigabit bandwidth uplink for large image traffic, but also support QoS to adjust the priority of data transfer. -
Page 6: Product Features
1.2 Product Features Korenix JetNet 3210GP-2C have the following features: 8 Gigabit Base TX ports and 2 Gigabit RJ-45/ SFP combo ports SFP ports support 100/1000 Mbps IEEE 802.3af 15.4W / IEEE 802.3at 30W High Power PoE ... -
Page 7: Hardware Installation
2. Hardware Installation 2.1 Hardware Introduction Dimensions JetNet 3210GP-2C dimensions: 135(H) x 79.56(W) x132(D) (without Din-rail clip) Korenix JetNet 3210GP-2C... -
Page 8: Front Panel

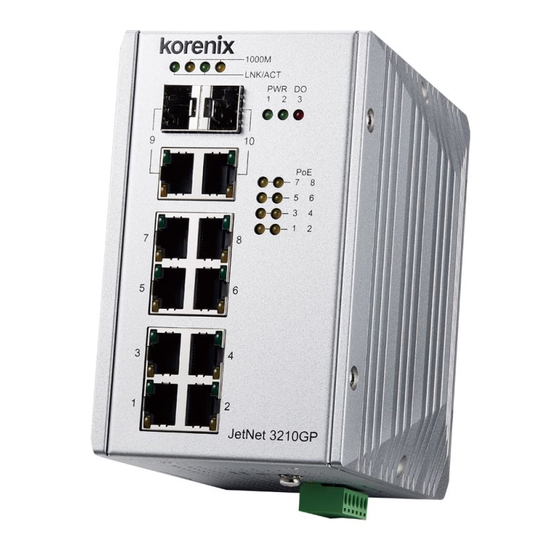

Front Panel JetNet 3210GP-2C includes system power LED x1, alarm relay LED x1, PoE LED x8, 16 LEDs for RJ-45 port operating status, and 4 LEDs for SFP fiber port status. JetNet 3210GP-2C LED for SFP Power LED Alarm Relay LED... -
Page 9: Bottom View
Relay Output Earth Ground Screw Terminal Block The bottom side of the JetNet 3210GP-2C includes one 6-pin removable terminal block connector (with 2 power input & 1 relay alarm output) . There is also an earth ground screw to prevent interference. -
Page 10: Wiring The Power Inputs
Amber off 100Mbps speed 2.2 Wiring the Power Inputs JetNet 3210GP-2C accepts 12~56V DC power input and boosts to 54~56VDC output for 802.3af/at standard PoE devices. Insert the positive and negative wires of your DC supply into the V+ and V- contacts of the terminal block connector. -
Page 11: Wiring The Relay Output
JetNet 3210GP-2C and earth ground to avoid system damage. (Please refer to the upside photo) 1. On the bottom of the JetNet 3210GP-2C, there is one earth ground screw. 2. Loosen the earth ground screw with a screwdriver 3. -
Page 12: Wiring The Ethernet Ports
2.6 Wiring the Ethernet Ports JetNet 3210GP-2C Industrial Gigabit PoE Switch support 8 ports with automatic MDI/MDI-X crossover, PoE Injector, and automatic 10/100Mbps data rate sensing for 10Base-T or 100Base-TX connections. Automatic MDI/MDI-X crossover allows you to connect to other switches, hubs, or workstations, without regard to using straight-through or crossover cabling. -
Page 13: Wiring The Fiber Ports
(e.g. switch, hub, or workstation) are less than 100 meters (328 feet). 2.7 Wiring the Fiber Ports JetNet 3210GP-2C equips 2 gigabit SFP fiber ports. The speed of the SFP port supports up to 100/1000Base F(X). The SFP ports accept standard MINI GBIC SFP transceiver. -
Page 14: Connecting Powered Device (Pd)
(outside plant) networks. 2.9 DIN-Rail Mounting Installation The DIN-Rail clip is already attached on the rear side of JetNet 3210GP-2C. It supports EN 50022 standard DIN Rail, in the following diagram includes the dimension of EN 55022 DIN Rail for your reference. -
Page 15: Appendix
To remove the JetNet 3210GP-2C from the track, reverse the steps above. 3. Appendix 3.1 Product Specification 3.2 Revision History 3.1 Product Specification Technology Standard IEEE 802.3u 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-TX Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet... - Page 16 Power Requirement System power Input voltage: DC 12V or DC 24V, variation range DC 12- 56V 2x DC power input with polarity reverse protection Input Range DC 12-56V Power Consumption 12V AF: PoE 120W 24V AT: PoE 240W Korenix JetNet 3210GP-2C...
-
Page 17: Revision History
EMS:EN50121-3-2/EN50121-1, IEC/EN61000-6-2 IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-9 Variation/Shock IEC 61373 Free Fall IEC 60068-2-32 with package Note-1 Warranty 5 Years *Specifications may change without prior notice **pending 3.2 Revision History Edition Date Modifications V1.0 09/14/2019 Korenix JetNet 3210GP-2C...
