Summary of Contents for Korenix JetNet 3005

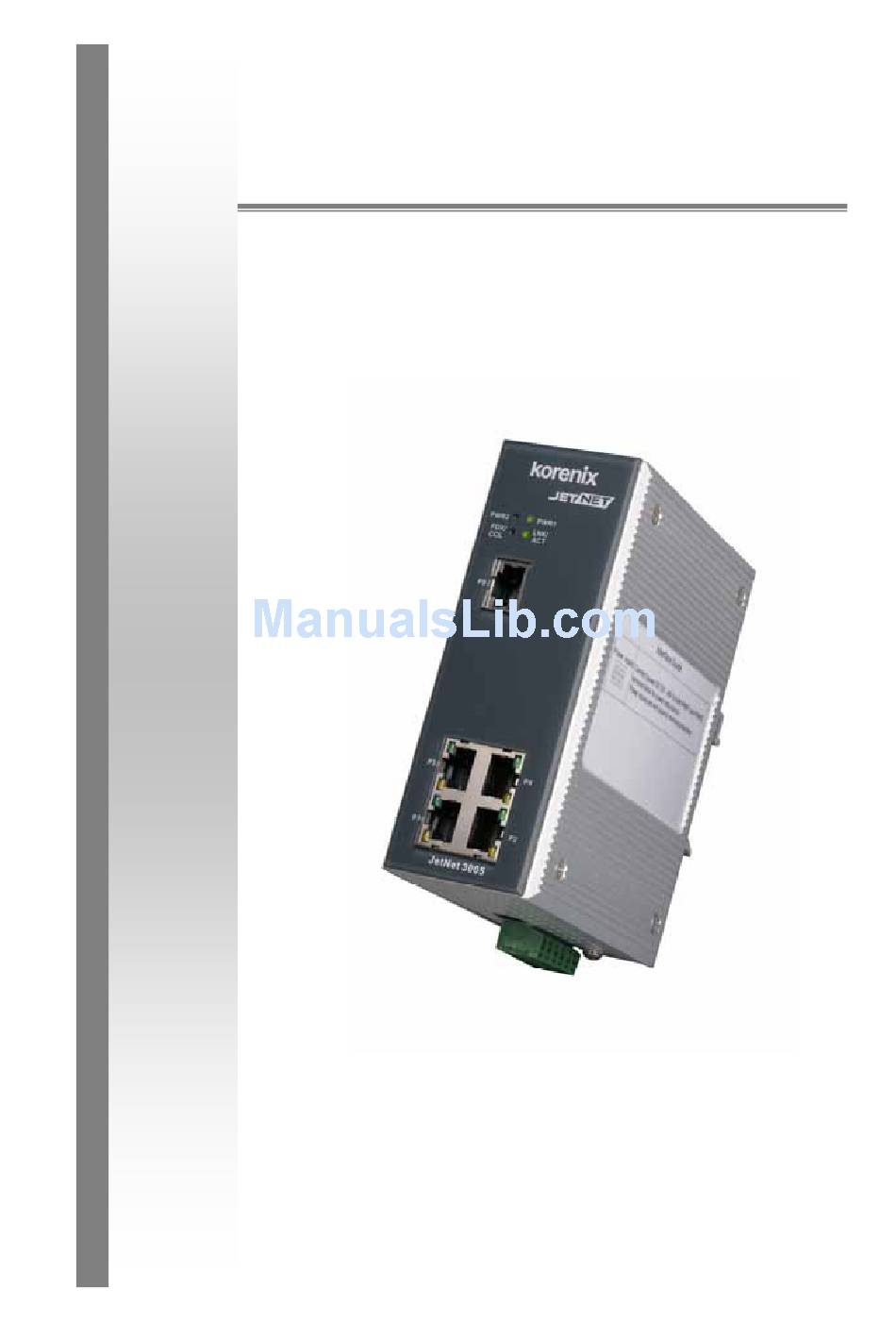

- Page 1 JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch User’s Manual Rev.1.1 20-Jan-2005...
-
Page 2: Table Of Contents
Content Introduction............1 Features ..............1 Package Checklist............ 2 Hardware Description ......... 3 Dimensions .............. 3 Front Panel............... 3 Bottom View ............. 5 Wiring the DC Power Inputs........5 LED Indicators............6 Ports................. 8 Cabling ..............9 DIN-Rail Mounting..........10 Wall Mounting ............ -
Page 3: Introduction
JetNet 3005/3008 not only gives you high speed data transmission over an Ethernet network, but also provides redundant power inputs and reverse polarity protection. In addition, JetNet 3005/3008 uses a IP30 aluminum case, and has passed several safety certifications, ensuring customers a cost-effective, safe, and reliable industrial applications. -
Page 4: Package Checklist
Package Checklist JetNet 3005/3008 Industrial 5-port/8-port Entry Level Ethernet Rail Switches are packaged with the following items: JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch One DIN-Rail clip (attached with the JetNet 3005/3008) One wall mounting plate and six screws User’s manual CD-ROM... -
Page 5: Hardware Description
JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch dimensions (W x H x D) are 54mm x 135mm x 105mm Front Panel The Front Panel of the JetNet 3005 Industrial Entry Level 5-port Ethernet Rail Switch is shown in Figure A. LED Indicators UTP Port Figure A. - Page 6 The Front Panel of the JetNet 3008 Industrial Entry Level 8-port Ethernet Rail Switch is shown in Figure A. LED Indicators UTP Port Figure A. Front Panel of the JetNet3008 Industrial Entry Level 8-port Ethernet Rail Switch...
-
Page 7: Bottom View
Ethernet Rail Switch consists of one terminal block connector with two DC power inputs and one DC IN power jack for an additional AC/DC power adapter. Figure B. Bottom view of the JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch Wiring the DC Power Inputs Follow the steps below to wire JetNet3005/3008’s dual DC power inputs. -
Page 8: Led Indicators
LED Indicators There are 5 diagnostic LEDs and 8 Port LEDs located on the Front panel of JetNet 3005 Industrial Ethernet Rail Switch. These LED indicators provide administrators with real-time system status. Table 1 gives descriptions of the function of each LED indicator. - Page 9 Port LED Status Description The port is operating in full-duplex Orange mode. Blinking Collision of Packets occurs. orange The port is in half-duplex mode or Port Status (Port 1 no device is attached. to Port 4) Green A network device is detected. Blinking The port is transmitting or receiving green...
-
Page 10: Ports
No device is attached. Table 2 Ports RJ-45 ports (Auto MDI/MDIX): JetNet 3005/3008 has five 10/100 Mbps auto-sensing ports for 10Base-T or 100Base-TX device connection. The UTP ports will auto-detect 10Base-T and 100Base-TX connections. Auto MDI/MDIX allows users to connect another switch or workstation without changing straight through or crossover cabling. -
Page 11: Cabling
Fig C Straight Through Cabling Schematic Fig C-1 Cross Over Cabling Schematic All ports of JetNet 3005/3008 support auto-MDI/MDI-X function. When you use an Ethernet cable to connect other devices, such as computers, switches or hubs, pin 1, 2, 3, and 6 of the 8-pin RJ45 connector are used to communicate with the connected devices. -
Page 12: Din-Rail Mounting
Mounting Installation DIN-Rail Mounting The DIN-Rail clip is already attached to the JetNet 3005/3008 when packaged. If the DIN-Rail clip is not screwed on the JetNet 3005/3008, follow the instructions and the figure below to attach the DIN-Rail clip to the JetNet 3005/3008. - Page 13 Follow the steps below to mount the JetNet 3005/3008 to the DIN-Rail track: First, insert the upper end of the DIN-Rail clip into the back of the DIN-Rail track from its upper side. Lightly push the bottom of the DIN-Rail clip into the track.
-
Page 14: Wall Mounting
1. To remove the DIN-Rail clip from the JetNet 3005/3008, loosen the screws from the DIN-Rail clip. 2. Place the wall mounting plate on the rear panel of the JetNet 3005/3008. 3. Use the screws to tighten the wall mounting plate onto the JetNet 3005/3008. -
Page 15: Hardware Installation
1. Take your JetNet 3005/3008 Industrial 5-port/8-port Entry Level Rail Switch out of the package box. 2. Check if the DIN-Rail clip is attached to the JetNet 3005/3008. If the DIN-Rail clip is not attached to the JetNet3005, refer to DIN-Rail Mounting section for DIN-Rail installation. - Page 16 4. Pull the terminal block off the JetNet 3005/3008 and wire the power lines. Refer to the Wiring the DC Power Inputs section for how to wire the power inputs. 5. PWR1 and PWR2 dual power inputs can be connected to power sources simultaneously.
- Page 17 Command, and click on OK to continue. 10.2 Type ping 192.168.1.1 command to check the connection. Here we use IP address 192.168.1.1 as an example. 11. Repeat step 10 to make sure that the connection of each device connected to the JetNet 3005/3008 is successfully established.
- Page 18 14. Exit the Command Line mode, and connect PWR1 power input. At this stage, your JetNet 3005/3008 has been tested and the installation is complete. 15. To set up your industrial network by JetNet 3005 15.1 See the figure below as an example.
- Page 19 Follow this procedure to finish each modem’s setting. The industrial network is now established successfully. Computer A is able to connect several converters using over the Ethernet via JetNet 3005 Industrial 5-port Entry Level Ethernet Rail Converter, providing a reliable network environment.
-
Page 21: Troubles Shooting
Troubles shooting Make sure you are using the correct VDC power suppliers (12 to 48 VDC) or power adapters. Do not use power adapters with DC output over 48V. It will damage devices. Select Ethernet cables with specifications suitable for your applications to set up your systems. -
Page 22: Technical Specifications
Technical Specifications IEEE 802.3 10BaseT Ethernet Standards IEEE 802.3u 100BaseT(X) Fast Ethernet IEEE802.3x Flow Control and Back pressure Protocols CSMA/CD Technology Store and Forward Transmission 14,880 pps for Ethernet port 148,800 pps for Fast Ethernet port Rate MAC address JetNet3005: 1K MAC address table table size JetNet3008: 2K MAC address table JetNet3005: 512Kbits... - Page 23 12 to 48 VDC, redundant dual DC power inputs with reverse polarity protection, and a Power Supply removable terminal block for master and slave VDC power inputs. Power JetNet3005: 2.8 Watts consumption JetNet3008: 4.6 Watts Packet throughput JetNet3005: 0.74Mpps @ 64bytes (5TX) JetNet3008: 1.19Mpps @ 64bytes (8TX) ability Installation...
- Page 24 IEC60068-2-6 (Vibration)
