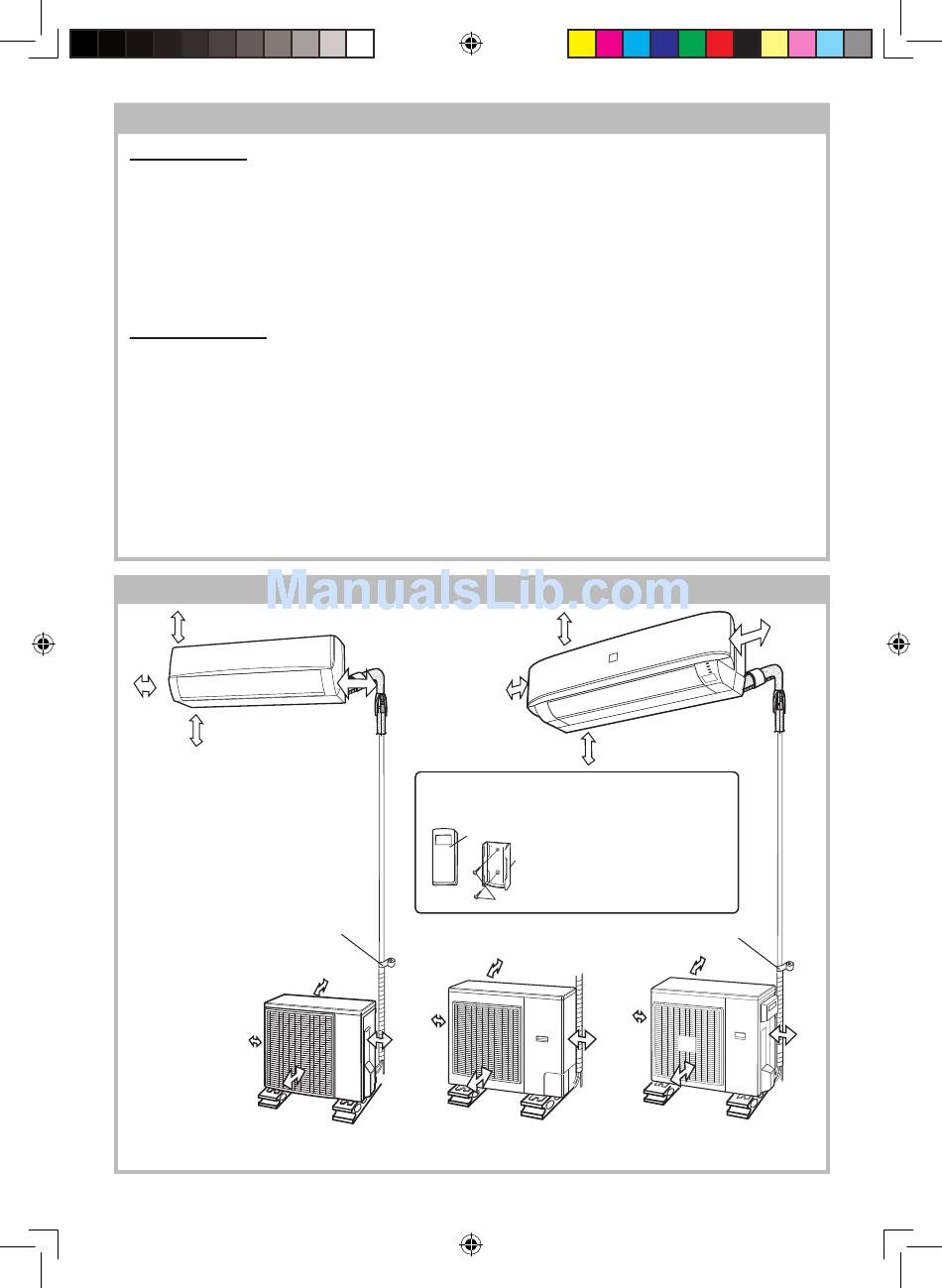

Installation Diagram - Sharp AH-PN10 Operation Manual

Indoor/outdoor unit

Hide thumbs

Table of Contents

NOTES ON LOCATIONS

INDOOR UNIT

1. Keep the air outlet clear of any obstacle so that outgoing air flows smoothly in the entire room.

2. Make a drain hose hole for easy drainage.

3. Provide sufficient space on both sides and above the unit.

4. The air filters should be easily taken in and out.

5. Keep TV set, radio and the like 1 m or more away from the unit and the remote control.

6. Keep the air inlet clear of obstacles that could block incoming air.

7. The remote control may not function properly in a room equipped with an electronic simultane-

ous-start or rapid-start fluorescent lighting.

8. Select a location that does not cause loud operation noise and extreme vibrations.

OUTDOOR UNIT

1. Place the outdoor unit on a stable base.

2. Provided sufficient space around the unit. It should also be well ventilated.

3. The unit should not be exposed to strong wind nor splashed with rain water.

4. Water drain from the unit should be let out without problem. Lay a drain hose if required. In cold

regions, installation of the drain pipe is not advisable as freezing could result.

5. Keep TV set, radio and the like 1 m or more away from the unit.

6. Avoid locations exposed to machine oil vapor, salty air (facing the seashore, for example), hot

spring vapor sulfur gas, etc. Such location can cause breakdown.

7. Avoid locations exposed to muddy water (along a road, for example) or where the unit can be

tampered with.

8. Select a location where the outgoing air or operating noise cannot annoy others.

9. Keep the air outlet opening free of any obstacle. This could affect the performance of the unit

and create loud noises.
