Sharp AH-X08CR Service Manual

AH/AY-X08CR
AH/AY-X10CR
SHARP SERVICE MANUAL
$3214AYX13CR/

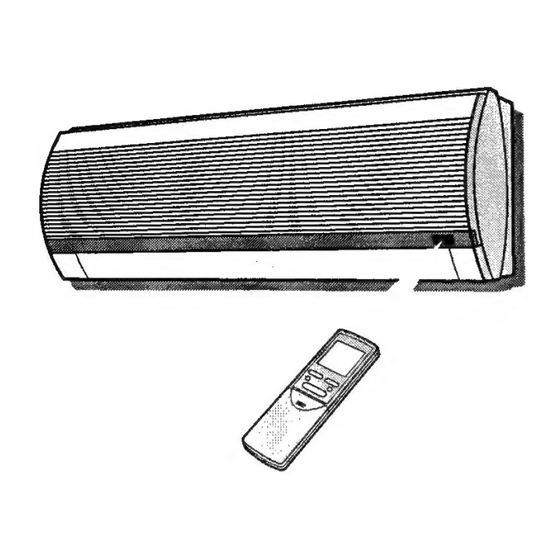

SPLIT TYPE
ROOM AIR CONDITIONERS
INDOOR UNIT
AH-X08CR/10CR/13CR
AY-X08CR/10CR/13CR
OUTDOOR UNIT
AU-X08CR/10CR/13CR
MODELS AE-X08CR/10CR/13CR
Inthe interests of user-safety (Required by safety regulations in some
countries) the set should be restored to its original condition and only
parts identical to those specified should be used.
New Refrigerant : R-410A
TABLE OF CONTENTS
SPECIFICATIONS
EXTERNAL DIMENSIONS
WIRING DIAGRAMS
ELECTRICAL PARTS
BLOCK DIAGRAM
MICROCOMPUTER CONTROL SYSTEM
FUNCTIONS
FUNCTION AND OPERATION OF PROTECTIVE PROCEDURES ....
BREAKDOWN DIAGNOSIS PROCEDURE
REFRIGERATION CYCLE
PERFORMANCE CURVES
DISASSEMBLING PROCEDURE...
REPLACEMENT PARTS LIST
REFRIGERANT PIPING INSTALLATION/SERVICE MANUAL FOR AIR CONDITIONERS USING R-410A .. 49
SHARP CORPORATION
