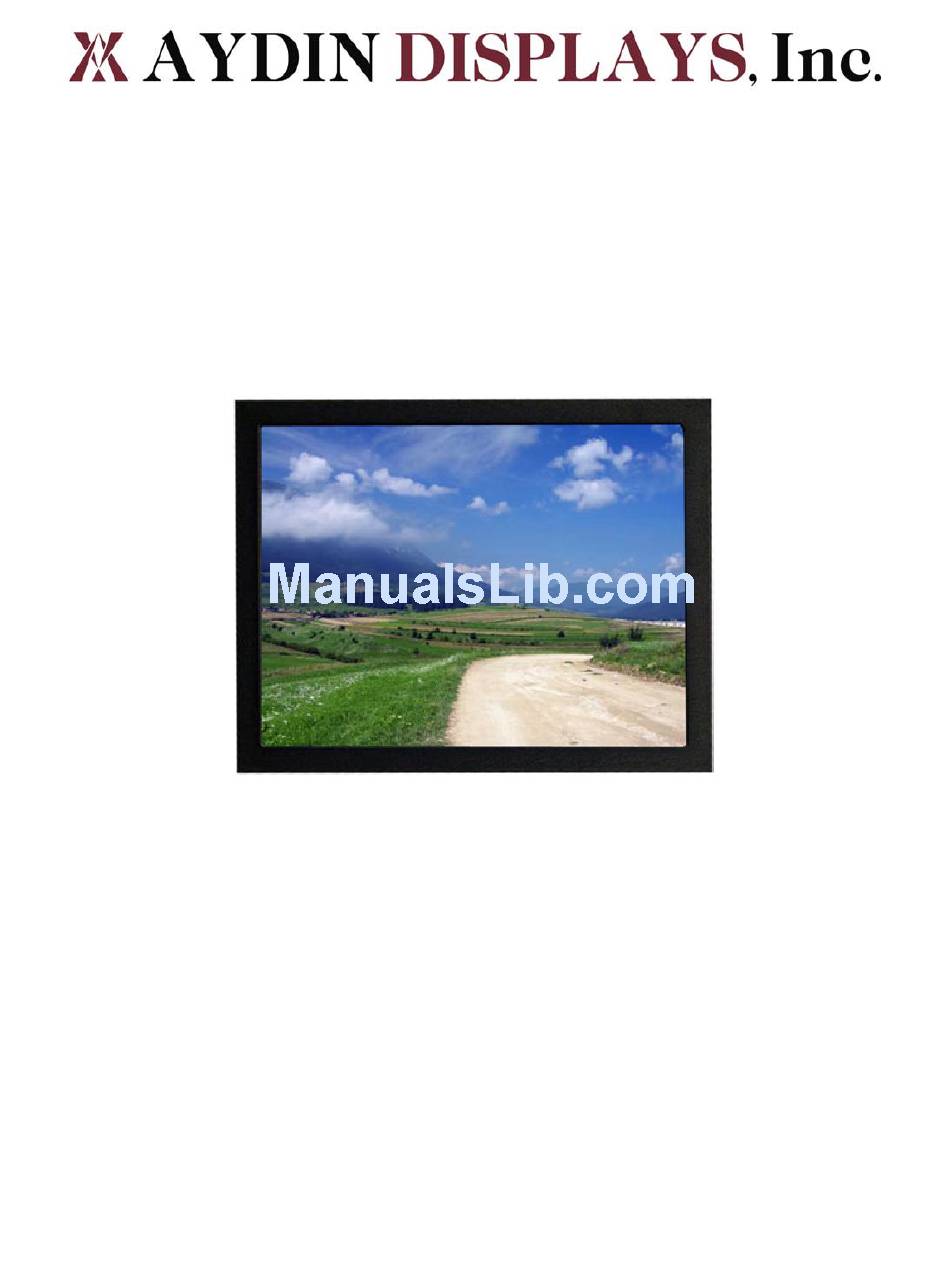

CAMBRIDGE
USERS MANUAL
CFP24W2 Large Screen Series
LCD Monitor User Guide
Document No. 150-CFP-240

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFP24W2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aydin Displays CFP24W2 Series

  • Page 1 CAMBRIDGE USERS MANUAL CFP24W2 Large Screen Series LCD Monitor User Guide Document No. 150-CFP-240...
  • Page 2: Table Of Contents

    Table of Contents TABLE OF CONTENTS................................... 2 INTRODUCTION....................................4 ..................................4 RODUCT ESCRIPTION ..............................4 RODUCT AFETY RECAUTIONS MONITOR SETUP.................................... 5 ..................................5 ISPLAY EATURES ................................5 NPACKING ONITOR ..................................6 ACKAGE ONTENTS Optional Items: .................................... 6 ................................6 ONNECTING ONITOR ................................
  • Page 3 CLEANING INSTRUCTIONS............................... 22 CFP24W2 SERIES 24-IN LCD SPECIFICATIONS........................23 UNIVERSAL VIDEO INPUT UNIT OPTION ..........................24 (UVI) B ......................... 24 ONNECTING NIVERSAL IDEO : ..........................25 NIVERSAL IDEO NPUT PECIFICATION CONTACT INFORMATION:................................ 26 150-CFP-240 Page 3 of 26...
  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing the CFP24W2 Flat Panel Display. We are confident that you will be pleased with the performance and reliability of your new monitor. The CFP24W2 Flat Panel Display was designed to meet the screen performance requirements of today's demanding industrial applications. While complying with a wide variety of industrial video formats, it delivers a larger screen area, higher resolutions, and greater color accuracy than many monitors in its price range.
  • Page 5: Monitor Setup

    MONITOR SETUP Unlike CRT displays, the LCD panel has a fixed pixel format over a set area. So for best performance, the “native resolution” setting is always recommended. Use the following notes as a reference to setup your display. • The native resolution of the LCD panel is 1920 x 1200;...
  • Page 6: Package Contents

    AC Power Cord • VGA Cable • Users Manual - Download from WEB page Optional Items: These are optional items and can be ordered by contacting Aydin Displays, Inc. • Composite Video Cable • 5 BNC to HD15 adaptor cable •...
  • Page 7: Signal Input Connections

    Signal Input Connections Following are the pin out descriptions for the standard and optional connectors provided on the monitor: VGA High Density HD15 Connector Pin Out Pin Assignments for VGA Video HD15 Input Connector CONNECTION CONNECTION Red Video (75 Ohm, 0.7 Vpp) Key (No pin) Green Video (75 Ohm, 0.7 Vpp) Sync Ground...
  • Page 8: Cga 9 Pin D-Sub Connector (Optional)

    CGA 9 Pin D-Sub Connector (Optional) Pin Assignments for 9 Pin Optional CGA Color Graphics Adapter. Video Type: TTL CONNECTION DESCRIPTION Ground Ground Red Video Green Video Blue Video Intensity Reserved HSYNC Horizontal Sync VSYNC Vertical Sync EGA 9 Pin D-Sub Connector (Optional) Pin Assignments for 9 Pin Optional EGA=Enhanced Graphics Adapter.
  • Page 9: Mda 9 Pin D-Sub Connector (Optional)

    MDA 9 Pin D-Sub Connector (Optional) Pin Assignments for 9 Pin Optional MGA – Hercules Mono Graphics Adapter. Video Type: TTL CONNECTION DESCRIPTION Ground Ground No Connection No Connection No Connection Intensity Monochrome Video HSYNC Horizontal Sync VSYNC Vertical Sync Touch Screen 9 Pin D-Sub connector, Serial Port (Optional).
  • Page 10: Controls & Functions

    CONTROLS & FUNCTIONS Definitions of Video inputs: FUNCTION DESCRIPTION Selects analog or digital input VGA / DVI (Only works on DVI model option) Analog Input Select VGA input connector, HD15 Digital Input Select Digital Input Connector, DVI The monitor will NOT enter Auto Setup automatically the first time the unit is first turned on. The OSD interface is composed of 5 membrane switches (as shown below) and a Bi-color LED.
  • Page 11: Definitions Of Pc And Osd

    Definitions of PC and OSD Description Definition / Description / Function Definition: Personal Computer. Description: Generator image (Video Signal) on Flat Panel screen. Function: When in “PC Mode” the adjustments made will affect the Video Image on the screen with one exception, the Horizontal & Vertical Picture Size (This is done in OSD mode).
  • Page 12: Pc Adjustments

    PC ADJUSTMENTS: Contrast Adjustment (Changes the contrast of the image): Press the “MENU” button to select “CONTRAST”. Use the “UP” / “DOWN” buttons to increase or decrease contrast. Select the “AUTO” button to exit contrast adjustment. Contrast Incremental Bar Brightness Adjustment (Changes the brightness of the image): Press the “MENU”...
  • Page 13: Color Mode Adjustment (Changes The Color Of The Image)

    Color Mode adjustment (Changes the color of the image): Press the “MENU” button then the “DOWN” button to select “COLOR MODE”. Use the “MENU” buttons to select “NORMAL” / “WARM” / “COOL” / “sRGB” or “USER”. • Note: When selecting “USER” you may adjust each individual color one at a time. Use the “UP” / “DOWN” buttons to increase or decrease color.
  • Page 14: Clock Adjustment (Changes The Fine Adjustment On The Horizontal Position Of The Video Signals)

    Clock adjustment (Changes the fine adjustment on the horizontal position of the video signals): Press the “MENU” button then the “DOWN” button to select “CLOCK”. Use the “UP” / “DOWN” buttons to increase or decrease clock adjustment. Select the “AUTO” button to exit clock position adjustment. Clock Incremental Bar Phase adjustment (Should be adjusted until the screen image is sharp):...
  • Page 15: Osd Adjustments

    OSD ADJUSTMENTS With the On Screen Display (OSD) off, push the “MENU” button to display the main OSD menu. While the OSD is on, use the “UP” / “DOWN” buttons to select “OSD Menu”. Push “MENU” button to select “OSD Menu” option: OSD Menu Language adjustment (English Only): Press the “MENU”...
  • Page 16: Duration (Adjusts The Timer To Display The Osd Menu)

    Duration (Adjusts The timer to display the OSD menu): Press the “MENU” button then the “DOWN” button to select “DURATION”. Use the “UP” / “DOWN” buttons to increase or decrease the timer for the OSD display. Select the “AUTO” button to exit duration adjustment. Duration Incremental Bar OSD H-Position...
  • Page 17: Memory Recall (Restores The Image To The Factory Settings)

    Memory Recall (Restores the image to the factory settings): Press the “MENU” button then the “DOWN” button to select “MEMORY RECALL”. Memory Recall Screen Adjust (Changes the horizontal and vertical size, aspect ratio or scaling factor of the image): Press the “MENU” button then the “DOWN” button to select “SCREEN ADJUST”. OPTIONS: •...
  • Page 18: Horizontal Size

    HORIZONTAL SIZE: Press the “MENU” button then the “DOWN” button to select “H SIZE”. Use the “UP” / “DOWN” buttons to increase or decrease the Horizontal Size. The image width will change on the right side. Adjust to desired size. Once desired size is achieved you will have to adjust the “HORIZONTAL POSITION”...
  • Page 19: Test Your Saved Settings

    TEST YOUR SAVED SETTINGS: Power the unit OFF and back ON using the POWER BUTTON on the keypad. The image should stay as you set it. TROUBLE SHOOTING: RETURN FLAT PANEL TO PC OPERATION ONCE IT HAS BEEN CHANGED TO DVI 1.
  • Page 20: Troubleshooting

    TROUBLESHOOTING LCD Pixel Statement - The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or colored dots. This has no effect on the recorded image and does not constitute a malfunction. Troubleshooting Suggestion Symptom...
  • Page 21 4. Lamp in Flat Panel may have failed. * Contact Aydin Displays, Inc. and return unit for repair if suggestion 1 or 2 does NOT fix the Dim Image. The timing is special and not programmed In the MCU.
  • Page 22: Cleaning Instructions

    CLEANING INSTRUCTIONS • When cleaning, unplug the AC adapter from the LCD display and outlet for safety. • Lightly wipe dirt from the cabinet and LCD panel surface with a clean lint-free cloth soaked in a neutral cleaning solution. This removes dust and other particles that can scratch the screen •...
  • Page 23: Cfp24W2 Series 24-In Lcd Specifications

    CFP24W2 Series 24-In LCD Specifications Size/Technology 24.0” WUXGA Color TFT-LCD Viewing Area 518.4 (H) mm x 324 (V) mm Pixel Pitch 0.270 mm x 0.270 mm Back Light (Typical) 50,000 Hours Viewing Angle (H/V, Typical) 89° (Left), 89° (Right) / 89° (Up), 89° (Down) @ CR = 10...
  • Page 24: Universal Video Input Unit Option

    • Mounting the (UVI) Box hardware is determined by which Flat/ Panel monitor you have. The following list is for Aydin Displays Flat Panel systems: • Mount the (UVI) box to the VESA 100 mounting holes located on the rear of the Flat / Panel monitor.
  • Page 25: Universal Video Input Box Specification

    Universal Video Input Box Specification: BNC Connector; 3/4/5 Wire RGB with Separate Sync, Composite Sync or Sync on Green. Supported Video Input HD15 VGA Standard Connector: Five Wire RGB with Separate Sync, Composite Sync or Sync on Green. D-sub 9 Pin: TTL input for EGA & CGA. 15 to 68 KHz Frequency Range 5 BNC’s - HD15 (VGA Analog) - 9-pin D-Sub...
  • Page 26: Contact Information

    Contact Information: Aydin Displays, Inc 1Riga Lane Birdsboro, PA 19508 Phone: 610-404-7400 Fax: 610-404-8190 www.aydindisplays.com 150-CFP-240 Page 26 of 26...
