Aydin Displays Cambridge User Manual

Slow scan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

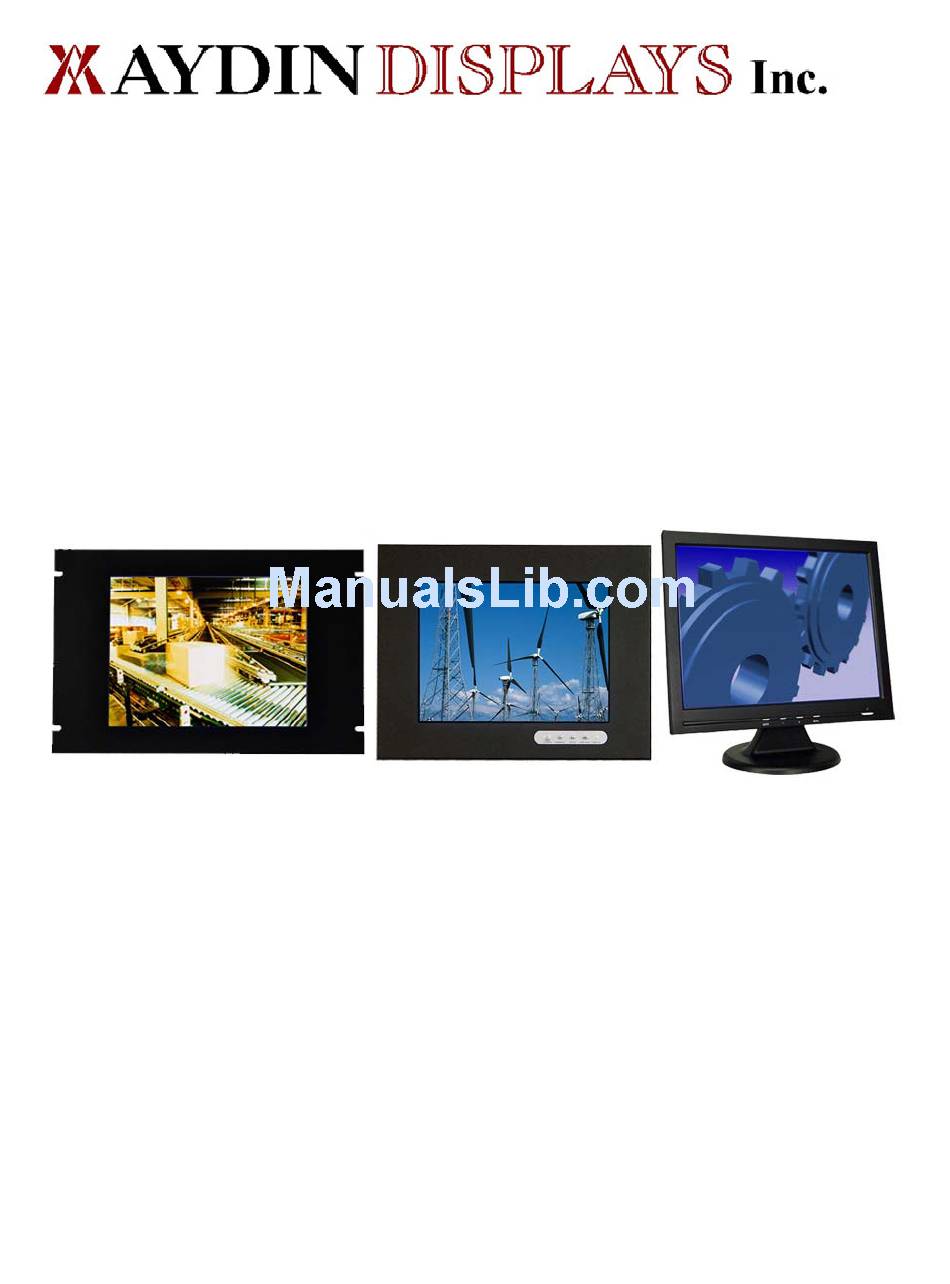

CAMBRIDGE
USERS MANUAL
CFP15 Series Slow Scan
Panel Mount
Rack Mount
Plastic Tabletop
LCD Monitor User Guide
Document No. 150-CFP-15SS(-)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cambridge and is the answer not in the manual?

Questions and answers

Related Manuals for Aydin Displays Cambridge

Summary of Contents for Aydin Displays Cambridge

  • Page 1 CAMBRIDGE USERS MANUAL CFP15 Series Slow Scan Panel Mount Rack Mount Plastic Tabletop LCD Monitor User Guide Document No. 150-CFP-15SS(-)

  • Page 2: Table Of Contents

    SERIES PRODUCTS CFP15R1-230-00A,B,C,D CFP15P2-230-00A,B,C,D CFP15T2-230-00A,B,C,D SLOW SCAN SERIES INDUSTRIAL TFT LCD DISPLAY USER'S MANUAL ERROR! BOOKMARK NOT DEFINED. FCC AND CE RADIATION STATEMENT....................3 FCC ...................................3 CE....................................3 CE C ........................3 OMPLIANCE TATEMENT CAUTION!................................3 PRECAUTIONS................................3 INTRODUCTION............................4 :.............................4 RODUCT ESCRIPTION :..............................4 ACKAGE ONTENTS :............................4...

  • Page 3: Fcc And Ce Radiation Statement

    FCC and CE Radiation Statement This equipment has been tested and found to comply with limits for Class B digital device pursuant to Part 15 Federal Communications Commission (FCC) rules. This equipment has been tested and found to comply with the limits of the European Council Directive on the approximation of the law of the member states relating to electromagnetic compatibility (89/336/EEC) according to EN 55022 Class B.

  • Page 4: Introduction

    INTRODUCTION Thank you for choosing this high-quality Flat Panel TFT-LCD Color Monitor. It combines the features of a MONITOR with a THIN FILM TRANSISTOR Liquid crystal display (TFT-LCD). This new generation of TFT-LCD incorporates a high quality display in a lightweight module. Product Description: This industrial series LCD Displays is rugged, high performance, Active Matrix color/monochrome TFT LCD monitors designed for those demanding applications that required a rugged, high quality computer...

  • Page 5: M Enu O Perating I Nstructions

    Menu Operating Instructions: Your LCD monitor allows you to easily adjust the characteristics of the image being displayed. All of these adjustments are made using the control buttons on the front of the monitor. While you use these buttons to adjust the controls, the OSD (On Screen Display) shows you their numeric values as they change.

  • Page 6: D Irect A Ccess F Eatures

    Direct Access Features: 1. Push “Auto” to set display to the optimal image. 2. With the OSD off, push the “MENU” button to display the main OSD menu. 3. Use “+/-“ buttons to select the function, and press the “MENU” button once to activate the selected function.

  • Page 7: Specification – Cfp15 S Eries 15- Inch Lcd

    SPECIFICATION – CFP15 Series 15-inch LCD Tabletop Models All Other Models Size/Technology 15” TFT Active Matrix LCD 15” TFT Active Matrix LCD Viewing Area 304.128mm x 228.096mm 308.8mm x 231.9mm Pixel Pitch 0.297 mm x 0.297 mm Native Resolution 1024 x 768 Pixels Back Light 50,000 Hours Typical Viewing Angle (h/v)

  • Page 8: Cleaning Instructions

    CLEANING INSTRUCTIONS Gently wipe the screen with a clean, soft, lens brush or a soft clean, lint-free cloth. This removes dust and other particles that can scratch the screen. Do not apply pressure to the screen surface when wiping it clean. Do not pour or spray any liquid directly onto the screen or case of the LCD monitor.

This manual is also suitable for:

Cambridge cfp15 series
