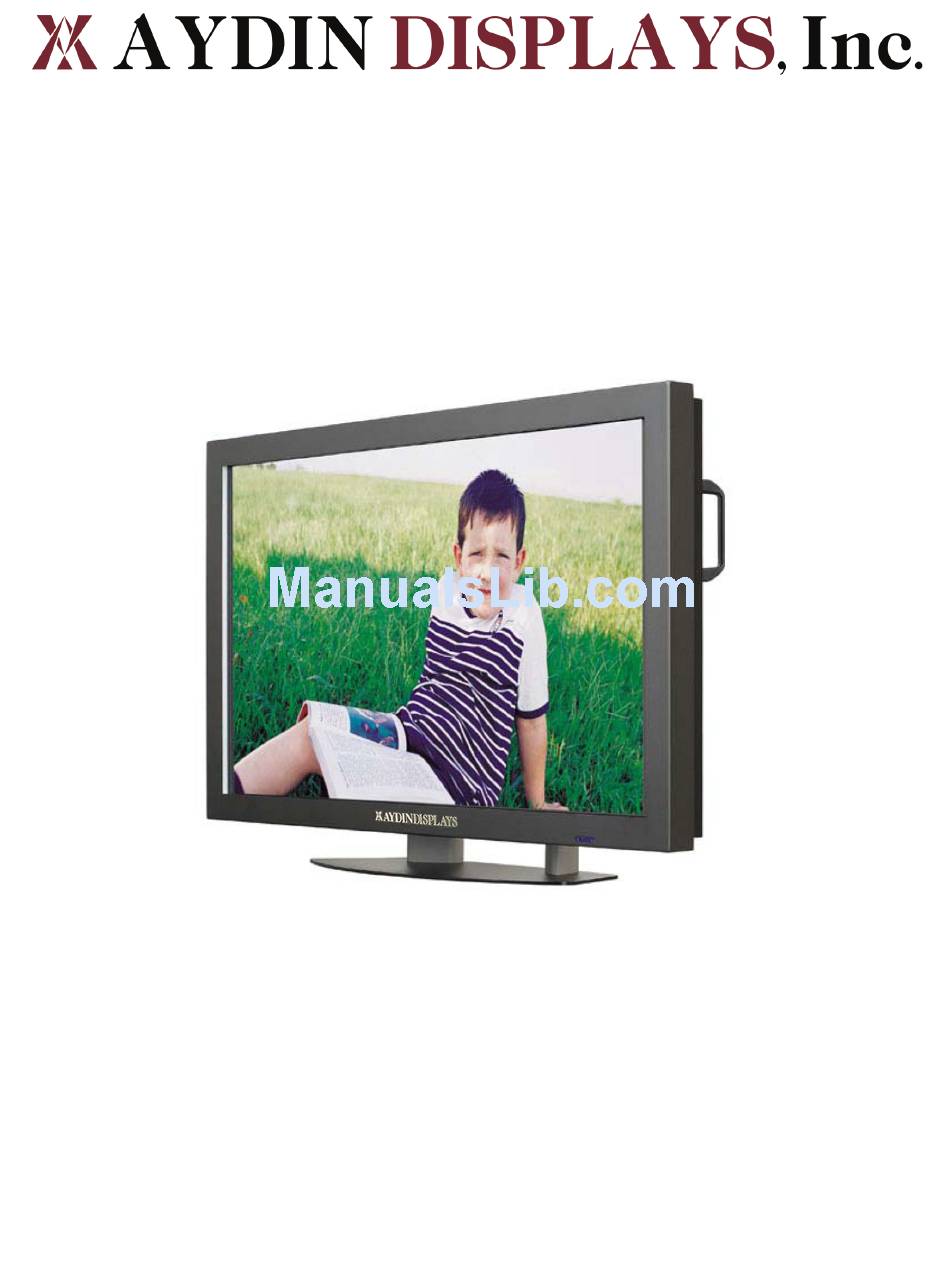

Page 1: Users Manual
Cambridge Users manUal CFP42W1 large sCreen series lCd monitor Users gUide document 150-CFP-420... -
Page 2: Table Of Contents
Contents Important Safety Instructions ………………………………………………... Safety Precautions …………………………………………………………………...…… 3 Installation ………………..………………………………………………………….…… Use Caution ……………………………….………………………………………………… 5 Keeping Your Display Clean ……………….…………………………………….………… 5 Features………………………………………………………………….……..Package Contents ………..…………………….……………………………... Dimension ……………………………………………………………………………….… Installation ……………………………………………………………………………….… Power Input …………….…….………………………………………………………….… Power Interface ………..…….………………………………………………………….… Connection …………….…..……….……………………..…………………………….… Operating The Monitor …….…………….……………………………....11 The Side Controller Of The Monitor ………..……………………..….…………….…... -
Page 3: Important Safety Instructions
If the monitor is still used in this condition, it may cause a fire or an electrical shock. Contact Aydin Displays for a return authorization. If there isn’t picture, remove the power plug from the outlet immediately . -
Page 4: Installation
. If the monitor is still used in this condition, it may cause a fire or an electrical shock. Contact Aydin Displays for a return authorization. Installation (when install the monitor, please follow the instruction on the manual ) Don't install in the high-temperature environment. -
Page 5: Use Caution
Use Caution When having installation problems, contact Aydin Displays at 610-404-7400. Protect and correctly use the power cord/ plug. Don't heavy press the power cord/ plug, don't step on the power cord/plug. Connect the power cord and the monitor, before insert the power plug into the wall outlet. -
Page 6: Package Contents
Package Contents Unpacking CFP42W1 is packed by the carton box. During transportation, in order to protect the monitor, CFP42W1 is packed by cushions to be safe protect and package. Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet for your monitor. - Page 7 Top cushion & Accessories Box The Monitor Bottom cushion Packing list Q’ty Item Q’ty Item 1 set CFP42W1 1 pcs DVI-D 24 pin cable 1 pcs Power cord 1 pcs D-SUB 15pin cable 1 pcs User's manual 1 pcs S-VIDEO Mini Din 4 pin cable...
-
Page 8: Dimension
Dimension (Front & Back) 150-CFP-420 Page 8... -
Page 9: Installation
Installation Environmental state Operating temperature︰ 5℃ ~ 40℃ (Fahrenheit : 41℉ ~ 104℉) Humidity︰ max. 85% Power Input Power Cord AC Power cord This power cord is used to connect the side controls of the LCD monitor and the wall outlet. ○... -
Page 10: Connection
Connection VIDEO SIGNAL INPUT/OUTPUT Terminal Type Suitable signals CVBS-IN NTSC/PAL S-VIDEO-IN NTSC/PAL YUV (Y Pb/Cb Pr/Cr)-IN NTSC/PAL CVBS-OUT NTSC/PAL S-VIDEO-OUT NTSC/PAL YUV (Y Pb/Cb Pr/Cr)-OUT NTSC/PAL RGB INPUT/OUTPUT Terminal Type Suitable signals RGB DIGITAL DVI-D 24 pin RGB DIGITAL RGB ANALOG-IN D-Sub 15 pin RGB ANALOG (720p, 1080 i/p) RGB ANALOG-OUT... -
Page 11: Operating The Monitor
Operating The Monitor The Side Controller Of The Monitor Description Power Power Switch ; Power ON/OFF ENTER Activate selection 〈 / + Menu right / Value increasing 〉/ - Menu left / Value decreasing ＾ Menu down ﹀ Menu up MENU Enter OSD menu / Exit menu or select The Remote Control (RCU ) Instructions... -
Page 12: Change The Rcu Battery
Change The RCU Battery (RCU option) Push down as picture (1) and pull the back cover. Replace with the new batteries as picture (2), 1 piece Lithium battery(CR2032) make sure the polarity of batteries are correct. iii. Place back cover and slide it is as picture (3). Used batteries needed to follow the city rule to be discarded. -
Page 13: Display Mode
Display Mode Main Source mode The main source mode will be changed in the sequence as follows: VGA/DVI/ Composite (AV) / S-Video/ Component (YPbPr) by remote control or press “MENU”->” ” by the side controller of the monitor. PIP(sub source) mode Press “PIP”... -
Page 14: Osd Menu Function
OSD (On Screen Display) Menu Function Main Menu Sub-Menu Description Setting (base on IGP mode) Main / Brightness 0~100 Adjust the brightness of the screen Second Contrast 0~100 Adjust the contrast of the screen Input -45~+45 Adjust the picture hue of the screen signal DISPLAY Saturation... - Page 15 Vertical 0~255 Adjust the OSD menu V-position Horizontal 0~255 Adjust the OSD menu H-position OSD menu Blend 0~15 Adjust the OSD menu of blend Time out 0~60 Adjust the OSD menu display time OSD Zoom On/Off Magnify the OSD menu Language Language English...
-
Page 16: Osd Operating
OSD Operating Structure of OSD Menus A. Main Menu On side of controller: Press “MENU” to enter Main Menu ＜/ ＞ ﹣ Press“ ” or “ ” to select Main Menu ex (Picture setting, Language, Original Default Setting) On RCU: Press “MENU”... - Page 17 D. Language Setting (English only) On side of controller: 1. Press “MENU” to enter Main Menu. ＞ ﹣ 2. Press “ ” 3 times and press the “Enter” to enter item. ﹀ 3. Press ” ” to select sub-item(English only), 4.
-
Page 18: Default Setting
Default Setting Item Default Power switch Brightness Contrast Color temp. User Green Blue Language English Auto Adjust 150-CFP-420 Page 18... -
Page 19: Supported Timing
Supported Timing Sync Horizontal (dot) Vertical (line) polarity Video Mode clock (kHz) (Hz) (MHz) 31.469 59.940 25.175 VGA 640x480 37.861 72.809 31.500 37.500 75.000 31.500 35.156 56.250 36.000 1024 37.879 60.317 40.000 1056 SVGA 800x600 48.077 72.188 50.000 1040 46.875 75.000 49.500 1056... -
Page 20: Specification
Specification Item Specification Unit Pixel Number 1920 x R.G.B. x 1080 pixel Pixel Arrangement RGB Vertical Stripe Display Color 16.7M color Trans-missive Mode Normally Black LCD panel Viewing Angle (H / V) 176 / 176 degree Brightness 500 (typ.) cd/m2 Contrast Ratio 1000(typ.) Response Time... -
Page 21: Troubleshooting
Troubleshooting Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Perform the adjustments according to page 10 “Operation The Monitor” Refer to the following items if you can’t find a proper item listed in the Operating the Monitor or if the problem remain. - Page 22 Appendix I Moving Notice: Moving the monitor requires at least two people. If not, it may drop and a serious injury may result. Moving/shipping the monitor, please hold the white handles and be sure to make the bundle. If not, it may drop and a serious injury may result.
-
Page 23: Appendix Ii
Appendix II Industrial VESA Wall Mount kit Please follow all manual instructions and refer all servicing to qualified service personnel. Moving the monitor requires at least two people. If not, it may drop and a serious injury may result. Before installing, please check the installing manual in wall mount kit box. Before installing, please make sure the wall is strong enough. - Page 24 150-CFP-420 Page 24...
- Page 25 150-CFP-420 Page 25...
- Page 26 150-CFP-420 Page 26...
- Page 27 150-CFP-420 Page 27...
