User's Guide
Rack Mount Models (VFP19R2)
Panel Mount Models (VFP19P1/P2)
Stainless Steel Models (VFP19S4)
VESA Mount Models (VFP19W2)
Touch Options: Resistive, Capacitive, SAW
Model VFP19
19.0-INCH AMLCD FLAT PANEL
COLOR MONITOR
Replaces: VFP19 Series 301, 501, 701 VFP18 Series 001, 101
Document No. 150-VFP19-003 Rev. 0.2a, July 2014
Advertisement
Table of Contents
Related Manuals for Aydin Displays VFP19R2
Summary of Contents for Aydin Displays VFP19R2
-

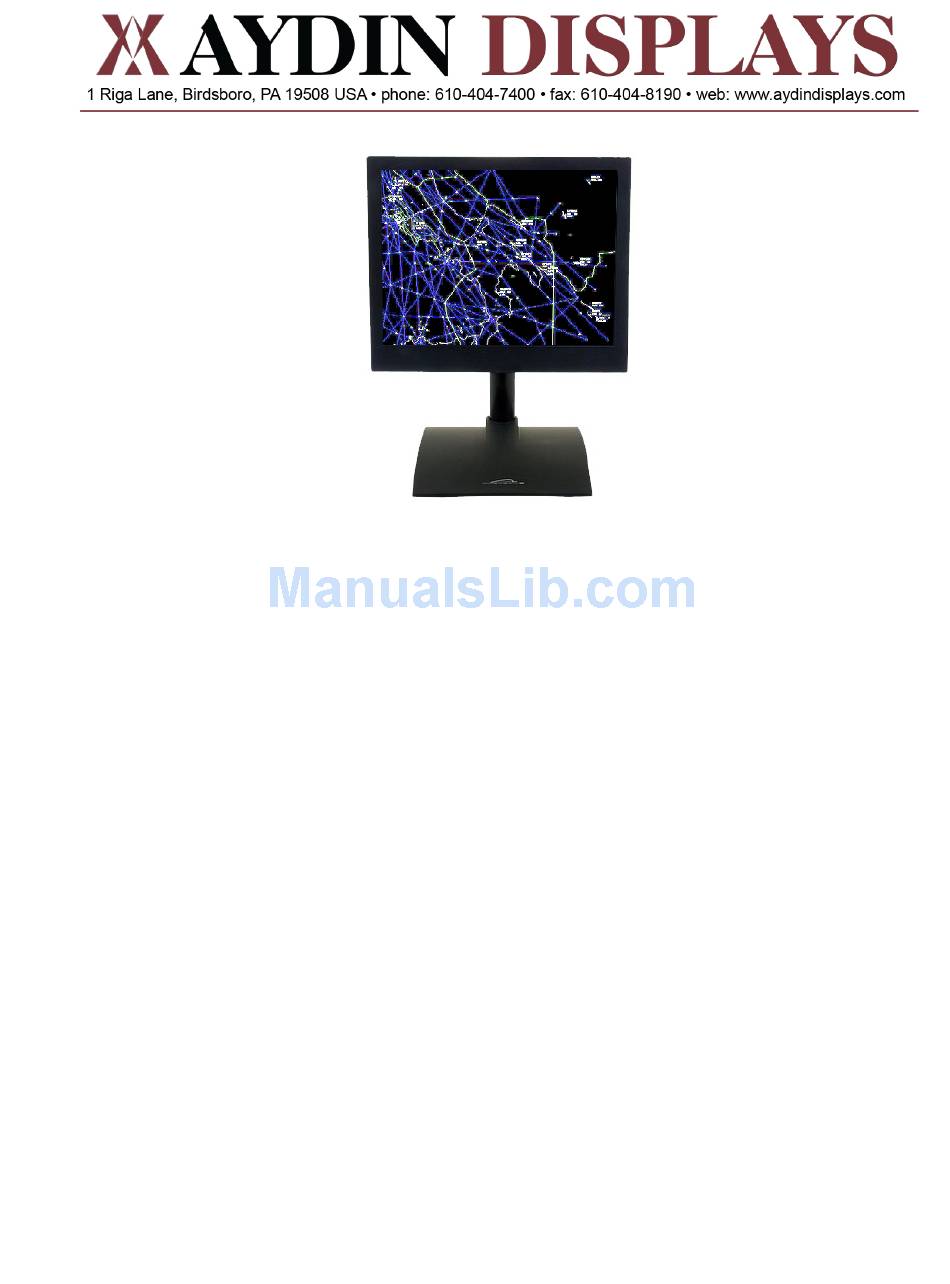

Page 1: Color Monitor
User’s Guide Rack Mount Models (VFP19R2) Panel Mount Models (VFP19P1/P2) Stainless Steel Models (VFP19S4) VESA Mount Models (VFP19W2) Touch Options: Resistive, Capacitive, SAW Model VFP19 19.0-INCH AMLCD FLAT PANEL COLOR MONITOR Replaces: VFP19 Series 301, 501, 701 VFP18 Series 001, 101... - Page 2 Aydin Displays reserves the right to modify or revise the content of this manual. It is further understood that in consideration of the receipt or purchase of this...
- Page 3 WARNING TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
-
Page 4: Product Safety Precautions
PRODUCT SAFETY PRECAUTIONS The socket-outlet of power supply shall be installed near the equipment and shall be easily ♦ accessible. Follow all warnings and instructions marked on the display. ♦ Do not attempt to service this display yourself. There are no user replaceable parts inside and ♦... - Page 5 Thank you for purchasing the Aydin Displays VECTOR Display. This carton contains the items listed below: VFP19 LCD Display ♦ Power cord ♦ Video signal cable (HD15 male HD15 male) ♦ DVI Video Cable DVI-D (M) to DVI-D (M) ♦...
-
Page 6: Table Of Contents
Table of Contents INTRODUCTION ........................1 SPECIFICATIONS ........................1 .............................1 NPUTS 2.1.1 Power ..........................1 2.1.2 DVI..........................1 2.1.3 Analog R-G-B .........................1 2.1.4 Composite Video ......................2 2.1.5 S-Video..........................2 2.1.6 RS232 Touch Panel Interface ..................2 2.1.7 USB Touch Panel Interface ....................2 FRONT PANEL BUTTONS/ON-SCREEN DISPLAY.............3 ......................3 RONT ANEL... -
Page 7: Introduction
Introduction The Model VFP19 AMLCD Monitor is a 19.0-IN diagonal display with a native resolution of 1280 x 1024 (SXGA) pixels. It is available in two brightness levels, a standard brightness level of 300 nits typical or a high brightness level of 520 nits typical. Inputs are provided for DVI-D, VGA, Composite (NTSC, PAL or SECAM) Video, and S-Video (NTSC, PAL or SECAM). -
Page 8: Composite Video
2.1.4 Composite Video Connector: RCA Jack Supports NTSC, PAL or SECAM 2.1.5 S-Video Connector: 4-Pin mini-DIN (Standard S-Video pin-out) Supports NTSC, PAL or SECAM 2.1.6 RS232 Touch Panel Interface If the RS232 and USB Touch interfaces are connected at the same time, the USB overrides the RS232 interface. -
Page 9: Front Panel Buttons/On-Screen Display
Front Panel Buttons/On-Screen Display 3.1 Front Panel Buttons Press MENU/SELECT button to display the On-Screen-Display (OSD). Use the + and – buttons to move the cursor to the desired menu selection and press the MENU/SELECT button to access the adjustment or function. With the EXIT button you can exit the current function and go back to the previous menu point. -
Page 10: Input Select - Main Picture Channel
3.1.1 Input Select – Main Picture Channel Selects the input source for the Main Picture. Main Menu Input Select Main Picture Channel Image Adjustments Scan Inputs Component Color Adjustment PIP Mode √DVI Video Settings S-Video Scaling Adjustments Composite Video System Settings 3.1.2 Input Select –... -
Page 11: Input Select - Pip Mode
3.1.3 Input Select – PIP Mode Selects for a single Main Picture, a Picture in Picture (PIP) or Side by Side in the same fixed size. Main Menu Input Select Main Picture Channel Image Adjustments Scan Inputs Color Adjustment PIP Mode √Off Video Settings PIP Channel... -
Page 12: Input Select - Pip Ver. Position
3.1.5 Input Select - PIP ver. Position Adjusts vertical position of PIP. Main Menu Input Select Main Picture Channel Image Adjustments Scan Inputs Color Adjustment PIP Mode Video Settings PIP Channel Scaling Adjustments PIP hor. Position PIP ver. Position Swap Main & PIP 3.1.6 Input Select –... -
Page 13: Color Adjustment
Color Adjustment The adjustments provided on the Color Adjustment sub-menu only affect the Main Picture Channel, not the PIP, and is only available when VGA is selected for the Main Picture Channel input. It is recommended that all Color Adjustment parameters be left at factory default. Auto Color Adjust is pattern sensitive and may not give consistent results. -
Page 14: Video Settings
Video Settings This sub-menu is only available when S-Video or Composite Video is selected as the Main Picture Channel input. Main Menu Input Select Motion Processing Image Adjustments Sharpness Color Adjustment Film Mode Video Settings Noise Reduction Scaling Adjustments Mpeg Processing System Settings Decoder Settings 3.4.1 Video Settings –... -
Page 15: Scaling Adjustments
Scaling Adjustments The adjustments provided on the Scaling Adjustments sub-menu only affect the main Picture channel, not the PIP. Main Menu Input Select Scaling Mode Image Adjustments Picture Flip Color Adjustment Video Settings Zoom Scaling Adjustments Hor. Pan System Settings Ver. -
Page 16: System Settings
System Settings Main Menu Input Select OSD Timeout Image Adjustments OSD Hor. Pos. Color Adjustment OSD Ver. Pos Video Settings OSD Blend Scaling Adjustments OSD Orientation System Settings OSD Language Reset to Default 3.6.1 System Settings - OSD Timeout OSD Timeout default is 30-seconds. Time should be set between 5 and 60-seconds. Setting the value to 0 will cause the OSD to permanently stay on. -
Page 17: Maintenance
Maintenance Preventive Maintenance The window and exterior surfaces may be cleaned with isopropyl alcohol followed by distilled water rinse, applied with a soft cloth to avoid scratching the anti-reflective coating of the viewing window. Troubleshooting (No Picture) NO PICTURE: • If the RED LED is lit, verify the FPD is powered on, verify that the signal cable is properly connected to the display and computer. -
Page 18: Touch-Screen Driver Information
All three touch panels use an eGalax_e controller which use the same software driver. Before installing a new driver, please remove any old drivers to prevent software conflicts. If you require further assistance, please contact Aydin Displays’ Customer Service at 610-404-5370. http://home.eeti.com.tw/DriverDownload.html... -
Page 19: Vector 19 Specifications
Vector 19 Specifications Visual Performance Standard Brightness Unit: Diagonal: 19-inch TFT Active-Matrix LCD Active Display Area: Horizontal: 376.32mm Vertical: 301.06mm Backlight: Pixel Pitch: 0.294 mm Luminance: 350cd/m (typical) Contrast Ratio: 1000:1 (typical) Resolutions Supported: 640x350 @ 70 Hz 640x480 @ 60-75 Hz 720x400 @ 70 Hz 800 x 600... -
Page 20: Input Connectors
Input Signal: Video: Analog input, 0.7 Vp-p/75 Ohms Digital input, DVI-D Analog Video Sync: Supports separate H & V sync, separate composite sync, and sync on green. Separate sync signals are TTL Level, positive or negative. Sync on Green Video: 0.7 Vp-p and sync negative 0.3 Vp-p Input Connectors: Digital: Single-Link DVI-D.
