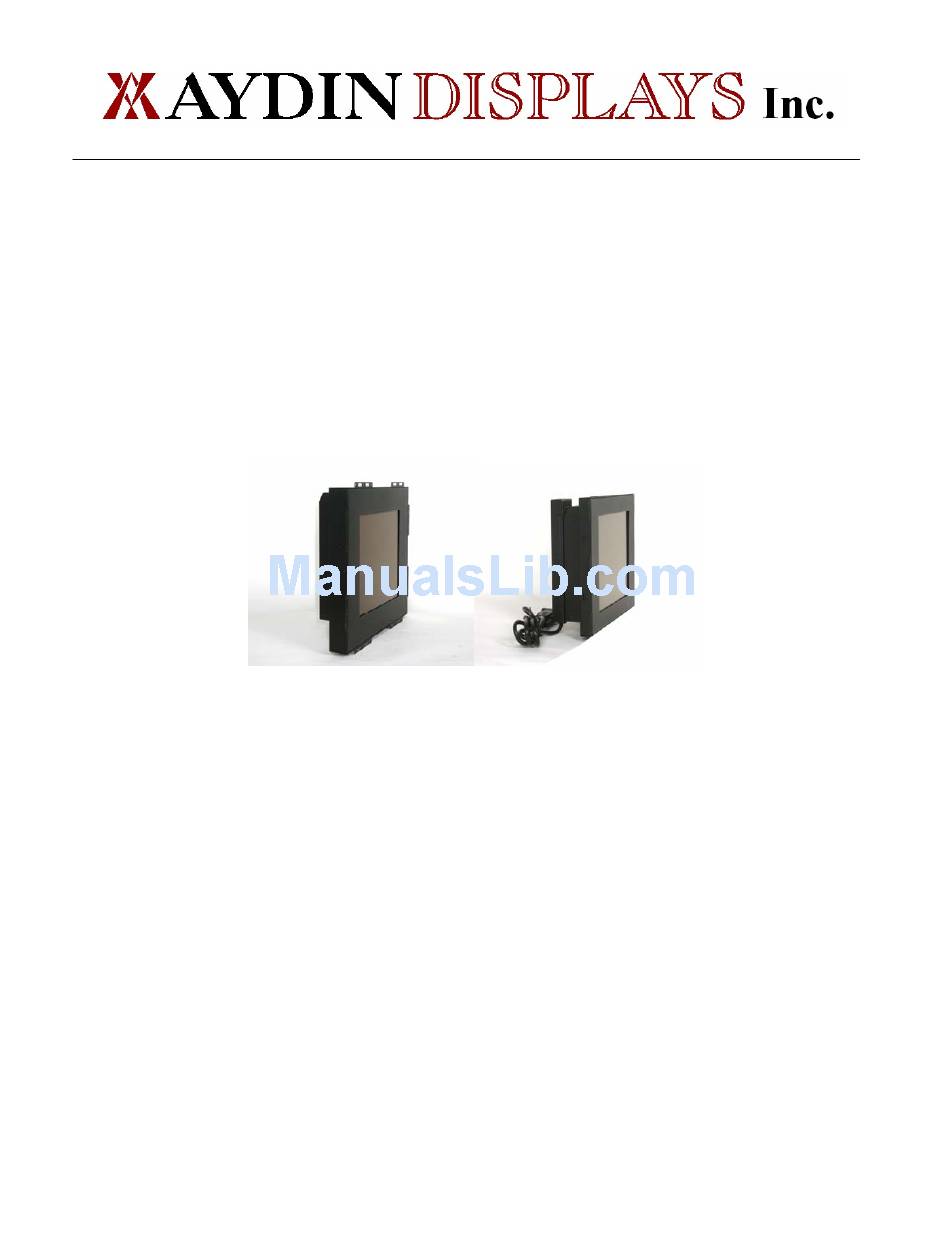

Page 1: Users Manual
CAMBRIDGE USERS MANUAL CFP/CFL19 Series CFP19C1 Chassis Standard CFL19P1 IP65 Panel Mount Standard CFL19R2 Rack Mount Standard LCD Monitor User Guide 150-CFL-190(-) -
Page 2: Table Of Contents
Contents Section 1 Display Set-up....................... 3 Product Safety Precautions ....................3 Included Parts ........................3 Connecting Your Display ....................4 Section 2 Getting Started......................5 Display Features ......................... 5 OSD (On Screen Display) Layout & Functions..............5 OSD Adjustments ......................5 Section 3 Touch Screen Set-up.................... -
Page 3: Section 1 Display Set-Up
Display Setup Section Product Safety Precautions Safety Precautions CAUTION: SHUT OFF YOUR TOUCH SCREEN BEFORE CLEANING!! IF YOUR DISPLAY HAS A TOUCH SCREEN PANEL, THE SCREEN WILL BE ACTUATED BY CLEANING. PRESSING ON THE SCREEN WHILE CLEANING WILL BE SEEN AS A TOUCH TO THE SYSTEM WHICH COULD CREATE A POTENTIALLY DANGEROUS CONDITION! •... -
Page 4: Connecting Your Display
Connecting Your Display 1. Connect all cables to the computer first. This includes the VGA cable, and if the unit has a touch screen, the RS-232 serial or the USB touch screen connection. This unit may also have optional video which provides NTSC and S-Video connections. -
Page 5: Section 2 Getting Started
Getting Started Section Display Features • The LCD is capable of displaying 16.7M colors in a continuous spectrum. • The LCD adjusts the display to VGA (640 x 480) or SXGA (1280 x 1024). • The LCD is supplied with an Anti-Glare Touch Screen or an Anti-Glare impact window on non touch screen models. -
Page 6: Hot Keys
HOT KEYS Name of Key When OSD is not Active When OSD is Active POWER Power on/off Power on/off MENU Pop-up OSD menu Confirm select or exit function DOWN Pop-up brightness menu Decrease the value of OSD function Pop-up contrast menu Increase the value of OSD function AUTO Auto tuning size, centers…... - Page 7 OSD Menu Operation Under VGA & DVI mode: Press the MENU button to active Main Menu: Default MAIN MENU Range BRIGHTNESS 0 to 100 CONTRAST 0 to 100 DISPLAY ADJUST ** Sub-1 COLOR TEMPERATURE Sub-2 LANGUAGE Sub-3 OSD ADJUST Sub-4 INPUT SELECTION Sub-5 RESET...
- Page 8 Sub-3 LANGUAGE ENGLISH SPANISH GERMAN ITALIAN FRENCH CHINESE RETURN Sub-4 OSD ADJUST Range Default OSD H-POS 0 to 100 OSD V-POS 0 to 100 OSD TIMER 4 to 104 OSD TRANSPARENCY 0 to 100 OFF/30MIN/60/90/ TEA TIME 2 HOUR/DEMO RECALL RETURN Sub-5 INPUT SELECTION...
- Page 9 Under Video or S-Video mode: Press the MENU button to active Main Menu: VIDEO ADJUST Range Default CONTRAST 0 to 100 BRIGHTNESS 0 to 100 COLOR 0 to 100 SHARPNESS 0 to 100 0 to 100 INPUT TYPE 4:3/16:9 INPUT SELECT Sub-1 RECALL EXIT...
-
Page 10: Section 3 Touch Screen Set-Up
Touch Screen Set-up Section Introduction to Touch Screens Touch screen interfaces have become the standard interface in the past 5 years. They are rugged, reliable, extremely flexible and easier than ever to implement! The universal acceptance of the Windows GUI (Graphical User Interface) along with the extensive use of a mouse interface has significantly accelerated the use of a touch interface. -
Page 11: Section 4 Mounting Instructions
Mounting Instructions Section Chassis Mounting Procedure The chassis is provided with two top and two bottom mounting tabs so that the chassis can be mounted to the inside of a hole opening the size as shown in the mechanical drawing. The attachment can be from resident panel studs or screws from the front of the panel with nuts and washers from the rear. -
Page 12: Rack Mounting
Rack Mounting Procedure All Aydin Displays, Inc. standard rack products conform to 1U Retma standards. The rack unit will mount directly to the front vertical risers in the rack cabinet. The display is flush with the rack panel (some are fitted with handles which protrude forward off the rack panel). -
Page 13: Section 5 Touble Shooting Tips
Troubleshooting Tips Section No picture The signal cable should be properly connected to the display and computer. Try disconnecting the video cable from the display and connecting to another display if available to confirm the presence of proper video. Make sure the power is connected to the proper AC source. Make sure the resolution mode is supported by the display and check display settings of the PC. - Page 14 Display image is not Press the “Select” button to Auto Adjust the display. properly sized Adjust the Vertical and Horizontal size controls via the OSD (Reference OSD Adjustments). Ensure that a supported mode is selected on the display card or system being used. Consult the display card or system manual for proper video.
-
Page 15: Section 6 Cleaning And Maintenance
Cleaning & Maintenance Section Cleaning Occasionally clean the display panel and cabinet with a soft cloth dampened (not soaked) with a mild (non-abrasive) glass cleaner. Keep turning a fresh side of the cloth toward the screen surface to avoid scratching it with accumulated grit. NOTE: The solvent should be applied only to the cloth, NOT directly on the monitor screen. -
Page 16: Section 7 Appendices
Appendices Section Appendix A – Video Pin Assignments Pin assignments for the HD15 Video Connector Pin 1 Red Video Pin 9 No Connection Pin 2 Green Video Pin 10 Sync Ground Pin 3 Blue Video Pin 11 Not Used Pin 4 Not Used Pin 12 Bi-Directional Data... -
Page 17: Appendix C - Ntsc/Pal And S-Video
Appendix C – NTSC/PAL and S-Video S-Video S-Video, originally known as "Y/C Separated Video", is one of the higher quality ways to transmit a television signal from a peripheral device (DVD player, PlayStation 2, etc.) to a television. The way S-Video works is that it separates the color information (Chrominance) from the brightness (Luminance). -
Page 18: Appendix D - General Specifications
Appendix D – CFP/CFL19 Specifications Active Screen Area 14.82” x 11.85” (376.32 x 301.06mm) Pixel Pitch .294mm Response Time 4/12 ms typical Brightness 250 nits (optional 400 nit) Contrast 450:1 Max Screen Resolution SXGA PC Video Input Separate Sync (5 Wire) Screen Controls Rear or Remote Video (optional) -
Page 19: Appendix E - Mounting Dimensions
Appendix E – Mounting Dimensions CFP19C1 Chassis Outline Dimensions Unavailable 150-CFP-190(-) - Page 20 Appendix E – Mounting Dimensions CFL19P1 Panel Mount Outline Dimensions 150-CFP-190(-)
- Page 21 Appendix E – Mounting Dimensions CFL19R2 Rack Mount Outline Dimensions 150-CFP-190(-)
- Page 22 Appendix E – Mounting Dimensions CFL19W1 VESA Wall Mount Outline Dimensions 150-CFP-190(-)
