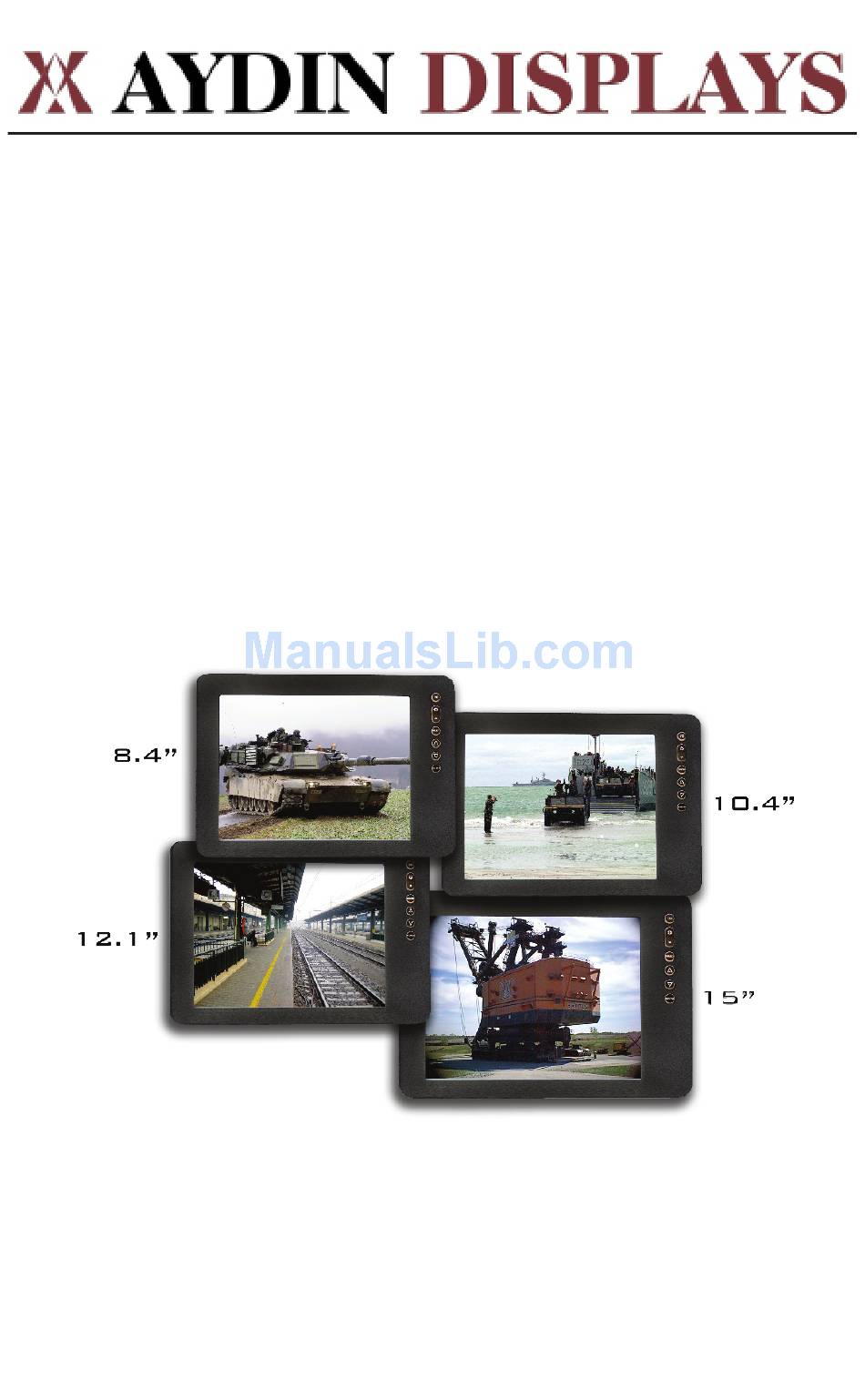

Page 1: Users Manual
CAMBRIDGE USERS MANUAL ALL WEATHER 8.4” - 15.0” IP67 SEALED SERIES MILITARy GRADE PANEL MOUNT ARM MOUNT LCD Monitor User Guide Part No. 150-7000-002... -
Page 2: Table Of Contents
Table of Contents Introduction ................Safety ..................Product Care and Maintenance............ System Set-up ................Installation ................Display Connections ..............Computer Hook-up ..............Operator Controls ..............On-Screen Display (OSD) ............Optional Touch Screen ............. Appendix A - Mechanical Drawings .......... Appendix B - Troubleshooting ........... -
Page 3: Introduction
Welcome. The Aydin MIL-Spec Monitor is a ruggedized marine grade LCD Display for use with a conventional RGB computer input. It is designed to operate under the most extreme environments found in high performance vessels such as public safety, government and military marine craft, as well as submarine vessels. The ruggedized displays are capable of operating in environments that include extended temperatures, extreme shock and vibration, direct exposure to salt water and other environmental conditions. -
Page 4: Safety
SafeTy General Safety Instructions • Before operating this Monitor, read this User Manual thoroughly • Retain this User Manual for future use • Verify the computer system capability (see System Set-up) to insure operation of the Monitor • For expeditious installation, follow these User Manual instructions in the sequence presented •... -
Page 5: Electrical Safety
• Exhibits a distinct change in performance, indicating a need for service. Shipping If the unit should need to be shipped to the Aydin Displays Service Center, the original packing material should be used to insure safety in shipping. Repack the unit as it would have originally been received from Aydin Displays. -
Page 6: Product Care And Maintenance
PrODUCT Care anD MaInTenanCe Product Care This monitor has been designed to provide optimum performance and service without any required scheduled maintenance other than occasional cleaning. Turn off the Monitor power before cleaning the Monitor, optional Touch Screen or unit’s enclosure. warning! •... - Page 7 To avoid risk of electrical shock, do not disassemble the unit’s enclosure. Users cannot service the Monitor. User maintenance is restricted to cleaning, as ex- plained. Disassembling the unit voids the warranty. warning! Long-term Storage • For long-term storage, it is suggested the unit be stored in a normal indoor environ- ment and the Display glass be protected from accidental damage.
-
Page 8: System Set-Up
The display is shipped in a custom box with custom foam packaging. We recommend you save the box and all packaging materials in case the unit would need to be returned to the Aydin Displays Service Center. In the shipping box you shall find: •... -
Page 9: Installation
InSTaLLaTIOn The display is designed to be mounted with a universal ball-and-socket mounting kit, in a flat panel or optional flush mount configuration. Optional Pedestal Mount The display can be supplied with a RAM® universal ball-and-socket system mounting kit (Figure 2). By installing the monitor with this kit, the user can quickly adjust the viewing angle to improve viewability in changing environments. -
Page 10: Panel Mount
There are three mounting holes in the back of the Monitor for the ball mounting plate. Take care not to strip the screw holes or over tighten. (Figure 4) • Line up one of the ball mounting plates on these three holes (Figure 4) •... -
Page 11: Display Connections
DISPLay COnneCTIOnS Connectors Use care when inserting or removing connector. Do not force their mating. caution! There are two (2) MIL-DTL connectors on this model: Power Input and Video Input. (Figure 6, 7). Connectors are located on bottom of Display housing. From left to right: Power Input, a 3-Pin Connector and Video Input, a 13-Pin Connector. -
Page 12: Video Input
Video Input Video cable The Video Amphenol Connector is a 13-Pin Plug MIL-DTL-38999 Series I Connector. See Table 2. MIL-DTL-38999 SerIeS I • End User supplies Video Cable SIGnaL • 13-Pin Connector pin-out is listed in Table 2 Red Video Signal •... -
Page 13: Computer Hook-Up
COMPUTer HOOk-UP Computer Display Properties - XGA or SVGA Prior to connecting the monitor to the computer, with another monitor, verify the computer display properties are set to between 640x480 and 1024 x 768 in 4:3 aspect ratio. • The optimum setting for viewing is 800 x 600 (8.4”) or 1024x768 pixels (all other sizes). •... - Page 14 Select the Monitor tab. Under Monitor Settings, verify the Screen Refresh Rate is between 60 and 75Hz. • If so, select the Cancel button and go to step 9. • If not, select a setting within the 60 – 75Hz range •...
-
Page 15: Signal Quality
Signal Quality • The strength of the video signal provided to the display has a direct bearing on the quality of the images displayed • The cable supplied with the unit shall provide the optimum image if proper wiring practices are followed •... -
Page 16: Operator Controls
OPeraTOr COnTrOLS On the right hand side of the Monitor bezel are seven Operator Control buttons. Power On/Off (I/O) Button Power Button Note: Monitor defaults to an AUTO-OFF state when Brightness Control Toggle power is applied. (large sun, small sun) •... -
Page 17: On-Screen Display (Osd)
On-SCreen DISPLay The On-Screen Display (OSD) user interface is the path to all display signal source adjustments. The Source Screen Menu, with its user-friendly graphical interface, provides access to fine-tuning the Display. OSD Source Screen Menu activation To activate the OSD menu in the current video source, press and release the SELECT button. -
Page 18: Auto Color
OSD Source Screen Menu Parameter Selections • New settings shall be stored in memory upon pressing the SELECT button to exit the Source OSD Source Screen Category’s Function Menu. caution! • If SELECT is not pressed, or inactivity is detected within the 15 second factory default OSD duration, any function adjustments made shall not be saved. -
Page 19: Auto Power
Source Menu Parameters A check in a box indicates an enabled signal source attached to the monitor. Deselecting the box disables the monitor’s ability to display the signal. Video 1 - Composite • Open the “Video1“ function, and • Press the UP or DOWN buttons to enable (ON) or disable (OFF) the Video 1 source. Video 2 –... - Page 20 contrast, saturation, tint and sharpness. System • Select “System“ function to select the source signal type: NTSC, PAL and AUTO • Video 1 - Composite - NTSC • Video 2 - Inactive • Video 3 - Inactive • PC – RGB, and •...
-
Page 21: Optional Touch Screen
OPTIOnaL TOUCH SCreen Optional Touch Screen Installation If you are installing a new operating system (O/S), do not install the Touch Screen Controller Driver CD until you have installed the O/S and verified the computer’s monitor display is working properly. The Touch Screen Controller Driver uses the caution! computer’s O/S display driver software settings to accurately configure the Touch Screen Controller Driver files. - Page 22 Uninstall a Previous Version of Other Touch Screen Drivers If a version of a different Touch Screen Controller Driver (not TSHARC) is on the com- puter, it must be completely removed before installing the TSHARC. Note: The typical driver uninstall program or Microsoft’s® remove program utility does not remove all tracks of the Touch Screen Driver program.
- Page 23 TSHarC Installation If you need to cancel this driver installation at any time, select the Cancel button on the driver installation dialog screen. caution! 1. At the Welcome screen, select Next to go to the Software License Agreement (EULA) 2. After reading the EULA, if in agreement, check the box “I accept all of the terms…”...
- Page 24 Manual rS-232 Controller Set-up 1. Select the Controller Interface RS-232 radio button 2. Select Next Note: Do not select Autodetect 3. Follow the instructions, entering the COM port selection 4. The Touch Screen Controller baud rate default is 9600 Note: Capacitive Controller option is not available. 5.
- Page 25 Calibration The calibration process aligns the Touch Screen overlay to specific points on the Display screen. 1. Select the Calibration tab or, in ten seconds, the calibration program launches, unless a Multi-monitor situation is present, then go to section Configuring a Multi-monitor Installation 2.
-
Page 26: Touch Settings
Calibration Drawing Test 1. Select the Test button on the Calibration tab 2. Using a finger or stylus, draw or write, and 3. Observe if the screen displays the drawing accu- rately. If it does not, repeat the Custom Calibration Settings and Calibration Process instructions 4. - Page 27 Capacitive Tab – Disabled The Touch Screen is a resistive type; the Capacitive Tab shall be disabled. Touch Screen Tray Icon 1. If you do not want a Touch Screen Controller Icon to display in the toolbar tray, go to step 3, or 2.
-
Page 28: Appendix A - Mechanical Drawings
aPPenDIX a Mechanical Drawings Mount diagrams and its dimensions may assist you in installation of the Monitor. You may find them on our website at: http://www.aydindisplays.com navigate to Marine/Bridge/COTS Displays Mount diagrams of the optional Flush Mount Bezel and its dimensions may assist you in installation of the Monitor. - Page 29 Symptom: Display has rolling “bars” across the screen or vertical shaded bars on the image. Possible Problem Solution VGA video display is not set to view at 800 x Verify the computer video display settings of 600 pixels, or 1024x768 pixels. the signal are set to match the display and 60 - 75Hz refresh rate.
- Page 30 Symptom: Display image is not properly sized Possible Problem Solution OSD adjustments need to be made Adjust the vertical and horizontal size controls through the OSD. Improper video display settings Check for proper display properties selection of the display settings. Monitor autosize will only display full screen if source is 4:3 aspect ratio.
-
Page 31: Technical Specifications
aPPenDIX C Technical Specifications 8.4” 10.4” 12.1” 15” TFT AM, SVGA, LCD, 1024 x 768 Display OPTIOnaL OPTIOnaL XGA Display 262K Colors. 800 x 600 pixels 1024 x 768 1024 x 768 XGA Display XGA Display Standard: 1400 nits Sunlight ... -
Page 32: Appendix C -Technical/Environmental Specifications
Environmental Specifications 8.4” 10.4” 12.1” 15” -40°C to 70°C (-40°F to 158°F) Operating Temperature MIL-STD-810F: 501.4/502.4: II-Op Storage -40°C to 75°C (-40°F to 167°F) Temperature Shock 50 G Vibration ... -
Page 33: Warranty Terms And Conditions
Warranty Terms and Conditions cancellation charges will apply to any and Aydin offers it’s products and services all unshipped items. Partial credit may be for sale under the following terms and extended if products are returned unused conditions. Any and all orders will be in original packaging within 30 days of accepted only at the sole discretion of Aydin shipment.
