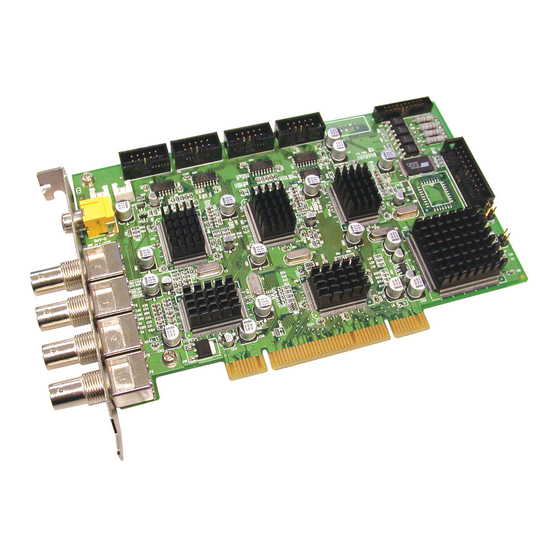

Avermedia NV 3000 User Manual

Digital video recording system
Hide thumbs Also See for NV 3000:
Table of Contents

Advertisement

Quick Links

®
AVerMedia
NV 3000/5000/6000/7000/7000H
Digital Video Recording System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avermedia NV 3000

Summary of Contents for Avermedia NV 3000

  • Page 1 ® AVerMedia NV 3000/5000/6000/7000/7000H Digital Video Recording System User Manual...

  • Page 3: Fcc Notice

    FCC NOTICE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial, industrial or business environment.
  • Page 4 The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ..........1 NV3000 Package......................1 NV5000 Package......................1 NV6000 Package......................1 NV7000 Package......................2 NV7000H Package .......................2 OSD kit (optional) ......................2 NV3000 Card Parts.......................3 NV5000 Card Parts.......................3 NV6000 Card Parts.......................3 NV7000 Card Parts.......................4 NV7000H Card Parts....................4 IR USB Receiver Part & Connection................4 Manual Conventions.....................4 CHAPTER 2 HARDWARE INSTALLATION ......
  • Page 6 2.6.1 Installing (1) NV7000 and I/O card .........12 Installing (4) NV7000 ............13 2.6.2 Installing (2) NV7000 and (2) I/O cards ........13 2.6.3 NV7000H Hardware Installation ...............14 Installing (1) NV7000H and I/O card ........14 2.7.1 2.7.2 Installing (2) NV7000H ............14 2.7.3 Installing (2) NV7000H and (2) I/O cards........15 Connecting the Watchdog line................16 2.8.1...
  • Page 7 Setting Up and Using the Emap ...............33 To Set Up the Emap ............33 4.7.1 4.7.2 To Use the Emap.............34 To Cut and Save the Wanted Portion of the Recorded Video ......35 To Bookmark a Section of the Video ..............35 4.10 To Search Using the Visual Search ..............36 4.11 To Search Using the Event Search..............36 4.12 To Search Using the Intelligent Search ............37 4.13 To Setup the PTZ camera .................37...
  • Page 8 5.9.9 To Setup Alarm SOP: ............59 5.9.10 To Setup CMS Setting ............59 5.9.11 To Setup POS Keyword Setting ..........59 5.9.12 Missing and Suspicious Object Detected .........60 5.10 User Setting.......................61 CHAPTER 6 BACKUP VIDEO PLAYERS ......63 Familiarizing QLogViewer Buttons ..............63 Familiarizing the Player Buttons ...............64 CHAPTER 7 USING FUNCTIONAL KEYS ......
  • Page 9 LIMITED WARRANTY....................94...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction AVerMedia AVerDVR is a 32-bit PCI video capture card that works as a digital video surveillance system. It enables you to capture true color images and real-time videos from 4 up to 16 camera inputs simultaneously. With the latest Motion Detection technology, you no longer need to monitor every single moment of the day;...

  • Page 12: Nv7000 Package

    NV3000/5000/6000/7000/7000H User Manual NV7000 Package NV7000 package includes the following: (1) NV7000 (4) I/O cable (7) Installation CD (2) I/O card (5) 30cm Watchdog line (8) Quick Guide (3) AV cable (6) 20cm Video signal line NV7000H Package NV7000 package includes the following: (1) NV7000H (4) I/O cable (7) Installation CD...

  • Page 13: Nv3000 Card Parts

    Chapter 1 Introduction NV3000 Card Parts TV out link connector Audio pin TV out port I/O connector Reset pin video in ports Watchdog pin NV5000 Card Parts Video extension card connectors Display card connector TV out link Audio connector connector TV out port I/O connector Reset pin...

  • Page 14: Nv7000 Card Parts

    NV3000/5000/6000/7000/7000H User Manual NV7000 Card Parts TV out link connector I/O connector Watchdog pin Reset pin TV out port D-type AV IN port NV7000H Card Parts TV out link connector Watchdog pin Reset pin TV out port I/O connector D-Type AV IN port IR USB Receiver Part &...

  • Page 15: Chapter 2 Hardware Installation

    For AVerMedia Security Product Hardware Recommendation list update, go to http://www.avermedia.com/nvd/hardware-recom.asp. 2.2 NV3000/5000/6000/7000 Hardware Combinations AVerMedia NV DVR provides powerful surveillance functions and flexible hardware combinations. The table shows the numbers of camera inputs, audio inputs, sensor inputs and relay outputs on different hardware combinations.
  • Page 16 NV3000/5000/6000/7000/7000H User Manual NV3000 hardware combinations: Hardware Combinations Camera Audio Sensor Relay Input Input Input Output NV3000 Card I/O Audio Card NV3000 hardware combinations: Hardware Combinations Camera Audio Sensor Relay Input Input Input Output NV3000 Card I/O Audio Card NV5000 hardware combinations: Hardware Combinations Camera Audio...
  • Page 17 Chapter 2 Hardware Installation NV7000 hardware combinations: Hardware Combinations Camera Audio Sensor Relay Input Input Input Output NV7000 Card IO Card NV7000H hardware combinations: Hardware Combinations Camera Audio Sensor Relay Input Input Input Output NV7000H Card IO Card...

  • Page 18: Nv3000 Hardware Installation

    NV3000/5000/6000/7000/7000H User Manual 2.3 NV3000 Hardware Installation 2.3.1 Installing (1) NV3000 and (1) I/O Audio cards (optional) The I/O audio card is an optional item. The D-type I/O port receives and transmit signal from the I/O box where the sensor and relay device are connected to it, while the audio input port receives the signal from the mic.

  • Page 19: Installing (4) Nv3000 Cards

    Chapter 2 Hardware Installation 2.3.3 Installing (4) NV3000 cards 1. Remove the PC case cover. 2. Remove 4 brackets that cover the PCI slots. Save the screws. 3. Connect the (4) NV3000 cards with the supplied 20cm video signal line. 4.

  • Page 20: Installing (1) Nv5000 And (3) Bnc Video Extension Cards

    NV3000/5000/6000/7000/7000H User Manual 1. Remove the PC case cover. 2. Remove 2 brackets that cover the PCI slots. Save the screws. 3. Connect the NV5000 card and I/O Audio card with the connection cables. 4. Press the cards into the PCI slots firmly. 5.

  • Page 21: Installing (1) Nv5000, (1) I/O Audio (Opt.) And (1) Bnc Video Extension (Opt.) Cards

    Chapter 2 Hardware Installation 2.4.4 Installing (1) NV5000, (1) I/O Audio (opt.) and (1) BNC video extension (opt.) cards 1. Remove the PC case cover. 2. Remove 3 brackets that cover the PCI slots. Save the screws. 3. Connect the NV5000 card, BNC video extension card and I/O Audio card with the connection cables.

  • Page 22: Nv6000 Hardware Installation

    NV3000/5000/6000/7000/7000H User Manual 2.5 NV6000 Hardware Installation The NV6000 can support up to 16 cameras and 8 audio input. 2.5.1 Installing (1) NV6000 and I/O card 1. Remove the PC case cover. 2. Remove 2 brackets that cover the PCI slots. Save the screws. 3.

  • Page 23: Installing (4) Nv7000

    Chapter 2 Hardware Installation 2.6.2 Installing (4) NV7000 1. Remove the PC case cover. 2. Remove 4 brackets that cover the PCI slots. Save the screws. 3. Connect the (4) NV7000 cards with the supplied 20cm video signal line. 4. Press the cards into the PCI slots firmly. 5.

  • Page 24: Nv7000H Hardware Installation

    NV3000/5000/6000/7000/7000H User Manual 2.7 NV7000H Hardware Installation The supplied AV connection cable provides up to 16 cameras and 8 audio input. 2.7.1 Installing (1) NV7000H and I/O card Remove the PC case cover. Remove 2 brackets that cover the PCI slots. Save the screws. Connect the NV7000 card and I/O card with the connection cable.

  • Page 25: Installing (2) Nv7000H And (2) I/O Cards

    Chapter 2 Hardware Installation NV7000H card 1 NV7000H card 2 NV7000H Card 1 Card 2 TV OUT TV OUT 2.7.3 Installing (2) NV7000H and (2) I/O cards Remove the PC case cover. Remove 4 brackets that cover the PCI slots. Save the screws. Connect the (2) NV7000H cards with the supplied 20cm video signal line.

  • Page 26: Connecting The Watchdog Line

    NV3000/5000/6000/7000/7000H User Manual 2.8 Connecting the Watchdog line The NV DVR program constantly monitors its operation. Connecting the NV3000/5000/6000/7000 to the motherboard reset switch panel, enables the unit to restart automatically and reset the system when an error has been detected. If more than one NV3000/5000/7000 card is installed, connect the watchdog line at last card.

  • Page 27: Connecting The Watchdog Line To Nv7000

    Chapter 2 Hardware Installation 2.8.3 Connecting the Watchdog line to NV7000 1. Look for the labeled RESET SW switch lead and connect it to the NV7000 card reset pin. 2. Connect the supplied Watchdog line to the NV7000 card watchdog pin and the other end to the motherboard RESET SW panel.

  • Page 28: Connecting The Cameras, A Tv And Audio Devices To Nv6000

    NV3000/5000/6000/7000/7000H User Manual NV3000/5000 Camera 1 Camera 2 Camera 3 Camera 4 TV OUT RCA cable Television IN 1 IN 2 IN 3 IN 4 3. Connect the audio devices to the Audio input port of the I/O card. NV3000 NV5000 I/O Audio I/O Audio...

  • Page 29: Connecting The Cameras, A Tv And Audio Devices To Nv7000

    Chapter 2 Hardware Installation Camera 1 Camera 2 Camera 3 Camera 4 Camera 5 Camera 6 Camera 7 Camera 8 RCA cable Television NV6000 TV OUT AV connection cable MIC 1 MIC 2 MIC 3 MIC 4 Camera 9 Camera 10 Camera 11 Camera 12 Camera 13 Camera 14 Camera 15 Camera 16 AV connection cable...

  • Page 30: Connecting The Cameras, A Tv And Audio Devices To Nv7000H

    NV3000/5000/6000/7000/7000H User Manual Camera 1 Camera 2 Camera 3 Camera 4 NV7000 TV OUT RCA cable Television MIC 1 MIC 2 MIC 3 MIC 4 AV connection cable If you have installed more than one card, please see the AV connection cable sequence table below: NV7000 Camera Sequence...
  • Page 31 Chapter 2 Hardware Installation Camera 1 Camera 2 Camera 3 Camera 4 Camera 5 Camera 6 Camera 7 Camera 8 RCA cable Television NV7000H TV OUT AV connection cable MIC 1 MIC 2 MIC 3 MIC 4...

  • Page 32: Connecting An External I/O Box To Nv3000/5000 I/O Card

    NV3000/5000/6000/7000/7000H User Manual 2.10 Connecting an external I/O box to NV3000/5000 I/O card The external I/O box is an optional item. It provides four (4) sensor input and three (3) relay output. Connect the male end of the D-type cable to the D-type I/O port of the I/O box and the female end to the D-type port of the I/O card.

  • Page 33: Connecting The Sensor/Relay Device To Nv6000/7000/7000H I/O Card

    Chapter 2 Hardware Installation 2.11 Connecting the Sensor/Relay device to NV6000/7000/7000H I/O card The I/O Audio card enables you to connect (4) sensor inputs and (4) relay outputs. Just connect the external sensor and relay pin directly to the NV6000/7000 I/O card pinhole.

  • Page 34: Connecting Pos (Point Of Sales)

    1A/30VDC 2.13 Connecting POS (Point of Sales) AVerMedia AVerDVR can be integrated with POS system equipment. Connecting the POS equipment to AVerMedia AVerDVR system thru RS232 connection, enables you to view, record and keep track of the items that were sold. You may also select the camera on where to display all the data.

  • Page 35: Chapter 3 Software Installation

    For Windows 2000, make sure the hyper-threading setting is DISABLED from the PC BIOS system. To ensure getting the latest copy of NV DVR software, go and download the updated version from the following site: Worldwide : http://www.avermedia.com/cgi-bin/support_download.asp US/CANADA: http://www.aver.com (click on Support)

  • Page 36: Installing Nv Dvr Software And Drivers In Windows Xp/2000

    NV3000/5000/6000/7000/70000H User Manual Installing NV DVR Software and Drivers in Windows XP/2000 Upon turning the computer on, the system automatically detects the newly installed hardware. When the Found New Hardware dialog box appears, IGNORE it. Remember : It is important to install the NV DVR software first, before installing the drivers.

  • Page 37: Chapter 4 Using The Nv Dvr Software

    Chapter 4 Using the NV DVR Software Running the NV DVR Software To run the application, double-click on your PC desktop or click Start > Programs > DSS > NV DVR . For security purpose, some of the features would require you to enter User ID and Password before it can be accessed.

  • Page 38: Familiarizing The Buttons In Preview/Advanced Mode

    NV3000/5000/6000/7000/7000H User Manual Familiarizing the Buttons in Preview/Advanced Mode (17) (16) (15) (14) (13) (12) (18) (11) (10) Name Function (1) Exit Call up the Logout dialog box. In the logout dialog box, you may do the following: - Click Exit to close the NV DVR program. - Click Login to sign-in in different account.
  • Page 39 Chapter 4 Using the NV DVR Software one of the video in the multiple-screen mode, Left click on the video screen you only want to display. Name Function (4) Record Start/stop video recording. (5) Emap Display the map in each area, and the location of camera/ sensor/ relay and the warning.

  • Page 40: Familiarizing The Buttons In Compact Mode

    NV3000/5000/6000/7000/7000H User Manual Familiarizing the Buttons in Compact Mode To view in Compact mode, click Exit button. In the logout dialog box, click Compact . Name Function (1) Split Screen Select from six (6) different split screen type to view all the Mode camera, or one camera over the other or alongside on a single screen.

  • Page 41: Familiarizing The Buttons In Playback Mode

    Chapter 4 Using the NV DVR Software Familiarizing the Buttons in Playback Mode To switch in Playback mode, click Playback button at the lower right corner of Advanced/Preview mode user interface. (20) (19) (18) (17) (16) (15) (14) (13) (12) (11) (10) Name...
  • Page 42 NV3000/5000/6000/7000/7000H User Manual 1/4X, or 1/8X. Rewind: Wind back the recorded video file. Pause: Briefly stop playing the recorded video file. Play: Play the recorded video file. Faster: Play the recorded video file at the speed of 2x, 4x, or 8x. Next: Go to the next frame.

  • Page 43: Familiarizing The Buttons In Ptz Camera Controller

    Chapter 4 Using the NV DVR Software 4.11) (20) Intelligent Search the changes in the motion detector frame (See also Search Chapter 4.12). 4.6 Familiarizing the Buttons in PTZ Camera Controller (see also chapter 4.13) Name Function (1) Close Exit PTZ camera controller. (2) Setup Configure PTZ cameras.

  • Page 44: To Use The Emap

    NV3000/5000/6000/7000/7000H User Manual 4. When the inserted map appears on the Emap screen, click Edit . You may now drag the camera, sensor, and relay icons to its place on the map. Icons on the map can be relocated anywhere. If you are going to locate the icon on the map to other area, you need to drag the icon to the black pane at the bottom of the Emap screen and then switch to the area on where you want to locate the icon.

  • Page 45: To Cut And Save The Wanted Portion Of The Recorded Video

    Chapter 4 Using the NV DVR Software 3. Click Exit to close Emap screen. To Cut and Save the Wanted Portion of the Recorded Video Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment to set the begin mark.

  • Page 46: To Search Using The Visual Search

    NV3000/5000/6000/7000/7000H User Manual Delete to remove the selected reference mark in the list. Delete All to remove all the reference marks in the list. Exit to close Bookmark dialog box. When the bookmark is protected, the file won’t be overwritten. The protected bookmark file will be deleted when the Delete the recorded data is enable in the System setting .(also refer to...

  • Page 47: To Search Using The Intelligent Search

    Chapter 4 Using the NV DVR Software Then, click OK to start searching. The video search would stop at the frame that matches the condition. To keep on searching click 4. You may also set to search and list all the result. Just check the Output Event List box.
  • Page 48 NV3000/5000/6000/7000/7000H User Manual 2. When the PTZ Setup dialog box appears, select the camera number and check the Use PTZ box. 3. In the Connection Settings section, select the COMPort where the PTZ camera is connected, PTZ ID number and PTZ camera model. Then, click Save to keep the settings.

  • Page 49: Chapter 5 Customizing The Nv Dvr System

    Chapter 5 Customizing the NV DVR System In the Preview/Advanced screen mode, click button to customize your NV DVR. When the NV DVR configuration setup selection appears, select and click the buttons you want to change the setting. System Setting In the System Setting dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting.
  • Page 50 NV3000/5000/6000/7000/7000H User Manual (2) Hard Disk Calculator Estimate the hard disk recording capacity. The result of calculation is a rough value which only for reference. The hard disk record capacity will be varied by the real record quality and complexity of video scene. Click , the hard disk calculator windows will show up.
  • Page 51 Chapter 5 Customizing NV DVR System (7) Configuration Backup a copy of all the settings and allows you to regain the same settings back. To save the current settings, click Export . To replace the settings with the one you have saved, click Import .

  • Page 52: To Set The Pos Setting

    NV3000/5000/6000/7000/7000H User Manual (11) UPS (Uninterruptible Power Supply) Protect the system from damaging, such as power surges or brownouts. This automatically gives time to close the NV DVR properly when the battery backup power has reached the Shutdown when capacity below percentage level setting. The UPS device must be connected to your computer (refer to your UPS user’s guide).

  • Page 53: Camera Setting

    Chapter 5 Customizing NV DVR System (4) Setup… : Set the COM Properties. If you are not sure, please contact your POS service provider. (5) Port Setting : Select the Local or Remote port to where it is connected. Local - select the COM port number which is connected.
  • Page 54 NV3000/5000/6000/7000/7000H User Manual (1) Camera Icons Select the camera number you want to adjust the video setting. To select all the cameras, enable the ALL check box. To select more than one camera, Right click on the camera icon. To select one camera only, Left click on the camera icon. The camera icon turns red when it is selected.

  • Page 55: Recording Setting

    Chapter 5 Customizing NV DVR System Recording Setting In the Recording dialog box, click OK to accept the new settings, click Cancel to exit without saving, and click Default to revert back to original factory setting. (1) Camera Icons Select the camera number you want to set the recording setting. To select all the cameras, enable the ALL check box.
  • Page 56 NV3000/5000/6000/7000/7000H User Manual No Recording The system won’t do any recording. (3) Enable Audio Select to assign the audio channel of the selected camera. You can only assign one audio channel to one camera source. This way you can record both audio and video. An Audio I/O card is required to use this function.

  • Page 57: To Mask/Shield An Area On The Screen

    Chapter 5 Customizing NV DVR System MPEG4 MPEG H264 MJPG Encryption NV 3000 NV 5000 NV 6000 NV 7000 NV 7000H Using the Advanced MPEG4 enables you to encrypt the recorded video that way only the person who knows the password can clearly view the video playback. The file size would become 10 to 30% more.

  • Page 58: To Show And Change The Color Of The Mask

    NV3000/5000/6000/7000/7000H User Manual 5.3.2 To show and change the color of the Mask: 1. Enable the Show Mask check box. 2. In the Color section, select the color and click button. 5.3.3 To Playback Encrypted Video: On Playback, Webcam, and Remote Console video screen, just click and enter the correct password to decrypt and playback the video.

  • Page 59: Schedule Setting

    Chapter 5 Customizing NV DVR System microphone and speakers work before using this feature. If the Talk to Web-Client is disabled, the person in the NV DVR server side can only hear the voice from the client side that is when the WebCam 2-Way Talk button is activated.

  • Page 60: To Set Schedule At A Specific Portion Of Time In That Hour

    NV3000/5000/6000/7000/7000H User Manual Activate NV DVR remote system to access at the set time. After the appointed time, the Network function will be disabled. If the Network function is already enabled, the Network function will not be disabled when the appointed time has ended.
  • Page 61 Chapter 5 Customizing NV DVR System To Backup file: 1. Select the date of the recorded file in the calendar you want to backup. Use buttons to shift the calendar to the left or right. 2. In the table below, click on the blue block to select the recorded file. The blue block turns red when it is selected.

  • Page 62: Sensor Setting

    NV3000/5000/6000/7000/7000H User Manual 9. In CD/DVD Backup, enable/disable Delete file after burning check box to remove the archived file after burning. Click Burn to start and Exit to cancel this process. Sensor Setting The I/O device must be installed to use this function. To Set the Sensor Setting: 1.

  • Page 63: Alarm Setting

    Chapter 5 Customizing NV DVR System exit without saving the setting. Alarm Setting In the Alarm Setting dialog box, click Add to insert and set new alarm setting, click Delete to remove the selected alarm setting, click OK to exit and save the setting, Cancel to exit without saving, and Default to revert back to original factory setting.
  • Page 64 NV3000/5000/6000/7000/7000H User Manual condition for the system to alarm. If the sensor normal status is high, set the sensor condition to low (see chapter 5.7 step #4). Enable/disable the Hard Disk Failed check box, to detect the condition of the hard disk. Enable/disable the POS Keyword check box, to scan the data from the POS if it matches the keyword (see also Chapter...

  • Page 65: To Setup Alarm Relay

    Chapter 5 Customizing NV DVR System Chapter 5.9.7). PTZ preset point Position the PTZ camera based on the preset point setting. To setup click Detail (see also Chapter 5.9.8). Alarm SOP (Standard Operation Procedure) List the instructions to inform the person of what to do when the alarm is activated.

  • Page 66: To Setup Call Out List

    NV3000/5000/6000/7000/7000H User Manual 4. When the Sound Recorder appears, use the record control panel to record, stop, play, rewind and forward. If you want to keep the existing file, click File > Save As… , enter filename and click Save . Make sure you have microphone connected to your PC.

  • Page 67: To Setup Ftp Setting

    Chapter 5 Customizing NV DVR System (1) Mail Server Enter the SMTP Server and port. If your e-mail system requires user identification, enable Authentication check box and enter User ID and Password. (2) Mail To check if it is working, click Test Account button. From: Enter the sender e-mail address.

  • Page 68: To Setup Alarm Recording Setting

    NV3000/5000/6000/7000/7000H User Manual 5. Click OK to exit and save the setting and Cancel to exit without saving the setting. 5.9.6 To Setup Alarm Recording Setting: 1. Beside the Start Recording check box, click Detail . 2. In the Alarm Recording Setting dialog box, select the camera to enable/disable video recording.

  • Page 69: To Setup Ptz Preset Point

    Chapter 5 Customizing NV DVR System 5.9.8 To Setup PTZ Preset Point: Beside the PTZ preset point check box, click Detail . In the Trigger PTZ Preset Setting dialog box, select the PTZ camera number then select the Enable check box. Select the position of the PTZ camera when the alarm is activated and ended.

  • Page 70: Missing And Suspicious Object Detected

    NV3000/5000/6000/7000/7000H User Manual 5.9.12 Missing and Suspicious Object Detected Missing Object Select the certain object on the screen for the system to detect; when the object is disappear or move and the system will alarm. Click OK to exit and save the configuration.

  • Page 71: User Setting

    Chapter 5 Customizing NV DVR System captured image, enable the Show Reference Image check box. The captured image will display on screen. The reference image is sharing with the Missing Object function. Mark the Enable check box to setup the condition. Sensitive: Set the system detects sensitivity.
  • Page 72 NV3000/5000/6000/7000/7000H User Manual After clicking Add or Edit , you may customize the user control setting. OK to exit and accept the setting, and Cancel to exit without saving the setting (1) Authorization level Select the status of the user. Only Administrator-level can access User Setting, and reset the Alarm status when using the Remote Console.

  • Page 73: Chapter 6 Backup Video Players

    Chapter 6 Backup Video Players You can playback the backup files using QLogViewer and Player applications. When you back up the recorded file, QLogViewer and Player applications are automatically included in the backup folder. QLogViewer can only playback one video at a time. It only comes with video segmentation, output segmentation, capture screen shot, and print the screen.

  • Page 74: Familiarizing The Player Buttons

    NV3000/5000/6000/7000/7000H User Manual Name Function (1) Time Display the file date, time and play speed. (2) File Display the path where the file is located. (3) Playback Begin: Move at the beginning of the recorded video file. Control Buttons Previous: Go back to the previous frame. Slower: Play the recorded video file at the speed of ½x, ¼x, or ⅛x.
  • Page 75 Chapter 6 Backup Video Player Name Function (1) Split Select from six (6) different split screen type to playback the Screen recorded video file of all the camera, or one camera over the Mode other or alongside on a single screen. If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.
  • Page 76 NV3000/5000/6000/7000/7000H User Manual Name Function (14) Visual Search from a specific camera by Date, Hour, Minute, 10 Search Seconds and Second. (See also Chapter 4.10) Search for the next event or changes in the motion detector (15) Find Next frame. You can use this when you are using Intelligent Search or Event Search only.

  • Page 77: Chapter 7 Using Functional Keys

    Chapter 7 Using Functional Keys The NV DVR system provides shortcut keys. The table shows the function keys and descriptions. Function Keys description Display system information Start recording Enable network function Access system settings Switch to playback mode Access E-map setting Access PTZ camera control panel Snapshot Switch to Full Screen...

  • Page 78: Chapter 8 Using The Remote Programs

    Chapter 8 Using the Remote Programs You can use Microsoft Internet Explorer to access NV DVR server by entering the IP address or domain name. To use this feature, make sure that you are connected to the internet and the Network feature is enabled. Accessing this feature for the first time you will be prompted by your browser to install WebCamX.cab, allow the installation and you should be able to connect and login afterwards.

  • Page 79: Familiarizing The Nv Dvr Webcam Buttons

    Chapter 8 Using the Remote Programs Familiarizing the NV DVR WebCam Buttons Right-clicking on the webcam video screen, enables you to start video recording, change video quality, switch camera and enable/disable DirectDraw. (15) (14) (13) (12) (11) (10) Name Function (1) DirectDraw Enhance the video quality.
  • Page 80 NV3000/5000/6000/7000/7000H User Manual Name Function (10) Remote E- Display the NV DVR server Emap screen (see also Chapter 4.7). (11) Remote Change the NV DVR server settings (see also Chapter setup 8.1.1). (12) Select a Initiate PTZ camera controller (see also Chapter 8.2) camera...

  • Page 81: To Setup Remote System Setting

    NV3000/5000/6000/7000/7000H User Manual 8.1.1 To Setup Remote System Setting Click OK to exit and save the setting and Cancel to exit without saving the setting. The setting here applies to Remote DVR only. (10) (11) (12) (13) (14) (1) Camera Name Select the camera you want to adjust the settings.
  • Page 82 NV3000/5000/6000/7000/7000H User Manual Always Recording Record the video from the selected camera and save it to the designated storage path (see also Chapter 5.1 #1). Motion Recording Start recording the video from the selected camera only when the system detects motion. Once a motion is detected, the system automatically saves the previous frames and stop based on the Start Record Prior and Stop Record After settings.

  • Page 83: Familiarizing The Webcam Ptz Buttons

    Chapter 8 Using the Remote Programs Familiarizing the WebCam PTZ Buttons Name Function (1) Direction buttons Adjust and position the focal point of the PTZ camera. Click the center to pan automatically. (2) Select PTZ Choose to enable/disable the PTZ camera. In the Select PTZ dialog box, Select column, click to enable/disable viewing and controlling the PTZ camera.

  • Page 84: Familiarizing The Remote Console Buttons

    NV3000/5000/6000/7000/7000H User Manual Familiarizing the Remote Console Buttons (15) (14) (13) (12) (11) (10) Name Function (1) Exit Close the Remote Console. (2) Volume Enable/disable the sound. (3) Split Select from six (6) different split screen type to playback the Screen recorded video file of all the camera, or one camera over the other Mode...

  • Page 85: To Setup Remote Console Setting

    Chapter 8 Using the Remote Programs Name Function (12) Event Show the record of activities that take place in the system. To filter the records, select and click the option button to only display Event, System, Operation, Network or POS. (13) Capture and save the screen shot either in *.jpg or *.bmp format.

  • Page 86: Using The Remote Playback

    NV3000/5000/6000/7000/7000H User Manual Using the Remote Playback To use this feature, first you need to select the source of the file. In the Select Playback Mode dialog box, choose Local Playback to open the file that is recorded in the Remote Console, and Remote Playback to open the file that is recorded in the NV DVR server.

  • Page 87: Familiarizing The Local Playback Buttons

    Chapter 8 Using the Remote Programs To Make a Selection: 4. Select the date in the calendar. Use buttons to shift the calendar to the left or right. 5. In the table below, click on the blue block to select and open the recorded file. The blue block turns red when it is selected.
  • Page 88 NV3000/5000/6000/7000/7000H User Manual Name Function (1) Split Select from six (6) different split screen type to playback the Screen recorded video file of all the camera, or one camera over the Mode other or alongside on a single screen. If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.

  • Page 89: Familiarizing The Realtime Playback Buttons

    Chapter 8 Using the Remote Programs Name Function (12) Snapshot Capture and save the screen shot either in *.jpg or *.bmp format. (13) Full View in Playback-compact mode. To return, press the right screen button of the mouse or ESC on the keyboard. When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple- screen mode or all.
  • Page 90 NV3000/5000/6000/7000/7000H User Manual Name Function (4) Playback Begin: Move at the beginning of the recorded video file. Control Previous: Go back to the previous frame. Buttons Slower: Play the recorded video file at the speed of ½x, ¼x, or ⅛x. Rewind: Wind back the recorded video file.

  • Page 91: Familiarizing The Download And Playback Buttons

    Chapter 8 Using the Remote Programs 8.4.3 Familiarizing the Download and Playback Buttons Name Function (1) Progress Show the progress of the file being played. You may move the bar to seek at any location of the track. (2) Playback Begin: Move at the beginning of the recorded video file.

  • Page 92: Using Pda Viewer To Access Nv Dvr Server

    NV3000/5000/6000/7000/7000H User Manual Using PDA Viewer to Access NV DVR Server Users can also use a PDA to access the NV DVR through Internet. Make sure your PDA support IE browser and is connected to the internet. To use this feature, you need to install the PDA Viewer software either thru ActiveSync connection or download it from the internet.

  • Page 93: To Install Pda Viewer From The Internet

    Chapter 8 Using the Remote Programs 4. When you are prompted, click Yes to install the application using the default directory. 5. When done, click OK . 8.6.2 To install PDA Viewer from the Internet Make sure you are connected to the internet. 1.

  • Page 94: To Use The Pda Viewer

    NV3000/5000/6000/7000/7000H User Manual 8.6.3 To Use the PDA Viewer 1. Run the PDA-Viewer 5.5 in the Programs. 2. Familiarizing the PDA Viewer buttons. (10) Name Function (1) Connect Hook up to the NV DVR server. Make sure you are connected to internet.
  • Page 95 Chapter 8 Using the Remote Programs 3. To change the video quality, enable/disable audio, and select to display different camera, tap on the video screen longer the pop up menu will appear.

  • Page 96: Chapter 9 Image Verification

    Chapter 9 Image Verification ImageVerification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files. To Run the ImageVerification program 1. Click Start > Programs > DSS > ImageVerification . 2.

  • Page 97: Chapter 10 Video Enhancer

    Chapter 10 Video Enhancer The bundled Video Enhancer is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the wanted portion of the video, zoom in and out the image, and print or save the screen shot.
  • Page 98 NV3000/5000/6000/7000/7000H User Manual Name Function (9) Default Set the video back to original state and delete all the changes in the history box. (10) History Box List all the actions. (11) Undo Delete the last action. (12) Noise Adjust the softness and repair the damaged colours. Reduce Improve the overall image by enhancing edges.

  • Page 99: Chapter 11 Web Tools

    Chapter 11 Web Tools The bundled Web Tools includes Dispatch Server and Remote Backup program. To install Web Tools, place the CD into the CD-ROM drive then click Install Web Tools . 11.1 Dispatch Server Dispatch is designed to reduce the network traffic of the NV DVR server. Instead of connecting directly to the NV DVR server, the client can connect to the computer that is connected to the NV DVR server using the Dispatch program.
  • Page 100 NV3000/5000/6000/7000/7000H User Manual 1. Make sure you are connected to the internet. 2. In the Server Setting section, enter the NV DVR server IP, port, user ID, password and click Connect . 3. Select the Backup mode. In Auto Backup mode: In Begin Date drop down calendar, select the date from where to start.

  • Page 101: Chapter 12 Using The Remote Control Server

    Chapter 12 Using the Remote Control Server The bundled Remote Control Server enables the PC with Central Management System program (CM1000) installed in it remotely access the NV DVR server. You many need to manually run this program for CMS access the NV DVR server. To run, click start >...

  • Page 102: Appendix A Registering Domain Names

    Appendix A Registering Domain Names DDNS (Dynamic Domain Name Service) is a data query service mainly used on the Internet for translating domain names into Internet addresses. It allows remote clients to intelligently search dynamic servers without any previous enquiring for servers’...
  • Page 103 Please provide the following user information, Host Name , Password , E-mail , Company , and Country to complete the registration process. Note that Host Name and Domain Name (AVerMedia.avers.com.tw) are the replacement for Internet address while a remote client tends to...

  • Page 104: Limited Warranty

    LIMITED WARRANTY AVerMedia TECHNOLOGIES, Inc. warrants that this product to be free of defects resulting from faulty manufacturing or components under the following terms: WARRANTY LENGTH Labor is warranted for 15 months from the date of purchase. Replacement products will be warranted for the remainder of the 15-month warranty period or 30 days, whichever is longer.
